AVG. SCFM Requirement @ 40 PSI
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Air Tools
• Designed to provide optimal atomization and particle size
• Stainless fluid needle and nozzle are compatible with today’s
advanced coatings
• 600 milliliter acetal cup allows viewing of paint fluid level while
providing chemical resistance and easy cleaning
• In-line 80 mesh filter removes dirt particles from paint,
preventing defects
• Includes adjustable fluid, pattern and air controls
• Designed to provide optimal atomization and particle size
• Stainless fluid needle and nozzle are compatible with
today’s advanced coatings
• 600 milliliter acetal cup allows viewing of paint fluid level
while providing chemical resistance and easy cleaning
• In-line 80 mesh filter removes dirt particles
from paint, preventing defects
• Includes adjustable fluid and pattern controls
• Stainless steel fluid needle and nozzle for corrosion-resistant life
• In-line paint filter removes dirt particles from paint,
preventing defects
• See-through cup allows viewing of paint fluid level
• Includes adjustable fluid, pattern and air controls

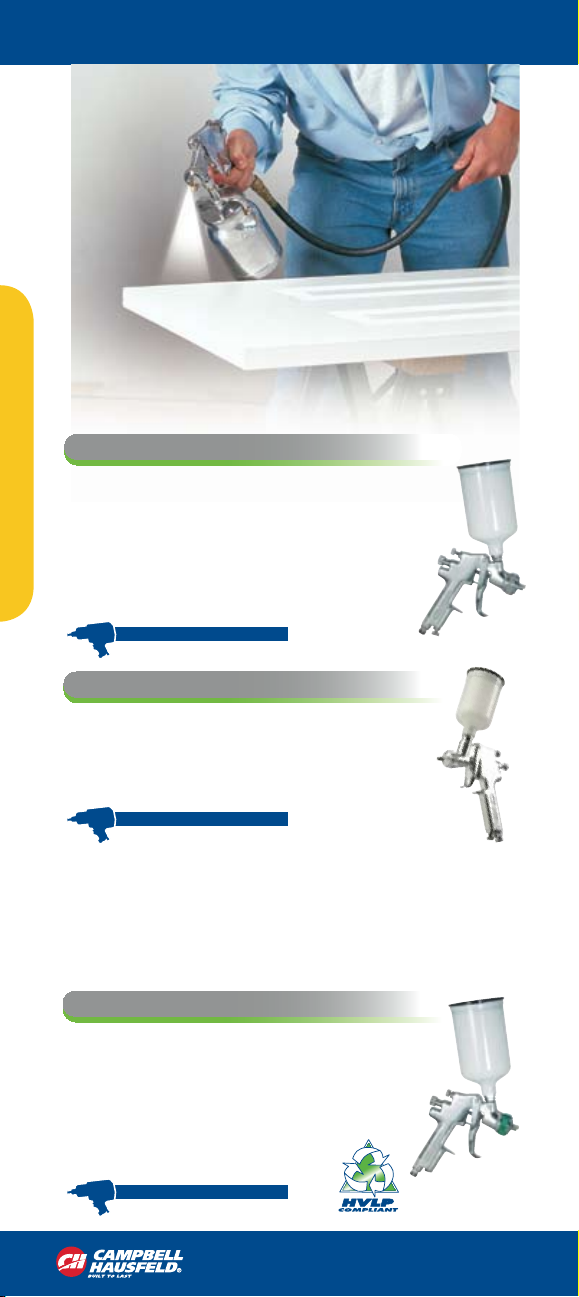

Gravity-Feed Spray Gun DH7800
5.9
HVLP Gravity-Feed Spray Gun DH7900
6.2
Gravity-Feed Touch-up Spray Gun DH7600
2.5
High Volume Low Pressure (HVLP)
Spray guns operate at lower air cap pressures than conventional spray guns (below 10
PSI). Atomized paint from an HVLP spray gun is delivered to the work surface at lower
velocities than conventional spray guns, reducing bounceback and overspray. This results
in a higher transfer efficiency of material, reducing paint consumption by 20-30%.
31
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Or call CH Air Tools at: 1- 800-543-6400
Air Tools
• Great choice in an economical spray gun
• Produces a fine finish for most automotive, furniture
and equipment painting
• Pattern control adjusts fan size
• Includes 1 qt. anti-drip canister
• Designed to provide optimal atomization and particle size
• Stainless fluid needle and nozzle are compatible with
today’s advanced coatings
• Built-in air adjusting valve provides easy adjustment at tool
• Includes 1 qt. anti-drip canister
• Stainless steel fluid needle and nozzle
for corrosion-resistant life
• HVLP increases transfer efficiency and
reduces paint consumption
• In-line paint filter removes dirt particles
from paint, preventing defects
• See-through chemical-resistant cup
allows viewing of paint fluid level
• Includes adjustable fluid and pattern
controls

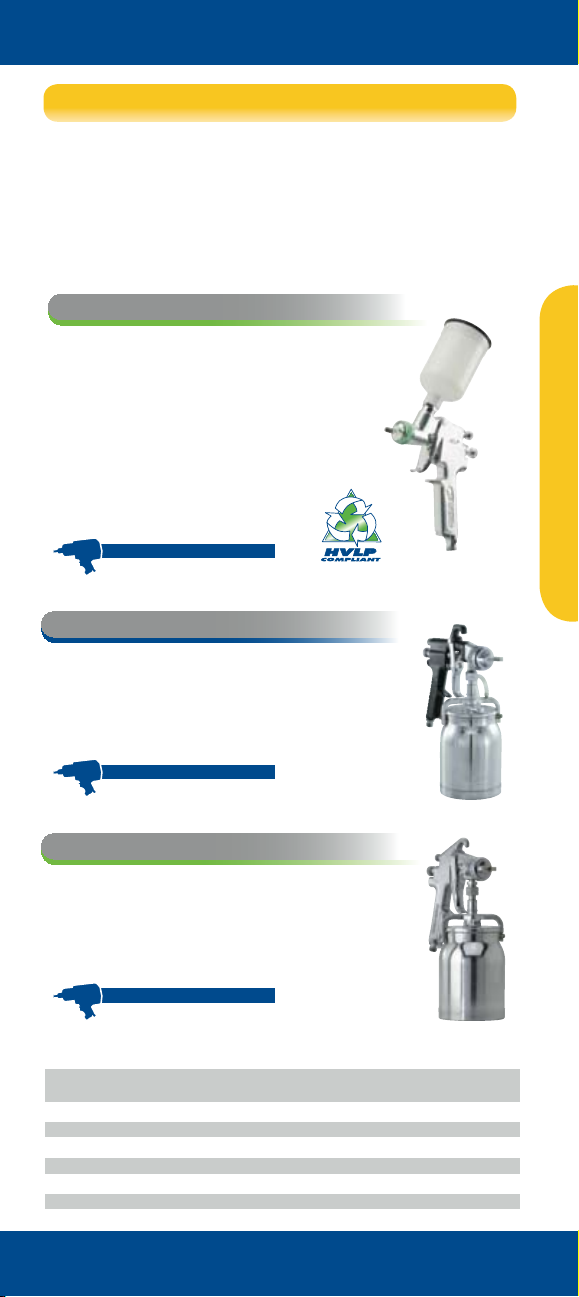

HVLP Gravity-Feed Touch-up Spray Gun
DH7700
2.8
Siphon-Feed Spray Gun DH6500
Siphon-Feed Spray Gun DH7500
7.0
6.3
Model Fluid Fluid tip Paint Viscosity Adjustment Fan Pattern Canister
No. Delivery Type (in./mm) Range Controls Size Size
DH7800 Gravity .055/1.4 Low-Med. Pattern/Material/Air 1.5-11 600 ml
DH7600 Gravity .025/1.0 Low-Med. Pattern/Material/Air .75-6.0 5 oz.
DH7900 Grav./HVLP .055/1.4 Low-Med. Pattern/Material 1.5-10 600ml
DH7700 Grav./HVLP .025/1.0 Low-Med. Pattern/Material .75-5.0 5 oz.
DH6500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1.5-9.5 1 qt.
DH7500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1-10 1 qt..
Spraying offers quality finishes on a consistent basis.
Spray guns offer several advantages over wiping,
brushing or rolling on a paint finish. These include
speed, versatility, control, ease of repair, simplicity and
consistency of application.
Why Use Spray Guns?
Visit us online: www.chpower.com
32
Spray Guns
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Air Tools
4.2
• Pressure-feed design sprays low to high
viscosity materials
• Bleeder design operates with most tankless
air compressors
• Fluid control regulates amount of
paint sprayed

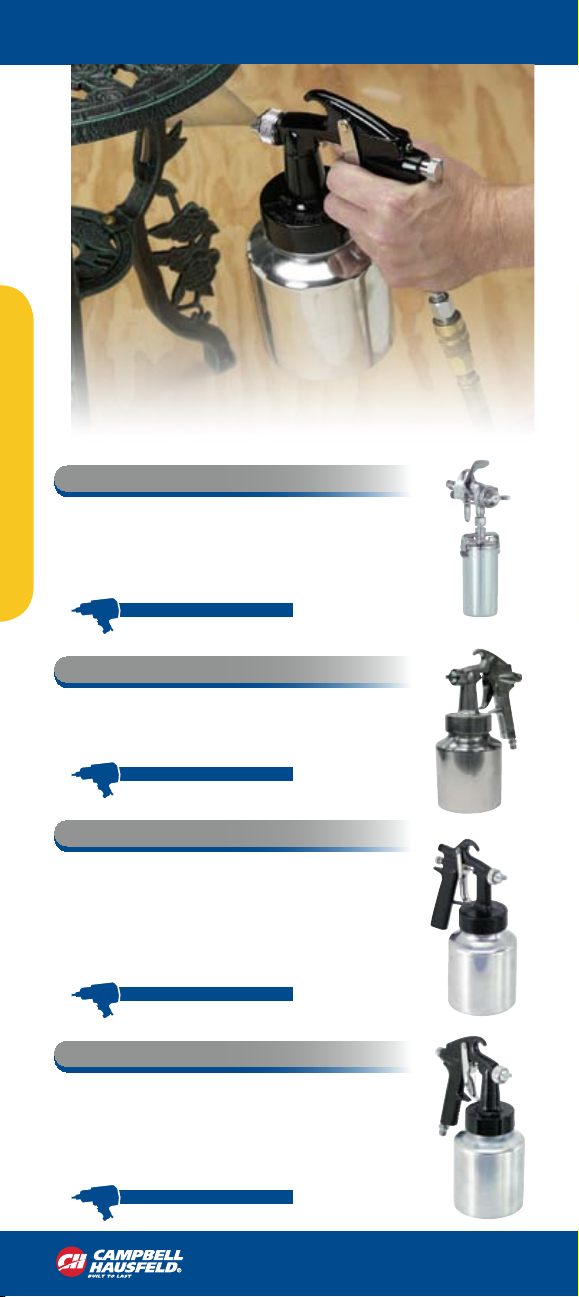

Basic Spray Gun DH3200
• Changes from siphon to pressure-feed for use with a
variety of materials
• Convertible from non-bleeder to bleeder style for use
with standard or tankless air compressors
• Works with paint tanks and remote canisters
General Purpose Spray Gun DH4200
• Pressure-feed design sprays low to high
viscosity materials
• Ball burnished finish allows for easy clean-up
Pressure-Feed Spray Gun DH3800
• Provides full size pattern in a small package
• Nickel plated body provides easy clean-up
• Features both fluid and pattern controls
• Includes 8 fl. oz canister
Siphon-Feed Detail Spray Gun DH5500
2.7
2.0
2.0
33
Spray Guns
Model Fluid Fluid tip Paint Viscosity Adjustment Fan Pattern Canister
No. Delivery Type (in./mm) Range Controls Size Size
DH5500 Siphon .071/1.8 Very Low-Med. Pattern/Material 1.5 -9 8 oz.
DH3800 Pressure .050/1.3 Low-High Material 6.5 1 qt.
DH3200 Pressure .049/1.2 Low-High Material 6.5 1 qt.
DH4200 Pressure/Siphon .050/1.3 Low-High Material 6.5 1 qt.
DH5300 Pressure/Siphon .050/1.3 Low-High Pattern/Material 1- 8 1 qt.
DH6600 Pressure .039/1.0 Low-High Pattern/Material 1-9 2 qt.
MP2900 Siphon .015/0.38 Low Material/Air --- 60cc,22cc,5cc
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
AVG. SCFM Requirement @ 40 PSI
Or call CH Air Tools at: 1- 800-543-6400
Air Tools
• Easily changes from siphon to pressure-feed with the twist
of a knob for use with a variety of materials
• Pattern control adjusts fan size for better results
• Convertible from non-bleeder to bleeder style for use with
standard or tankless air compressors
• Works with paint tanks and remote canisters

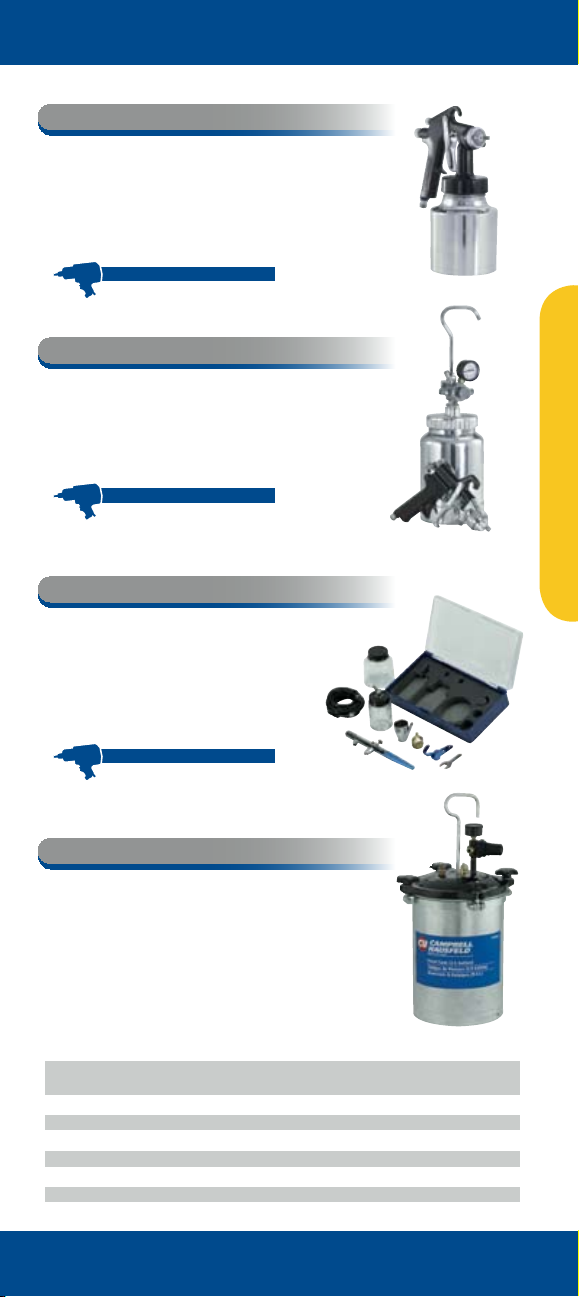

General Purpose Spray Gun DH5300
• Paints fine lines for pin striping, graphics, detail-
ing, modeling, and more
• Dual action trigger allows the user to vary the
line width while spraying
• Includes a protective cap, 22cc cup, 5cc metal
cup, 60cc mix jar with lid, 6’ air hose with
adapter, hanger, and molded case
• Remote canister allows spraying in tight areas for
better maneuverability
• Sprays in any position for added convenience
• Includes 2 qt. pressure canister, regulator and 6’
air and material hoses
Pressure-Feed Spray Gun System DH6600
• Bucket holds 2 1/2 gallons of paint for longer
spraying between refills
• Tank accepts 1 gallon paint can for
added convenience
• Compatible with most paint materials and solvents
• Includes tank pressure regulator, gauge, safety
valve, and 15’ material hose and air hose
2
1/2Gallon Stainless Steel Paint Tank PT2813
Air Brush Set MP2900
4.3
.23
7.0
