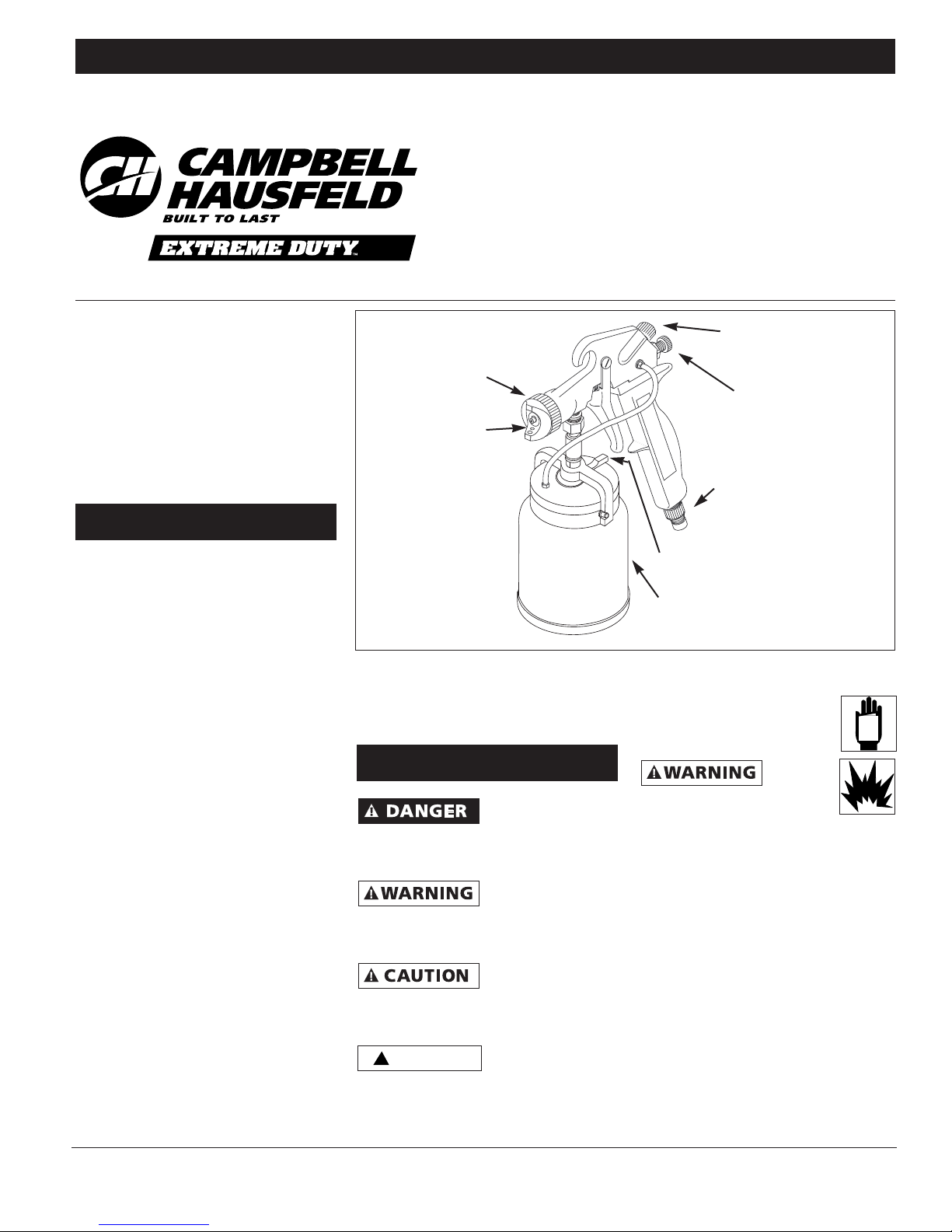

Operating Instructions and Parts Manual

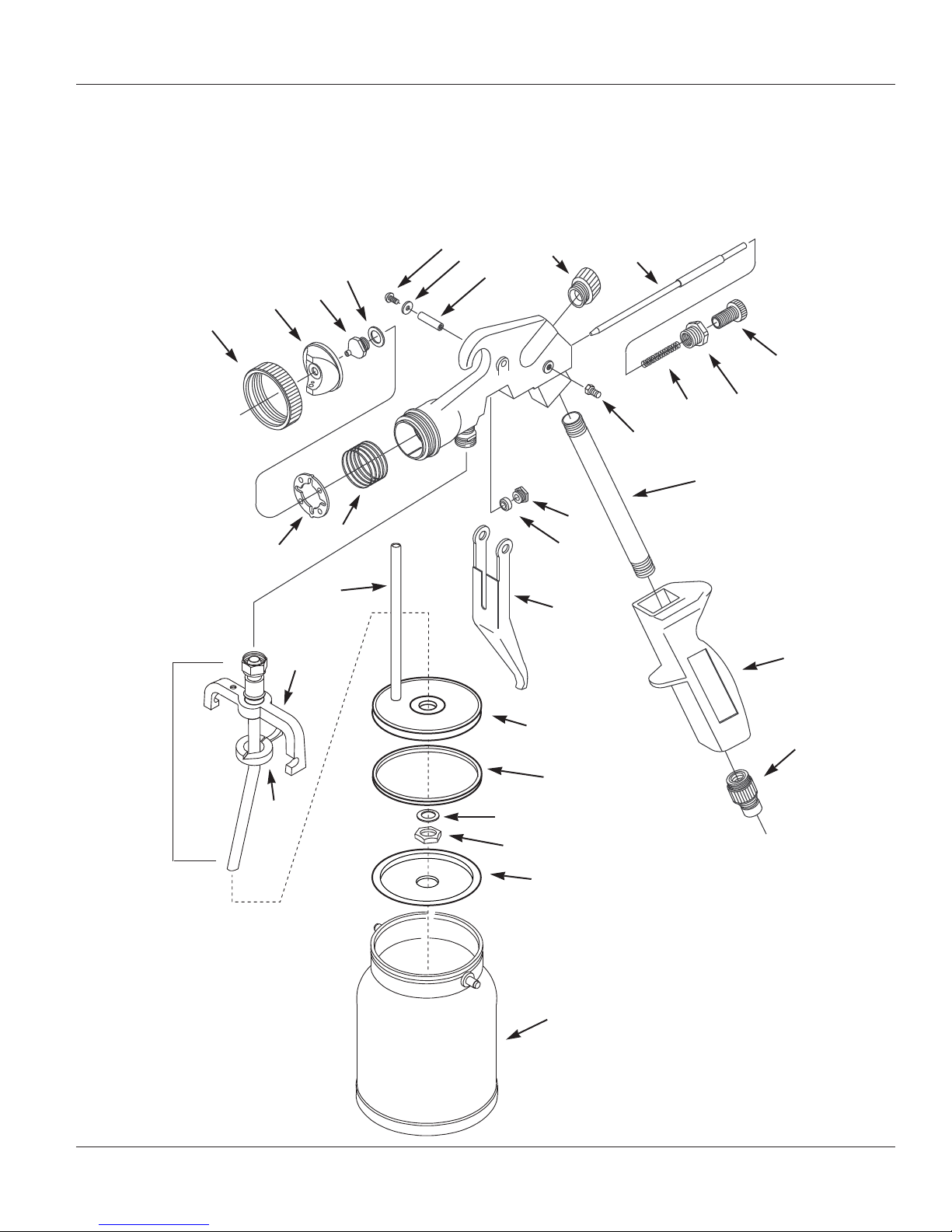

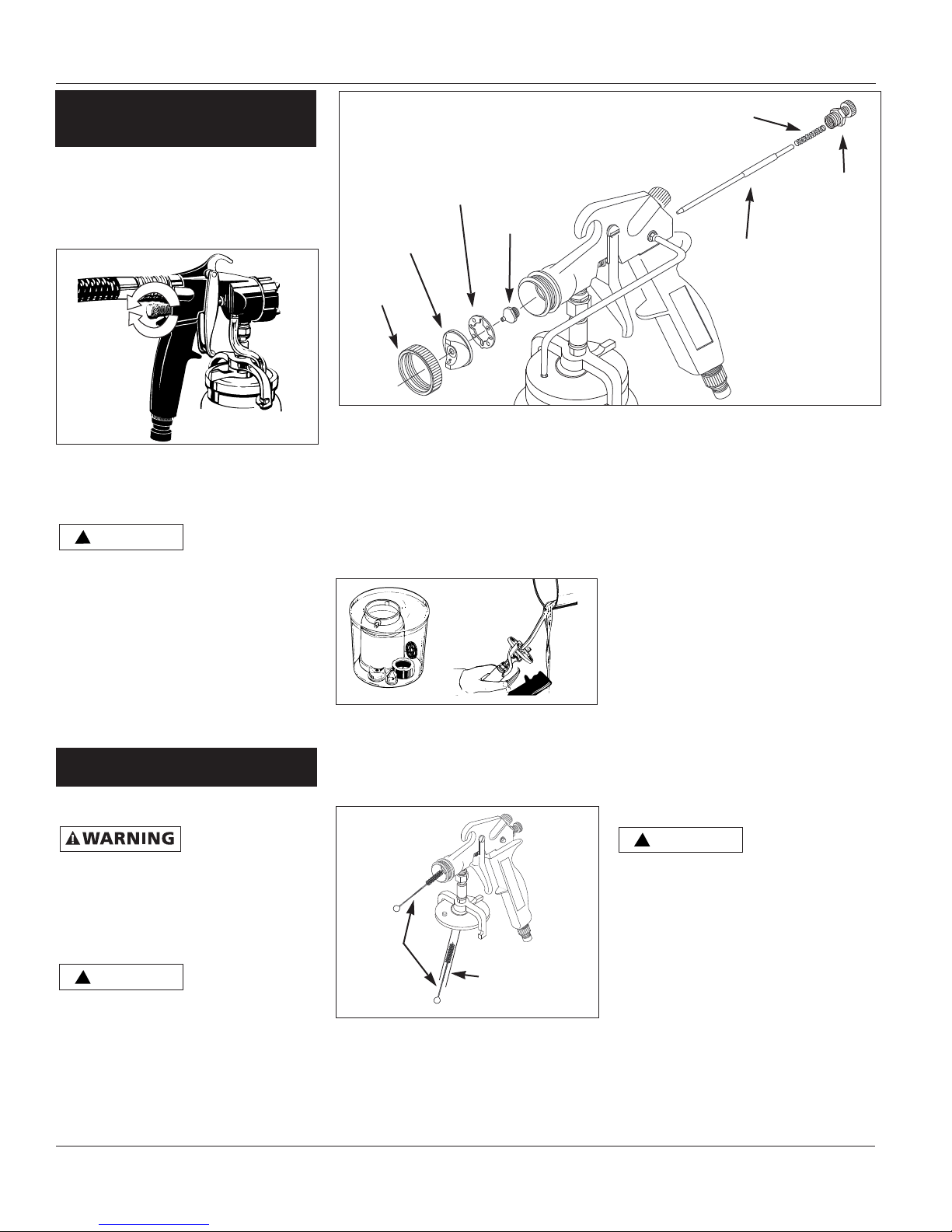

Replacement Parts List
1Retaining Ring HV104504AV 1
2 Aircap HV104505AV 1
3 1.00 mm Needle/Nozzle Set HV104521SV 1
4 Nozzle Gasket HV104524AV 1
5 Air Flow Ring HV104511AV 1
6 Aircap Spring HV104512AV 1
7 Trigger Pin Kit (incl. #7 (2) & #9 (1)) HV104509AV 1
8 Trigger Washer HV104508AV 2
9 Trigger Pin Incl. in #7
10 Port Plug HV104001AV 1
11 1.00 mm Needle Inc. in #3
12 Material Adjustment Knob HV104502AV 1
12a Adjuster Insert HV104503AV 1
13 Needle Spring HV104513AV 1
14 Pressure Tube Fitting HV004700AV 2
15 Handle Tube HV104501AV 1
16 Handle HV103800AV 1
17 Quick Connect Fitting HV103901AV 1
Ref
No. Description Part Number Qty
18 Packing Nut HV104515AV 1
19 Packing HV104514AV 1
20 Trigger HV104507AV 1
21 Pressure Tube HV006201AV 1
22 Canister Lid DH962100AV 1
23 Canister Seal SK206401AJ 3
24 Nylon Washer ST077903AV 1
25 Canister Nut DH077800AV 1
26 Check Valve HV004400AV 1
27 Canister DH077900AV 1
28 Lever DH962400AV 1
29 Yoke Assembly DH962300AV 1
30 Material Tube Assembly DH077300AV 1
Wrench HV104525SV 1
Canister Assembly (incl. #22 - #30) SK205800AJ 1
Pressure Tube Fitting Kit (incl. #14 & #21) SK105100AJ 1
Air Flow Control Assembly HV011301SV 1
.75 mm Needle/Nozzle Set HV104520SV 1
Limited Warranty
1.DURATION: From the date of purchase by the original purchaser as follows: Standard Duty Paint Application Systems and all Paint Application
Accessories - 1 year, Serious Duty Paint Application Systems - 3 years, Extreme Duty Paint Application Systems - 5 years.
2.WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld/A Scott Fetzer Company, 100 Production Drive, Harrison, Ohio, 45030,
Telephone: 1-800-626-4401.
3.WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale or rental) of the Campbell Hausfeld
Product.
4.WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: All non-compressor driven paint application systems, HVLP spraying systems, and paint
application accessories supplied or manufactured by the Warrantor.
5.WHAT IS COVERED UNDER THIS WARRANTY: Defects in material and workmanship which occur within the duration of the warranty period.
Warrantor will also cover normal wear items for a period of thirty days from the date of original purchase against defects in material and
workmanship. These wear items are: HVLP-filters, motor brushes, gun packing, gun canister seal, gun check valve and gun air flow ring; Airless-
inlet valve, outlet valve, gun valve, filters, tips, all seals and o-rings.
6. WHAT IS NOT COVERED UNDER THIS WARRANTY:
A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF
ORIGINAL PURCHASE AS STATED IN THE DURATION. If standard duty product is used for commercial or industrial purposes, the warranty will
apply for ninety (90) days from the date of original purchase. If product is used for rental purposes, the warranty will apply for ninety (90)
days from the date of original purchase. Some states do not allow limitation on how long an implied warranty lasts, so the above limitations
may not apply to you.
B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE , OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR
MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
C. Any failure that results from an accident, purchaser’s abuse, neglect or failure to operate products in accordance with instructions provided in
the owner’s manual(s) supplied with product. Accident, purchaser’s abuse, neglect or failure to operate products in accordance with
instructions shall also include the removal or alteration of any safety devices. If such safety devices are removed or altered, this warranty is
void.
D. Normal adjustments which are explained in the owner’s manual(s) provided with the product.
E. Items or services that are normally required to maintain the product: HVLP-filters, motor brushes, gun packing, gun canister seal, gun check
valve and gun air flow ring; Airless-inlet valve, outlet valve, gun valve, filters, tips, all seals and o-rings., or any other expendable part not
specifically listed, will only be covered for thirty days from date of original purchase.
7. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor’s option, products or components which are
defective, have malfunctioned and/or failed to conform within duration of the warranty period.
8. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:
A. Provide dated proof of purchase and maintenance records.
B. Deliver or ship the Campbell Hausfeld product or component to the nearest Campbell Hausfeld Authorized Service Center. Freight costs, if
any, must be borne by the purchaser.
C. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
9. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY:
A. Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the
availability of replacement parts.
B. If the purchaser does not receive satisfactory results from the Authorized Service Center, the purchaser should contact Campbell Hausfeld (see
paragraph 2)
This Limited Warranty applies in the U.S. and Canada only and gives you specific legal rights. You may also have other rights which vary from
state to state, or country to country.
Ref
No. Description Part Number Qty
