Camsoy Smart Life Camera C6 Bedienungsanleitung
Smart Life Camera C6
User Manual
Please read user manual before using
Product Details
1.Download APP
Scan QR Code or search keyword “iCookyCam” to download and installation APP from application
market.
Android ios
Warm Prompt: Don't use WeChat scan the QR code, Please use browsers, mobile QQ or other
tools to scan.
2.Power ON / Power OFF Operation
2.1 Insert Micro SD Card:Class10 or above is recommended.Maximum support 64GB,
Please format memory card before using.
Warm Prompt: Pay attention to the direction of memory card!
2.2 Power ON: Connect the camera to power supply or long press confirmation button for 3
seconds, Red & Blue indicator keeps on and then alternate scintillation, camera starts to
initialize(it takes around 60 seconds). After initialization succeed Blue indicator flashes slowly,
camera enters AP connection mode and starts recording automatically. Press confirmation button
once to stop video recording, blue indicator keeps on and the camera turns to standby mode.
Warm Prompt:
1.If you want to power on without connecting to the USB charger, make sure that the camera has
enough power!
2.If after initialization succeed red indicator flashes slowly, show that the machine is in the IP
Confirmation
Indicator
Lens
Micro-SD Slot
Mic
USB Port
Reset
connection mode, please double click confirmation button to return to AP connection mode and
blue indicator flashes slowly.
2.3 If the memory card is not inserted, the red and blue indicator flicker at the same time when
the machine is initialized, and the camera can't turn on the video. Memory card does not support
hot swap, if you want to pull off or insert the memory card, Please turn off the camera first.
2.4 Power OFF: long press confirmation button for 5 seconds, Red & Blue indicator flashes for 7
times and turn off.
Warm Prompt: It is not possible to power off the camera through the above operation when USB
power is connected.
3.IP Connection Mode
3.1 After initialization succeed, Switch on Wi-Fi/WLAN, choose iCooky_***** from available
networks and type in password 12345678.(P 3.1)

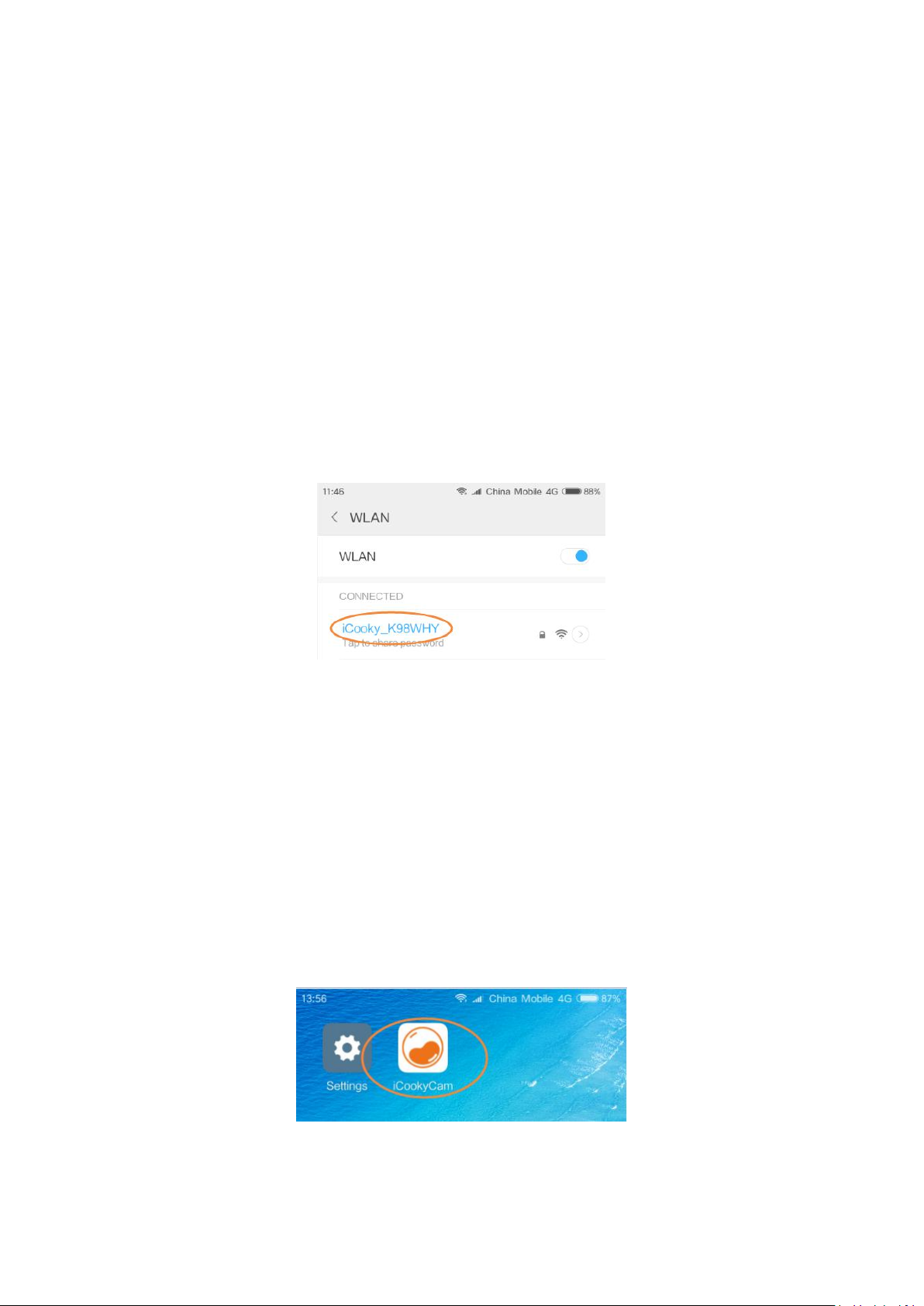

P 3.1 Choose iCooky_*****
Warm Prompt: The effective range of the WiFi signal iCooky_***** sent by the camera is within
10 meters. When the mobile phone exceeds the range, it will be disconnected from the WiFi
signal.
3.2 Log into iCookyCam APP, click the "+" in the middle or below the interface, then choose “Not
been connected to the router”, click “Next” to enter the add device interface, input “ok123456”
in the device password bar and then click “√”, APP will prompt “Connect to the router?”, please
select “Yes” to enter the "Wi-Fi Network" setup interface. Choose the network you want to
connect and input the right Wi-Fi password, then click “Connect”. (P 3.2.1-3.2.7)
Warm Prompt: For your personal privacy, please change the default password of the camera in
time!

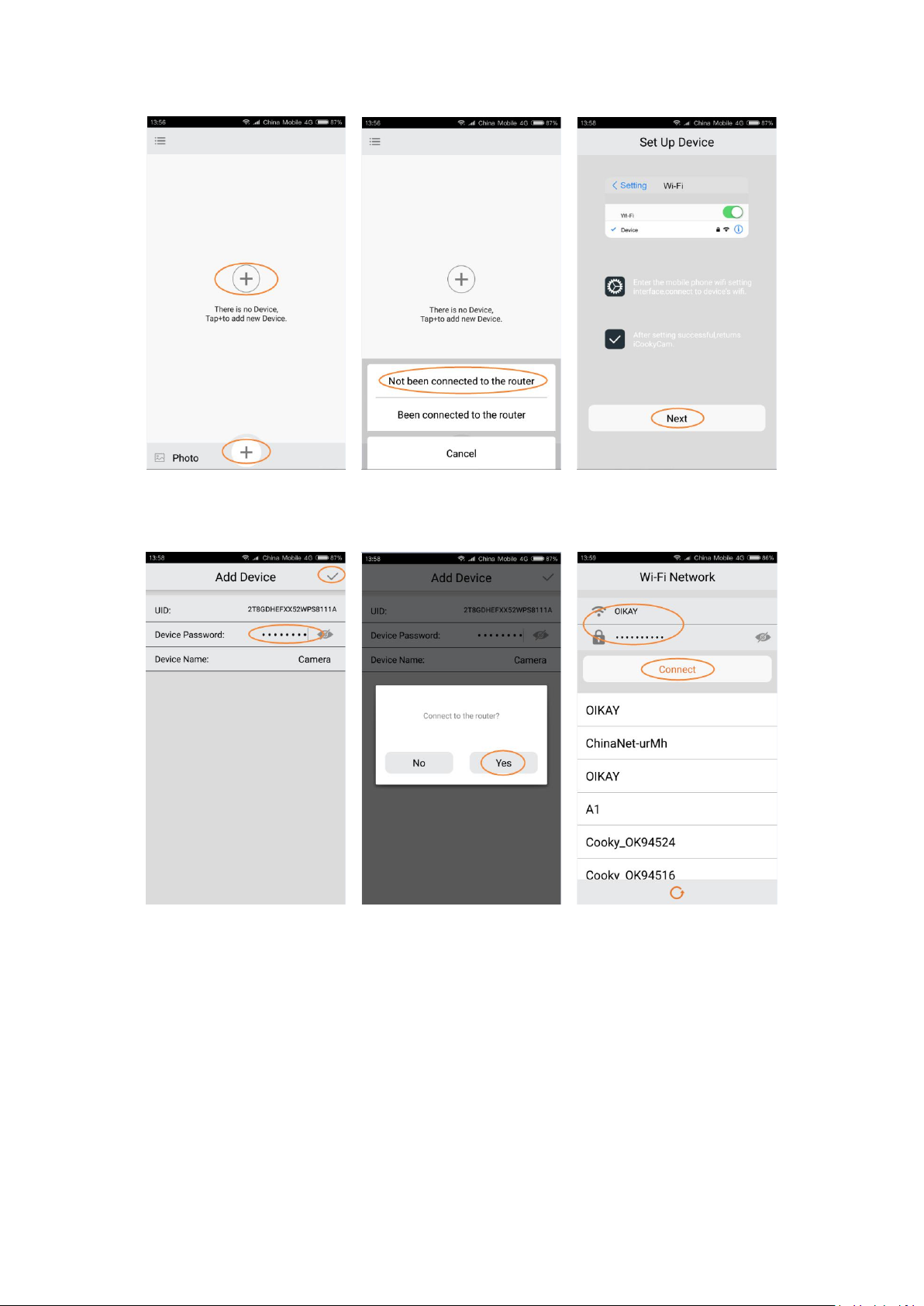

P 3.2.1 Login iCookyCam
P 3.2.2 Click “+” P 3.2.3 Click “Not been P 3.2.4 Click “Next”
connected to the router”
P 3.2.5 Input the default password P 3.2.6 Click “Yes” P 3.2.7 Connect WiFi
Warm Prompt:
1.Please choose the right network and type in correct password. The camera turns to AP mode if
wrong password were typed in, blue indicator flashes slowly in AP mode. Please click Delete on
APP and withdraw from APP, check out APP and add a device again.
2.In order to improve the stability and success rate of WiFi connection, try to be close to the
wireless router.
3.For initial use, the device requires a certain amount of time for IP connection. Please wait
patiently. ( About 1-3 minutes based on network conditions). After the IP connection is successful,
the red indicator flashes slowly. After multiple refresh, if still showing offline, please try to check
the network environment of the device and the mobile phone is good or not.
4.SSID with special characters and 5G network are both not compatible with APP. Only 2.4G
frequency WiFi is supported, 5G frequency WiFi is not supported temporarily, and WiFi
encryption mode can not be WEP mode, and the password can not be empty.
3.3 The camera starts to restart after click “Connect”, Please wait for about 90 seconds, at the
same time, APP automatically returns to the device list interface and successfully adds the
camera to the list. Red indicator flashes slowly after the camera reboots, and the camera turns
into IP connection mode. click the camera in the list to preview image and control the camera.
(P 3.3.1-3.3.2)
P 3.3.1 Device list P 3.3.2 Viewing interface
4.AP Connection Mode
4.1 If you need only AP connections but not IP connections, please select "No" when prompted
"Connect to the router?" in the above P3.2.6 operation steps. APP automatically returns to the
device list interface and successfully adds the camera to the list. Click the camera in the list to
preview image and control the camera.(P 4.1.1-4.1.3)
P 4.1.1 Click “No” P 4.1.2 Device list P 4.1.3 Viewing interface
4.2 To switch from IP connection mode to AP connection mode: Please double click Confirmation
button.
Marks:
AP connection mode: Camera connect to Wi-Fi of smart phone for short distance preview image.
IP connection mode: Camera connect to router for unlimited distance preview image.
5. Add the camera manually
If the camera has been connected to the Internet to work in IP remote mode, when you
want to add the camera to other people's APP, please open APP on the other's phone, click the
"+" in the middle or below the interface, select the "Been connected to the router", and enter to
the” Lan Search” interface. (P 5.1-5.3)
P 5.1 Click “+” P 5.2 Click “Been P 5.3 Lan Search interface
connected to the router”
5.1 Search addition under the same WiFi
If the mobile phone and the camera are connected to the same WiFi, then in the "Lan
Search" interface will automatically search all the camera serial numbers under the WiFi, select
the camera that you need to add, and input device password (the default password is"ok123456")
can be added successfully.(P 5.1.1-5.1.2)

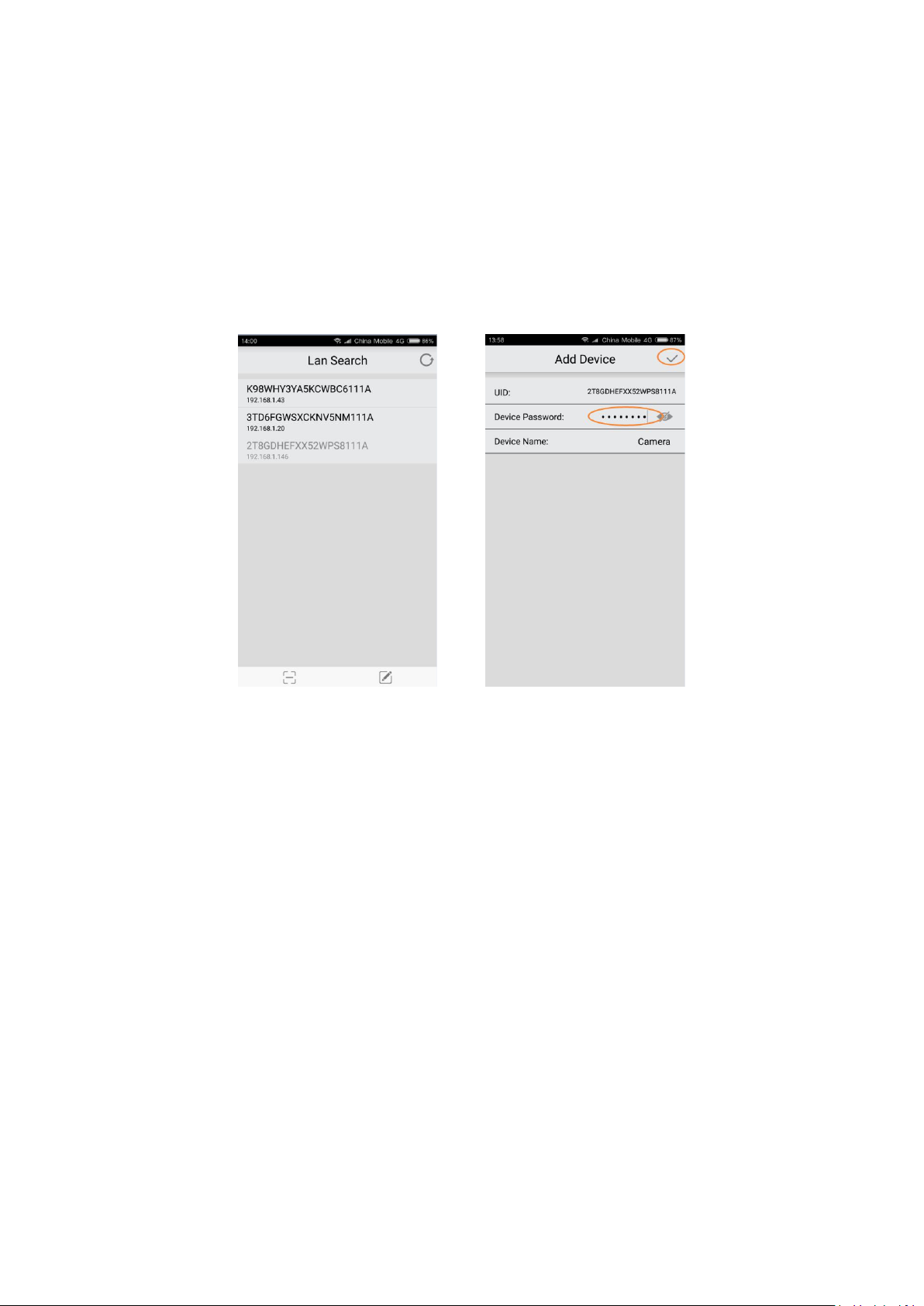

P 5.1.1 Select a camera P 5.1.2 Input the device password
5.2 Scanning QR code addition
Open the APP that has already added the camera, find the camera that needs to be added in
the device list, and click the share button in the lower right corner to automatically generate a
camera QR code. Open the APP on the phone that needs to add the camera, enter the "Lan
Search" interface, click the QR code scan button in the lower left corner to open the scan window,
scan the generated camera QR code, and then input the correct device password to add.
(P 5.2.1-5.2.5)
P 5.2.1 Click QR code button P 5.2.2 Generating QR code
P 5.2.3 Click scan button P 5.2.4 Scan window P 5.2.5 Input the device password
5.3 Manual input addition
Open the APP that needs to add the camera, enter the "Lan Search" interface to select the
manual add button in the lower right corner, and input the correct device UID and password in
the "Add Device" interface to be added successfully.(P 5.3.1-5.3.2)
P 5.3.1 Click Manual addition button P 5.3.2 Input UID&password
6. Interface introduction
6.1 Device list interface
Menu
Device name
Check video and
Photo taken by APP
Add a device
QR code button
6.2 Real-time interface
6.3 Setting interface
7.Reset Device Password
Under standby mode (indicator keeps on), connect the USB power for charge, long press the
confirmation button for 5 seconds, the red and blue indicators flash quickly . The machine will
reboot automatically after successful reset P.W.. It takes about 1 minute, Please wait patiently.
Device name
Resolution display
Listen
Image Flip
Night Vision On / Off
Online / Offline
Time display
Setting
Video Screen
Video On / Off
Full screen
Check video and
Photo taken by APP
Snapshot
Resolution setting
Motion detection setting
Change password
Device information
Wi-Fi setting
Device indicator on/off
Restore factory setting
Time synchronization
Delete Device
