Candy CDG6MBGG Bedienungsanleitung

Instructions

Cooker Hood

Model CDG6MBGG / CDG9MBGG

CAUTION:Accessible parts may become hot when used with cooking appliances.

Information and advice

In certain circumstances electrical appliance may be a danger hazard.

G) Disconnect the electrical plug prior to any maintenance.

F)Constantly check food frying to avoid overheated oil splashing and becoming a

fire hazard.

E)Avoid opening gasometer when there is no pan on the stove, as it is damaging

for the filters and a fire hazard.

D)Do not light a flame under the cooker hood.

C)Do not touch the light bulb within half an hour after appliance has been use.

B)Do not check the status of the filters while the cooker hood is operating.

A) There must be adequate ventilation of the room when the cooker hood is used

at the same time as appliances burning gas or other fuels.

H) Regulations concerning the discharge of air have to be fulfilled.

I) When the range hood and appliances supplied with energy Other than electricity

are simultaneously in operation.The negative pressure in the room must not

exceed 4 Pa (4x10 bar)

¯5

J)If the supply cord is damaged,it must be replaced by the manufacturer,its service

agent or similarly qualified persons in order to avoid a hazard.

K)This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

L)the range hood is inteded to be installed over a hob having no more than four hob

elements.

M) Indoor use and household use only

O) Attention ! Observe the warning in the instruction sheet concerning the operation

of the appliance when air is discharged from the room

N)When the appliance is not in use and before cleaning, unplug the appliance from

the outlet.

CAUTION:Accessible parts may become hot when used with cooking appliances.

Information and advice

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

1.Oil Filter 2.Filter aseembly

3.Air duct assembly 4.Glass

5.Main body assembly

6.Outter chimney

3

4

5

6

1

2

1

2

3

3x 8

3x

8 x 40mm

2x

4 x 35mm

150

250

135 100

MIN350mm MIN350mm

MIN500mm MIN500mm

650mm-750mm

150

135

250

100

4 5

2 x 8

2x

4x35mm

2x

8x40mm

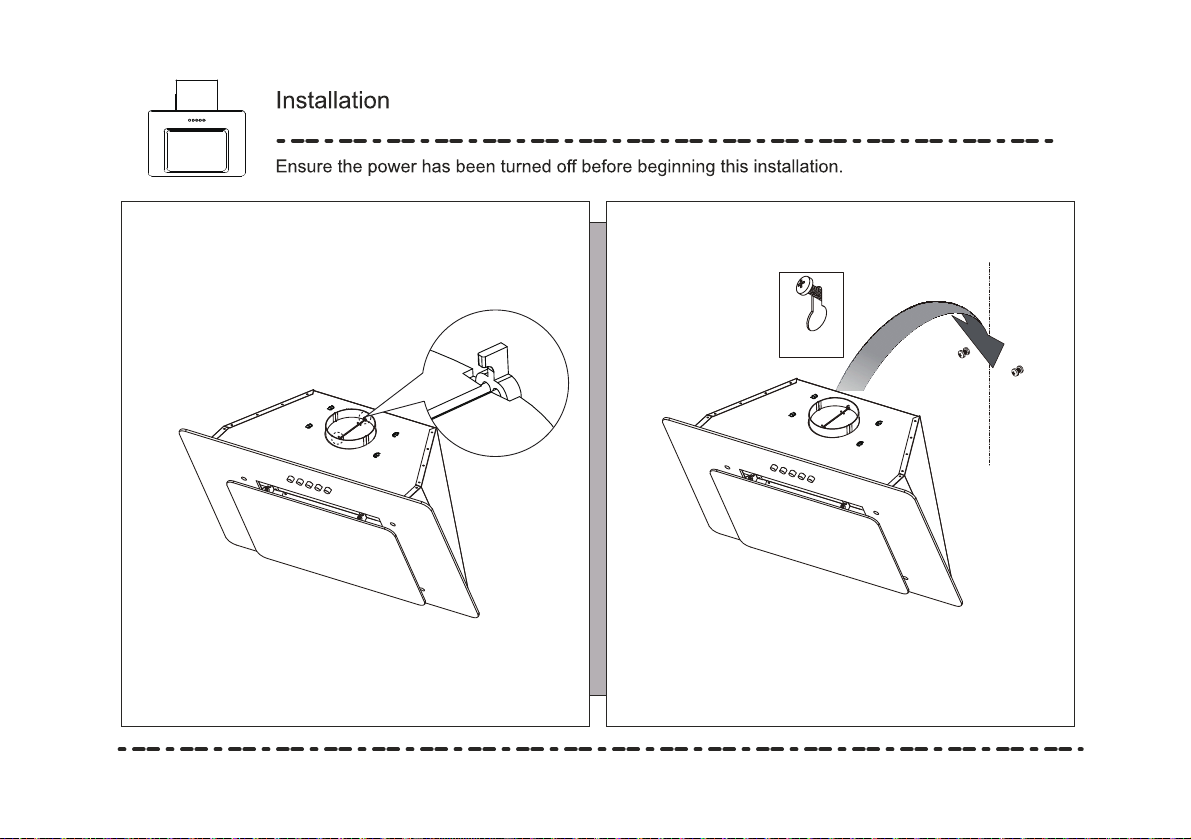

6 7

OK!

8 9

3x

8x40 mm

3x

4x35 mm

OK!

10 11

4x

4x10 mm

Do not

touch the

light bulb

within half

an hour

after

appliance

use.

The lamp

shall not be

covered

with thermal

insulation or

other

material

12
