Thank you for purchasing a Canon product.

The Canon Speedlite

430EX

II is a multi-feature flash unit for Canon

EOS cameras. Itworks automatically with E-TTL II, E-TTL, and TTL

autoflash systems. Itcan be usedas an on-camera flash or as part of a

wireless flash system.

Read this instruction manualwhile also referring to your

camera's instruction manual.

Before usingthe Speedlite, read this instruction manual andyour camera's

instruction manual to familiarize yourself with the Speedliteoperations.

The basic operation is the same as with normalAE shooting.

When the

430EX

II is attached to an

EOS

camera, almost allautomatic

exposure control for flash photography ishandled

the camera.

Although the

430EX

II is an external flash unit, it works automatically and

seamlessly like the camera's built-in flash.

It becomes automatically compatible with the camera's flash

metering mode(E-TTL II, E-TTL, and TTL).

Inaccordance with the camera's flash control system, the Speedlitecontrols

the flash automatically in the respectiveflash metering mode:

E-TTL

autoflash (evaluativeflash metering with preflash readingllens

distance information)

E-TTL

autoflash (evaluative flash metering with preflash reading)

TTL autoflash (off-the-film metering for real-time flash metering)

Regarding the camera's available flash metering modes, refer to the

"External Speedlite"specification in the "Specifications"of your

camera's instruction manual.

Inthe camera instruction manual, cameras having flash metering

modes

are called Type-A cameras

(compatible with E-TTL IIor

E-TTL).And cameras having flash metering mode

(compatible only

with TTL)

are Type-B cameras.

This instruction manual assume that you are using the Speedlitewith a Type-A

camera.

ForType-B cameras, see page

37.

COPY

Contents

Getting Started and Basic Operation

.................................

Using Flash........................................................................ 13

Wireless Flash

..................................................................

Reference

............................................................................

Conventions Used in this Manual

The

<@>

symbol in the text refers to the

+/-

button.

The

<a+)>

symbol in the text refers to the Select1

Setting button.

Theoperation procedures inthis instruction manual assumethat both

the camera and Speedlite's power switches are

ON.

Icons used in the text to indicate the respective buttons, dials, and

settings match the same icons found on the camera and Speedlite.

The

(64)

(66)

(616)

icons indicate that the respective function

remains in effect for

sec.,

sec., or

sec. after you let go of the

button.

Reference page numbers are indicated by (p.**).

This instruction manual uses the following alert symbols:

()

Warning to prevent shooting problems.

Gives supplemental information.

COPY

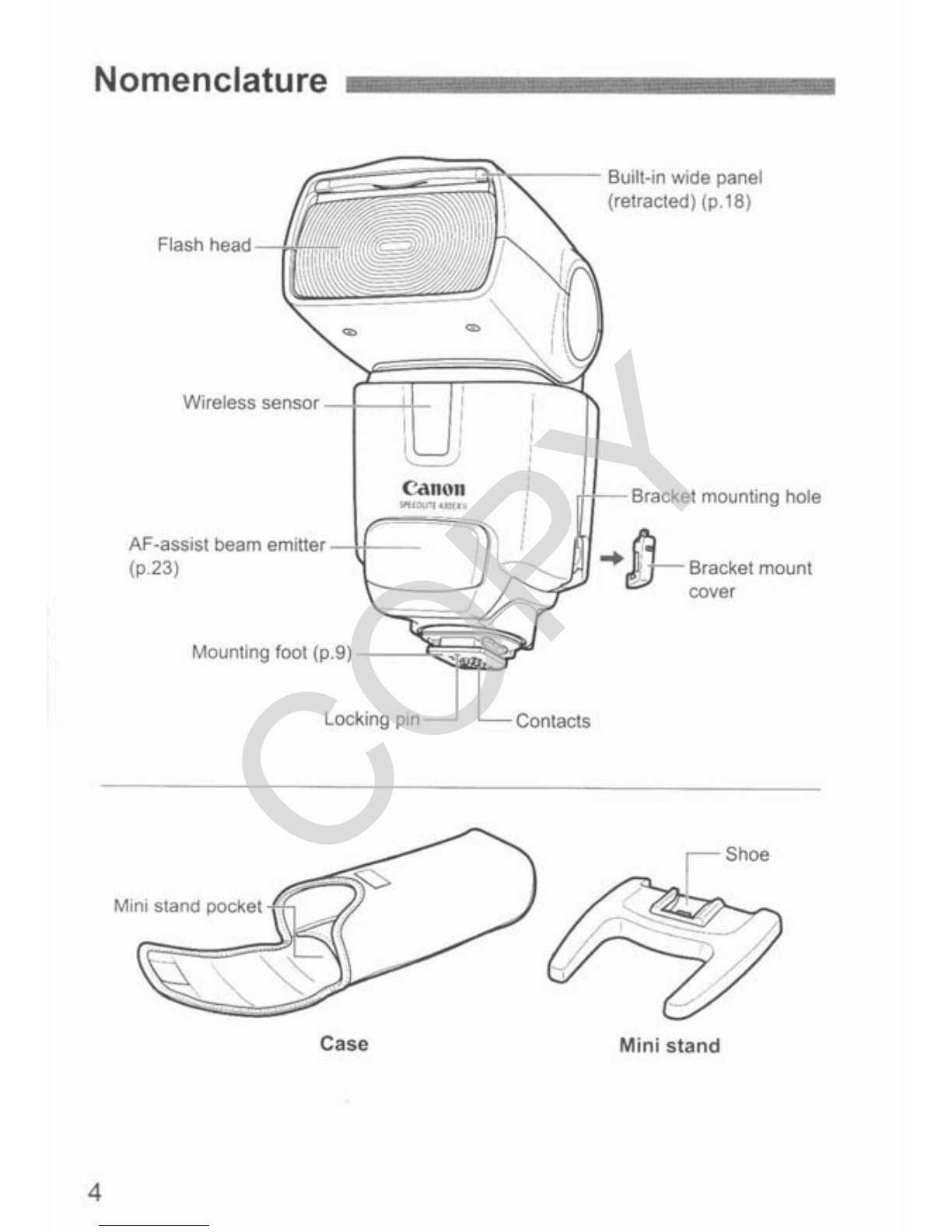

Nomenclature

Built-inwide panel

Flash head

Wireless sensor

Bracket mounting hole

AF-assist beam emitter

(p.23)

Mountingfoot (p.9)

Locking pin

-A

iContacts

Case

Mini

stand

COPY

Bounce angle index

Bounce lock release

<$HID>

High-speed

sync

(FP

flash)/Shutter

Custom Function

setting button(p.6121)

button(p.18/26,29,

30)

Power switch

(p.10)

L<qp>

+i-

button

<MODE>

Flash modeiSlave sett~ngbutton

11, 19/31)

SelectISett~ngbutton

Mountingfoot's lock lever1iLock-release button (p.9)

(P9)

Asterisked buttons havefunctions which remain active for

sec. after you

press and let go of the button. The

<:,0:>

~llurninationlasts for

sec.

COPY

LCD

Panel

Manualflash output level

<&I>

Manualzoom

Flashexposurecompensaq

amount

Max. flash range

Aperture

Custom Function

cM>

Manualflash

<ETTLITTL>.-,

E-TTL(II)/TTLautoflash

Zoomfocal length

Auto zoom

for Imagesensor

size

Flashexposure

compensat~on

<->

CustomFunction

<Ct)>

Second-curtainsync--J Channel

Slaveflash

----A

To illuminate the

LCD

panel, press

the

<:.@:->

button.

The itemsactually displayeddepend

the current settings.

COPY

Getting Started and

Basic Operation

Installingthe Batteries

........................................

Attaching and Detachingthe Flash

.........................

Turning on the Power Switch

................................

FullyAutomatic Flash Shooting

...........................

Using E-TTLII and E-TTLAutoflash in the

........................

Shooting Modes

.................

.....

()

Cautionsfor firing continuousflashes

To avoid overheating and degrading the flash

head, do notfire morethan

continuous

flashes. After

continuousflashes, allow arest

time of at least

min.

Ifyoufire morethan

continuous flashes and

then fire moreflashes inshort intervals,the

inner overheating prevention function may be

activatedto makethe recyclingtime about

sec. Ifthis occurs, allowa rest time of about

min. and the flash will then return to normal.

COPY

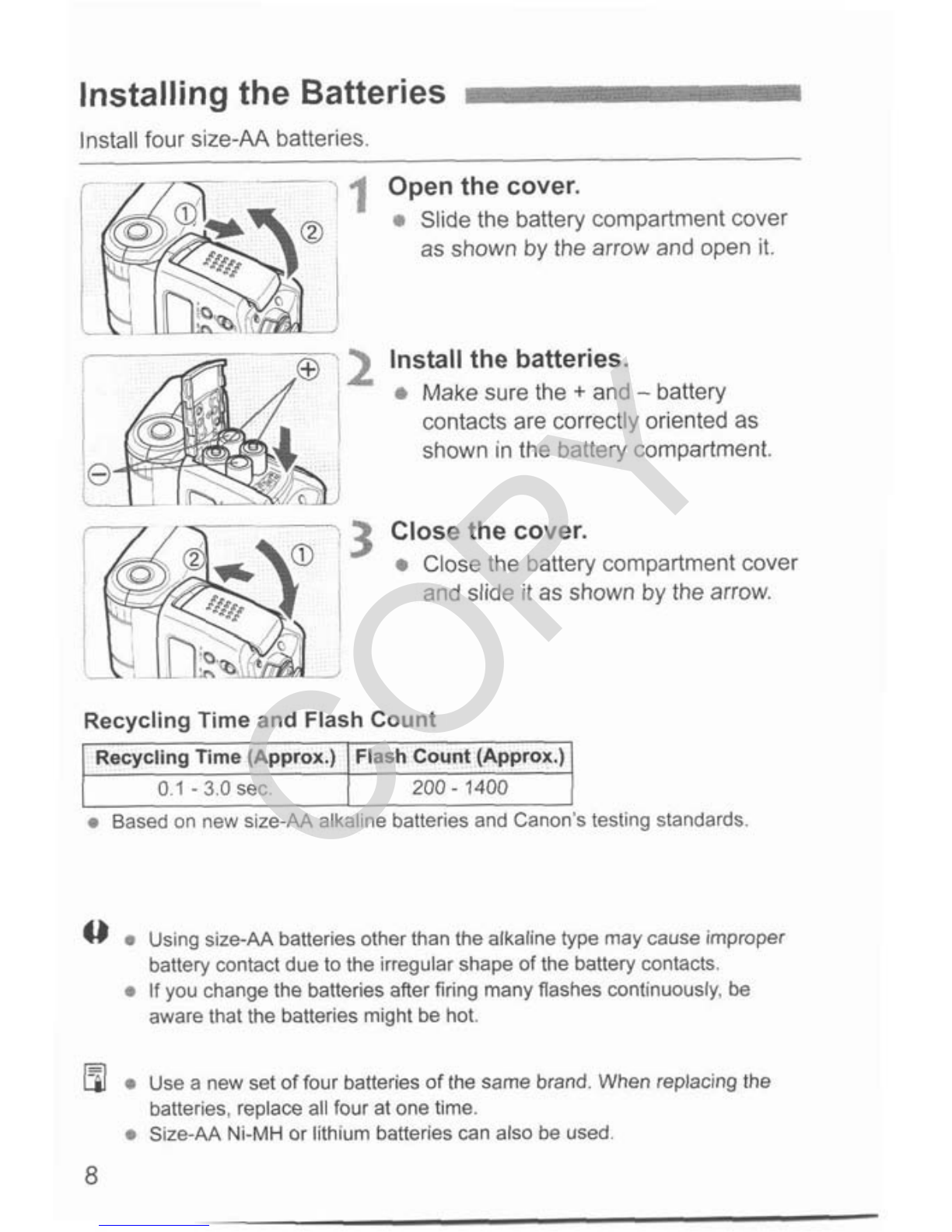

Installing the Batteries

Installfour size-AA batteries.

---I

Open the cover.

Slidethe battery compartmentcover

as shown by the arrow and open

it.

Install the batteries.

Make sure the

and

battery

contactsare correctlyoriented as

shown in the batterycompartment.

--:

Close the cover.

a Closethe batterycompartmentcover

and slide it as shown by the arrow.

Usingsize-AAbatteriesotherthan the alkalinetype may causeimproper

batterycontactdueto the irregularshape of the battery contacts.

you changethe batteriesafterfiring manyflashes continuously,be

awarethat the batteriesmight be hot.

RecyclingTime and Flash

Count

RecyclingTime

(Approx.)

Flash

Count (Approx.)

.Use a new set offour batteriesof the same brand.When replacingthe

batteries,replace all four at one time.

Size-AA Ni-MHor lithium batteriescan also be used

01-30sec

200

1400

Basedon new s~ze-AAalkallne batter~esand Canon'stest~ngstandards
