Wireless Access Point
Article: CNP-WFAP Quick Guide v1.0
Package Contents
1. CANYON CNP-WFAP Main Unit
2. Power Adapter
3. Documentation CD
4. Standing Base
5. Quick Guide
6. Warranty Card

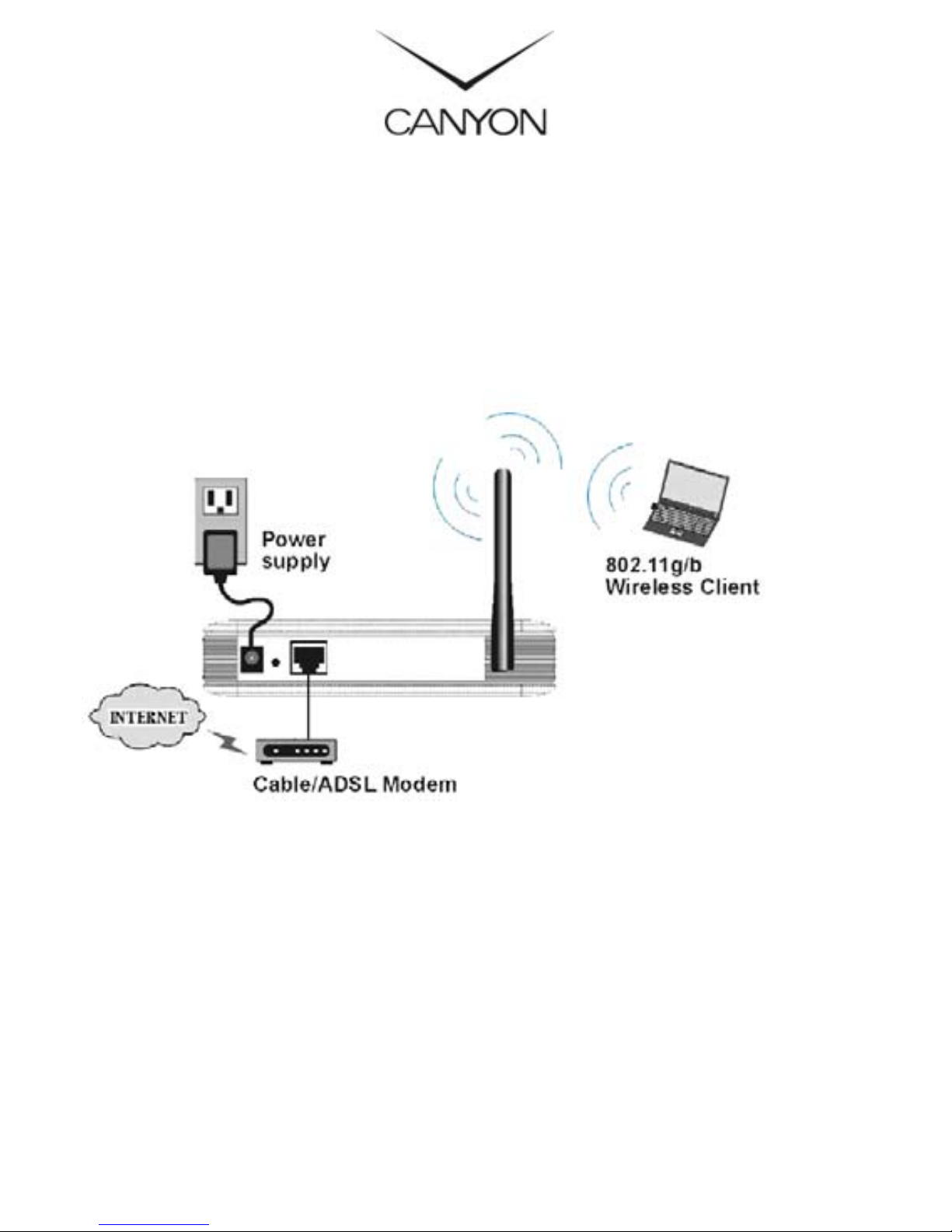

Hardware Overview
Getting Started
Connecting to Device
1. Begin by searching for an appropriate location to setup device.
Please keep in mind to keep device in the center of working area as
the signal strength and data transfer rate diminishes with distance.
2. It is also recommended to place device at a higher position to
ensure minimum obstacle interference.
3. Make sure that all network devices are powered off, including the
device itself, PCs, switches, cable or DSL modem, and others.
4. Connect the modem to WAN port of the device by one CAT 5
Ethernet cable.
ENG - 2
5. Connect PC(s) with LAN ports (PC1/PC2/PC3/PC4) of the device by
CAT 5 Ethernet cables. 1 PC connects to 1 port using 1 cable only.
6. Power on the cable or DSL modem.
7. Plug in power adapter. The Power status indicator at front panel of
device will light up as soon as power adapter is connected properly.
8. Power on PC(s).
Internet Configuration Wizard
The default network address of the device is set as 192.168.1.1. Please
configure IP address of host PC at 192.168.1.XXX where XXX is a number
between 002 and 254. The subnet mask should be 255.255.255.0. Please
follow below steps to enter web browser management mode.
1. Open a browser (Internet Explorer browser only) and type in
“192.168.1.1” at the address bar and press Enter.
2. Type in “guest” at the user name text box and “guest” again at the
password text box.
3. The web browser management home page will be displayed.
4. Click on 8 different functions on the main router menu on the left.
The corresponding information will be displayed at right.
5. Click on Help at any time to bring up help menu.

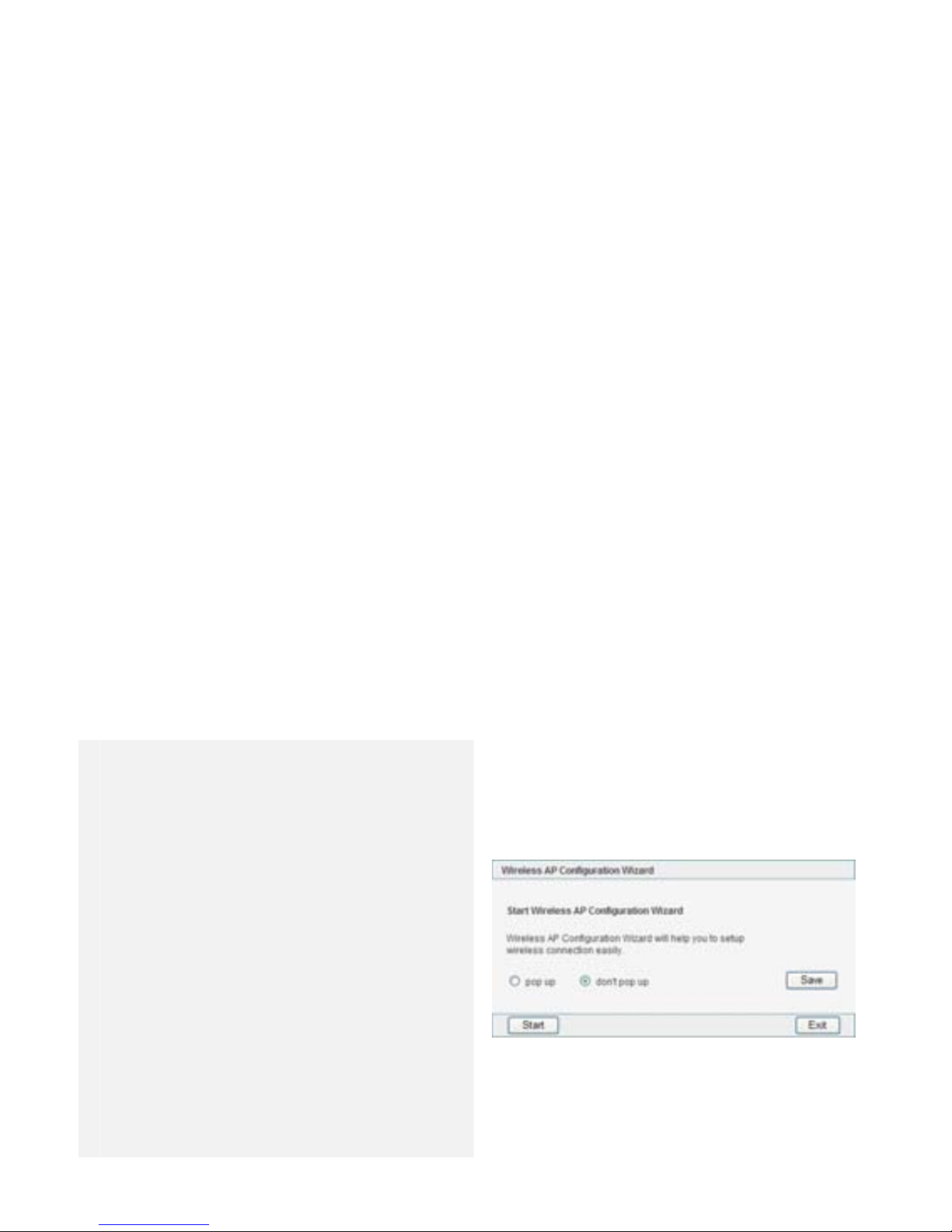

1. Start Wireless AP Configuration Wizard
zInternet Configuration Wizard
will pop up upon successful
login.
NOTE:
Temporarily disable popup
window blocking option if
necessary or click on Wizard to
start.
zSelect pop up to enable
automatic Internet
Configuration Wizard prompt
window. Click on Save to save
this setting.
zClick on Start to continue.
zClick on Exit to exit.
ENG - 3

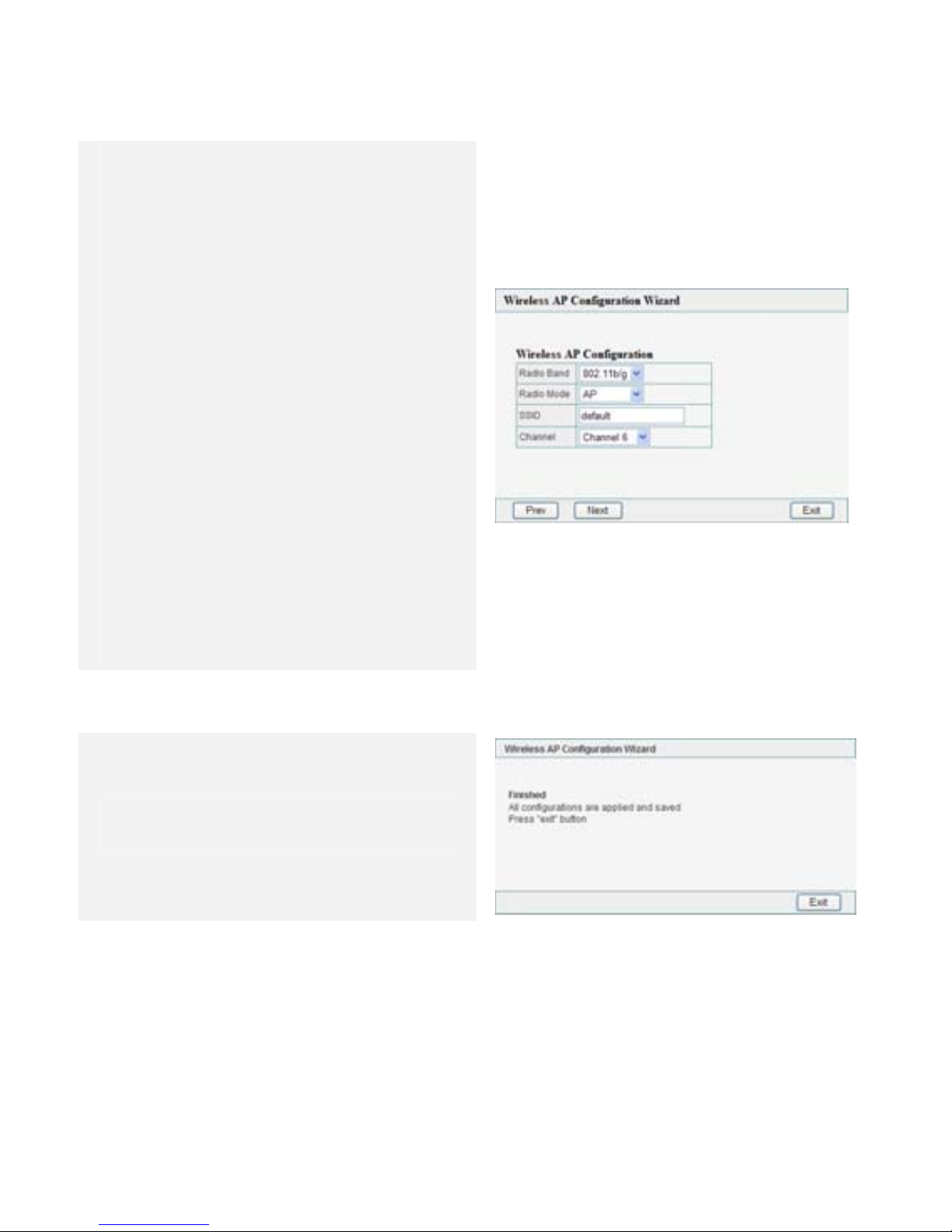

2. Wireless AP Configuration
zSelect a Radio Band type
from the drop down box.
(802.11b/g is recommended)
zSelect Radio Mode from the
drop down box. (AP+WDS is
recommended)
zType in SSID as desired.
(SSID must be identical in all
devices connecting to device)
zSelect a broadcasting channel
from drop down box. (Device
is set on channel 6 by default)
zSome of the options might not
be displayed while working
with different Radio Modes.
zClick on Next to continue or
Prev to go back to previous
page.
zClick on Exit to exit.
3. Installation Completed
zClick on Exit to finish Internet
Configuration Wizard.
NOTE:
Press briefly on Default button to reset the device. Press and hold the
button for at least 5 seconds to restore device to factory default settings.
Please refer to full manual on CD for more detailed
operation information.
