W222 Multibeam LED Headlights
Retrot Adapter
Installation Guide
CARSYSTEMS.COM.UA
Edition 4
Revision–4. 19 March 2021
Safety warning
This device is designed solely for use by properly trained and technically
qualied automotive electronics experts who are familiar with the dangers
related to handling electrical equipment and systems.
This manual intends to serve as a guide in the installation of an adapter,
failure to follow these instructions could result in a hazardous condition,
destruction of car equipment and the retrot adapter.
DISCONECT ANY CHARGING EQUIPMENT BEFORE INSTALATION AND
CODING: car battery charger, notebook charger, etc.
There are NO user serviceable parts contained in a retrot adapter.
Unscrewing or opening your adapter will render your warranty void. Should
your retrot adapter require repair, please contact us directly and we will
assist you.
The manufacturer shall not be legally responsible for any equipment
damage or personnel injury caused by incorrect installation by unqualied
technicians.
CARSYSTEMS.COM.UA
WARNING
Revision–4. 19 March 2021
2/16
Contents
Contents
Safety Warning...................................................................................................................2
Contents.............................................................................................................................3
Revision History.................................................................................................................4
Introdcuition.......................................................................................................................5
Preface.......................................................................................................................................5
Audience....................................................................................................................................5
What You Should Know Before Installation.........................................................................5
Preparation for Installation...............................................................................................6
Headlights QR-codes..............................................................................................................6
Headlights Control Units.........................................................................................................7
Tail Lights Market Specication.............................................................................................8
Location......................................................................................................................................9
Installation........................................................................................................................10
Adapter Installation..............................................................................................................10
Tail Lights Connection...........................................................................................................12
Coding...............................................................................................................................13
PreparationforCoding..........................................................................................................13
Coding.....................................................................................................................................13
Operability Check..................................................................................................................15
CARSYSTEMS.COM.UA
Revision–4. 19 March 2021
3/16
Revision History
Revision History
Rev 1.01 [09/2017] – rst release
Rev 2.01 [03/2018] – second release
Rev 3.01 [04/2018] – third release
Rev 4.19 [03/2021] – fourth release
CARSYSTEMS.COM.UA
Revision–4. 19 March 2021
4/16
CARSYSTEMS.COM.UA
Introduction
Preface
This document guides you through the installation of the W222 Multibeam LED
Headlights Retrot Adapter – the device designed to match Multibeam LED
Headlights with Mercedes Benz S-class cars 2013–2016 model years.
This document is intended for CarSystems customers, partners, and employees to
get familiar with the W222 Multibeam LED Headlights Retrot Adapter. It provides
instructions and graphical content for a user to get started with his rst installation.
Audience
What You Should Know Before Installation
This document expects that you are familiar with automotive electronics,
knowledge, and experience in that eld are highly required.
Revision–4. 19 March 2021
5/16
Preparation for Installation
Headlights QR-codes
Take a high quality photo of two QR codes (watch Fig. 1) on the top of the Left
headlight and Right headlight. These codes will be used in the coding process, send
them to our technician. Don’t mount bumper until coding is nished.
Fig. 1 Location of sticker with two QR codes .
CARSYSTEMS.COM.UA
Use QR codes from exact headlights that are installed on the car.
Using other headlights QR codes may disrupt performance and operability of
headlights.
Revision–4. 19 March 2021
6/16
Preparation for Installation
Headlights Control Units
Fig. 4 Unmount Headlight Control Units appearance. Fig. 5 Location of HW and SW part numbers.
Fig. 4 PXL Headlight Control Unit.
CARSYSTEMS.COM.UA
Take photo of software(SW) and hardware(HW) part numbers of the HLI Headlight
Control Unit and PXL Headlight Control Unit (watch Fig. 2;3; 4; 5) of Left headlight
and Right headlight. To get them you need to unmount Headlight Control Units on
the back and the bottom of Left headlight and Right headlight.
Fig. 2 Location of Headlight Control Units. Fig. 3 Headlight with Control Units unmounted.
Part numbers suitable with W222 Headlights
HLI Headlight Control Unit:
A 222 900 30 13
A 222 900 05 15
PXL Headlight Control Unit:
A 213 900 61 04
A 222 900 88 12
A 205 900 95 34
Revision–4. 19 March 2021
7/16
Preparation for Installation
Tail Lights Market Specication
Different coding used for different car and tail lights market specication. There are
two types of Tail Lights: ECE market specication and US market specication. ECE
market specication Tail Lights have a white connector and the US market have a
blue one. Provide our technician with information about the market specication of
a car and tail lights before the coding. For example: car - US market specication,
tail lights - ECE market specication.
Fig. 6 ECE market tail lights connector. Fig. 7 US market tail lights connector.
CARSYSTEMS.COM.UARevision–4. 19 March 2021
8/16
Preparation for Installation
Location
Recommended location for adapter installation is under the carpet of front
passenger footwell zone. All necessary connection points are located there:
Periphery CAN Potential Distributor x30/27 (hereinafter referred to as CAN
Distributor), A-pillar fuse box (hereinafter referred to as Fuse Box), ground point.
Fig. 8 Front passenger footwel zone. Fig. 9 Front passenger footwell zone opened.
Fig. 10 Location of necessary connection points in front passenger footwell zone.
CARSYSTEMS.COM.UA
Revision–4. 19 March 2021
9/16
Installation
Adapter Installation
As soon as CAN Distributor, fuse box and ground point identied, you can start the
installation.

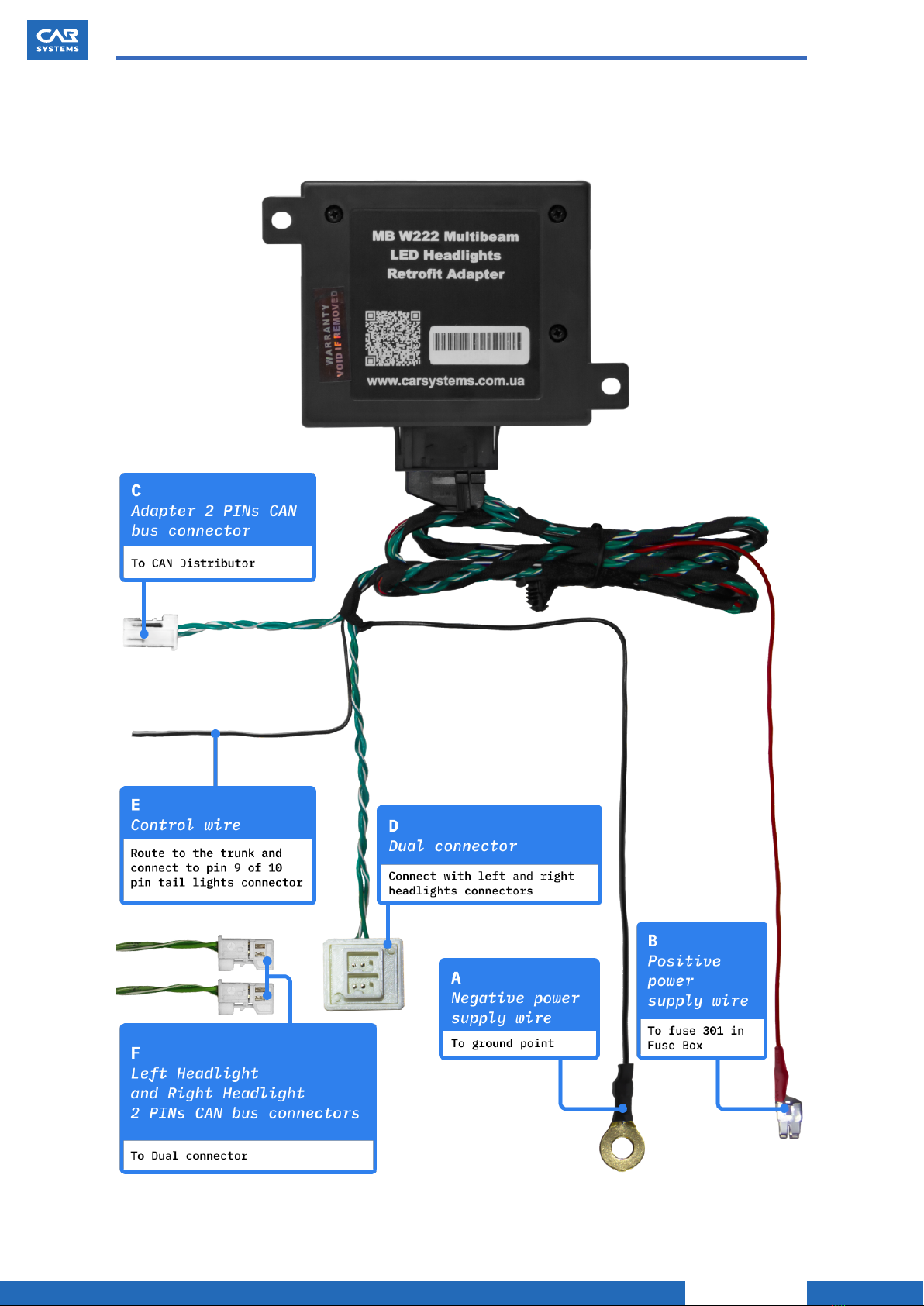

Fig. 11 Adapter’s connectivity
CARSYSTEMS.COM.UA
Revision–4. 19 March 2021
10/16
