Cardo Systems ScalaRider Bedienungsanleitung

Audio & Microphone User Guide

Back Plate

Microphone

Right Speaker

(long cord)

Left Speaker (short cord)

NOTE: The use of two speakers may be illegal in certain jurisdictions.

Please check the local regulations and act accordingly.

MP3 Jack

Sliding Plate

Allen Wrench

Glue Plate

Pre-moistened Towelette

MP3 Cable

Velcro Pads

Microphone Sponges

Flat sponge for full-face helmets and round sponge for other helmet types

User Guide, Warranty and Registration form

Please note that the headset is not included

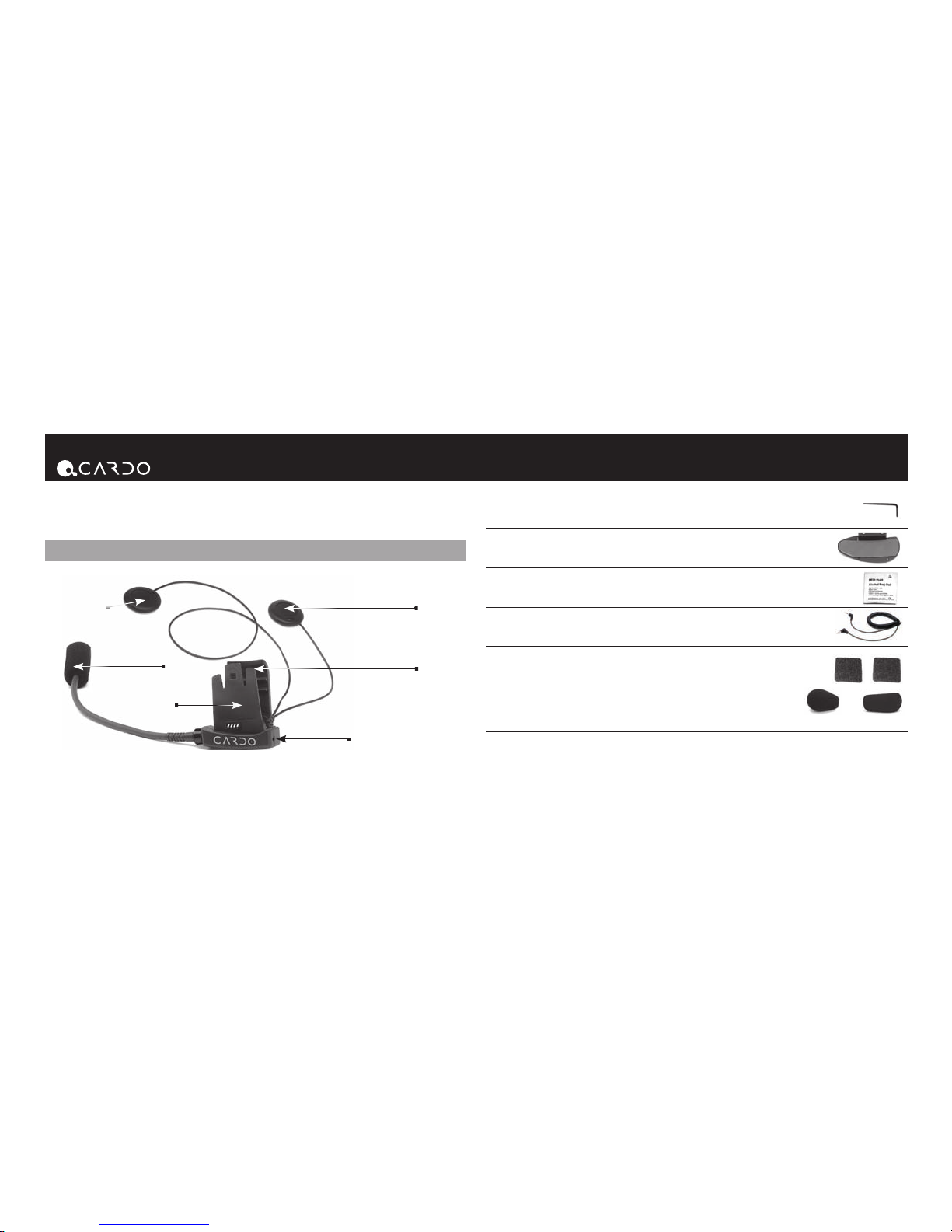

CONTENTS OF RETAIL BOX

Thank you for purchasing a SCALA RIDER® accessory. This User Guide

will help you attach the Audio & Microphone Kit onto your helmet and

allow you to enjoy its MP3 player option.

Helmet Clamp

Audio & Microphone User Guide

English

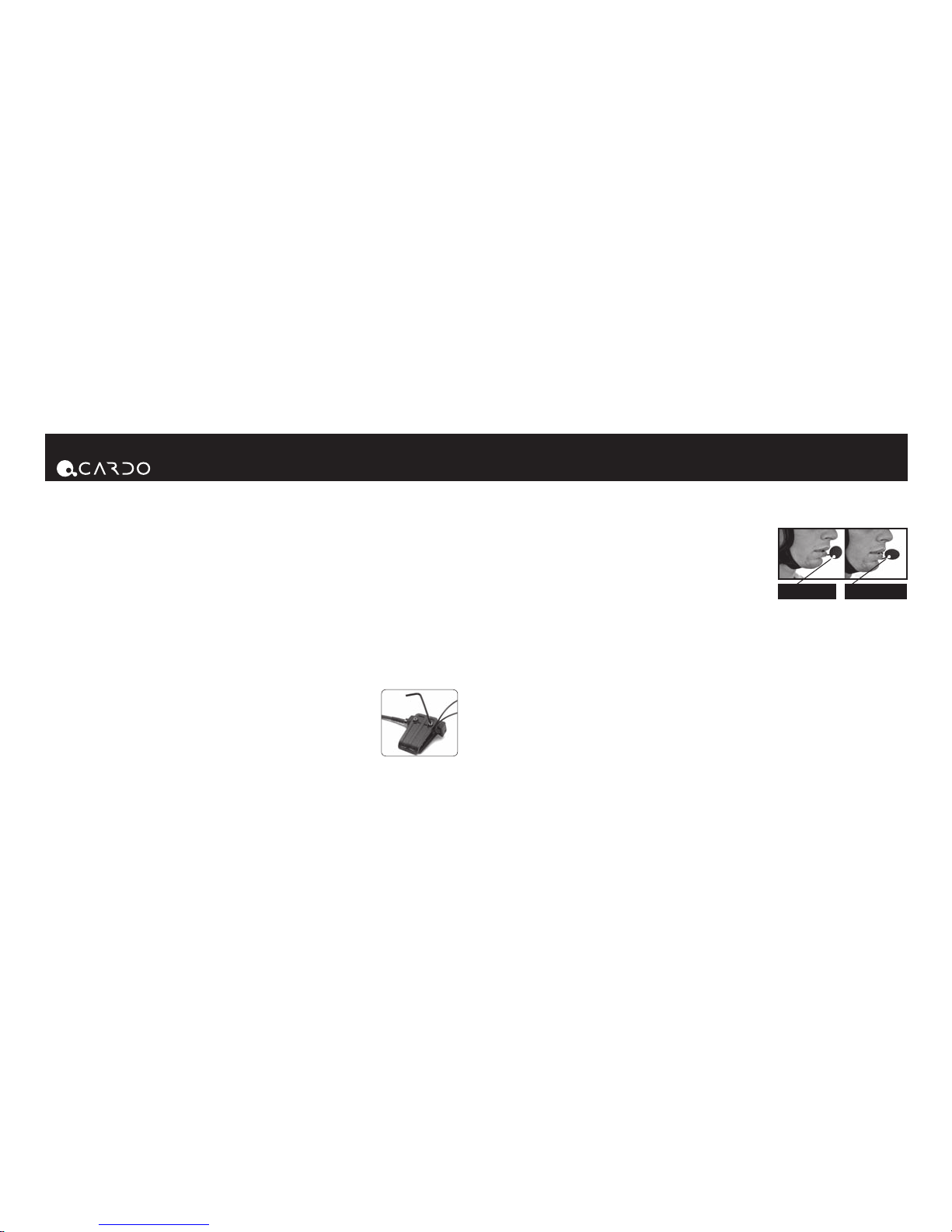

ATTACHING THE CLAMP ON THE HELMET

The Helmet Clamp must be attached onto the left part of the helmet.

Once attached, the headset unit can be mounted or released from the

Helmet Clamp at any time.

There are two methods that can be used in order to attach the

Clamp onto the helmet.

Standard Method: Recommended for most helmet types.

Glue Plate Method: Recommended for helmets to

which the standard method cannot be applied, using

the Glue Plate included in the box.

Standard method

1. Use the enclosed Allen Wrench to loosen the two

screws on the Back Plate.

2. Slide the Back Plate between the internal padding and the external

shell of the helmet.

3. Adjust the Clamp’s location so that the

microphone is located opposite the cen-

ter of your mouth, and then tighten the

screws. You may need to reposition the

Clamp repeatedly until you identify the

best spot. The microphone must be po-

sitioned vertically and not horizontally

CORRECT INCORRECT

Audio & Microphone User Guide

Glue Plate Method

You have the option to glue the Helmet Clamp onto your helmet,

when the above standard method cannot be used, or in case you

prefer to secure the Helmet Clamp with adhesive glue. This option

has been successfully used for a range of high end helmets.

NOTE: While we have no reason to believe that the gluing option might

negatively aect any helmet, Cardo does not assume any responsibility to

that aect, irrespective of its nature and circumstances. The Glue Plate is

oered as a free option that you may choose to use at your own risk and

subject to renouncement of any future claims.

Caution: This process can be done only once!

1. Use the enclosed Allen Wrench to remove both

Allen screws and release the Helmet Clamp’s back

plate.

2. Determine the location on the helmet where the Helmet Clamp

must be attached.

3. Adjust the Helmet Clamp’s location on

the Helmet so that the microphone is lo-

cated opposite the center of your mouth.

You may need to reposition the Clamp

repeatedly until you identify the best spot.

The microphone must be positioned vertically and not hori-

zontally (Be sure to clean the selected area prior to the gluing

process as described in # 4 below).

4. Use the pre-moistened Towelette to clean the helmet area

where you want to install the Glue Plate. Allow to dry thorough-

ly.

5. Peel the foil cover from the Glue Plates’adhesive pad.

CORRECT INCORRECT

Audio & Microphone User Guide

English

6. Place the Glue Plate into position according to #3. Press rmly 15

seconds on all 3 parts of the Glue Plate

7. The adhesive pad bonds to full strength over the next 24 hours.

Therefore it is recommended to not use the headset during this

24 hour period.

8. Fasten the Clamp to the Glue Plate using the Allen screws that

were previously removed.

SPEAKERS AND MICROPHONE POSITIONING

The microphone must be positioned vertically, not horizontally, in

front of the center of the mouth.

Attach the speakers to the Velcro inside your

helmet opposite your ears (short speaker cord

for the left ear [A] and the long speaker cord

[B] for the right ear). You may want to use the

supplied Velcro pad.

Using two speakers inside the helmet may be

prohibited in certain jurisdictions. If this is the

case, you should tuck away the long corded

speaker underneath the helmet padding as

follows: Lead the speaker [B] alongside the rim

of the padding to the right side and then back

to the left side, near speaker [A]. Then place

the speaker [B] underneath the padding.

Speaker A

Speaker B

Cable

Speaker B

Speaker A

Audio & Microphone User Guide

USING THE MP3 PLAyER wITH yOUR HEADSET

Your SCALA RIDER headset can be connected to an MP3 player/au-

dio device by simply plugging it to the Clamp’s jack with the MP3

cable as follows:

1. Power on the headset to have it on Standby mode, ashing

slowly in Blue.

2. Connect one side of the MP3 cable

to your MP3 player/audio device’s

jack and the other side to the Helmet

Clamp’s jack as shown in the photo.

3. Operate the MP3 Player/audio device

by using its buttons (FF/REW/PLAY/

PAUSE). Connect the MP3 cable to the

Clamp’s jack

NOTE: Volume can only be adjusted through the MP3 Player.

Any other audio connection (Phone call/FM Radio/Intercom call)

will automatically mute the MP3 Player/Audio device’s signal.

The audio signal will return only when headset is once again in

Standby mode.

SUPPORT

For additional information please visit our website at

www.cardosystems.com

FAQ: www.cardosystems.com/faq

or contact us at:

support@cardosystems.com

Phone:

USA and Canada – + 1-800-488-0363

International – +4989 450 36819
