IMPORTANT: PLEASE READ BEFORE INSTALLATION:
① Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
CAUTION: Read all instructions and safety information before installing your new fan. Review ②
accompanying assembly diagrams.
Make sure that all electrical connections are in accordance with National Electrical Code, ③
ANSI/NFPA 70 and local codes. Hire a qualied electrician if you are unfamiliar with installing
electrical wiring.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. ④
Allow a minimum clearance of 2.1m(7 feet) from the oor and 18 inches from the tip of the blades to
the wall.
WARNING - To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked ⑤
"Acceptable for Fan Support of 15.9 kg (35 lbs) or less" and use mounting screws provided with the
outlet box.
CAUTION: To reduce the risk of injury use only the screws provided with the outlet box in ⑥
conjunction with the lock washers provided with the fan.
The outlet box and support structure must be securely mounted and capable of reliably supporting ⑦
a minimum of 35 pounds. Use only U.L. Listed outlet boxes marked "Acceptable for Fan Support of
15.9 kg (35 lbs) or less".
After you install the fan, make sure that all mounting components are secured to prevent the fan ⑧
from falling.
Do not insert anything into the fan blades while the fan is operating.⑨
To change the direction of the rotation of the blades the fan must be in operation mode.⑩
All set screws must be checked and retightened where necessary before installation.
WARNING - To reduce the risk of personal injury, do not bend the blade bracket when installing
the brackets, balancing the blades, or cleaning the fan. do not insert foreign objects in between
rotating fan blades.
CAUTION -To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan
before installing light kit.
After making the wire connections, the wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
The splices after being made should be turned upward and pushed carefully up into the outlet
box. Conductor of a fan identied as grounded conductor is to be connected to a grounded conductor
of power supply, conductor of fan identied as ungrounded conductor to be connected to an
ungrounded conductor of power supply, conductor of fan identied for equipment grounding to be
connected to an equipment-grounding conductor.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
WARNING - To reduce the risk of electric shock, this fan must be installed with a general use,
isolating wall control/switch.
WARNING - To reduce the risk of r or electric shock, do not use this fan with any solid-state speed
control device.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover
all possible conditions and situations that may occur. It must be understood that common sense,
caution and care are factors which cannot be built into this product. These factors must be supplied
by the person (s) installing, caring for and operating the unit.
CAUTION: The light source is designed for this specic application and can overheat if serviced by
untrained personnel. If any servicing is required, the product should be returned to an authorized
service facility for examination or repair.
PRODUCT INSTRUCTION:
Fig 1.1
Contact a licensed electrician
if you are uncomfortable
performing electrical work. A
licensed electrician must install
the fan if required by local code.
Do not use the fan with a dimmer
switch.Turn off power at breaker.

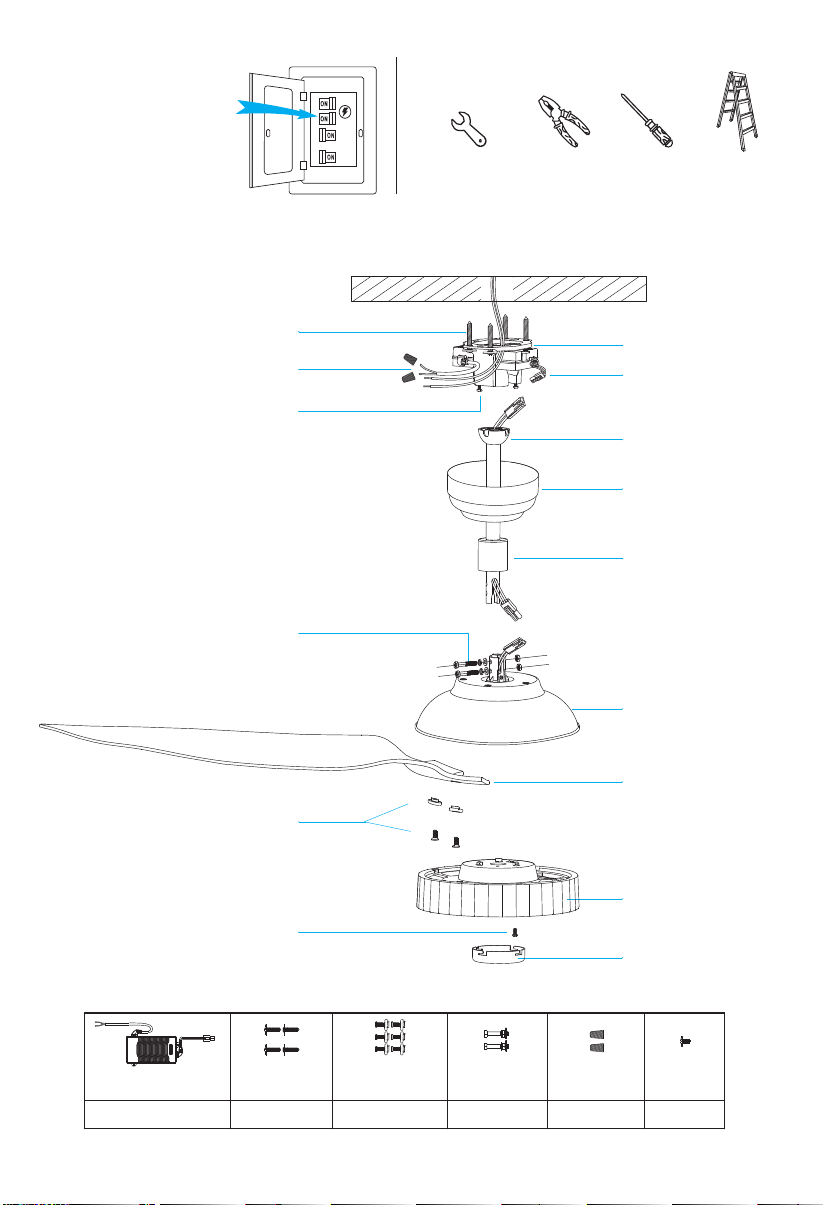

BEFORE YOU START TOOLS AND MATERIALS REQUIRED
ST5×24 Setscrew
Input AC 120V
M4×10 Screws
Mounting Bracket
Extension Tube
Canopy
Wiring Cover
Motor Hub
Airfoils
M6×36 Rod Screw
M6×12 Airfoils’ Screw
M4×8 Screw
Lampshade
Lower Cover
AC Adapter
IInstall Airfoils:
1
1.1 Put out the motor hub from the package box and place it upside down on the motor paper holder.
Make sure each airfoil matches the corresponding place with the tri-color label on the hub and tighten
the screws. (Fig 1.1)
1.2 Three airfoils installed. (Fig 1.2)
Fig 1.2
Tri-color label
Install Lampshade
2
2.1 Make sure the motor hub shaft xed with a screwdriver. Make sure the motor hub not rotate. Make
sure the lampshade xed part hold matches into the snap joint. Push down the lampshade and rotate
to right side. (Fig 2.1)
Fig 2.1
Bolt X4
Wood Ceiling Concrete ceiling
Bolt X4
2.2 Insert the 2P terminal and the 3P terminal into the corresponding terminal interfaces on the circuit
board, and then tighten the upper limit screws to tighten them.(Fig 2.2)
2.3 Snap the small cover into the hole of the lampshade and rm it in the direction indicated by the
arrow. (Fig 2.3)
Fig 2.2 Fig 2.3
3.2 Connect the wiring harness from the extension tube to the receptacle from motor wire as left
picture. After nished, hide the wire into extension tube.(Fig 3.2)
Take out a part of the power cord to avoid the screw holes as right picture, make sure the screw rmly.
Attach Extension Tube:
3
3.1 Put extension tube as Fig.3.1 install as right picture.(Pls select the suitable length of rod for your
ceiling.)
Fig 3.1
Extension tube
Canopy
Wiring cover trim
Fig 3.2
Assembly — Hanging the Fan:
4
Install the hanger to the ceiling box, as shown in Fig 4.1 below. Rotate the hanger in different
directions so that the hanger mounting holes match the screw holes of the ceiling box. Note: This
hanger is a general-purpose cable box.
If the hanger is installed at the outlet box, the hanger should be installed on the outlet box with two
screws matching the outlet box itself, as shown in the schematic Fig 4.1.
The hanger can also be mounted to the wooden ceiling beam, and then the four self-tapping screws
can be used to lock the symmetrical holes on the left and right sides of the hanger. Note: The wooden
ceiling beam must meet the tensile test of 30KG for installation, such as Fig 4.2. Shown.
It is also possible to install the hanger directly to the concrete ceiling, and install four expansion
screws to the left and right symmetrical holes of the hanger to lock the ceiling, as shown in the
schematic Fig 4.3.
If you have an angled or vaulted ceiling: (Fig 4.4)
1.When installing the hanger, the hanger groove is upward;
2. You will need a longer downrod;
3.If your ceiling angle is greater than 30°,you will also need an Angled Mounting Kit.
Fig 4.1 Fig 4.2 Fig 4.3
11
12
13
14
15
16
Step ladder
Phillips
screwdriver
External
hexagonal wrench
Wire
stripper
SAFETY PRECAUTION：INSTALLATION:
ST5×24
Setscrew
M6×36
Rod Screw
M6×12
Airfoils’ Screw
AC Adapter
1 2 3 4 5
Fig 4.4
M4×8
Screw
Wiring cap
1 pc 4 pcs 6 pcs 2 pcs 2 pcs 1 pc
SCREWS BAG
<30°
