PRECAUTIONS

PREFACE

Thank you for purchasing our CAS DB-1/1H series scale.

These series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy these

high quality reliable CAS products.

We believe that your needs will be satisfied and you will have reliability.

This manual will help you with proper operation and are of the DB-1/1H series.

Please keep this handy for future reference.

NAMES AND FUNCTIONS

OVERALL VIEW

DISPLAY

■ DB-1, DB-1H

KEYBOARD

KEYS FUNCTIONS

Turn the displays on or off.

Used to correct the zero point.

Used to enter a tare weight.

Used to clear a tare weight.

PRINT FUNCTION (OPTION) – Print version

When the weight is not stable, display will show the average weight

for 4 seconds. – Hold version

※In HOLD Version, printing function could not use and

In Printer version HOLD function is not available.

INSTALLATIONS

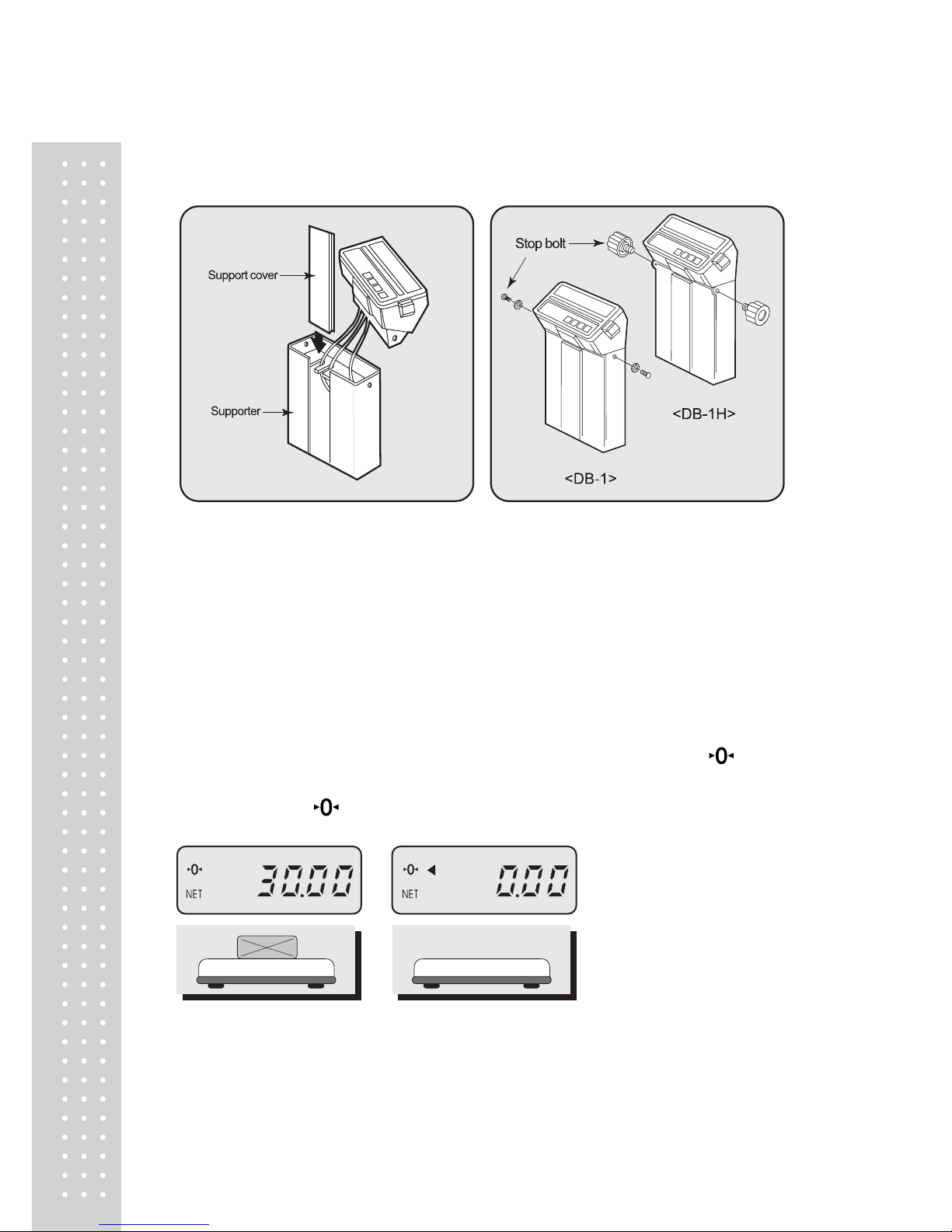

1. Insert the power line into the support.

Fasten with bolts and nuts as fig 1.

2. Fix a ground wire with bolt then

arrange the power line and loadcell

line as fig 2.

fig.1 fig.2

3. Insert the support cover into the

support as fig 3.

4. Attach the head to the support.

Insert and fasten stop bolt as fig 4.

fig.3 fig.4

OPERATIONS

1. General Weighing

■When you turn on the power switch, the scale will count “00000” to “99999”.

Then the scale will read “0.00” in the weight display. This is called the ZERO state.

If the scale is not ZERO state though there is nothing on the platter, press the key.

■The display indicates if the scale is at zero or if there is a tare entered into the

scale by way of a and NET lamps.

①Place the commodity on

the platter.

②Remove the commodity

from the platter.

2. Tare Weighing

■Tare is the weight of container being used for a commodity.

■The key subtracts the weight of the container.

①Place the container on the

platter.

②Press the key. ③Place the commodity in the

container.

④Remove the commodity

from the platter.

⑤Remove the container from

the platter, then you will

see tare weight with “-”.

⑥Press “ ” key.

3. Hold Function (Hold version)

■Key hold

①Place an item on the platter and then press the HOLD key.

②“ HOLD” is shown on the ③Average weight is shown on

display. the display.

■After average weight display 3 time, HOLD function will be release automatically.

■Auto Hold function

①After weighing item remove ②Use “TARE” key to select

all of the container from the platter, one of Auto Hold function.

press Hold key.

③Press“Hold”keytosave ④ Place an item on the platter.

and exit to normal mode. Then weight display will show “Hold”.

The “Hold” blinks for two times, and then

the average weight blinks continuously.

⑤ After remove the item of the platter, place another item on the platter.

Then display will show average weight again.

If you don’t want use auto-hold function, remove the item and press hold key.

Display shows AH_on. Press tare key. İt will be changed AH_off.

Then press Hold key. Auto-hold function will not operate.

NET

4. How to Print (print version)

①While pressing the PRINT key, press the POWER key. The display shows “U SEt”.

② Press the TARE key, the display shows “Pr off”.

(If the setiing value already exist in the scale, then it would display as the setting.)

③ You can change the setting by pressing the ZERO key . Press TARE key to save and move next

function setting.

※MENU DESCRIPTIONS

MENU DISPLAY DESCRIPTIONS

“Pr oFF” Do not use printer.

“Pr DLP” DLP50 printer interface. (Label)

Printer

“Pr DEP” DEP50 printer interface. (Ticket)

“Pr key” Manual print. (DLP, DEP)

“Pr AUt” Auto print when the scale is stable. (DLP, DEP)

Print method

“Pr Str” Ptint continually when the scale is stable. (DEP)

Barcode

(DLP only) “BC on/off” Print out barcode on/off.

Linefeed

(DEPonly) LF1~LF9 Linefeed

NET
