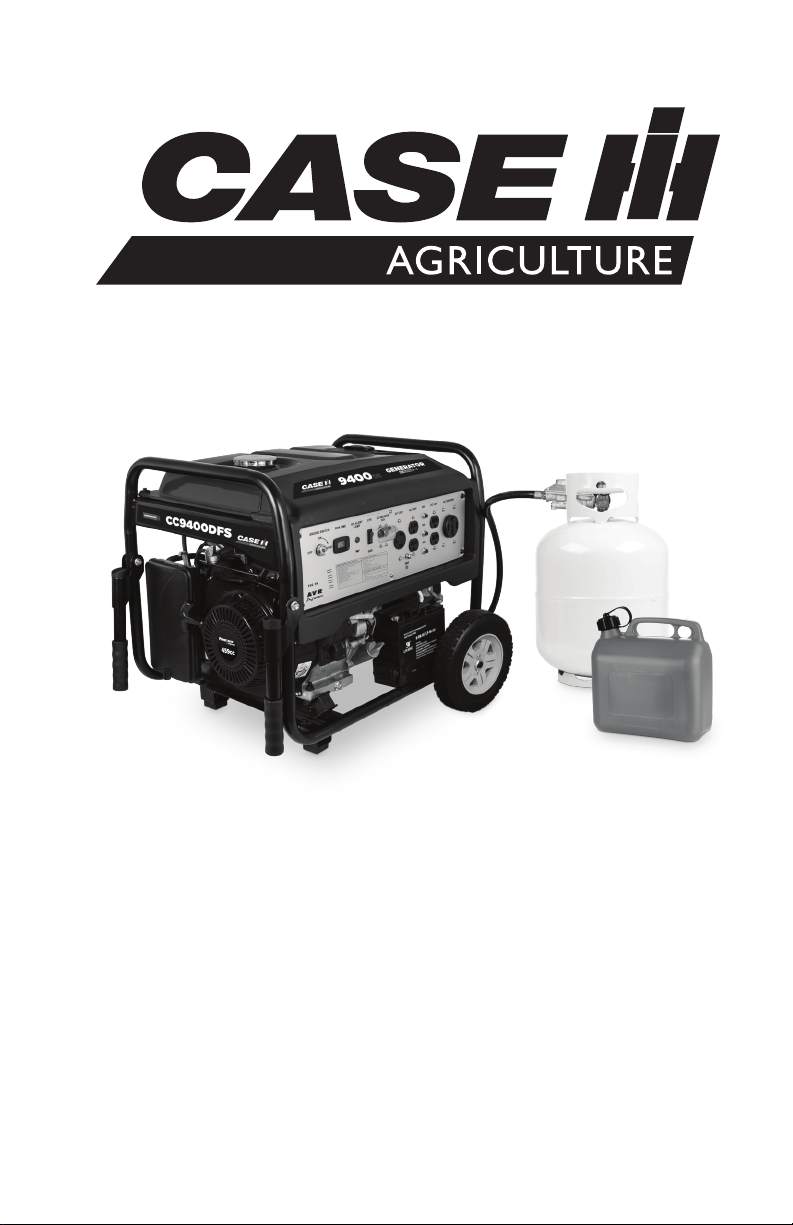

DUAL FUEL GENERATOR

MODEL:C9400DFS

*FUEL CONTAINERS NOT INCLUDED

OPERATOR’S

MANUAL

TABLE OF CONTENTS

INTRODUCTION .....................................................................

SAFETY .....................................................................................

ASSEMBLY ...............................................................................

COMPONENTS .........................................................................

PREPARING THE GENERATOR ..............................................

PRE-OPERATION CHECKLIST ...............................................

STARTING YOUR GENERATOR .............................................

OPERATION .............................................................................

STOPPING YOUR GENERATOR .............................................

MAINTENANCE ........................................................................

TRANSPORTING ......................................................................

STORAGE .................................................................................

WARRANTY .............................................................................

WARRANTY PROCEDURE .....................................................

Attention: Read through the complete

manual prior to the initial use of your

generator.

INTRODUCTION

Congratulations on your purchase of a Case IH generator.

You can be confident that this machine is constructed and tested with

optimum performance and quality in mind.

Reading this manual will help get you the best results for set-up,

operation, maintenance and avoid personal injury or damage to your

machine. By knowing how best to operate this machine, you will be

better positioned to show others who may also operate the unit.

All the information in this manual is based on the latest product

information available at the time of printing. Case IH reserves the right

to make changes at any time without notice or incurring any obligation.

Owner/Operator Responsibility

The owner/operator must have a thorough understanding of the

operation, maintenance and dangers associated with using this machine.

It must be understood that it is ultimately up to the owner/operator to

safely use this machine as outlined in this manual.

This manual is considered a part of the machine and needs to be kept

in a safe location. If the machine is resold or given to someone else, this

manual needs to be included.

Product Registration

Please register your product online to get the maximum benefit from

your warranty. Use the QR code below or register online at:

https://cih.cnhpowerequipment.com/product-registration/

It is recommended that you record the product identification numbers

in this manual. These numbers are important to have on hand if you

need to contact technical support (1-866-850-6662). The model and

serial number can be found on the box and on a decal on the machine.

PRODUCT IDENTIFICATION

Model Number:

Serial Number:

Date of Purchase:

Dealer Name:

The safety alert symbol ( ) is used with a signal word (DANGER,

CAUTION, WARNING), a symbol and/or a safety message to alert

you to hazards.

DANGER indicates a hazard which, if not avoided, will result in

death or serious injury.

WARNING indicates a hazard which, if not avoided, could result

in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result

in minor or moderate injury.

NOTICE indicates a situation that could result in equipment

damage. Follow safety messages to avoid or reduce the risk of

injury or death.

Hazard Symbols and Meanings

Save these Instructions

Safety Rules

This is the safety alert symbol. It is used

to alert you to potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible

injury or death.

explosion

kickback read manual

fire electric shock

toxic fumes

SAFETY

WARNING

Generator exhaust contains carbon monoxide,

a poisonous gas that can kill you.

You CANNOT smell or see this gas.

• Use the generator outdoors, away from open windows, vents,

or doors that could allow the carbon monoxide gas to come

indoors. Keep the generator at least 1 meter (3 feet) away from

any structure or building during use.

• NEVER use a generator indoors, including in homes, garages,

basements, crawl spaces, and other enclosed or partially-

enclosed areas, even with ventilation. Opening doors and

windows or using fans will not prevent carbon monoxide build-

up in the home.

• NEVER use a generator in enclosed or partially-enclosed spaces.

Generators can produce high levels of carbon monoxide very

quickly. When you use a portable generator, remember that you

cannot smell or see carbon monoxide. Even if you can’t smell

exhaust fumes, you may still be exposed to carbon monoxide.

• NEVER operate the generator in an explosive atmosphere, near

combustible materials or where ventilation is not sucient to

carry away exhaust fumes. Exhaust fumes can cause serious

injury or death.

• If you start to feel sick, dizzy, or weak while using a generator,

get to fresh air RIGHT AWAY. DO NOT DELAY. The carbon

monoxide from generators can rapidly lead to full incapacitation

and death.

• If you experience serious symptoms, get medical attention

immediately. Inform medical sta that carbon monoxide

poisoning is suspected. If you experienced symptoms while

indoors, have someone call the ﬁre department to determine

when it is safe to re-enter the building.

SAFETY

WARNING

Fuel and its vapors are extremely ﬂammable and

explosive.

Fire or explosion can cause severe burns or death.

When Adding or Draining Fuel

• Observe all safety regulations for the safe handling of fuel.

Handle fuel in safety containers. If the container does not have

a spout, use a funnel.

• Do not overﬁll the fuel tank, leave room for the fuel to expand.

• Do not reﬁll fuel tank while the engine is running. Before

refueling the generator, turn it o and let it cool down. Gasoline

spilled on hot engine parts could ignite.

• Fill the tank only on bare ground. While fueling the tank, keep

heat, sparks and open ﬂame away. Carefully clean up any spilled

fuel before starting engine.

• Always ﬁll fuel tank in an area with plenty of ventilation to avoid

inhaling dangerous fumes.

• NEVER store fuel for your generator in the home. Gasoline,

propane, kerosene, and other ﬂammable liquids should be

stored outside of living areas in properly-labeled, non-glass

safety containers. Do not store them near a fuel-burning

appliance, such as a natural gas water heater in a garage. If the

fuel is spilled or the container is not sealed properly, invisible

vapors from the fuel can travel along the ground and can be

ignited by the appliance’s pilot light or by arcing from electric

switches in the appliance.

WARNING

Starter cord kickback (rapid retraction) can pull

hand and arm toward engine faster than you can

let go which could cause broken bones, fractures,

bruises, or sprains resulting in serious injury.

• When starting the engine, pull cord slowly until resistance is felt

and then pull rapidly to avoid kickback.

• NEVER start or stop engine with electrical devices plugged in

and turned on.

SAFETY

SAFETY SAFETY

DANGER

Improper grounding can result in a risk of

electrocution. Check with a qualiﬁed electrician for

your local requirements if you are in doubt as to

whether the unit is properly grounded.

• This generator is equipped with a grounding terminal for added

protection. Using the ground path from the generator to an

external ground source as instructed in the section labeled

“Grounding Instructions” in the Preparation section of this

manual can be necessary. Please consult a qualiﬁed electrician

for local regulations.

• The generator is a potential source of electrical shock if not

kept dry.

• Keep the generator dry and do not use in rain or wet conditions.

To protect from moisture, operate it on a dry surface under

an open, canopy-like structure. Dry your hands if wet before

touching the generator.

• Plug appliances directly into the generator. Or, use a heavy duty,

outdoor-rated extension cord that is rated (in watts or amps) at

least equal to the sum of the connected appliance loads. Check

that the entire cord is free of cuts or tears and that the plug has

all three prongs,especially a grounding pin.

• NEVER try to power the house wiring by plugging the generator

into a wall outlet, a practice known as “back feeding”. This is an

extremely dangerous practice that presents an electrocution

risk to utility workers and neighbors served by the same utility

transformer. It also bypasses some of the built-in household

circuit protection devices. If you must connect the generator

to the house wiring to power appliances, have a qualiﬁed

electrician install the appropriate equipment in accordance

with local electrical codes.

This product has been designed with internal grounding

or bonded neutral. If it should malfunction or breakdown,

grounding provides a path of least resistance for electric current

to reduce the risk of electric shock.

• Do not enclose the generator or cover it. The generator may

become overheated if it is enclosed. If generator has been covered

to protect if from the weather during non use, be sure to remove

it and keep it well away from the area during generator use.

• Operate the generator on a level surface. It is not necessary to

prepare a special foundation for the generator. However, the

generator will vibrate on an irregular surface, so choose a level

place. If the generator is tilted or moved during operation, fuel

may spill and/or the generator may tip over, causing a hazardous

situation. Proper lubrication cannot be expected if the generator

is operated on a incline or slope. In such a case, piston seizure

may occur even if the oil is above the upper level.

• Pay attention to the wiring or extension cords from the generator

to the connected device. If the wire is under the generator or in

contact with vibrating part, it may break and possibly cause a ﬁre,

generator burnout, or electric shock hazard. Replace damaged or

worn cords immediately.

• Do not operate in rain, in wet or damp conditions, or with wet

hands. The operator may suer severe electric shock if the

generator is wet due to rain or snow. If wet, wipe and dry it well

before starting. Do not pour water directly over the generator,

nor wash it with water.

• Be extremely careful that all necessary electrical grounding

procedures are followed during each and every use. Failure to do

so can be fatal.

• DO NOT smoke while charging a battery. The battery emits

ﬂammable hydrogen gas, which can explode if exposed to

electric arcing or open ﬂame. Keep the area well ventilated and

keep open ﬂames / sparks away when charging a battery.

• The engine becomes extremely hot during and for some time after

operation. Keep combustible materials well away from generator

area. Be very careful not to touch any parts of the hot engine

especially the muer area or serious burns may result.

Important Safety Instructions

WARNING

To reduce the risk of injury, read this operator’s

manual completely before using.

When using this product, the following basic

precautions should always be followed.

SAFETY

• Keep children and all bystanders at a safe distance from work

area.

• It is absolutely essential that you know the safe and proper use of

the power tool or appliance that you intend to use. All operators

must read, understand and follow the tool / appliance owners

manual. Tool and appliance applications and limitations must be

understood. Follow all directions given on labels and warnings.

Keep all instruction manuals and literature in a safe place for

future reference.

• Use only “LISTED” extension cords. When a tool or appliance is

used outdoors, use only extension cords marked “For Outdoor

Use”. Extension cords, when not in use should be stored in a dry

and well ventilated area.

• Always switch o generator’s AC circuit breaker and disconnect

tools or appliances when not in use, before servicing, adjusting,

or installing accessories and attachments.

• Make sure the engine is stopped before starting any maintenance,

servicing or repair.

NOTE:

Ensure maintenance and repair of the generator are performed by

properly trained personnel only.

SAVE THESE INSTRUCTIONS

ASSEMBLY

Assembling the Accessory Kit

NOTE: The wheels are not intended for over-the-road use.

1. Installing the wheels

• Slide the axle through the frame brackets.

• Slide on the hub, wheel and ﬂat washer, then insert the cotter pin

through the wheel axle hole.

• Bend the cotter pin tabs outward to lock the pin in place.

2. Installing the feet bumpers

• Insert an M6 bolt through the rubber bumper and insert an M8 bolt

through the bottom of the bumper bracket. Secure the bolt with an

M8 ﬂange nut.

• Install an M8 bolt though the generator frame and through top of

the bumper bracket. Secure the bolt with an M8 ﬂange nut.

3. Installing the handle assembly

• Insert the handle bracket onto the generator frame and secure with

two M8 bolts and two M8 ﬂange nuts.

• Align the handle assembly holes with the handle bracket holes and

secure with one M8 bolt and one M8 ﬂange nut.

Inhaltsverzeichnis

Sprachen:

Andere Case IH Tragbarer Generator Handbücher

Case IH

Case IH MC3100PR Bedienungsanleitung

Beliebte Tragbarer Generator Handbücher anderer Marken

Kohler

Kohler 20EORZ Bedienungsanleitung

Powerhorse

Powerhorse 83171 Bedienungsanleitung

HURST

HURST ML-630-SI Bedienungsanleitung

ETQ

ETQ TG4000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 40265 Einrichtungshandbuch

ConMed

ConMed 7550 Bedienungsanleitung

Owon

Owon Waveform Generator Bedienungsanleitung

evertz

evertz 7700 Series Bedienungsanleitung

Power Stroke

Power Stroke PS906025 Bedienungsanleitung

Firefly

Firefly Cygnus CYG2400/460/24 Bedienungsanleitung

Draper

Draper PG950S Firmware-Update

PowerBoss

PowerBoss PowerBoss Bedienungsanleitung

SDMO

SDMO SH 4000 Bedienungsanleitung

EINHELL

EINHELL STE 5500 Bedienungsanleitung

Wanco

Wanco WI3000P Bedienungsanleitung

Full Boar

Full Boar FBT-3300 Bedienungsanleitung

Dwyer Instruments

Dwyer Instruments ASG Bedienungsanleitung

Westinghouse

Westinghouse WH1000i Series Bedienungsanleitung
