Data Communications

This chapter tells you everything you need to know to transfer

programs between two CASIO Power Graphic calculators

connected using the cable that is equipped as a standard

accessory.

You can also use the cable to connect the calculator to a CASIO

Label Printer to print screen data.

To transfer data between a calculator and a personal computer,

you need to purchase the separately available CASIO FA-123

Connection Kit.

10-1 Connecting Two Units

10-2 Connecting the Unit with a CASIO Label Printer

10-3 Connecting the Unit to a Personal Computer

10-4 Performing a Data Communication Operation

10-5 Data Communications Precautions

10-6 Sending a Screen Shot

10-7 Add-ins

10-8 MEMORY Mode

Chapter

19990401

10-1-1

Connecting Two Units

10-1 Connecting Two Units

The following procedure describes how to connect two units with the connecting cable that

comes equipped as a standard accessory.

uTo connect two units

1. Check to make sure that the power of both units is off.

2. Remove the covers from the connectors of the two units.

3. Connect the two units using the cable.

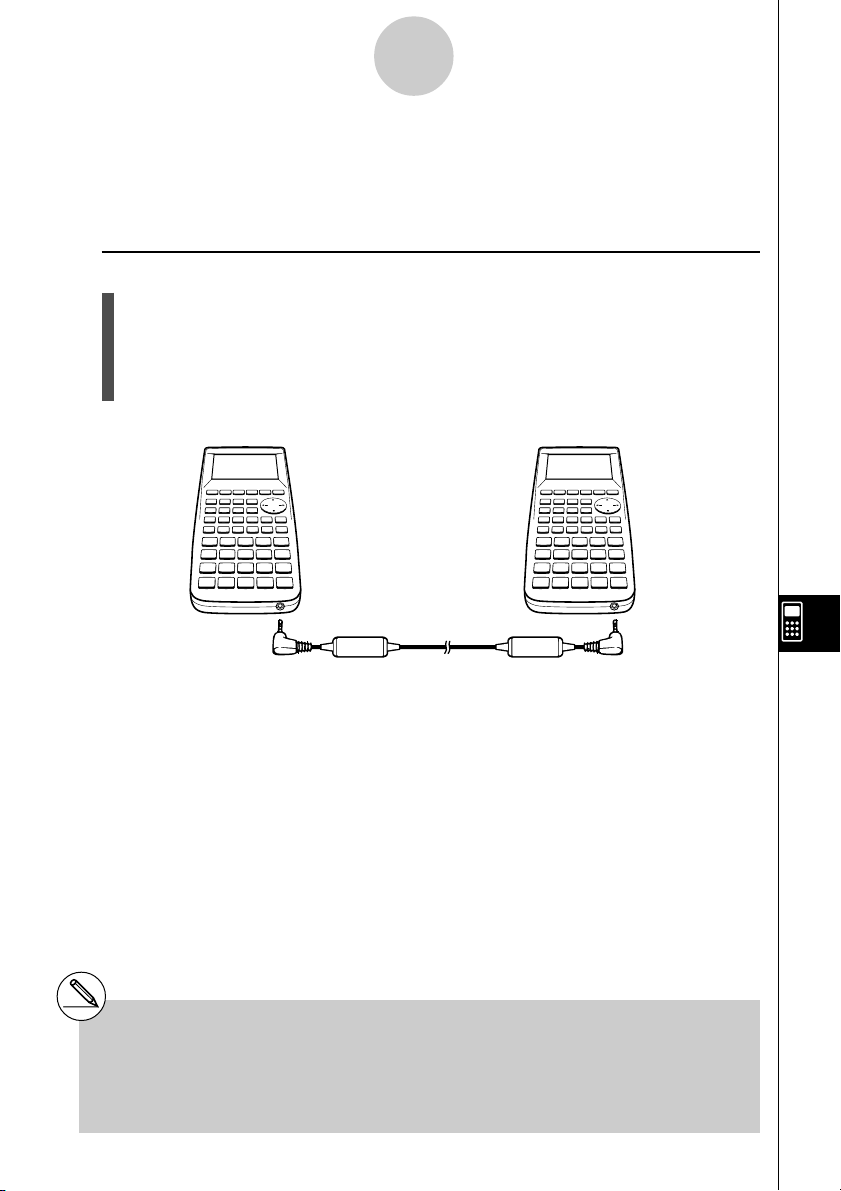

Cable

#Models that are supported for this configura-

tion are shown below.

ALGEBRA FX 2.0/FX 2.0 PLUS

FX 1.0/FX 1.0 PLUS

#Be sure you keep the connector covers in a safe

place so you can replace them after you finish

your data communications.

#Keep the connectors covered when you are not

using them.

2001100120011101

19990401

10-2-1

Connecting the Unit with a CASIO Label Printer

10-2 Connecting the Unit with a CASIO Label

Printer

After you connect the unit to a CASIO Label Printer with cable, you can use the Label Printer

to print screen shot data from the unit (see 10-6 Sending a Screen Shot). See the user’s

guide that comes with your Label Printer for details on how to perform this operation.

•The operation described above can be performed using the following Label Printer

models: KL-2000, KL-2700, KL-8200, KL-8700 (as of February 1999).

uTo connect the unit to a Label Printer

1. Check to make sure that the power of the unit and the Label Printer is off.

2. Connect the cable to the Label Printer.

3. Remove the cover from the connector of the unit.

4. Connect the other end of the cable to the unit.

5. Turn on the power of the unit, followed by the Label Printer.

•After you finish data communications, turn off power in the sequence: the unit first, and

then the Label Printer. Finally, disconnect the equipment.

Label Printer

Cable

#Be sure you keep the connector cover in a

safe place so you can replace it after you

finish your data communications.

19990401

10-3 Connecting the Unit to a Personal

Computer

To transfer data and screen shots between the unit and a personal computer, you must

connect them through a separately available CASIO FA-123 Connection Kit.

For details on operation, the types of computer that can be connected, and hardware

limitations, see the user’s manual that comes with the FA-123.

Some types of data may not be able to be exchanged with a personal computer.

uTo connect the unit to a personal computer

1. Check to make sure that the power of the unit and the personal computer is off.

2. Connect the personal computer to the FA-123 Connection Kit.

3. Remove the cover from the connector of the unit.

4. Connect the unit to the FA-123 Connection Kit.

5. Turn on the power of the unit, followed by the personal computer.

10-3-1

Connecting the Unit to a Personal Computer

#The ALGEBRA calculator also supports to PC

transfer of programs created with a CASIO

CFX-9850 Series calculator.

#Be sure you keep the connector cover in a safe

place so you can replace it after you finish your

data communications.

•After you finish data communications, turn off power in the sequence: the unit first, and

then the personal computer. Finally, disconnect the equipment.

2001100120011101

19990401

10-4 Performing a Data Communication

Operation

From the Main Menu, enter the LINK Mode. The following data communication main menu

appears on the display.

•{TRNS}/{Recv} ... menu of {send settings}/{receive settings}

Communication parameters are fixed at the following settings.

•Speed (BPS): 38.4 kbps (sending a data)

9,600bps (sending a screen shot)

•Parity (PARITY): NONE

kPerforming a Data Transfer Operation

Connect the two units and then perform the following procedures.

Receiving unit

To set up the calculator to receive data, press 2(Recv) while the data communication main

menu is displayed.

The calculator enters a data receive standby mode and waits for data to arrive. Actual data

receive starts as soon as data is sent from the sending unit.

10-4-1

Performing a Data Communication Operation

20011101

19990401

Sending unit

To set up the calculator to send data, press 1(TRNS) while the data communication main

menu is displayed.

Press the number key that corresponds to the type of data you want to send.

• {Select} ... {selects data items and sends them}

• {Currnt } ... {selects data items from among previously selected data items and sends

them}

• {Backup} ... {sends all memory contents, including mode settings}

• {H-Copy} ... {selects H-Copy screen shot data and sends it}

uTo send selected data items

Press b(Select) or c(Currnt) to display a data item selection screen.

• {Sel} ... {selects data item where cursor is located}

• {All} ... {selects all data}

• {Trn s } ... {sends selected data items}

Use the fand ccursor keys to move the cursor to the data item you want to select and

press 1(Sel) to select it. Currently selected data items are marked with “'”. Pressing

6(Trns) sends all the selected data items.

•To deselect a data item, move the cursor to it and press 1(Sel) again.

Only items that contain data appear on the data item selection screen. If there are too many

data items to fit on a single screen, the list scrolls when you move the cursor to the bottom

line of the items on the screen.

10-4-2

Performing a Data Communication Operation

19990401

uTo execute a send operation

After selecting the data items to send, press 6(Trns). A message appears to confirm that

you want to execute the send operation.

•w(Yes) ... sends data

•i(No) ... returns to data selection screen

Press w(Yes) to send the data.

•You can interrupt a data operation at any time by pressing A.

The following shows what the displays of the sending and receiving units look like after the

data communication operation is complete.

Sending Unit Receiving Unit

Press ito return to the data communication main menu.

10-4-3

Performing a Data Communication Operation

19990401

uTo send backup data

This operation allows you to send all memory contents, including mode settings.

While the transmit data type selection menu is on the screen, press d(Backup), to display

the screen shown below.

Press w(Yes) to start the send operation.

The following shows what the displays of the sending and receiving units look like after the

data communication operation is complete.

Sending Unit Receiving Unit

Press ito return to the data communication main menu.

10-4-4

Performing a Data Communication Operation

#Data can become corrupted, necessitating a

RESET of the receiving unit, should the

connecting cable become disconnected during

data transfer.

Make sure that the cable is securely connected to

both units before performing any data communi-

cation operation.

19990401

10-5 Data Communications Precautions

The following are the types of data items that can be sent.

Data Item Contents Overwrite Password

Check*1Check*2

Program names Program contents Ye s Ye s

(All programs are listed.)

Mat nMatrix memory (A to Z) contents Yes

List nList memory (1 to 20) contents Yes

File nList file memory (1 to 6) contents Yes

Y=Data

Graph expressions, graph write/

non-write status, V-Window contents, No

zoom factors

G-Mem nGraph memory (1 to 20) contents Yes

V-Win nV-Window memory contents No

Picture nPicture (graph) memory (1 to 20) data No

DynaMem Dynamic Graph functions Yes

Equation Equation calculation coefficient values No

Alpha Memory Variable memory contents No

F-Mem nFunction memory contents No

CAS CAS formula data contents

(ALGEBRA FX 2.0 PLUS only) No

Algebra Algebra data contents

(ALGEBRA FX 2.0 PLUS only) No

DIFF Equation Differencial Equation data No

E-CON Data E-CON data No

Add-in application Add-in application data No

names (All add-in applications are listed.)

*1No overwrite check: If the receiving unit already contains the same type of data, the

existing data is overwritten with the new data.

With overwrite check: If the receiving unit already contains the same type of data, a

message appears to ask if the existing data should be overwritten with the new data.

10-5-1

Data Communications Precautions

Data item name

20010102

19990401

•1(YES) ... {replaces the receiving unit’s existing data with the new data}

•6(NO) ... {skips to next data item}

*2With password check: If a file is password protected, a message appears asking for input

of the password.

After inputting the password, press w.

Note the following precautions whenever you perform data communications.

•An error occurs whenever you try to send data to a receiving unit that is not yet standing

by to receive data. When this happens, press ito clear the error and try again, after

setting up the receiving unit to receive data.

•An error occurs whenever the receiving unit does not receive any data approximately six

minutes after it is set up to receive data. When this happens, press ito clear the error.

•An error occurs during data communications if the cable becomes disconnected, if the

parameters of the two units do not match, or if any other communications problem

occurs. When this happens, press ito clear the error, then correct the problem before

trying data communications again. If data communications are interrupted by the ikey

operation or an error, any data successfully received up to the interruption will be in the

memory of the receiving unit.

•An error occurs if the receiving unit memory becomes full during data communications.

When this happens, press ito clear the error and delete unneeded data from the

receiving unit to make room for the new data, and then try again.

•The E-CON item contains the following data.

1. Current Setup Data

2. Setup Memory Data

3. Custom Probe Memory Data

The corresponding data is overwritten on the receiver. Setup Memory data and Custom

Probe Memory data overwrites the data for the same memory number on the receiver. If

you want to keep data from being overwritten on the receiver, change its memory number.

10-5-2

Data Communications Precautions

20010102

Name of password protected file

Password input field

20011101

Andere Handbücher für ALGEBRA FX 2.0 Plus

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Casio Kalkulator Handbücher

Casio

Casio FX-7700GE Bedienungsanleitung

Casio

Casio ALGEBRA FX 2.0 Plus Technisches Dokument

Casio

Casio FX-CG10 Bedienungsanleitung

Casio

Casio fx-82MS Handbuch

Casio

Casio ms-310m Bedienungsanleitung

Casio

Casio GX-12S Bedienungsanleitung

Casio

Casio DJ-120D plus Bedienungsanleitung

Casio

Casio WD-320MT Bedienungsanleitung

Casio

Casio FX-9700GH Fehlerbehebungshandbuch

Casio

Casio MS-7UC Bedienungsanleitung

Casio

Casio CFX-9850G PLUS Technisches Dokument

Casio

Casio CFX-9850G PLUS Gebrauchs- und Pflegehandbuch

Casio

Casio CFX-9970G Bedienungsanleitung

Casio

Casio FX-D400 Fehlerbehebungshandbuch

Casio

Casio FX-350W Bedienungsanleitung

Casio

Casio FX-9750G Bedienungsanleitung

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Bedienungsanleitung

Casio

Casio MJ-12D Bedienungsanleitung

Casio

Casio FX-820MS Bedienungsanleitung

Casio

Casio FX260HA Einrichtungshandbuch

Casio

Casio FX-82D Bedienungsanleitung

Casio

Casio CFX-9850G PLUS Bedienungsanleitung

Casio

Casio OH-9860 Bedienungsanleitung

Casio

Casio FX-992VB Bedienungsanleitung

Beliebte Kalkulator Handbücher anderer Marken

HP 35s Handbuch

LEXIBOOK

LEXIBOOK EL350 Bedienungsanleitung

HP HP-97 Bedienungsanleitung

Citizen

Citizen SDC-414N Bedienungsanleitung

Canon

Canon P26-DHIII Bedienungsanleitung

Citizen

Citizen 520DPA Bedienungsanleitung

Sharp

Sharp EL-9900 Bedienungsanleitung

Sharp

Sharp WriteView EL-W506 Technisches Handbuch

HP HP-67 Benutzerhandbuch

Royal

Royal CBC2000 Bedienungsanleitung

Heathkit

Heathkit IC-2009 Bedienungsanleitung

Universal

Universal UNV-15907 Bedienungsanleitung

Sharp

Sharp EL-9650 Bedienungsanleitung

Sharp

Sharp EL2192RII - Printing Calculator Bedienungsanleitung

Ativa

Ativa AT-30i Bedienungsanleitung

HP StreamSmart 400 Bedienungsanleitung

HP 20b Business Consultant Bedienungsanleitung

HP 9g Bedienungsanleitung
