C O N T E N T S
01 – BILL OF MATERIAL
02 – REQUIRED TOOLS
03 – ASSEMBLY PROCESS
SECTION 01
BILL OF MATERIAL
QUANTITY PART DESCRIPTION
1 Main Base Plate (3mm or 4mm CF)
1 Upper Fuselage Plate (1.5mm CF)
2 FPV Camera Mounting Plates (1.5mm CF)
2 Arm Brace (3mm or 4mm CF)
8 Plastic Spacer (Black plastic M3 hole x 7mm OD x 2mm long)
4 Hex Standoff 'Male – Female' (Black plastic M3 thread x 6mm long)
4 Phillips Head Screw (Black plastic M3 thread x 12mm long)
4 Nut (Black plastic M3 thread)
16 Washer (M3 Hole x silver aluminum)
2 HS1177 Camera Mount 'Backplate' Screws (Phillips head #2 x 3/8” long x stainless steel)
2 HS1177 Camera Mount Adjustment Screws (Phillips head #1 x 5/16” long x stainless steel)
2 HS1177 Camera Mount Adjustment Washers (#1 size x steel)
1 HS1177 to Swift conversion mount (3D Printed Plastic)
1 VTX Antenna Mount (3D Printed TPU)
1 RX Antenna Mount (3D Printed TPU)
2 Antenna Tube (Red Plastic)
4 Frame Standoff (M3 x 32mm long x knurled red aluminum)
4 Socket Head Screw (M3 x 8mm long x red 7075 aluminum)
4 Button Head Screw (M3 x 8mm long x red 7075 aluminum)
16 Socket Head Screw (M3 x 6mm long x red 7075 aluminum)
8 Socket Head Screw (M3 x 10mm long x red 7075 aluminum)
1 Velcro Lipo Strap – Catalyst Machineworks
1 Universal GoPro Camera Mount (3D Printed TPU) - *Optional - Not Included. Sold separately*
1 Universal Xiaomi Yi Camera Mount (3D Printed TPU) - *Optional - Not Included. Sold separately*
1 Universal Mobius / Runcam Camera Mount (3D Printed TPU) - *Optional - Not Included. Sold separately*
1 Universal GoPro Session Camera Mount (3D Printed TPU) - *Optional - Not Included. Sold separately*
SECTION 02
REQUIRED TOOLS
QUANTITY TOOL DESCRIPTION
1 File
1 2mm allen driver or allen wrench
1 2.5mm allen driver or allen wrench
1 5.5mm socket driver
1 Small phillips head screw driver
1 Needle Nose Pliers
1 Loctite
3 Adult beverage of choice or apple juice if you are under 21
SECTION 3
ASSEMBLY PROCESS
STEP 1
Parts Required:
Quantity Part Description
1 Main Base Plate (3mm or 4mm CF)
4 Button Head Screw (M3 x 8mm long x red 7075 aluminum)
4 Frame Standoff (M3 x 32mm long x knurled red aluminum)
Assembly Process:
Warning – Please be aware this assembly manual covers steps related to frame construction itself. We do not cover every step
related to electronics install. You must have a basic understanding of how to properly install and setup FPV quad electronics prior to
assembling your Speed Addict SuperLight. If you are new to FPV racing quads and need help we have other resources available to
you.

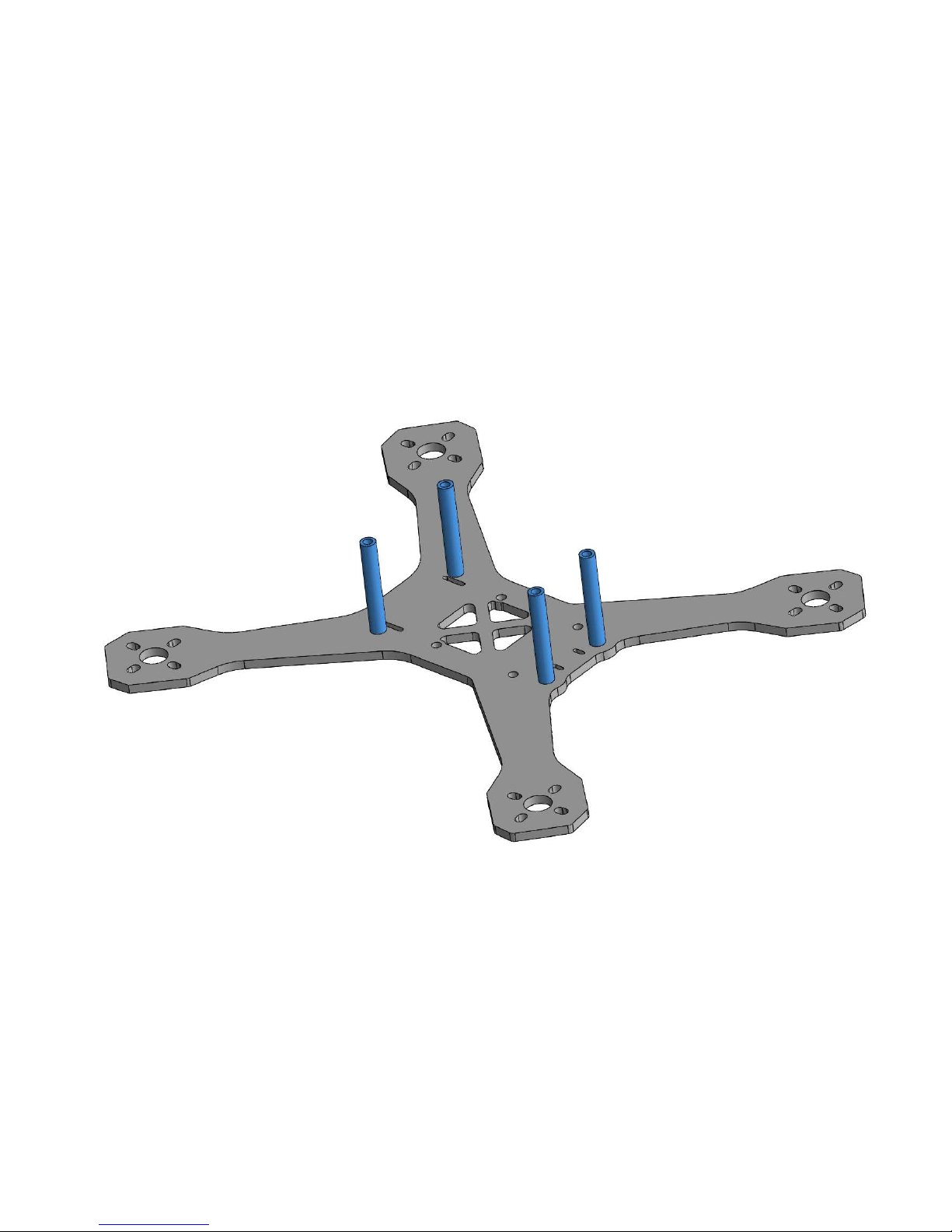

Position the main base plate as shown. Install the screws into the standoffs. The standoffs are knurled which will allow
you to simply grip them with your hands while you torque the screws. You only need to get them 'hand tight' at this
point. You can go back later once the assembly is complete to apply final torque on the screws.
