16ch HD-TVI AHD, HDCVI Analog CCTV Video MULTIPLEXER
VM-HD16 Specification and User Manual
1. Introduction
The VM-HD16 is a hybrid analog CCTV / HD CCTV video multiplexer that is compatible with the
following types of security cameras: HD-TVI, AHD, HDCVI, and analog CCTV.
2. Characteristics
● 16 channel BNC video input. Each channel can accept TVI, AHD, CVI, and analog CCTV video. Video
resolutions: D1, 960H, 1080p, 720p. All channels can be either PAL or NTSC.
● Separate brightness, contrast, saturation and hue controls for each channel.
● CVBS BNC video output (NTSC：720X480, PAL：720X576).
● HDMI and VGA video output. Supported resolutions: 1024x768, 1280x1024, 1440x900, 720P/50/60,
1080P/50/60.
● Selectable video display modes: 1ch w/optional sequence rotation, 2ch(left/right), 2ch(up/down), 3ch,
6ch, 8ch, 9ch, 16ch, and PIP mode.
● Output channel of PIP and 2CH mode can select by the menu.
● High performance FREEZE function.
● Channel rotation / auto sequence interval time can be adjusted by menu between 3-99 seconds.
● Digital ZOOM function.
● Video loss alarm.
● Users can operate device by keyboard and wireless remote control.

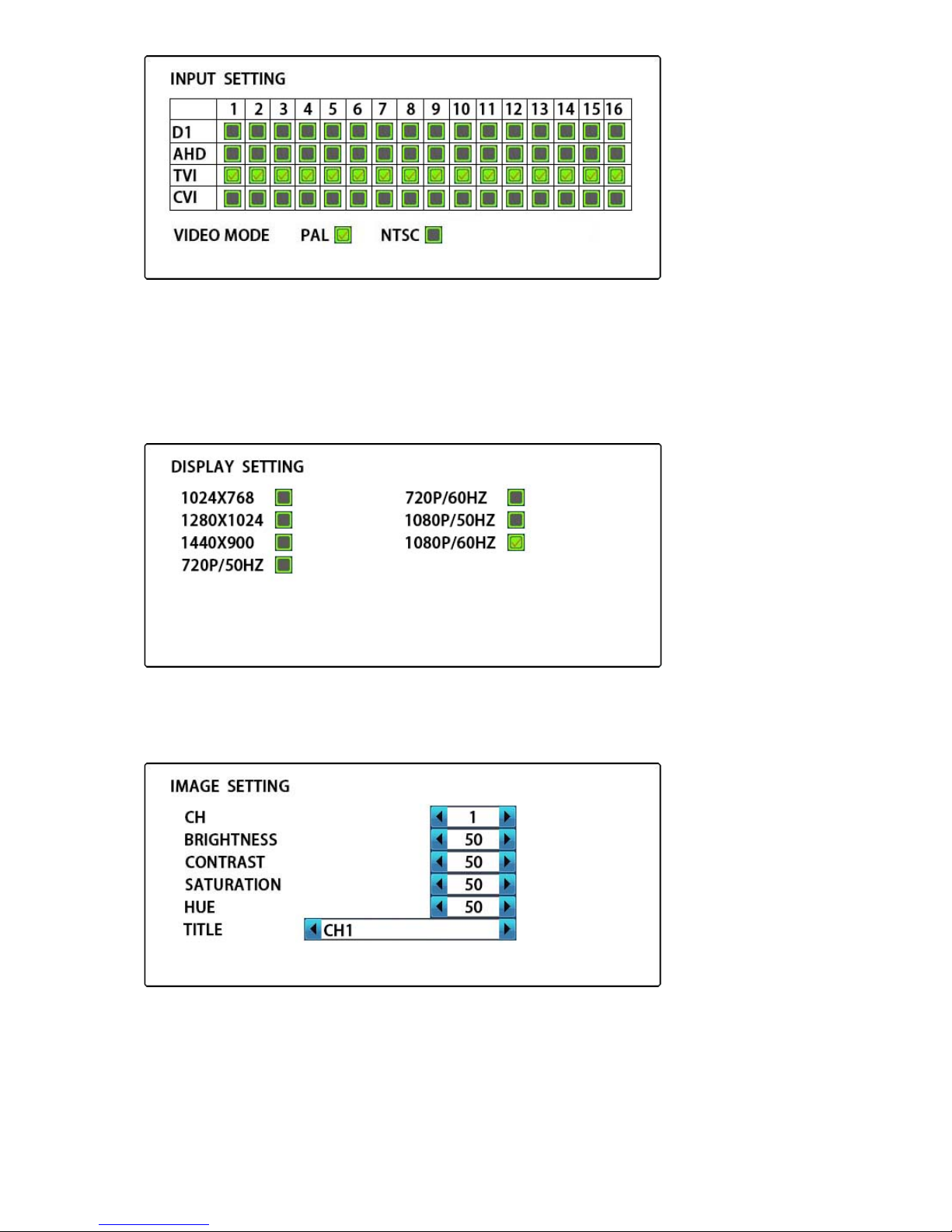

● Input, display, image, auto-sequence, language adjusted via menu system.

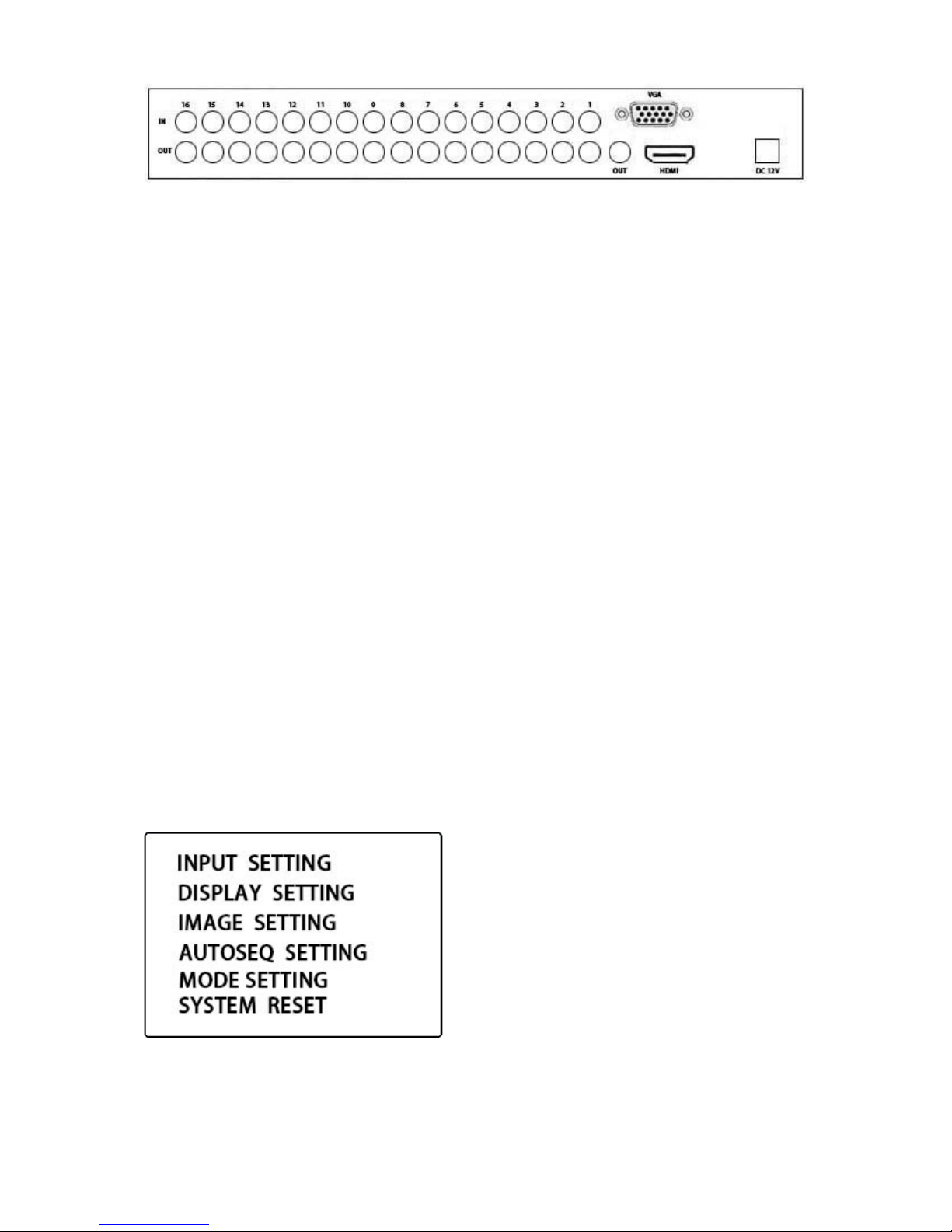

2. Front panel
KEY definition：short key press <1 second，long key press >1 second
●“MEUN”：short press to enter/exit main menu.
●“FREEZ/AUTO”：short press to enter freeze function, long press to enter auto-sequence function.
●“MODE/ZOOM”：short press to enter mode function, long press to enter zoom function.
●“ENTER”：enter button.
●“ ”：QUAD/UP multi-function button.
●“ ”：8CH/DOWN multi-function button.
●“ ”：9CH/LEFT multi-function button.
●“ ”：16CH/RIGHT multi-function button.
●“1/9” ：CH1/CH9 multi-function button.
●“2/10”：CH2/CH10 multi-function button.
●“3/11”：CH3/CH11 multi-function button.
●“4/12”：CH4/CH12 multi-function button.
●“5/13”：CH5/CH13 multi-function button.
●“6/14”：CH6/CH14 multi-function button.
●“7/15”：CH7/CH15 multi-function button.
●“8/16”：CH8/CH16 multi-function button.
