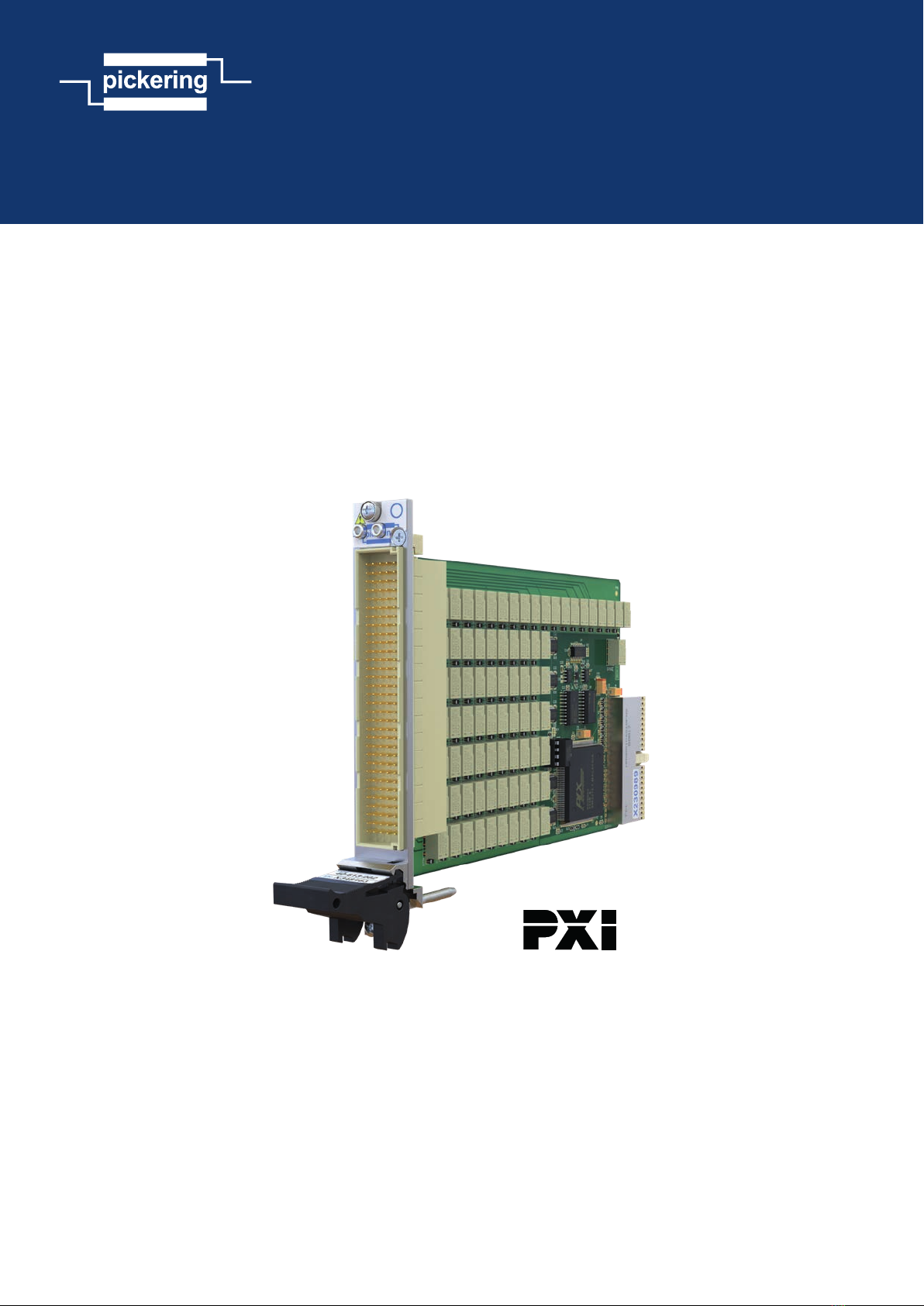

40-613 User Manual

PXI Very High Density Versatile 2-Pole Multiplexer

Page (II) VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture - 40-613 ..............................................4.2

Sub-unit Cross Reference.....................................................4.4

Programming The 40-613 Module........................................4.13

Soft Front Panel.....................................................................4.15

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.1

Relay Lookup Tables ...........................................................7.1

Component Layout ..............................................................7.3

CONTENTS

Page (VI) VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

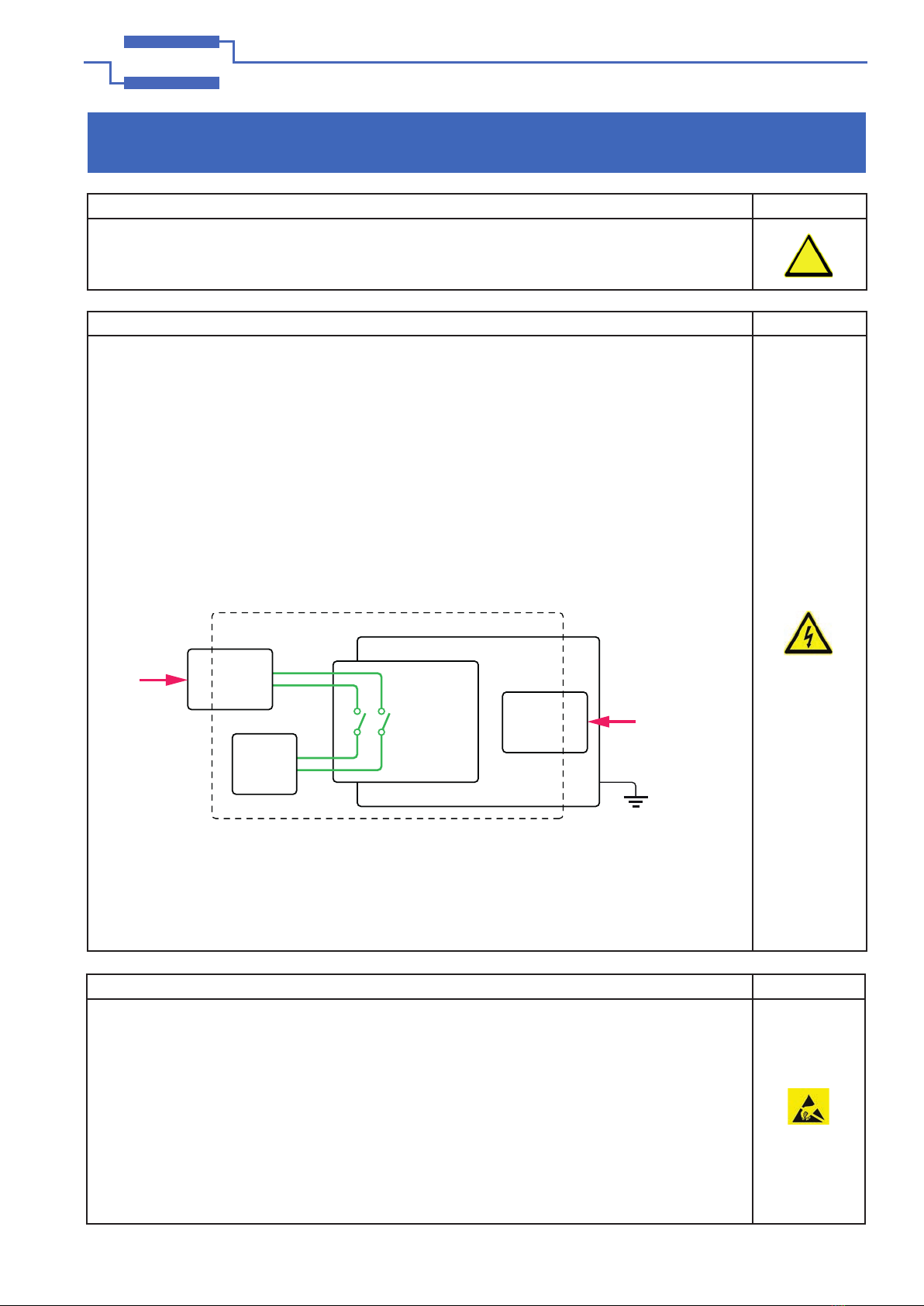

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

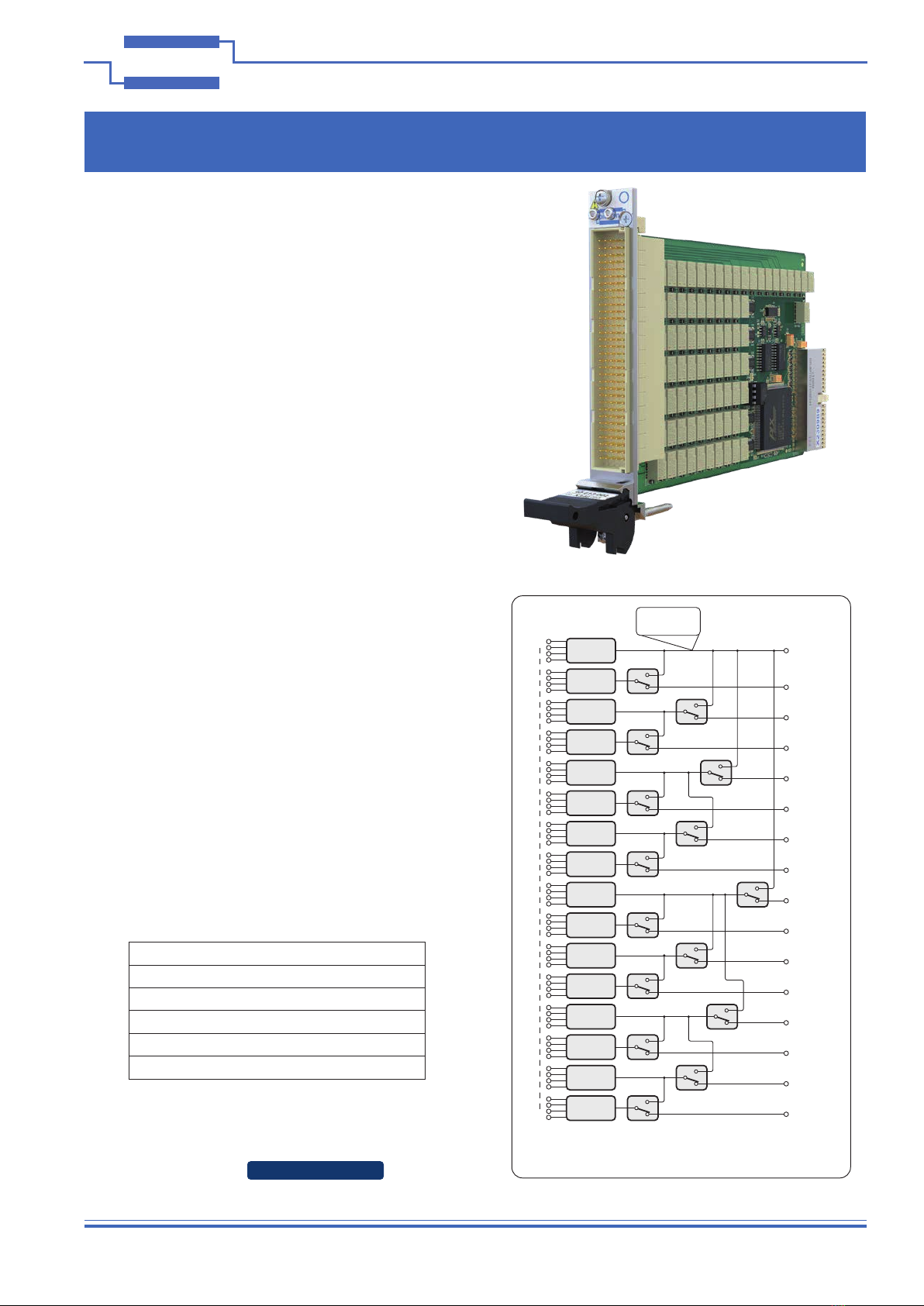

PXI Very High Density Versatile 2-Pole MUX 40-613

ISSUE 12.1 SEP 2019

Supported by

eBIRST

eBIRST switching system test tools simplify fault-nding by quickly

testing the system and graphically identifying the faulty relay.

For more information go to: pickeringtest.com/ebirst

• Versatile Multiplexer - for Now & The Future

• Flexible Software Conﬁgured Architecture Can be

Set To Different Conﬁgurations As Needs Change

• 16-Bank 4-Channel 2-Pole Multiplexers With

Inter-bank Connection Switching

• Many Different Conﬁgurations up to a Single

64-Channel 2-Pole Multiplexer, Including Mixed

Channel Count & Custom Conﬁgurations

• Maximum Current 2A Hot or Cold Switching

• Switch up to 300VDC/250VAC and up to 60W

Max Power

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• Supported by

eBIRST

™

• 3 Year Warranty

Com 1

Com 2

Com 3

Com 4

Com 5

Com 6

Com 7

Com 8

Com 9

Com 10

Com 11

Com 12

Com 13

Com 14

Com 15

Com 16

4:1 MUX

ALL PATHS

ARE 2-POLE

Simpliﬁed Diagram for the 40-613-002 Multiplexer

(see overleaf for a more detailed version)

The 40-613 Very High Density Versatile Multiplexer module features

a wide range of software selectable switching congurations. It is

especially useful where a high density MUX array is required that

can adapt to different test congurations for different test targets, or

where a test system may have to be recongured in the future. Typical

applications include signal routing in ATE and data acquisition systems.

The 40-613 uses high quality electro-mechanical relays, connections

are made via a front panel 160-pin DIN41612 connector.

MUX Conﬁgurations

The module can be software congured into one of a large number

of different 2-pole multiplexer modes. Inter-bank switching allows

a maximum of 64 channels (refer to schematic diagram). Larger

multiplexers may be constructed by daisy chaining the common signals

from multiple modules.

The 40-613 multiplexer may be operated as a conventional multiplexer

with break-before-make action when a new channel is selected. Also,

multiple channels can be simultaneously selected without restriction.

Typical Congurations

16 Banks, 4 Channels, 2-Pole

8 Banks, 8 Channels, 2-Pole

4 Banks, 16 Channels, 2-Pole

2 Banks, 32 Channels, 2-Pole

1 Bank, 64 Channels, 2-Pole

Page 1.2 VERY HIGH DENSITY VERSATILE 2-POLE MUX MODULE 40-613

pickering

SECTION 1 - TECHNICAL SPECIFICATION

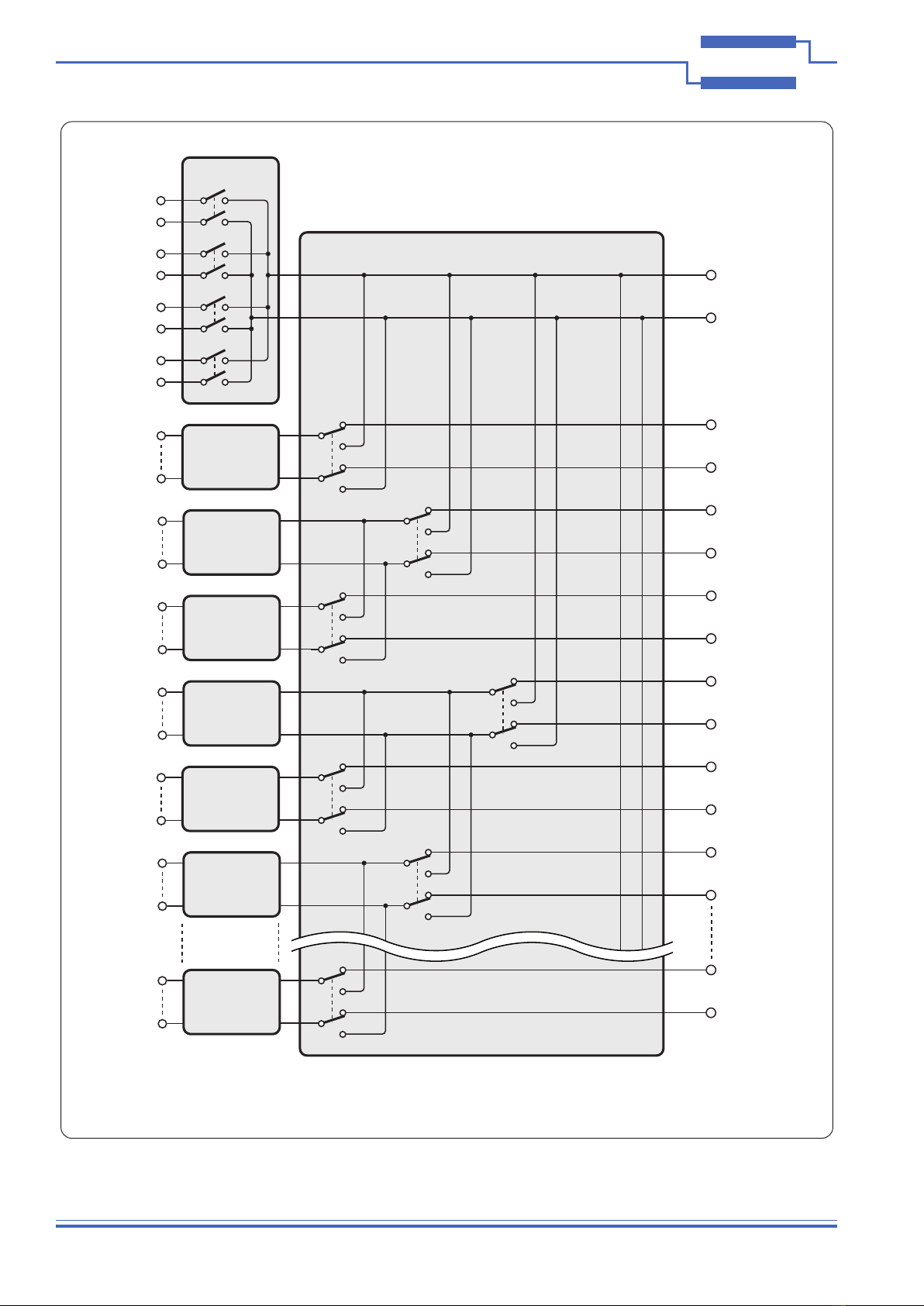

Very High Density Versatile MUX – 40-613

pickeringtest.com

Overview

1.2

1.1

2.2

2.1

3.2

3.1

4.2

4.1

MUX1

MUX2

8.2

5.1

MUX3

12.2

9.1

MUX4

16.2

13.1

MUX5

20.2

17.1

MUX6

24.2

21.1

MUX7

28.2

25.1

MUX16

64.2

61.1

Com 1.1

Com 1.2

Com 2.1

Com 2.2

Com 3.1

Com 3.2

Com 4.1

Com 4.2

Com 5.1

Com 5.2

Com 6.1

Com 6.2

Com 7.1

Com 7.2

Com 16.1

Com 16.2

Inter-bank Connection Switches

Detailed Switching Diagram for the 40-613-002 Very High Density

16 Bank, 4 Channel, 2-Pole Versatile Multiplexer

Inhaltsverzeichnis

Andere Pickering Multiplexer Handbücher

Pickering

Pickering 40-662A Bedienungsanleitung

Pickering

Pickering 40-666A Bedienungsanleitung

Pickering

Pickering PXI 40-620 Bedienungsanleitung

Pickering

Pickering LXI 60-555 Bedienungsanleitung

Pickering

Pickering 40-614 Bedienungsanleitung

Pickering

Pickering 40-652A Bedienungsanleitung

Pickering

Pickering 40-614B Bedienungsanleitung

Pickering

Pickering 40-666B Bedienungsanleitung

Pickering

Pickering 40-659A Bedienungsanleitung

Pickering

Pickering 40-680 Bedienungsanleitung

Pickering

Pickering 40-570A Bedienungsanleitung

Pickering

Pickering PXI 40-785B Bedienungsanleitung

Pickering

Pickering PCI 50-670 Bedienungsanleitung

Pickering

Pickering 40-736 Bedienungsanleitung

Pickering

Pickering 40-675A Bedienungsanleitung

Pickering

Pickering PXI Power MUX BRIC 40-571A Bedienungsanleitung

Pickering

Pickering 20-610 Bedienungsanleitung

Pickering

Pickering 40-630A Bedienungsanleitung

Pickering

Pickering 40-681 Bedienungsanleitung

Pickering

Pickering SYSTEM 10 Bedienungsanleitung

Pickering

Pickering 40-320A Bedienungsanleitung

Pickering

Pickering PXi 40-660A Bedienungsanleitung

Pickering

Pickering SIMRC 1050 Bedienungsanleitung

Pickering

Pickering 40-616 Bedienungsanleitung

Beliebte Multiplexer Handbücher anderer Marken

Campbell

Campbell AM416 Bedienungsanleitung

Paradyne

Paradyne SIM2000 Bedienungsanleitung

Panasonic

Panasonic WJFS616 - SWITCHER Bedienungsanleitung

Lanex

Lanex TM-77 Bedienungsanleitung

Bosch

Bosch VSS8394/01T Bedienungsanleitung

Quark-Elec

Quark-Elec QK-A035 Bedienungsanleitung

ADTRAN

ADTRAN Frameport 768 Bedienungsanleitung

Elo TouchSystems

Elo TouchSystems E247 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8786 Bedienungsanleitung

RFL Electronics

RFL Electronics 9508D UCC Bedienungsanleitung

Miranda

Miranda AMX-101i Bedienungsanleitung

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Bedienungsanleitung

GE StoreSafe SDVR-10 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8410C Bedienungsanleitung

ADC

ADC HiGain ELU-319 5E Bedienungsanleitung

Paradyne

Paradyne Hotwire 8774 Bedienungsanleitung

American Fibertek

American Fibertek MTX-8810C-SL Bedienungsanleitung

Viessmann

Viessmann 5229 Bedienungsanleitung
