CDA VK703 Benutzerhandbuch
VK703
Compact steam oven and grill
Use and maintenance
2| Instruction Manual
Contents
3 Important information
6 Before first use
7 Filling the water tank
8 Control panel
9 Using the touch controls
9 Switching the appliance on and o
10 Setting the clock
10 Setting the minute minder
11 Functions
12 Selecting a function
12 Pausing and altering functions
12 Stopping functions
13 Auxiliary functions and settings
13 Safety key lock
14 Interior lighting
14 Operating time limiter
15 Semi-automatic cooking
16 Automatic cooking
17 Care and maintenance
21 Cleaning
23 Installation
25 Mains electrical connection
Instruction Manual | 3
Important information
This appliance must only be used for the purpose for which it is
intended, i.e. domestic cooking. Any other use could be dangerous
and may lead to premature failure of the appliance.
The CDA Group Ltd. cannot be held responsible for injuries or
losses caused by incorrect use or installation of this product.
Please note that CDA reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse
of the appliance.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified personnel.
User information:
•Ovens become hot during and immediately after use.
• The oven door can become very hot during operation.
• After use, please ensure that the oven is switched ‘O’.
• Keep children away from the appliance when in use, and
immediately after use.
• Keep the oven door closed whilst grilling.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee
purposes.
Appliance Model
Serial Number
4| Instruction Manual
Important information
EU Declarations of Conformity:
This oven has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU
(LVD) and requirements of EU Directive 2014/30/EU (EMC).
Parts intended to come into contact with food conform to
1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials
to be recovered to obtain significant savings in energy and
resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Instruction Manual | 5
Important information
•Read the user instructions carefully before using the
oven for the first time.
•Follow the instructions for first use of the oven.
•Clean the oven regularly.
•Remove spills as soon as they occur.
•Always use oven gloves when removing shelves and
trays from the oven.
•Do not allow children near the oven when in use.
•Do not allow fat or oils to build up on the oven
shelves, grill pan or oven base.
•Do not place any cooking utensils or plates directly on
the oven base.
•Always grill with the oven door closed.
•Do not grill food containing fat without using the grill
pan grid.
•Do not cover the pans, grids or the oven walls with
aluminium foil.
•Do not use the oven tray for roasting.
•Do not perform maintenance or cleaning of the oven
without first switching o the electricity supply. If the
oven has recently been used, allow to cool.
•Do not place hot enamel parts in water. Leave them to
cool first.
•Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with enamel parts.
•Do not use abrasive cleaners or powders that will
scratch the surface of the enamel or stainless steel.
•Do not attempt to repair the internal workings of your
oven.
•Do not cover the oven floor with aluminium foil.
6| Instruction Manual
Before first use
First use
Before using the oven for the first time we recommend that, with
the power supply o, you clean the oven with soapy water. Once
done, rinse carefully, remove all accessories from the appliance
and then heat on the below programme at maximum temperature
for the specified time. A slightly unpleasant smell may be
produced, caused by grease remaining on the oven element from
the production process.
Please note:
This oven has been fitted with a cooling fan to achieve maximum
eciency and to maintain low surface temperatures. The cooling
fan will switch on automatically when the oven switches on. It is
normal for the cooling fan to run for an hour or more after use,
depending on the duration, temperature and type of cooking
programme used.
• The oven light remains on for every cooking function for 1
minute then will go out. The oven light can be switched on or
o at any time.
• Switching the oven o will result in any semi-automatic or
automatic cooking to be cancelled
• We recommend preheating the grill for 5 minutes before each
use.
30 minutes full grill
Instruction Manual | 7
Filling the water tank
Before using the steam functions for the first time we recommend
that you remove and clean, thoroughly, the water tank in the
appliance. The water tank can be found on the right hand side of
the appliance when the door is open (circled below).
Fill the tank up to the maximum capacity line and carefully re-insert
the tank. The appliance will warn you when the system is out of
water by displaying ‘Lo’ on the timer section of the display.
If you are leaving the appliance and/or the steam functions to go
unused for some time (i.e. whilst on holiday) we recommend
emptying and drying the water tank so as to prevent the water from
stagnating.
Fig. 1
8| Instruction Manual
Control panel
On/O sensor Plus sensor
Time sensor Minus sensor
Interior light sensor Confirm sensor
Start/Pause sensor Minute minder indicator
Temperature sensor Duration indicator
Rapid preheating
sensor
End of cooking indicator
Safety key lock indicator
Function active
indicator
Function Sensors Time/Temperature display Auxiliary Functions
Adjustment Sensors
Function Indicators
Instruction Manual | 9
Using the touch controls

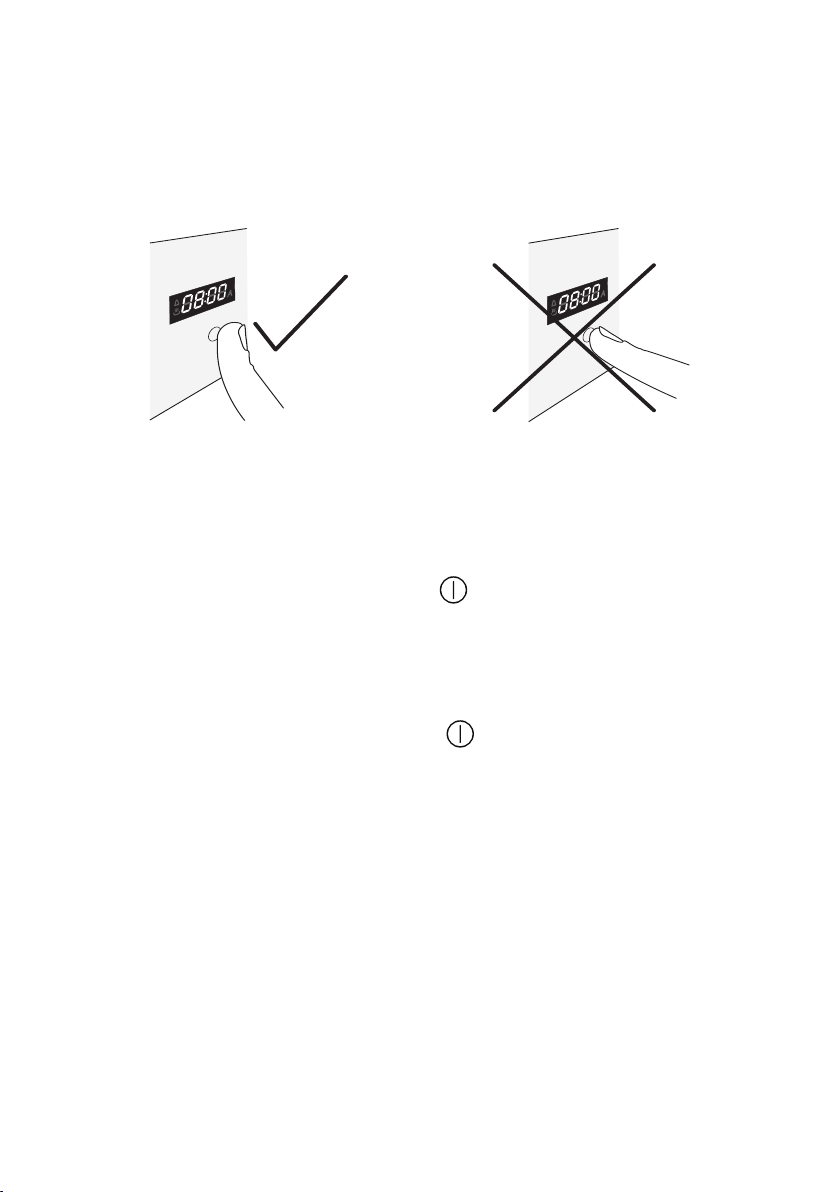

The touch controls should be used with the flat of your finger,
rather than the fingertip.
Switching the appliance on and o
To switch the appliance on
Touch and hold the ‘On/O’ sensor for approximately 3 seconds
and until the appliance beeps.
To switch the appliance o
Touch and hold the “On/O” sensor for approximately 3
seconds and until the oven beeps. All displays except for the time
display should extinguish.
Please note: To switch the appliance o completely, i.e. before
cleaning it, you will need to switch it o at the mains isolation
switch.
10 | Instruction Manual
Setting the clock
• In standby mode, press and hold the timer sensor until the
minutes of the display flash.
• Use and to set the minutes. Touch the sensor to
confirm the setting.
• The hours of the display will now be flashing. Use and to
set the hours. Touch the sensor to confirm the setting.
Note: The clock can only be set in 24 hour format
Setting the minute minder
Select a function and touch the sensor until the minute minder
indicator flashes. Then, use the and sensors to set the
desired time. Touch the sensor to confirm the setting or wait 5
seconds and the setting will save automatically and the indicator
will be illuminated on the display.
The minute minder can be set between 1 minute and 24 hours.
Once the duration time has elapsed you will hear beeping and the
display will flash 0:00. Touch the sensor to mute the beeping
and return to standby mode. If no sensor is pressed, the beeping
will stop after 60 seconds but the display will continue to flash.
