CEECO SSW-521-D Bedienungsanleitung

SSW-521-D-SPK1.07UNVLr1-ADA-ISSUE4.0

SERVICE MANUAL

FOR

MODEL SSW-521-D

(FORMERLY SSW-521-DS)

STAINLESS STEEL HANDS FREE WALL TELEPHONE

WITH OPTIONAL ADA FEATURE

EQUIPPED WITH SPK1.07UNVLr1 FIRMWARE

Serving the Telephone Industry Since 1930

Communication Equipment 519 W South Park Street

& Engineering Company Okeechobee, FL 34972

Voice: 863-357-0798

Fax: 863-357-0006

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

IMPORTANT INFORMATION

FOR

CUSTOMER

Please fill in before you continue.

The following information is necessary when calling CEECO for assistance.

MODEL NUMBER MODEL SSW-521-D STAINLESS STEEL

HANDS FREE WALL TELEPHONE

EQUIPPED WITH SPK1.07UNVLr1

FIRMWARE.

SERIAL NUMBER

DATE MANUFACTURED

LOCATION INSTALLED

For us to better serve you, please have this information available when calling for

technical support.

CEECO

Communication Equipment & Engineering Company

519 W South Park Street

Okeechobee, FL 34972

863-357-0798- telephone

863-357-0006- facsimile

[email protected]

www.ceeco.net

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

TABLE OF CONTENTS

SECTION PAGE

1.0 INTRODUCTION................................................................................................... 4

2.0 GENERAL............................................................................................................... 4

3.0 PROGRAMMING .................................................................................................. 5

PROGRAMMING CONTINUED......................................................................... 6

PROGRAMMING CONTINUED......................................................................... 7

4.0 OPERATION .......................................................................................................... 8

5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT .................................... 8

6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..................... 9

7.0 TESTING............................................................................................................... 11

8.0 SPECIFICATIONS............................................................................................... 12

9.0 PARTS LIST ......................................................................................................... 13

10.0 REPAIR AND RETURN INFORMATION....................................................... 14

11.0 WARRANTY POLICY ........................................................................................ 15

12.0 DIAGRAM............................................................................................................. 16

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

1.0 INTRODUCTION

The practices in this manual provide installation and maintenance information for

the CEECO Model SSW-521-D Stainless Steel Wall Telephone.

The information in this manual is subject to change without notification.

For information not included in this manual, please call or write:

CEECO

Customer Service

519 W South Park Street

Okeechobee, FL 34972

863-357-0798- telephone

863-357-0006- facsimile

[email protected]

www.ceeco.net

)

2.0 GENERAL

2.1 The CEECO Model SSW-521-D Hands free telephone is a sturdy, vandal

resistant, Stainless Steel Speakerphone, with optional ADA feature

(RED/GREEN LED). Instead of a hookswitch and handset, the telephone

is equipped with a Press to start/Press to stop Emergency Auto Dial

button. The button provides automatic dialing of a preprogrammed

number of up to 11 digits. Manual volume control is also provided inside

the telephone.

2.2 The microphone is muted during dial tone eliminating the use of hand held

dialers.

2.3 The telephone may be programmed to:

•allow or block incoming calls (if equipped with ringer)

•automatically time and disconnect a phone call

•automatically dial a PBX or other access number

2.4 Programming is accomplished via the DTMF keypad, which is packaged

separately.

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

3.0 PROGRAMMING

NOTE: It is recommended that you ground yourself to prevent ESD

damage to the PCB(s).

3.1 Locate the security screw on the bottom of the housing and remove it with

the security tool (P/N 301-037 sold separately). Separate the telephone

housing from the back plate by pulling the housing bottom away from the

back plate and up.

3.2 Locate the programming keypad, which was packaged separately and has

a white connector on the reverse side. Locate the multi-color ribbon cable

extending from the Printed Circuit Board, with a white connector on the

loose end. Connect the keypad and cable, via the two white connectors.

3.3 Connect the telephone to a working telephone line or a DTMF test set

(Please refer to diagram on page 10).

3.2 Locate the pair of plastic mini-jumpers along the edge of the PC board.

Move them to the “ON” or inner most position as depicted in the diagram

on the last page of this manual.

3.3 Press the “Emergency” button on the front of the phone and wait for

dial tone to begin programming.

3.4 Enter #97#18#, in order to clear all user programmable memory.

NOTE: Once the “#" key has been entered, you may hear a fast busy

tone, an operator reorder, or other Central Office signals. Please disregard

these sounds and continue programming, as they will have no effect on the

programming.

3.5 Each programming location is accessed by dialing the # sign and the

corresponding two digit code. The previous contents of the location are

automatically erased when the location code is accessed.

3.6 Enter #00, followed by a series of ten (10) digits as selected from the

following page. Location “00” is the telephone options location. By

entering a selected number of 0-9 into each of the ten digit locations, the

phone is customized for the particular installation

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

PROGRAMMING CONTINUED

LOCATION #00: (OPTION TABLE)

•Be sure to record your selections here for future reference:

#00 0 __ __ 0 0 __ 0 __ 0 __

1 2 3 4 5 6 7 8 9 10

Digit 1:

0 Always 0for this model.

Digit 2:

0No incoming calls allowed.

1Incoming calls allowed (if equipped with ringer).

Digit 3:

0 No Conversation Time-Out.

1-9 Minute(s) Conversation Time-Out. (Automatically times & disconnects call)

Digit 4:

0Always 0for this model.

Digit 5:

0 Always 0 for this model.

Digit 6:

0 Deactivate ADA Feature

9 Activate ADA Feature (if equipped with visual call progress LED).

Digit 7:

0 Always 0for this model.

Digit 8:

0 Do not dial PBX access number stored in location #18.

1 Dial PBX access number stored in location #18.

Digit 9:

0Always 0 for this model.

Digit 10:

0No wink detect.

1-9 Length of the wink detect (1=50ms incremental to 450ms. 5 is recommended).

EXAMPLE: Dial #00 0160090105 and the phone will be set as follows:

DIGIT 1 .. ALWAYS 0

DIGIT 2 .. INCOMING CALLS ALLOWED

DIGIT 3 .. 6 MINUTE CONVERSATION TIME OUT

DIGIT 4 .. ALWAYS 0

DIGIT 5 .. ALWAYS 0

DIGIT 6 .. ACTIVATE ADA FEATURE

DIGIT 7 .. ALWAYS 0

DIGIT 8 .. DIAL THE PBX ACCESS NUMBER FIRST

DIGIT 9 .. ALWAYS 0

DIGIT 10..250 ms wink detect.

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

PROGRAMMING CONTINUED

3.7 Enter #19 followed by the desired emergency auto-dial number. This

is the number that is automatically dialed when the button on the front of

the phone is pressed. The number may range from 1-11 digits. The time-

out disconnect feature (if programmed) will start after this number has

been dialed.

EXAMPLE: Enter #19 5551212. This will cause the phone to

automatically dial the seven-digit number, 5551212, when the

“Emergency” button is pressed.

3.8 If it is necessary for the telephone to first dial a PBX or other access

number, Enter #18 followed by the desired PBX/Access number.

Otherwise, proceed to section 3.9. This number may also range from 1-11

digits. Provided that a 1 was entered under Digit 8 in section 3.6, the

number stored in LOCATION #18 will automatically dial first, followed

by a 1 second pause, and then the number stored in LOCATION #19 will

automatically dial.

EXAMPLE: Enter #18 1800123456. This will cause the phone to

automatically dial the eleven digit 1800 number, followed by a 1 second

pause, followed by the automatic dialing of the number entered after #19

above.

3.9 When programming is finished, press the “Emergency” button to hang

up the phone. Return the two plastic mini-jumpers to the “off” or

outermost position, as depicted on the last page of this manual.

Disconnect the programming keypad and secure it safely somewhere for

future use. The phone is now ready for installation/use.

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

4.0 OPERATION

To make a call, press the “Emergency” button located on the front of the

telephone and wait to hear dial tone. The LED (if provided) will illuminate red at

this time and the pre-programmed number(s) will dial out on the line. When the

call is complete, press the “Emergency” button again to hang up the phone. The

call will be terminated and the LED (if provided) will go out. If the phone is not

manually hung up, it will reset itself upon receiving a wink back from the far end,

or upon the expiration of the time entered in section 3.6 under Digit 3 (call time-

out feature).

If the telephone is equipped with an optional ADA LED light (visual call progress

LED), the LED will illuminate red when the emergency button is pressed. The

LED will flash red and green during the ringing cycle. The LED will then turn

green when the called party answers (within a max. four seconds). Thus, the

LED provides a visual indication of the call progress. In order for the ADA LED

to function, it must be activated by selecting “9” in section 3.6 under Digit 6.

NOTE: CEECO cannot assume responsibility for the called party’s response.

5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT

Volt/Ohm Meter

5/16" Nut driver

3/8" Nut Driver

Security Tool, CEECO part number 301-037

Flat Blade Screw Driver

DTMF Test Set

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS

6.1 Using a 301-037 security tool (sold separately), loosen and remove the

security screw.

6.2 The security tool is for a standard 5/32" button head screw generally used

on the framework of the phone booths.

6.3 Separate the cover assembly from the back plate assembly by pulling the

bottom forward and pushing up.

6.4 The back plate assembly is designed to be mounted on any flat vertical

surface. Four mounting holes are provided.

6.5 Run the inside station wire (tip & ring) through the back plate assembly

and terminate onto the terminal block on the back plate, as depicted on the

following page.

6.6 The use of a gas tube station protector is recommended. The station

ground should not exceed 50 ohms.

6.7 Plug together the line cord wires (red & green) from the telephone

assembly and the backplate, by matching the marked surfaces of the

connectors. (refer to diagram on next page). Dress the lines/cables away

from the security screw.

6.8 Install the cover assembly by placing the two tabs into the two

corresponding slots and secure the cover assembly by tightening the

security screw.

*****WARNING*****

A. Never install telephone wiring during a lightning storm.

B. Never install telephone jacks in wet locations unless the

jack is specifically designed for wet locations.

C. Never touch uninsulated telephone wires or terminals unless

the telephone line has been disconnected at the network

interface.

D. Use caution when installing or modifying telephone lines.

ISSUE 4.0

CEECO

Communication Equipment & Engineering Company

PROPRIETARY

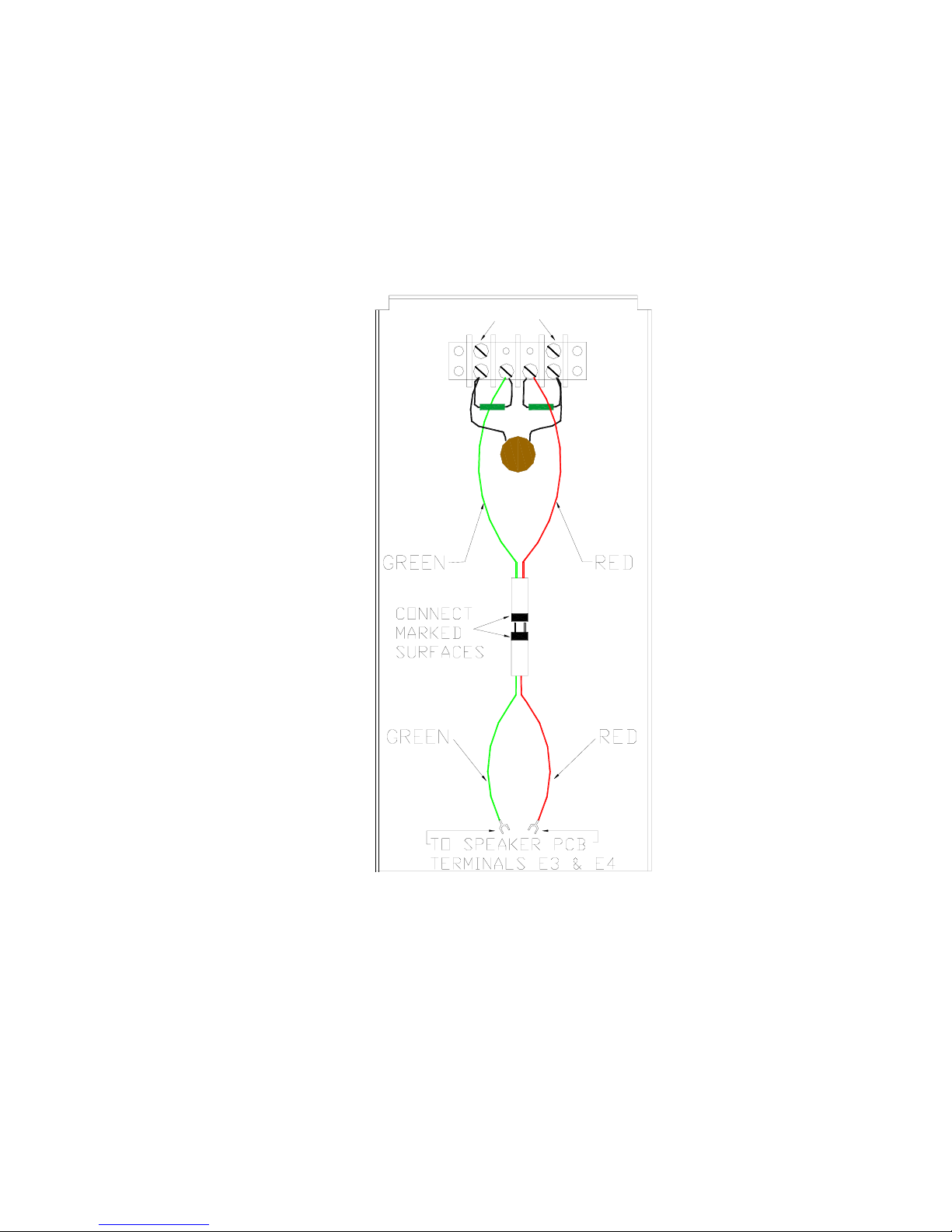

6.9 TELEPHONE LINE WIRING DIAGRAM

TERMINATE TIP & RING HERE

Inhaltsverzeichnis

Andere CEECO Telefon Handbücher

CEECO

CEECO WPP-333-D Bedienungsanleitung

CEECO

CEECO WPP-333-F-M-IVC Bedienungsanleitung

CEECO

CEECO SSW-323-F Bedienungsanleitung

CEECO

CEECO SSP-511-D-ADA Bedienungsanleitung

CEECO

CEECO SSP-511-DD-ADA Bedienungsanleitung

CEECO

CEECO HOB-313-DD-48 Bedienungsanleitung

CEECO

CEECO WPP-331-D-M-IVC Bedienungsanleitung

CEECO

CEECO BLC-303-F Bedienungsanleitung

CEECO

CEECO SSP-369-FE Bedienungsanleitung

CEECO

CEECO SSP-570-D Bedienungsanleitung

CEECO

CEECO WPP-531-X-ADA-STROBE Bedienungsanleitung

CEECO

CEECO SSP-351 series Bedienungsanleitung

CEECO

CEECO SSW-321-Dr1 Bedienungsanleitung

CEECO

CEECO WPP-531-D2 Bedienungsanleitung

CEECO

CEECO SSP-560-F Bedienungsanleitung

CEECO

CEECO SSP-561-F Bedienungsanleitung

CEECO

CEECO MHW-341-X Bedienungsanleitung

CEECO

CEECO MHW-341-D Bedienungsanleitung

CEECO

CEECO SSC-303-D Bedienungsanleitung

CEECO

CEECO SSW-321-F-IVC-C-M Bedienungsanleitung

CEECO

CEECO SSP-571-D Bedienungsanleitung

CEECO

CEECO SSP-363-E Bedienungsanleitung

CEECO

CEECO WPP-331-F Bedienungsanleitung

CEECO

CEECO IP-SSP-511- X Bedienungsanleitung

Beliebte Telefon Handbücher anderer Marken

GE 2-9480 Bedienungsanleitung

Geemarc

Geemarc PHOTOPHONE 155 Bedienungsanleitung

D-Link

D-Link DWR-720/PW Bedienungsanleitung

Interquartz

Interquartz Gemini IQ333 Bedienungsanleitung

SSS Siedle

SSS Siedle HT 840-0 Bedienungsanleitung

Motorola

Motorola TITANIUM Bedienungsanleitung

Panasonic

Panasonic ICX Bedienungsanleitung

LG H870DS Bedienungsanleitung

Samsung

Samsung GT-I9500 Bedienungsanleitung

AT&T

AT&T Trimline 205 Bedienungsanleitung

Selta

Selta zenyth 600 Bedienungsanleitung

Doro

Doro AFTI 20 Bedienungsanleitung

UNIQCELL

UNIQCELL A1 Bedienungsanleitung

Panasonic

Panasonic KX Series Bedienungsanleitung

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Bedienungsanleitung

BT Decor 425 Bedienungsanleitung

NEC

NEC SV8500 Bedienungsanleitung

Teledex

Teledex PEARL Bedienungsanleitung
