Celestion CDX14-3050 Bedienungsanleitung

Professional Loudspeakers

Your Global Driver Solutions Partner

Celestion adopts a progressive policy and reserve the right to alter drive unit specifications and/or appearance without prior notice 08/05

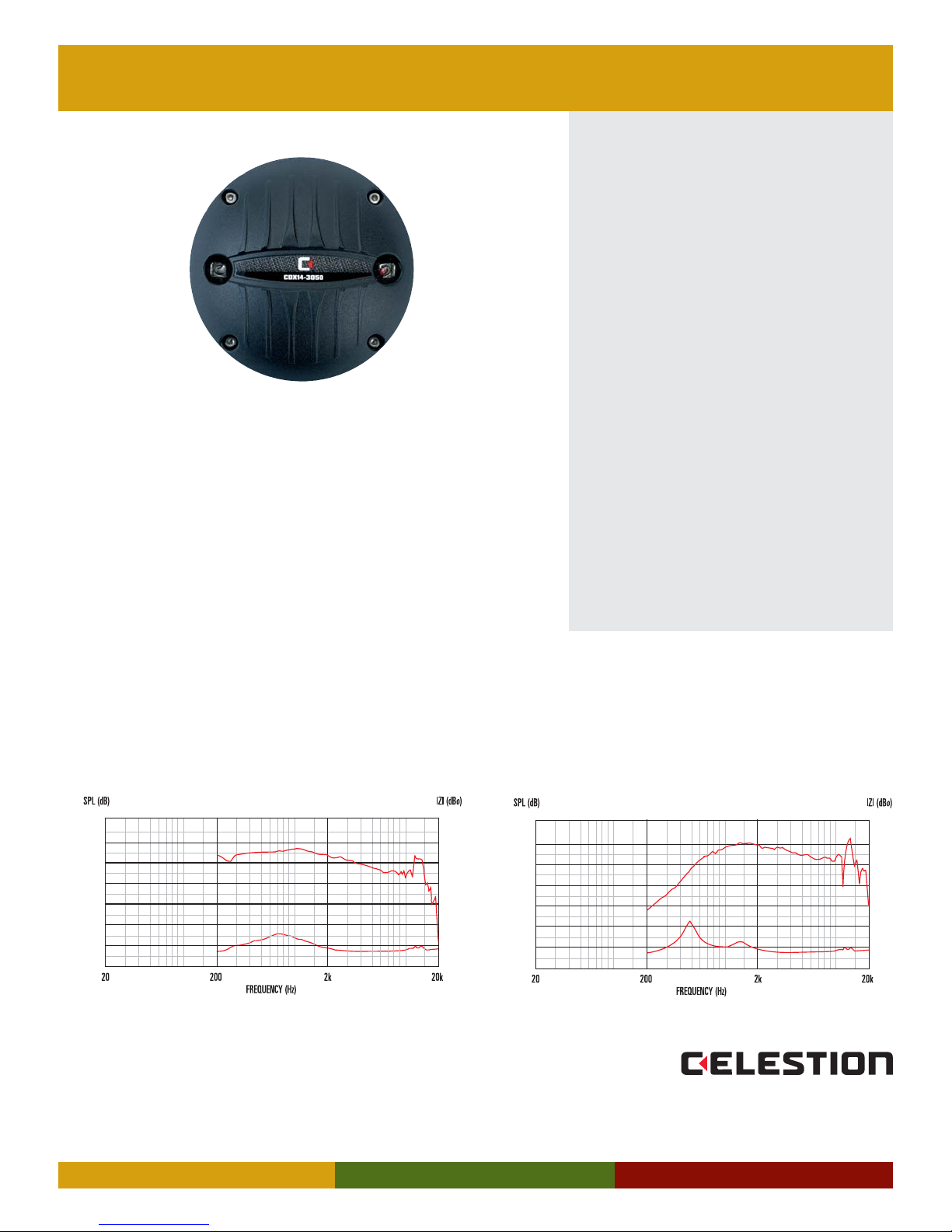

CDX14-3050

General Specifications

Power Rating (AES, W rms) ............................................75

Nominal impedance (

Ω

) ...................................................8

Frequency range (Hz) ........................................500-18000

Sensitivity (dB) ..........................................................106.5

Minimum crossover (Hz) ............................................1000*

Voice coil diameter (mm/in) ...................................76.2/3.0

Diaphragm material...............................................Titanium

Magnet material ...............................................Neodymium

Surround material .............................................. Polyimide

Mounting Information

Width (mm/in)........................................................125/5.0

Depth (mm/in) .........................................................56/2.2

Weight (kg/lb) .........................................................1.7/3.7

Fitting.................Flange (4 x M6 holes on 102mm/4in PCD)

Throat exit / diameter (mm/in) ...............................35.6/1.4

Packed Dimensions & Weight

Single pack size W x D x H (mm/in).............130 x 130 x 65

................................................................./5.1 x 5.1 x 2.6

Single pack weight (kg/lb) .......................................2.0/4.4

* A lower frequency can be used at the

manufacturer's discretion

• 1.4" exit, neodymium magnet, 3" voice coil compression driver

provides 75Wrms (AES) power handling and 110dB sensitivity

• New, patent-applied-for phase plug design method suppresses

cavity resonances at higher frequencies

• Titanium diaphragm, deep drawn to increase stiffness

and reduce distortion

• Lower compression ratio reduces air non-linearity and allows

for higher maximum SPL

• Rolled polyimide surround improves stiffness control, further

lowering distortion

• Curved coherent wavefront, optimised for horn loading

100

120

140

160

20

40

60

80

60

80

100

120

20

40

60

80

Measured - Exponential Horn 80º x 60º radiation patternMeasured - Plane Wave Tube

Celestion International Ltd, Claydon Business Park, Great Blakenham, Ipswich IP6 ONL, UK

+44 (0)1473 835300 [email protected] www.celestionprofessional.com

Frequency Response and Impedance Curves
