Central Pneumatic 95386 Installationshandbuch

2 HP, 8 GALLON, 115 PSI

PORTABLE AIR COMPRESSOR

Model

95386

SET UP AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Manual Revised 09k

Page 2For technical questions, please call 1-800-444-3353.SKU 95386

CONTENTS

IMPORTANT SAFETY

INFORMATION ............................ 3

GENERAL COMPRESSOR

SAFETY WARNINGS.......................3

AIR COMPRESSOR SAFETY

WARNINGS......................................5

GROUNDING ................................. 6

110-120 V~ GROUNDED

COMPRESSORS:

COMPRESSORS WITH THREE

PRONG PLUGS...............................6

SYMBOLOGY.....................................7

SPECIFICATIONS.......................... 8

UNPACKING .................................. 8

INSTRUCTIONS FOR PUTTING

INTO USE .................................... 8

FUNCTIONS .......................................9

COMPRESSOR AREA SET UP .........9

ASSEMBLY.........................................9

SET UP .............................................10

CHECKING THE OIL........................10

GENERAL OPERATING

INSTRUCTIONS ........................ 12

EMERGENCY

DEPRESSURIZATION................... 13

AUTOMATIC SHUT-OFF SYSTEM .. 13

MAINTENANCE AND

SERVICING ............................... 14

GENERAL MAINTENANCE .............14

MAINTENANCE SCHEDULE...........14

CHANGING THE OIL .......................15

DRAINING MOISTURE FROM THE

TANK..............................................15

AIR FILTER MAINTENANCE ...........15

TROUBLESHOOTING......................16

PARTS LIST................................. 18

ASSEMBLY DIAGRAM................ 19

LIMITED 1 YEAR / 90 DAY

WARRANTY .............................. 20

Page 3For technical questions, please call 1-800-444-3353.SKU 95386

SAVE THIS MANUAL

Keep this manual for the safety

warnings and precautions, assembly,

operating, inspection, maintenance and

cleaning procedures. Write the product’s

serial number in the back of the manual

near the assembly diagram (or month

and year of purchase if product has no

number). Keep this manual and the

receipt in a safe and dry place for future

reference.

IMPORTANT SAFETY

INFORMATION

In this manual, on the labeling,

and all other information

provided with this product:

This is the safety alert

symbol. It is used to alert

you to potential personal

injury hazards. Obey all

safety messages that

follow this symbol to avoid

possible injury or death.

DANGER indicates

a hazardous

situation which, if not

avoided, will result in death or

serious injury.

WARNING

indicates a

hazardous situation which, if

not avoided, could result in

death or serious injury.

CAUTION, used

with the safety

alert symbol, indicates a

hazardous situation which, if

not avoided, could result in

minor or moderate injury.

NOTICE is used to

address practices

not related to personal injury.

CAUTION, without

the safety alert

symbol, is used to address

practices not related to

personal injury.

General Compressor Safety

Warnings

WARNING Read all safety

warnings and instructions.

Failure to follow the warnings and

instructions may result in electric

shock, re and/or serious injury.

Save all warnings and

instructions for future reference.

Work area safety1.

Keep work area clean and wella.

lit. Cluttered or dark areas invite

accidents.

Do not operate the Compressorb.

in explosive atmospheres,

such as in the presence of

ammable liquids, gases or dust.

Compressor motors produce sparks

which may ignite the dust or fumes.

Keep children and bystandersc.

away from an operating

compressor.

Electrical safety2.

Compressor plugs must matcha.

the outlet. Never modify the

plug in any way. Do not use any

adapter plugs with grounded

compressors. Standard plugs and

Page 4For technical questions, please call 1-800-444-3353.SKU 95386

matching outlets will reduce risk of

electric shock.

Do not expose compressor to rainb.

or wet conditions. Water entering

a compressor will increase the risk

of electric shock.

Do not abuse the cord. Neverc.

use the cord for unplugging the

compressor. Keep cord away

from heat, oil, sharp edges

or moving parts. Damaged or

entangled cords increase the risk of

electric shock.

Personal safety3.

Stay alert, watch what you area.

doing and use common sense

when operating this compressor.

Do not use this compressor

while you are tired or under

the inuence of drugs, alcohol

or medication. A moment of

inattention while operating a

compressor may result in serious

personal injury.

Use personal protectiveb.

equipment. Always wear eye

protection. Safety equipment

such as a dust mask, non-skid

safety shoes, hard hat, or hearing

protection used for appropriate

conditions will reduce personal

injuries.

Prevent unintentional starting.c.

Ensure the switch is in the off-

position before connecting to

power source or moving the

compressor.

Only use safety equipmentd.

that has been approved by an

appropriate standards agency.

Unapproved safety equipment may

not provide adequate protection.

Eye protection must be ANSI-

approved and breathing protection

must be NIOSH-approved for the

specic hazards in the work area.

Compressor use and care4.

Do not use the compressor if thea.

switch does not turn it on and

off. Any compressor that cannot

be controlled with the switch is

dangerous and must be repaired.

Disconnect the plug from theb.

power source before making

any adjustments, changing

accessories, or storing the

compressor. Such preventive

safety measures reduce the risk of

starting the compressor accidentally.

Store an idle compressor out ofc.

the reach of children and do not

allow persons unfamiliar with the

compressor or these instructions

to operate it. A compressor is

dangerous in the hands of untrained

users.

Maintain the compressor. Keepd.

the compressor clean for better

and safer performance. Following

instructions for lubricating and

changing accessories. Keep

dry, clean and free from oil and

grease. Check for misalignment or

binding of moving parts, breakage

of parts and any other condition

that may affect the compressor’s

operation. If damaged, have the

compressor repaired before use.

Many accidents are caused by a

poorly maintained compressor.

Use the compressor ine.

accordance with these

instructions, taking into account

the working conditions and the

work to be performed. Use of the

Page 5For technical questions, please call 1-800-444-3353.SKU 95386

compressor for operations different

from those intended could result in a

hazardous situation.

Service5.

Have your compressor serviceda.

by a qualied repair person using

only identical replacement parts.

This will ensure that the safety of the

compressor is maintained.

Air Compressor Safety Warnings

Risk of re or explosion - do not 1.

spray ammable liquid in a conned

area or towards a hot surface. Spray

area must be well-ventilated. Do not

smoke while spraying or spray where

spark or ame is present. Arcing

parts - keep compressor at least 20

feet away from explosive vapors,

such as when spraying with a spray

gun.

Risk of bursting - Do not adjust2.

regulator higher than marked

maximum pressure of attachment.

Risk of injury - Do not direct air3.

stream at people or animals.

To reduce the risk of electric shock,4.

do not expose to rain. Store indoors.

Wear ANSI-approved safety goggles5.

during use.

Do not use to supply breathing air.6.

Drain Tank daily and after use.7.

Internal rust causes tank failure and

explosion.

Add correct amount of compressor8.

oil before rst use and every use.

Operating with low or no oil causes

permanent damage and voids

warranty.

Do not remove the valve cover or9.

adjust internal components.

Compressor head gets hot during10.

operation. Do not touch it or allow

children nearby during or immediately

following operation.

Do not use the air hose to move the11.

compressor.

Release the pressure in the storage12.

tank before moving.

The use of accessories or13.

attachments not recommended by

the manufacturer may result in a risk

of injury to persons.

All air line components, including14.

hoses, pipe, connectors, lters, etc.,

must be rated for a minimum working

pressure of 150 PSI, or 150% of

the maximum system pressure,

whichever is greater.

USE OF AN EXTENSION CORD15.

IS NOT RECOMMENDED. If you

choose to use an extension cord, use

the following guidelines:

RECOMMENDED MINIMUM WIRE

GAUGE FOR EXTENSION CORDS

(120 VOLT)

NAMEPLATE

AMPERES

(at full load)

EXTENSION CORD

LENGTH

25’ 50’ 100’ 150’

0 – 6 18 16 16 14

6.1 – 10 18 16 14 12

10.1 – 12 16 16 14 12

12.1 – 16 14 12 Do not use.

TABLE A

Make sure your extension cord is ina.

good condition.

Be sure to use an extension cordb.

which is heavy enough to carry the

Page 6For technical questions, please call 1-800-444-3353.SKU 95386

current your product will draw. An

undersized cord will cause a drop in

line voltage resulting in loss of power

and overheating. Table A shows

the correct size to use depending

on cord length and nameplate

ampere rating. If in doubt, use the

next heavier gauge. The smaller the

gauge number, the heavier the cord.

Industrial applications must follow16.

OSHA guidelines.

Maintain labels and nameplates17.

on the compressor. These carry

important safety information. If

unreadable or missing, contact

Harbor Freight Tools for a

replacement.

This product is not a toy. Keep it out18.

of reach of children.

Operate unit on level surface. Check19.

oil level daily and ll to marked level if

needed.

People with pacemakers should20.

consult their physician(s) before

use. Electromagnetic elds in close

proximity to heart pacemaker could

cause pacemaker interference or

pacemaker failure.

WARNING: The brass components21.

of this product contain lead, a

chemical known to the State of

California to cause birth defects (or

other reproductive harm). (California

Health & Safety code § 25249.5, et

seq.)

The warnings, precautions,22.

and instructions discussed in

this instruction manual cannot

cover all possible conditions and

situations that may occur. It must

be understood by the operator that

common sense and caution are

factors which cannot be built into this

product, but must be supplied by the

operator.

SAVE THESE

INSTRUCTIONS.

GROUNDING

TO PREVENT

ELECTRIC SHOCK

AND DEATH FROM

INCORRECT GROUNDING

WIRE CONNECTION:

Check with a qualied

electrician if you are in doubt

as to whether the outlet is

properly grounded. Do not

modify the power cord plug

provided with the compressor.

Never remove the grounding

prong from the plug. Do not

use the compressor if the

power cord or plug is

damaged. If damaged, have it

repaired by a service facility

before use. If the plug will not

t the outlet, have a proper

outlet installed by a qualied

electrician.

110-120 V~ Grounded

Compressors: Compressors with

Three Prong Plugs

In the event of a malfunction or1.

breakdown, grounding provides a

path of least resistance for electric

current to reduce the risk of electric

shock. This compressor is equipped

with an electric cord having an

equipment-grounding conductor and

a grounding plug. The plug must be

Page 7For technical questions, please call 1-800-444-3353.SKU 95386

plugged into a matching outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

Do not modify the plug provided –2.

if it will not t the outlet, have the

proper outlet installed by a qualied

electrician.

Improper connection of the3.

equipment-grounding conductor can

result in a risk of electric shock. The

conductor with insulation having

an outer surface that is green with

or without yellow stripes is the

equipment-grounding conductor. If

repair or replacement of the electric

cord or plug is necessary, do not

connect the equipment-grounding

conductor to a live terminal.

Check with a qualied electrician or 4.

service personnel if the grounding

instructions are not completely

understood, or if in doubt as to

whether the compressor is properly

grounded.

Use only 3-wire extension cords that5.

have 3-prong grounding plugs and

3-pole receptacles that accept the

compressor’s plug.

Repair or replace damaged or worn6.

cord immediately.

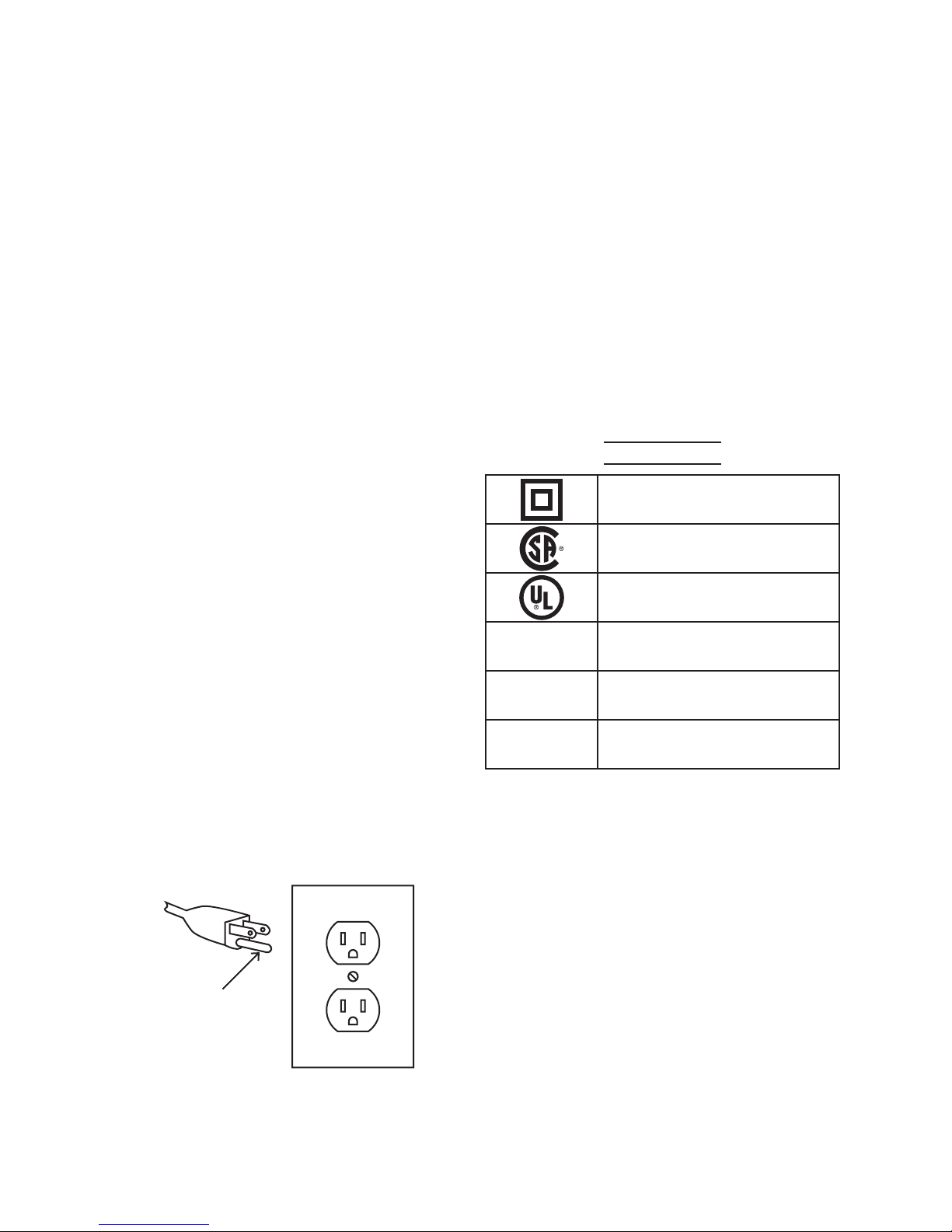

120 V~ 3-Prong Plug and Outlet

(for up to 120 V~ and up to 15 A)

Grounding

This compressor is intended for use7.

on a circuit that has an outlet that

looks like the one illustrated above

in 120 V~ 3-Prong Plug and Outlet.

The compressor has a grounding

plug that looks like the plug illustrated

above in 120 V~ 3-Prong Plug and

Outlet.

The outlet must be properly installed8.

and grounded in accordance with all

codes and ordinances.

Do not use an adapter to connect this9.

compressor to a different outlet.

Symbology

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

V~ Volts Alternating Current

AAmperes

n0xxxx/min. No Load Revolutions per Minute

(RPM)

Page 8For technical questions, please call 1-800-444-3353.SKU 95386

SPECIFICATIONS

Electrical

Requirements 120 V~ / 60 Hz / 2 HP

Amperage

7.4 Running Amps

(Dedicated circuit

recommended)

Air Outlet Size 1/4” -18 NPT

Air Pressure Auto Shut-Off @ 115 PSI

Restart @ 80 PSI

Air Tank Capacity 8 Gallons

Air Flow Capacity 5 SCFM @ 90 PSI

6 SCFM @ 40 PSI

Oil Type

SAE 30W non-detergent

Air Compressor Oil

(Sold separately)

(SKU 95048)

UNPACKING

When unpacking, make sure that the

item is intact and undamaged. If any parts

are missing or broken, please call Harbor

Freight Tools at 1-800-444-3353 as soon

as possible.

Note: There is a protective plastic piece

inserted underneath the Protective

Cover (12) to protect the product

during transit. This plastic piece

must be removed before using the Air

Compressor.

INSTRUCTIONS FOR

PUTTING INTO USE

Read the ENTIRE IMPORTANT

SAFETY INFORMATION

section at the beginning of this

manual including all text under

subheadings therein before set

up or use of this product.

TO PREVENT

SERIOUS INJURY

FROM ACCIDENTAL

OPERATION:

Push the Power Button “OFF”

and unplug the Air

Compressor from its electrical

outlet before assembling or

making any adjustments to

the compressor.

Note: For additional information regarding

the parts listed in the following pages,

refer to the Assembly Diagram near

the end of this manual.

Page 9For technical questions, please call 1-800-444-3353.SKU 95386

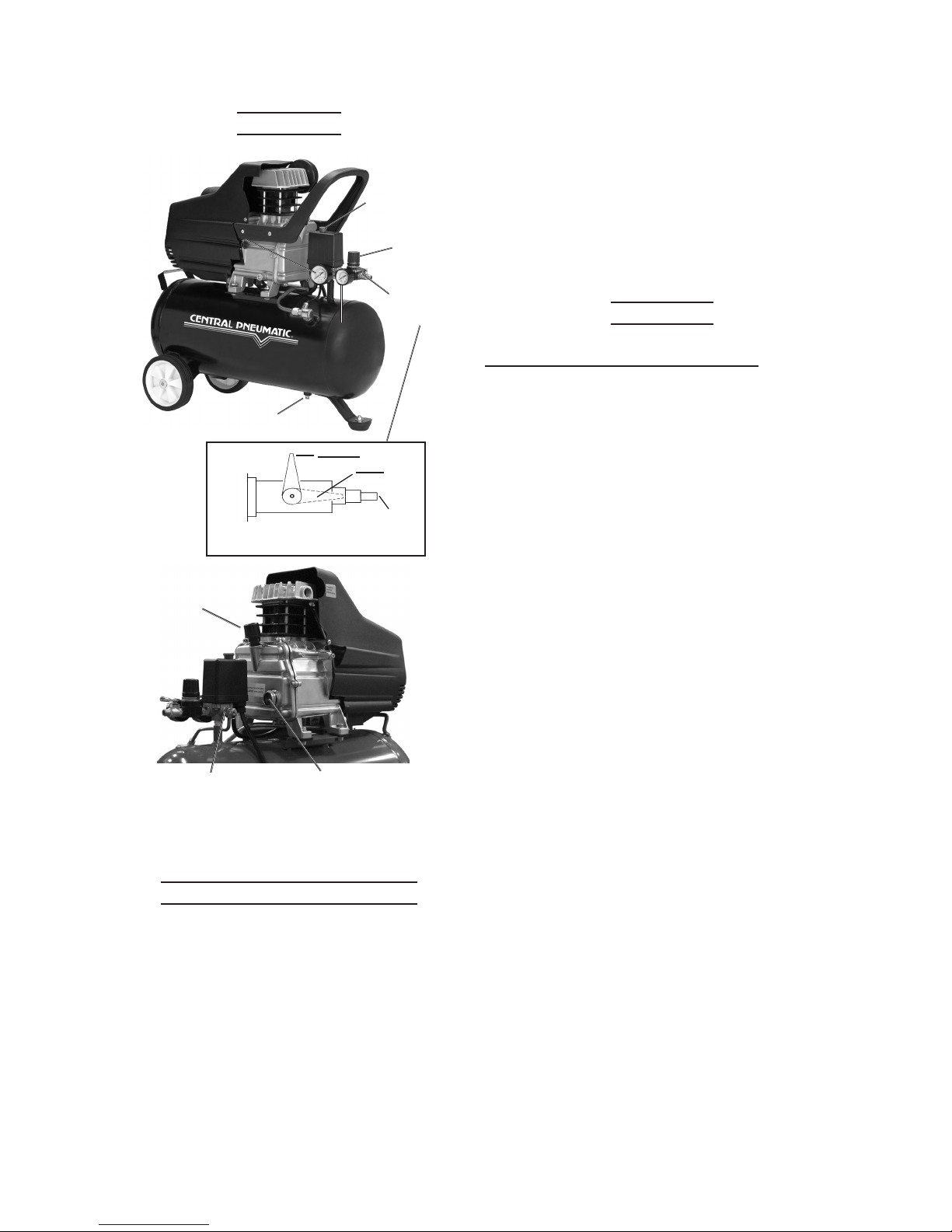

Functions

CONNECT

AIR HOSE

HERE.

CLOSED

OPEN

Regulator

(58)

Air Outlet

Valve (59)

Figure 1

ON/OFF Power

Button

(On Pressure

Switch (55))

Oil Sight Glass

(33)

Oil Plug (31)

Safety Valve

(56)

Tank Pressure

Gauge (54)

Output

Pressure

Gauge

(60)

Drain Valve (65)

Air Outlet Valve (59)

(TOP VIEW)

Compressor Area Set Up

Designate a work area that is clean1.

and well-lit. The work area must not

allow access by children or pets to

prevent injury.

Locate the Compressor on a at 2.

level surface to ensure proper pump

lubrication and to prevent damage to

the unit. Keep at least 12” of space

around the unit to allow air circulation.

Route the power cord from the3.

compressor to the grounded wall

outlet, along a safe path without

creating a tripping hazard or exposing

the power cord to possible damage.

Assembly

Attaching the Foot and Wheels

To attach the Foot (66) to the front1.

bottom of the Air Tank (1):

Using the Bolt/Washer/Nut Assemblya.

(67), slide a at washer onto the

Bolt.

Slide the Bolt through the Foot andb.

the hole in the Air Tank front leg.

Slide a at washer and the lock c.

washer onto the bolt and secure in

place with the nut.

To attach the Wheels (5) to the back2.

bottom of the Air Tank (1):

Slide the Wheel Shaft Bolt (6)a.

through the Wheel (5), a Flat

Washer (4), and the hole in the leg

of the Air Tank.

Slide the remaining Flat Washer (4)b.

and Lock Washer (3) onto the Wheel

Shaft Bolt and secure in place with

the Nut (2).

Repeat step (a) and (b) for the otherc.

Wheel.

Page 10For technical questions, please call 1-800-444-3353.SKU 95386

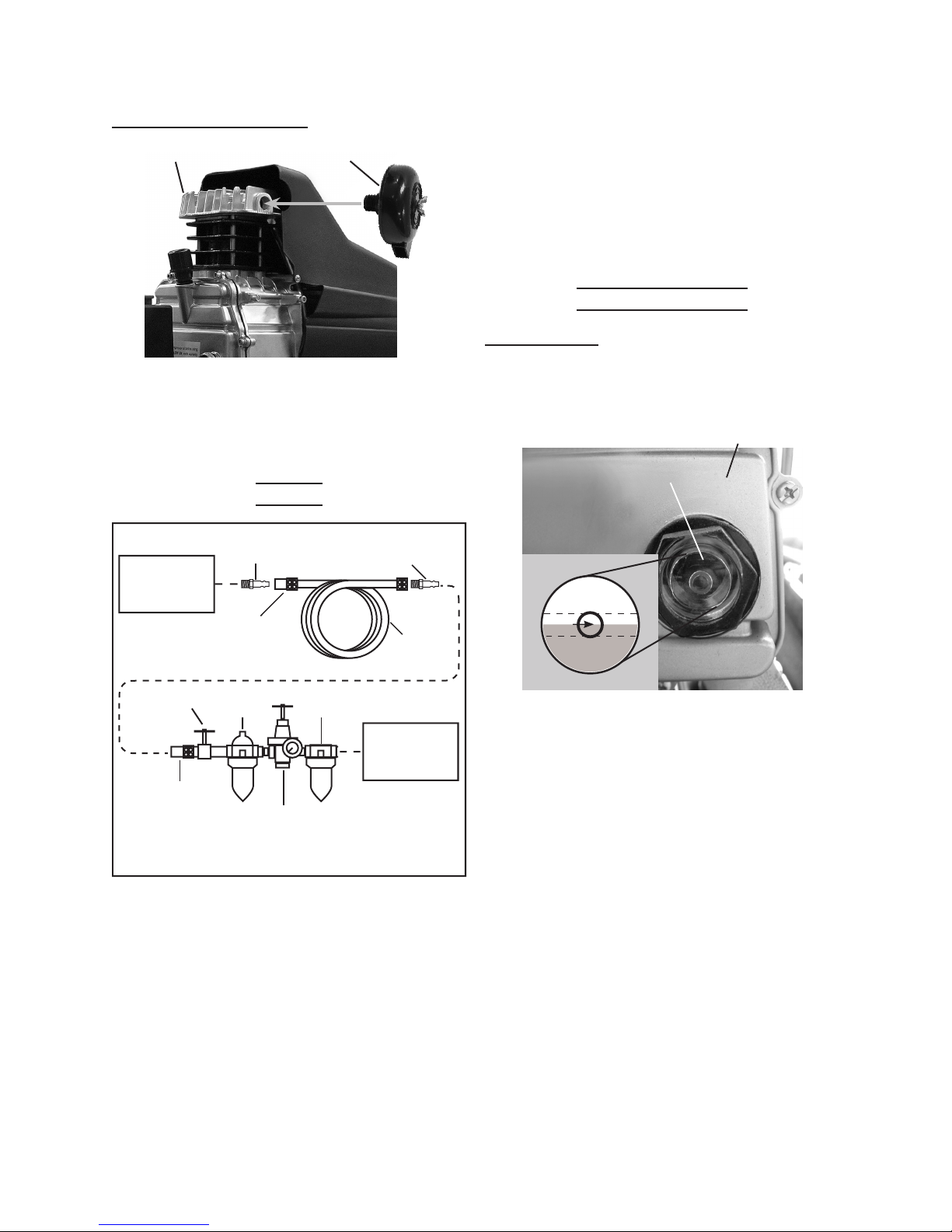

Installing the Air Filter

Figure 2

Cylinder Head (46) Air Filter (45)

Thread the Air Filter (45) clockwise

onto the side of the Cylinder Head

(46).

Set up

Quick

Coupler

Sample Air Line Setup

Regulator with

Pressure Gauge

Quick

Coupler Air Hose

on Reel

Shut

Off

Valve FilterOiler

Coupler

Plug

Tool

Air

Compressor

Coupler

Plug

Figure 4

1. Connect a 1/4” NPT air hose to the

Quick Coupler (all sold separately).

The air hose must be long enough

to reach the work area with enough

extra length to allow free movement

while working.

Depending on the tool which you will2.

be using with this compressor, you

may need to incorporate additional

components, such as an in-line oiler,

a lter, or a dryer (all sold separately).

Consult your air tool’s manual for

needed accessories.

Checking the Oil

IMPORTANT: Running the Air

Compressor with no oil or low

oil will cause damage to the

equipment and void the warranty.

Oil Sight Glass (33)

Crankcase Cover (32)

OVERFILL

LOW

FULL

OIL LEVEL

Figure 5

1. The oil level should be at the center

of the “full” level on the Oil Sight

Glass (33), as shown in Figure 5. Add

oil as needed to maintain this level.

Do not let the oil level go below the

center dot (LOW as shown in Figure

5) and do not overll the oil so that it

is above the center dot (OVERFILL

as shown in Figure 5) on the sight

glass.

To add oil:2.

Unthread the Oil Plug (31).a.

Using a funnel to avoid spills,b.

pour enough premium quality

SAE 30-weight, non-detergent, air

compressor oil (sold separately) into

Andere Handbücher für 95386

Inhaltsverzeichnis

Andere Central Pneumatic Luftkompressor Handbücher

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 47407 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 46168 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 67708 Installationshandbuch

Central Pneumatic

Central Pneumatic 21 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 95275 Montageanleitung

Central Pneumatic

Central Pneumatic 90385 Bedienungsanleitung

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 95499 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 60328 Original Bedienungsanleitung

Central Pneumatic

Central Pneumatic 93786 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 92097 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 65903 Installationshandbuch

Central Pneumatic

Central Pneumatic 47915 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 94355 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 62380 Montageanleitung

Central Pneumatic

Central Pneumatic 67698 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 93351 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 61693 Montageanleitung

Central Pneumatic

Central Pneumatic 60637 Benutzerhandbuch

Central Pneumatic

Central Pneumatic PROFESSIONAL 99901 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 90234 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 94667 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 93785 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 94734 Installationshandbuch

Central Pneumatic

Central Pneumatic 95370 Stücklistenhandbuch

Beliebte Luftkompressor Handbücher anderer Marken

Sparmax

Sparmax DC-25XR Bedienungsanleitung

KAESER

KAESER M122 Bedienungsanleitung

GMC

GMC GAC1500 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Air Compressor Bedienungsanleitung

Fini

Fini F3GST2TK Bedienungsanleitung

Industrial Air

Industrial Air CP1580325 Programmierhandbuch

Campbell Hausfeld

Campbell Hausfeld RP3300 Kurzanleitung

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Bedienungsanleitung

Hitachi

Hitachi EC99S Bedienerhandbuch

Parkside

Parkside PKO 270 A1 Bedienungsanleitung

Sullair

Sullair 185 Bedienungsanleitung

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Bedienungsanleitung

Ferm

Ferm CRM1046 Bedienungsanleitung

BE AC153 Bedienungsanleitung

RIDGID

RIDGID OF25150A Bedienungsanleitung

Johnson Controls

Johnson Controls QUANTUM LX Handbuch

Sears

Sears Craftsman 919.167463 Bedienungsanleitung

Ring Automotive

Ring Automotive RAC700 Bedienungsanleitung
