AIR PIN NAILER

ASSEMBLY and OPERATING

INSTRUCTIONS

Model 93656

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

of this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

SKU 93656 Page 2For technical questions, please call 1-800-444-3353.

Specications

Pin Size 23 Gauge, 1/2” to 1” long, Headless pins

Magazine Capacity 100

Operating PSI 60-100 PSI

Air Inlet Size 1/4” NPT Male

Safety Feature Single Sequential Safety Trip Mechanism

Accessories Two Hex Wrenches, Lubricating Oil,

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instruc-

tions, operating and maintenance procedures, parts list and diagram. Keep your invoice with

this manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electri-

cally powered tools in the presence of ammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not let

them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for which

it was intended. Do not modify this tool and do not use this tool for a purpose for

which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid footwear

are recommended when working. Wear restrictive hair covering to contain long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach over

or across running machines or air hoses.

8. Stay within air pressure capacity.Never operate the Nailer above 90 PSI.

REV 07i

SKU 93656 Page 3For technical questions, please call 1-800-444-3353.

9. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal lings or wood chips. Wear an ANSI approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

10. Maintain tools with care. Keep tools clean for better and safer performance. Fol-

low instructions for lubricating and changing accessories. Inspect tool cords and air

hoses periodically and, if damaged, have them repaired by an authorized technician.

The handle must be kept clean, dry, and free from oil and grease at all times. Do not

operate a tool if any portion of the tool’s operating controls are inoperable, discon-

nected, altered or not working properly.

11. Disconnect Air Hose and release any built-up air pressure. Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release any

built-up air even after disconnecting hose. Disconnect the Nailer when not in use.

12. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches

are removed from the tool or machine work surface before attaching to an air source.

13. Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your nger on the trigger,

whether it is attached to an air source or not. Do not point the tool towards yourself

or anyone whether it contains fasteners or not.

14. Stay alert. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

15. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform

its intended function. Check for alignment and binding of moving parts; any broken

parts or mounting xtures; and any other condition that may affect proper opera-

tion. Any part that is damaged should be properly repaired or replaced by a qualied

technician. Do not use the tool if the trigger does not operate properly.

16. Guard against electric shock. Prevent body contact with grounded surfaces such

as pipes, radiators, ranges, and refrigerator enclosures.

17. Replacement parts and accessories. This product is to be repaired and serviced

only by a qualied technician. When this product is serviced, only identical replace-

ment parts should be used. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are available from

Harbor Freight Tools.

18. Do not operate tool if under the inuence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

19. Use proper size and type extension cord. If an extension cord is required, it must

be of the proper size and type to supply the correct current to the compressor with-

out heating up. Otherwise, the extension cord could melt and catch re, or cause

SKU 93656 Page 4For technical questions, please call 1-800-444-3353.

electrical damage to the tool. Check your air compressor’s manual for the appropri-

ate size cord. It is also possible that the use of an extension cord may cause your

circuit breaker to trip or your panel fuse to break. If this happens, either use the

compressor without an extension cord or nd a larger amperage circuit to use.

20. Maintenance. The maintenance outlined in the maintenance section should be per-

formed regularly. For your safety, this product should be serviced or repaired regu-

larly only by a qualied technician.

21. Compressed air only. Use clean, dry regulated, compressed air at 90 PSI. Never

use oxygen, carbon dioxide, combustible gases, or any other bottled gas as a power

source for this tool.

22. Do not load pins with the trigger or safety depressed. Unintentional

ring may occur. Do not load nails when the air hose is connected to the

tool. Always assume that the tool contains fasteners.

23. Disconnect air supply before loading Nailer. Before reloading (or making any

adjustments to) the Nailer make sure that the compressed air is disconnected.

24. Fire fasteners into an appropriate work surface only. Do not attempt to re

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of other

fasteners, or at too steep of an angle. Fasteners can ricochet causing personal

injury. Never re the Nailer into the air, or point it toward yourself or another person.

Always wear ANSI approved safety goggles during use, maintenance, and reloading.

25. Do not re fasteners too close to the edge of a workpiece. They may split the

workpiece and y free, causing personal injury.

26. Take caution as some woods contain preservatives such as copper chromium

arsenate (CCA) which can be toxic. When stapling or nailing these materials extra

care should be taken to avoid inhalation and minimize skin contact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known [to the State of California] to

cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement or other masonry products

• Arsenic and chromium from chemically treated lumber

(California Health & Safety Code § 25249.5, et seq.)

27. Transport Nailer safely. Always disconnect air supply when moving the tool in the

workplace. Carry the tool by the handle and avoid contact with the trigger.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect tool

performance.

Warning: The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It must be

understood by the operator that common sense and caution are factors which cannot

be built into this product, but must be supplied by the operator.

SKU 93656 Page 5For technical questions, please call 1-800-444-3353.

Testing the Single Sequential Safety Trip Mechanism

Warning: Even though the nailer should be empty during this procedure, ALWAYS point

the nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from the power supply.

2. Completely empty the magazine of pins.

3. The Nailer should not re if the nose is not depressed against the workpiece.

4. Check that the Trigger (42) and the Safety (48) move freely, without sticking - see Figure

1, next page.

5. Connect the air supply to the tool at the Air Inlet (22) set at the recommended 60-100

PSI, and not to go over the maximum 100 PSI.

6. Test the tool by depressing the Safety (48) against the workpiece without pulling the

Trigger (42). The tool must not cycle (re). If it cycles (res), stop immediately and

take the tool to an authorized service technician.

7. Hold the tool away or off of the workpiece. The Safety (48) of the tool should return to

its original position. Squeeze the Trigger (42). The tool should not cycle (re). If it

cycles (res), stop immediately and take the tool to an authorized service technician.

8. Depress the Safety (48) against the workpiece and squeeze the Trigger (42). The tool

must cycle (re). Release the trigger and squeeze it again. The tool must cycle (re).

With the Trigger held, carefully lift the nailer and press it against the workpiece again.

The tool must not cycle (re). If it fails to act in the manner described in bold, have it

repaired by a qualied service technician.

Unpacking

When unpacking, check to make sure the parts listed on page 9 are

included. If any parts are missing or broken, please call Harbor Freight Tools at

the number on the cover of this manual as soon as possible.

Operation

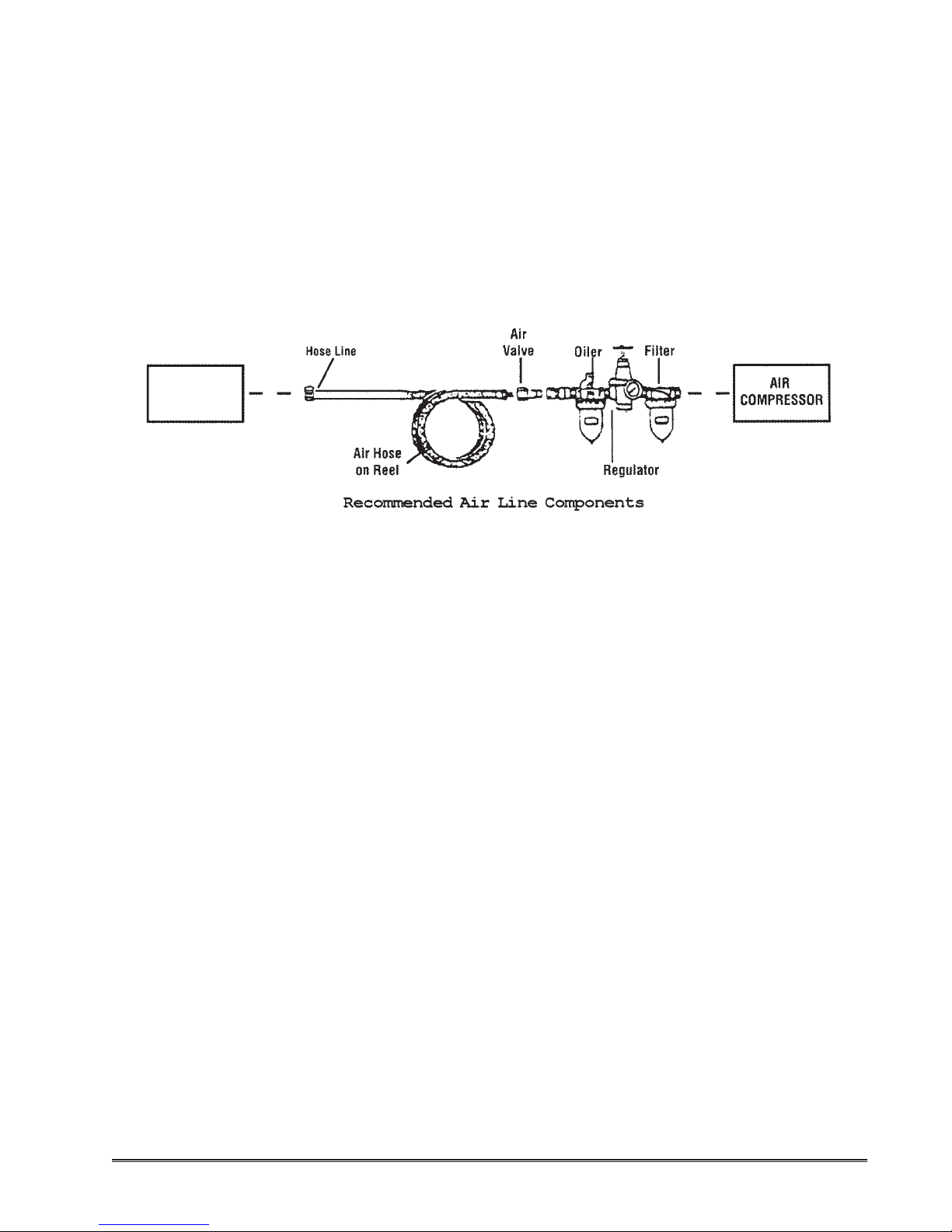

For best service, you should incorporate an oiler, regulator, and inline lter, as shown in

the diagram below. Hoses, couplers, oilers, regulators, and lters are all available at Harbor

Freight Tools.

Nailer

Note: To connect this tool, we recommend a quick coupler/adapter (not included). Coupler/

adapters are available at Harbor Freight Tools. If an automatic oiler is not used, put

3-5 drops of pneumatic tool oil in the Air Inlet (22) before each use.

SKU 93656 Page 6For technical questions, please call 1-800-444-3353.

Operating the Nailer

1. Attach the Nailer to the air supply at the Air Inlet (22). Start your compressor and check

the pressure making sure it is set at the recommended 90 PSI and not to go over the

maximum 90 PSI.

2. To re, place the nose of the Nailer on the workpiece. The Nailer should not re if the

nose is not depressed. Once depressed, gently and briey squeeze the Trigger (42)

once. Do not re repeatedly. Pins could bounce off of one another, damaging the work

piece or causing PERSONAL INJURY.

Loading Pin Nails

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other

people in the work area must also wear ANSI approved impact safety goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading the

tool.

1. Press the Magazine Latch (23) up and slide the Magazine (57) back.

2. If you are using a different pin length than previously:

a. Remove all pins from inside the nailer.

b. Slide the Pin Length Selector (64) to the appropriate length setting. See Figure 1.

3. Holding the nailer upside-down, insert the pin nails into the slot noted above.

4. Close the Magazine (57) making sure the Magazine Latch (23) clicks shut.

See Figure 1.

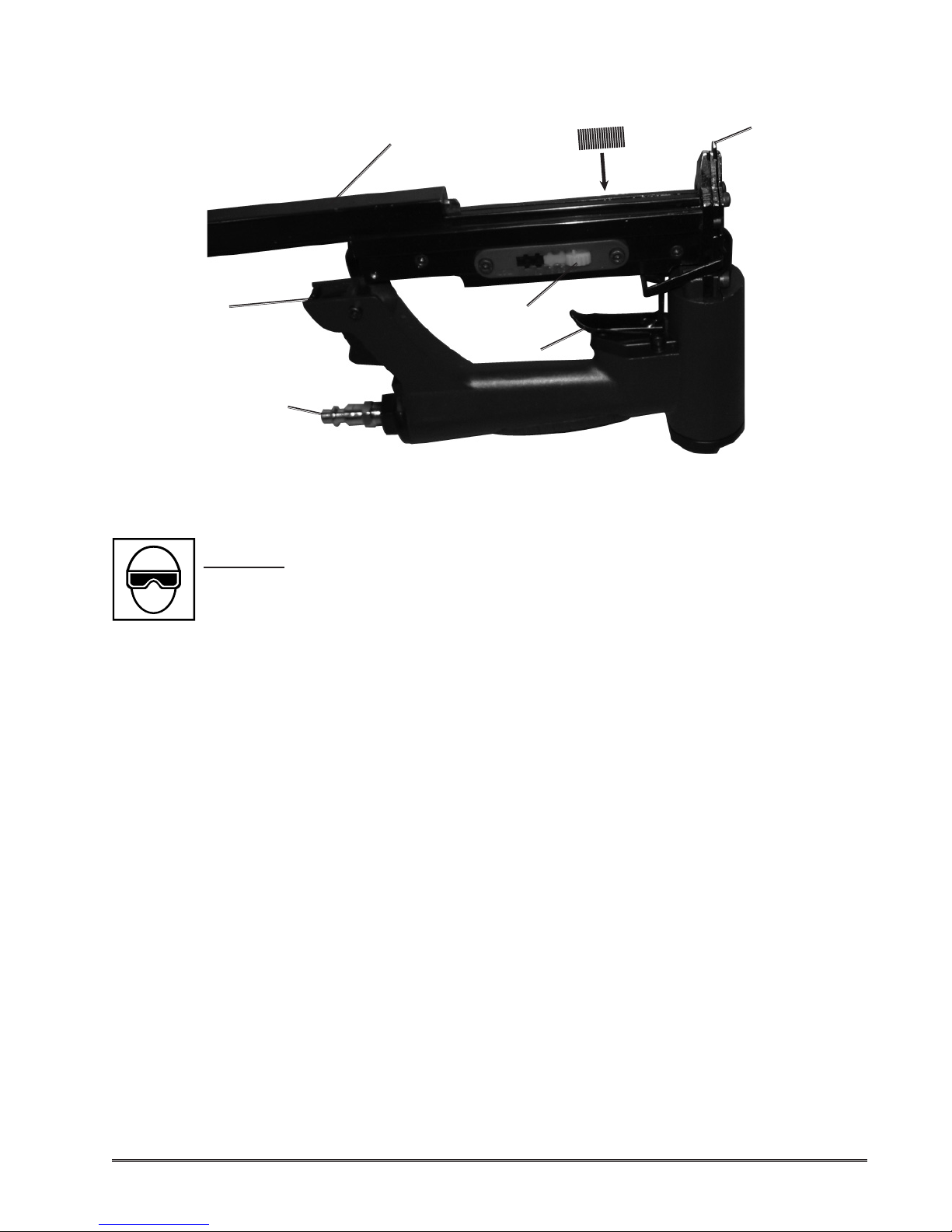

Operation (continued)

FIGURE 1

Air Inlet

(22)

Magazine Safety

(48)

Trigger (42)

Magazine

Latch

Insert

Pins Here

Pin Length

Selector (64)

SKU 93656 Page 7For technical questions, please call 1-800-444-3353.

Anytime any maintenance or repairs are done (including clearing jams),

FIRST:

1. Disconnect the Nailer from the air hose.

2. Empty the Magazine (57) completely.

3. Attempt to re the Nailer into a piece of scrap wood to ensure that it is disconnected

and is incapable of ring any pins.

4. Always leave the Magazine (57) open during maintenance. The Magazine is

Clearing Jams

1. Disconnect tool from air hose, empty the

Magazine (57) of pins, release any built-up air

pressure, and leave the magazine open, as

explained above.

2. Hold the Nailer pointed away from you and any

other people or fragile objects. Remove the

Short Cap Screw (47) and the two longer Cap

Screws (46) - see Figure 2. Remove the Safety

Cover (45) and Safety Spring (49) and set them

aside.

3. Remove the Safety Guide (50) carefully to avoid

bending the Safety (48) - see Figure 3.

4. Remove the jammed pin. Pliers may be

necessary to remove a stuck pin.

5. Inspect the Driver (11) for bends or breakage -

see location in Figure 4. If damaged, do not use

until Nailer repaired by a qualied technician.

6. Lightly oil the Driver (11). Replace the Safety

Guide (50) underneath the Safety (48). The

Safety (48) should t perfectly into the groove

in the Safety Guide (50). See Figure 3.

7. Replace the Safety Spring (49) onto the Safety

(48) as in Figure 3. Carefully place the Safety

Cover (45) over the Safety and Spring and

attach using the Cap Screws (46) and the Short

Cap Screw (47) - see Figure 2. Make sure that

the Short Cap Screw (47) goes in the correct

position. Make sure that the Safety (48) is spring

loaded and moves freely, without sticking.

8. Reload and reconnect Nailer to the air hose.

9. Press the Safety (48) of the Nailer against an

appropriate piece of scrap wood.

10. Test re the Nailer several times, checking for

proper operation.

11. Disconnect the Nailer, remove the pins and store

it in a location out of children’s reach.

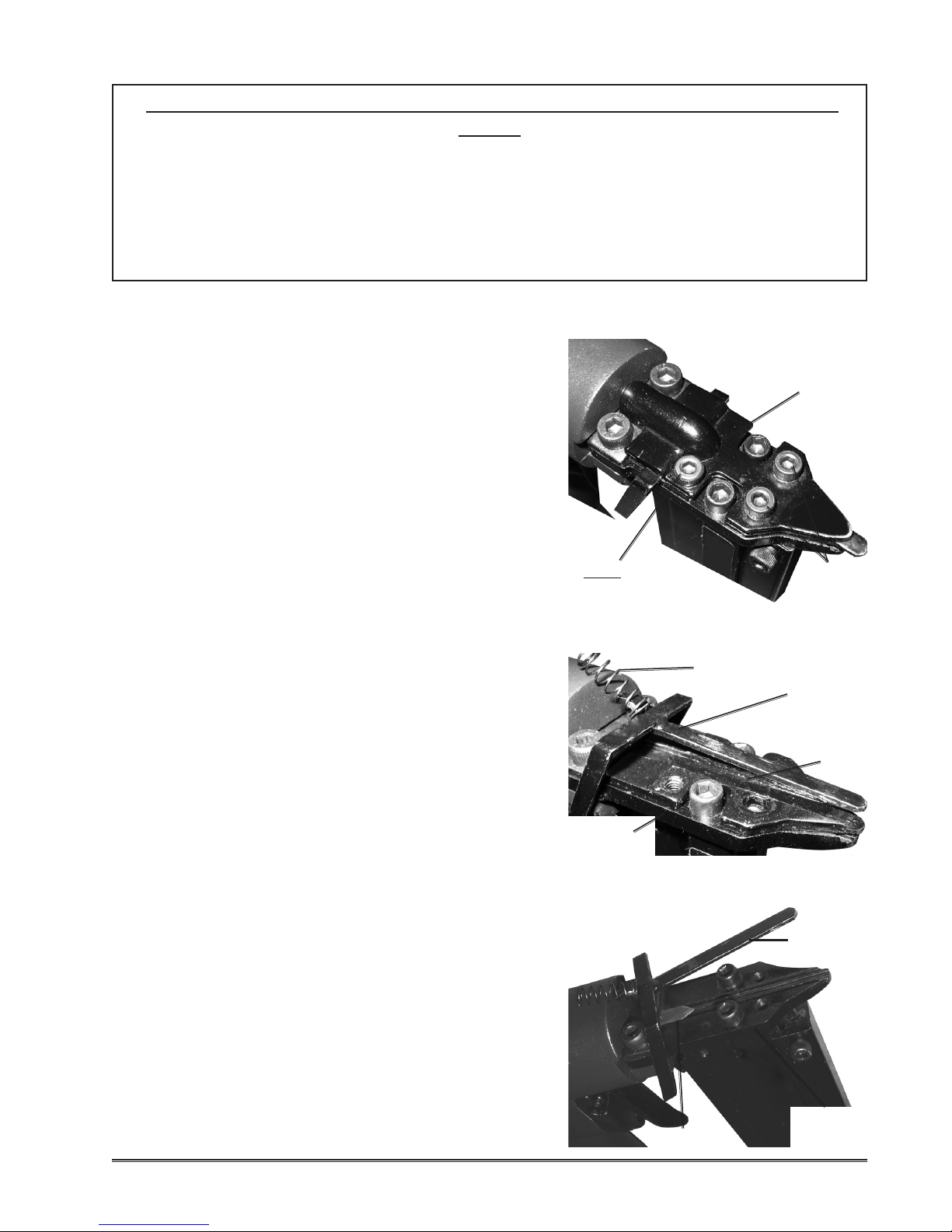

FIGURE 2

Short Cap

Screw (47)

Cap

Screws (46)

Safety

Cover (45)

FIGURE 3

Safety (48)

Safety

Spring (49)

Safety

Guide (50)

Driver

Guide (54)

FIGURE 4

Safety (48)

Driver (11)

Driver

Guide (54)

SKU 93656 Page 8For technical questions, please call 1-800-444-3353.

Anytime any maintenance or repairs are done, FIRST:

1. Disconnect the Nailer from the air hose.

2. Empty the Magazine (57) completely.

3. Attempt to re the Nailer into a piece of scrap wood to ensure that it is disconnected

and is incapable of ring any pins.

4. Always leave the Magazine (57) open during maintenance. The Magazine is

spring-loaded and may cause parts or a nail to y out of the Nailer.

Troubleshooting Guide

Stop using the Brad Nailer immediately if any of the following problems occur.

Repairs and part replacements must be done only by a qualied technician.

All procedures in bold on this chart are to be attempted only be a qualied technician.

Problem Likely Cause Solution

Air leaking at Trigger area. O-Rings in Trigger Valve hous-

ing are damaged.

Replace O-Rings and check safety

trip operation.

Air leaking between Housing

and Nose.

Loose screws in Housing.

Damaged O-Rings/Bumper (12).

Tighten screws.

Replace O-Rings or Bumper (12).

Air leaking at Trigger Valve

Stem.

O-Rings or Seals are damaged. Replace O-Rings or Seals.

Air leaking between Housing

and Cap.

Loose Cylinder Cap (1). Tighten Cylinder Cap (1).

Runs slowly or has power

loss.

Insufcient oil.

Exhaust (18) is blocked.

Lubricate as instructed.

Replace damaged parts.

Nailer skips a nail.

Worn Bumper (12) or damaged

Pusher Spring.

Dirt in Driver Guide (54).

Inadequate airow to Nailer.

Worn or dry O-Ring on Piston.

Damaged O-Ring on Trigger

Valve.

Replace Bumper (12) or Pusher

Spring.

Clean Channels in Driver Guide (54).

Check hose and compressor ttings.

Replace or lubricate O-Rings.

Replace O-Rings.

Nails are jammed.

Guide on driver is worn.

Nails are wrong size or damaged.

Magazine or Nose screws are

loose.

Driver (11) is damaged.

Replace Guide.

Use correct, undamaged nails.

Tighten screws.

Replace Driver (11).

Nailer will not drive down tight.

Rounded Driver (11) slipping off

nail crown.

Lack of air pressure.

Slow cycling and loss of power.

Replace Driver (11).

Supply correct pressure (55-95 PSI).

Make sure Exhaust (18) is clear.

Blade driving nail too deeply. Worn Bumper (12) and/or Piston

Spacer.

Replace either or both parts.

All procedures in bold on this chart are to be attempted only be a qualied technician.

SKU 93656 Page 9For technical questions, please call 1-800-444-3353.

NOTE: Some parts are listed and shown for illustration purposes only and are not available

individually as replacement parts.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM AND

TROUBLESHOOTING GUIDE IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE

MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY

KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT

OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE

MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS

REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND

NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF

HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

Part Description

1 Cylinder Cap

2 O-ring

3 Piston Valve

4 Collar

5 O-ring

6 Lining Ring

7 O-ring

8 O-ring

9 Cylinder

10 O-ring

11 Driver

12 Bumper

13 Nozzle Washer

14 Body

15 Cap Screw

16 Nut

17 Mounting Bracket

18 Exhaust Deector

19 E-clip

20 Filter

21 End Cap

22 Air Inlet

23 Magazine Latch

Part Description

24 Latch Spring

25 Retaining Pin

26 Handle

27 O-ring

28 O-ring

29 O-ring

30 Lower Trigger Valve

31 Spring

32 Seal

33 O-ring

34 O-ring

35 Trigger Valve Piston

36 Seal

37 O-ring

38 Upper Trigger Valve

39 O-ring

40 Trigger Plunger

41 Trigger Bracket

42 Trigger

43 Cap Screw

44 Pin

45 Safety Cover

46 Cap Screw

Part Description

47 Short Cap Screw

48 Safety

49 Safety Spring

50 Safety Guide

51 Cap Screw

52 Cap Screw

53 Spacer

54 Driver Guide

55 Cap Screw

56 Lock Washer

57 Lower Magazine

58 Roll Pin

59 Rear Magazine Cover

60 Pusher

61 Spring Holder

62 Pusher Spring

63 Length Scale

64 Pin Length Selector

65 Upper Right Magazine

66 Nail Guide

67 Nail Guide Bar

68 Pin

69 Upper Left Magazine

SKU 93656 Page 10For technical questions, please call 1-800-444-3353.

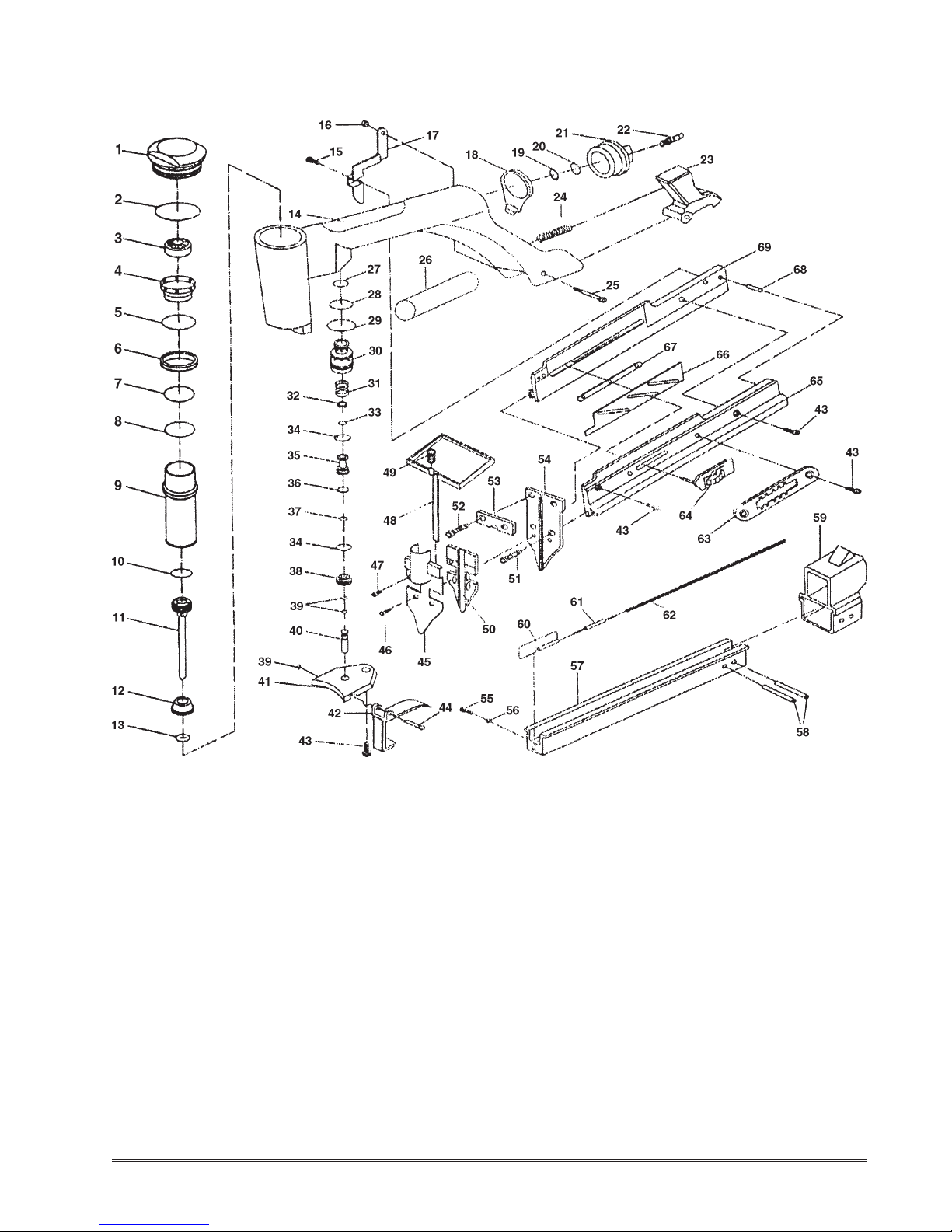

Assembly Drawing

Maintenance

Warning! Always disconnect the tool from the air compressor and then empty the magazine

of pins before attempting to inspect or perform maintenance to the Nailer.

1. Inspect all of the nuts and screws and make sure they are securely fastened.

2. Periodically lubricate the driving mechanism and magazine with a light oil. Wipe down

with a clean cloth. Never use gasoline or ammable solvents to clean the tool.

3. Inspect your air compressor according to manufacturer’s instructions.

Andere Handbücher für 93656

Inhaltsverzeichnis

Andere Central Pneumatic Nagelpistole Handbücher

Central Pneumatic

Central Pneumatic Contractor 97524 Bedienungsanleitung

Central Pneumatic

Central Pneumatic Contractor 98464 Installationshandbuch

Central Pneumatic

Central Pneumatic 94446 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 93760 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 68019 Installationshandbuch

Central Pneumatic

Central Pneumatic 39092 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 95218 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 68068 Montageanleitung

Central Pneumatic

Central Pneumatic 68057 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 66872 Bedienungsanleitung

Central Pneumatic

Central Pneumatic Contractor 97526 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 93496 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 93680 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 92917 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 99640 Installationshandbuch

Central Pneumatic

Central Pneumatic 42528 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 47612 Contractor Series Installationshandbuch

Central Pneumatic

Central Pneumatic 66902 Installationshandbuch

Central Pneumatic

Central Pneumatic 40115 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 96364 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 67100 Installationshandbuch

Central Pneumatic

Central Pneumatic 68021 Installationshandbuch

Central Pneumatic

Central Pneumatic 41209 Bedienungsanleitung

Central Pneumatic

Central Pneumatic Contractor Series Bedienungsanleitung

Beliebte Nagelpistole Handbücher anderer Marken

Performance Tool

Performance Tool M643 Bedienungsanleitung

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco Fusion Technology F-35XP Bedienungsanleitung

Grizzly

Grizzly G1847 Bedienungsanleitung

Ryobi

Ryobi R18N18G Bedienungsanleitung

Black & Decker

Black & Decker 492848-00 Bedienungsanleitung

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Bedienungsanleitung

Metabo HPT

Metabo HPT NR 3690DC Bedienungsanleitung

Surtek

Surtek CN650 Abmessungen und Installationsanleitung

Makita

Makita GF600 Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco AirFree 25 Bedienungsanleitung

Freeman

Freeman P50LSLW Bedienungsanleitung

Aicon PRO

Aicon PRO DAC4507 Bedienungsanleitung

DAJ

DAJ XR150A Bedienungsanleitung

Makita

Makita AN923 Bedienungsanleitung

Grizzly

Grizzly T20644 Bedienungsanleitung
