Cerwin-Vega INTENSE 252 Bedienungsanleitung

PERFORMANCE YOU WON’T BELIEVE AT A PRICE YOU CAN’T IGNORE

Your Next Speakers™

U.S.A.

Cerwin-Vega!, Inc.

3000 SW 42nd St.

Hollywood, FL 33312

Phone: 1.954.316.1500 • Fax: 1.954.316.1590 • Email: [email protected]

Europe

Stanton Europe

382 Avenue de la Couronne

1050 Brussles, Belgium

Phone: +49.40.20970.335 • Fax: +49.40.20970.336 • Email: [email protected]

Cerwin-Vega! is a division of The Stanton Group

Designed and engineered by Cerwin-Vega! in Chatsworth CA.

LITP00005-REVB

Your Next Speakers™

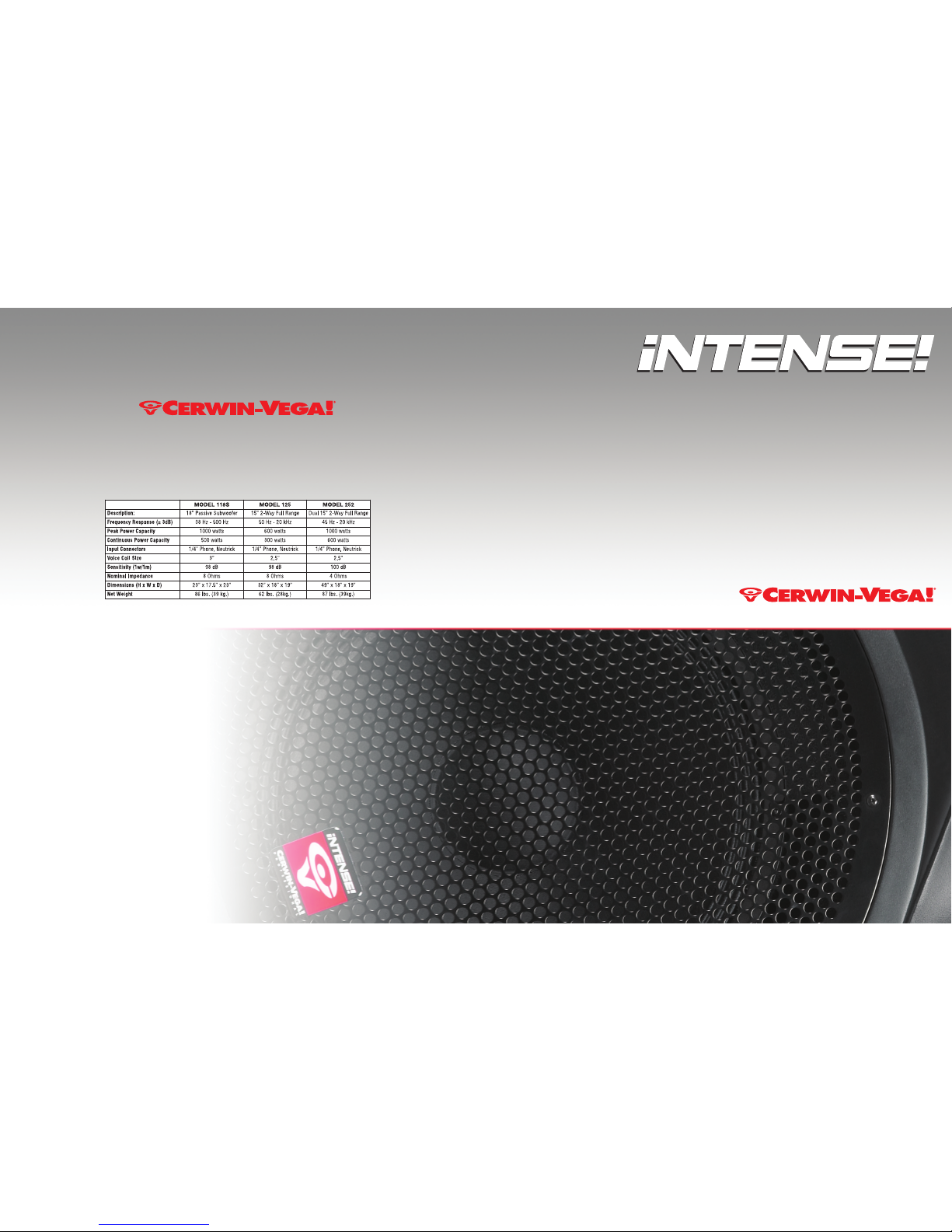

SPECIFICATIONS

Can a loudspeaker actually heighten your sense of creativity and

accomplishment

Can your thirst for high performance sound – and your

need for outstanding value – ever find a home together? Will your next

speakers have a real titanium compression driver and the enormous

advantages of a real plywood enclosure? With one glimpse, will they

remind you of something extremely familiar and, at the same time, some-

thing you’ve never seen before? Will your next speakers look, sound and

feel as good a year from now as they do the day you buy them? Can all

of these things ever find their way into just one line of speakers?

They have in CERWIN-VEGA’S INTENSE.

DJS, BANDS AND MUSICIANS

Is anyone building the speaker that

are truly asking for?

Cast Aluminum Frame For Strength And Durability

The Model 118S features an 18-inch transducer with a cast

aluminum frame designed to support the system's huge

magnet structure/voice coil architecture, plus the high

power handling requirements typically encountered in live

sound reinforcement applications. This frame creates a more

reliable, robust subwoofer system designed to withstand

abuse.

Built For The Road

Designed to withstand the rigors of the road, all enclosures

feature heavily braced, 18mm, plywood construction;

abrasion-resistant, low pilling black carpet and VegaGripTM

handles for easy transport. Bottom line… the Intense Series

loudspeakers sound great, look great, and are designed to

stay that way.

34mm HF Compression Driver

The 34mm titanium High Frequency compression drivers

found in the Intense Series 152 and 252 benefit from an

optimized dome geometryand phase plug design that

combine to eliminate phase distortion. Coupled with the

HighRoad horn's carefully crafted throat contour, the result is

controlled directivity [moreaccurately focused sound] and

smooth response.

ABig, Clean HornWhen You Need It!

With its 34mm titanium High Frequency compression driver,

our HighRoad horn features a larger diaphragm than the

competition. You get higher SPL with lower distortion, and

since the crossover in the 152/252 runs at lower frequencies,

you'll hear improved off-axis response and increased

mid-range vocal intelligibility.

OF ANY SPEAKERS IN THEIR CLASS

SURE, THEY’LL PLAY REALLY LOUD, BUT INTENSE ALSO HAS

THE CLEANEST SOUND

The Intense Series loudspeakers deliver performance you

demand at a price you don’t expect. The model 152 and 252

enclosures, paired with the 118S cast frame subwoofer, are

tailor-made for gigging musicians, mobile DJs, and other

portable sound reinforcement applications. The Intense

Series loudspeakers re-define value driven

performance.

While the thrill of performing with your Intense speakers is why you’ll buy them,

their reliability and customer support is why you’ll like living with them, too.

•STUNNING DESIGN

•34mm TITANIUM COMPRESSION DRIVER LOADED INTO A PROPRIETARY 1 INCH THROAT

•EXCLUSIVE 90º X 70º HighRoad WAVEGUIDE

•EXCLUSIVE VEGA GRIP™ HANDLES

•DURABLE 16 GAUGE STEEL GRILLES

•RUGGED 18mm, 11-PLY TRAPEZOIDAL SHAPED

•PLYWOOD ENCLOSURES

•LEGENDARY CERWIN-VEGA SOUND

•PROPRIETARY WOOFERS w / 2.5 INCH HIGH TEMPERATURE VOICECOILS

•RUGGED 18 GAUGE METAL INPUT PLATES WITH NEUTRIK™ SPEAKON CONNECTORS

•127dB (152) to 132dB (118S) MAXIMUM OUTPUT LEVELS

•DEFEND™ CIRCUIT PROTECTS THE HF COMPRESSION DRIVER FROM EXCESSIVE POWER

•DURABLE 35mm CAST ALUMINUM POLE MOUNTS

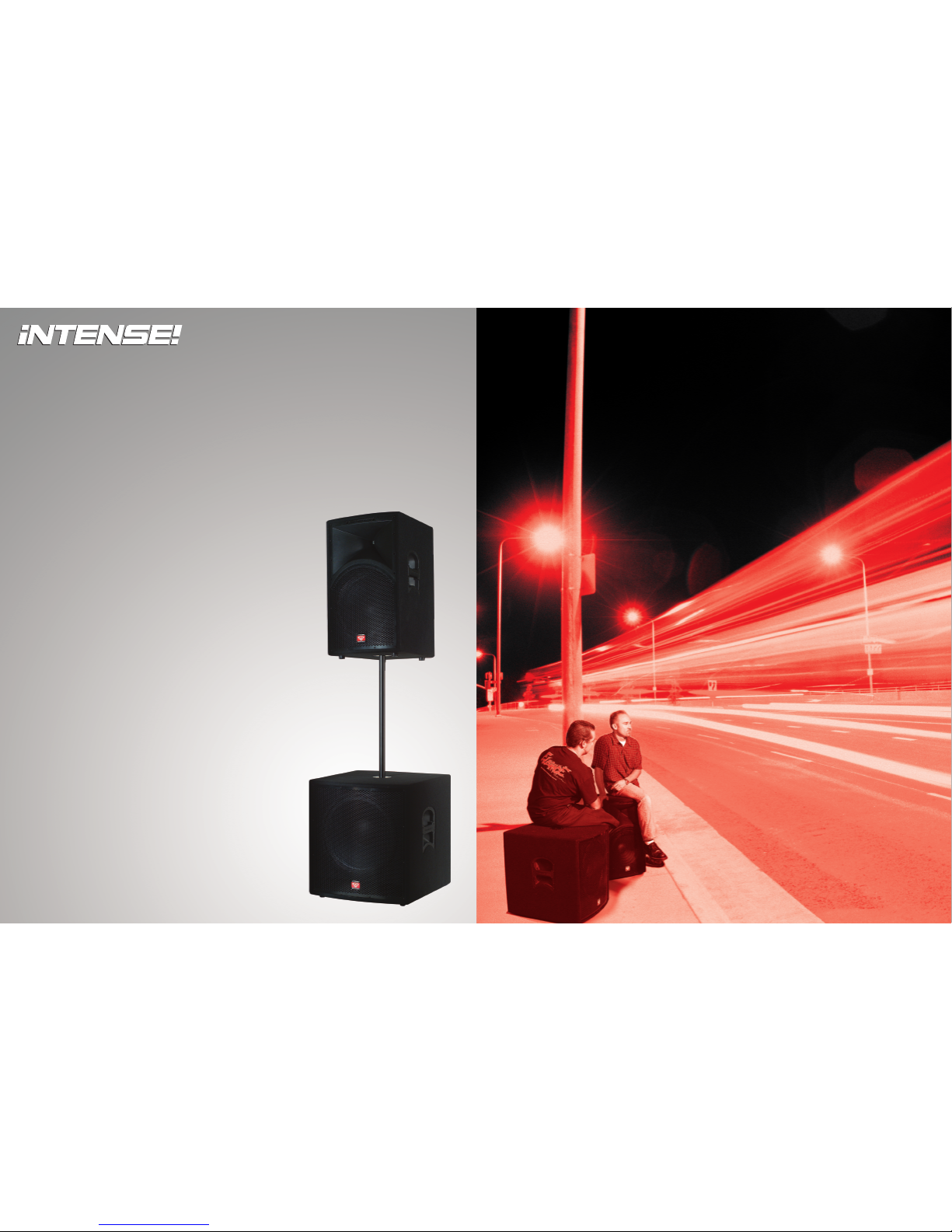

Intense 152 2-Way over Intense 118S Subwoofer

Take To The Stage With A New

Level of INTENSITY…

The 152 is an 8-ohm, 2-way passive bass reflex

design featuring our HighRoad horn and a

single 15-inch woofer with a 2.5-inch high

temperature voice coil. Rated at 600 watts

peak power capacity with a frequency

response of 50Hz to 20kHz, the 152 is ideally

suited as a stand-alone sound reinforcement

solution or you can augment it with the 118S

subwoofer.

Featuring Cerwin-Vega’s HighRoad horn and

two 15-inch woofers with 2.5-inch high

temperature voice coils, the 252 is an 4-ohm,

2-way passive bass reflex design. Providing

the flexibility to be used stand-alone,

arrayed, or in conjunction with the 118S

subwoofer,the 252 is rated at 1000 watts

peak power capacity with a frequency

response of 45Hz to 20kHz.

The 118S subwoofer features a single 18-inch

transducer with a cast aluminum frame that is

designed for added strength and reliability.

This exceptional subwoofer employs a 3-inch

voice coil for sustained high power handling

capability—the largest in its class! With a

frequency response of 38Hz to 500Hz, the

118S is rated at 1000 watts peak power

capacity and can provide ample low-end

fullness for a wide variety of sound

reinforcement applications.

Model 152

Model 252

Model 118S

Your Next Speakers™

Model 152 Model 252 Model 118S
