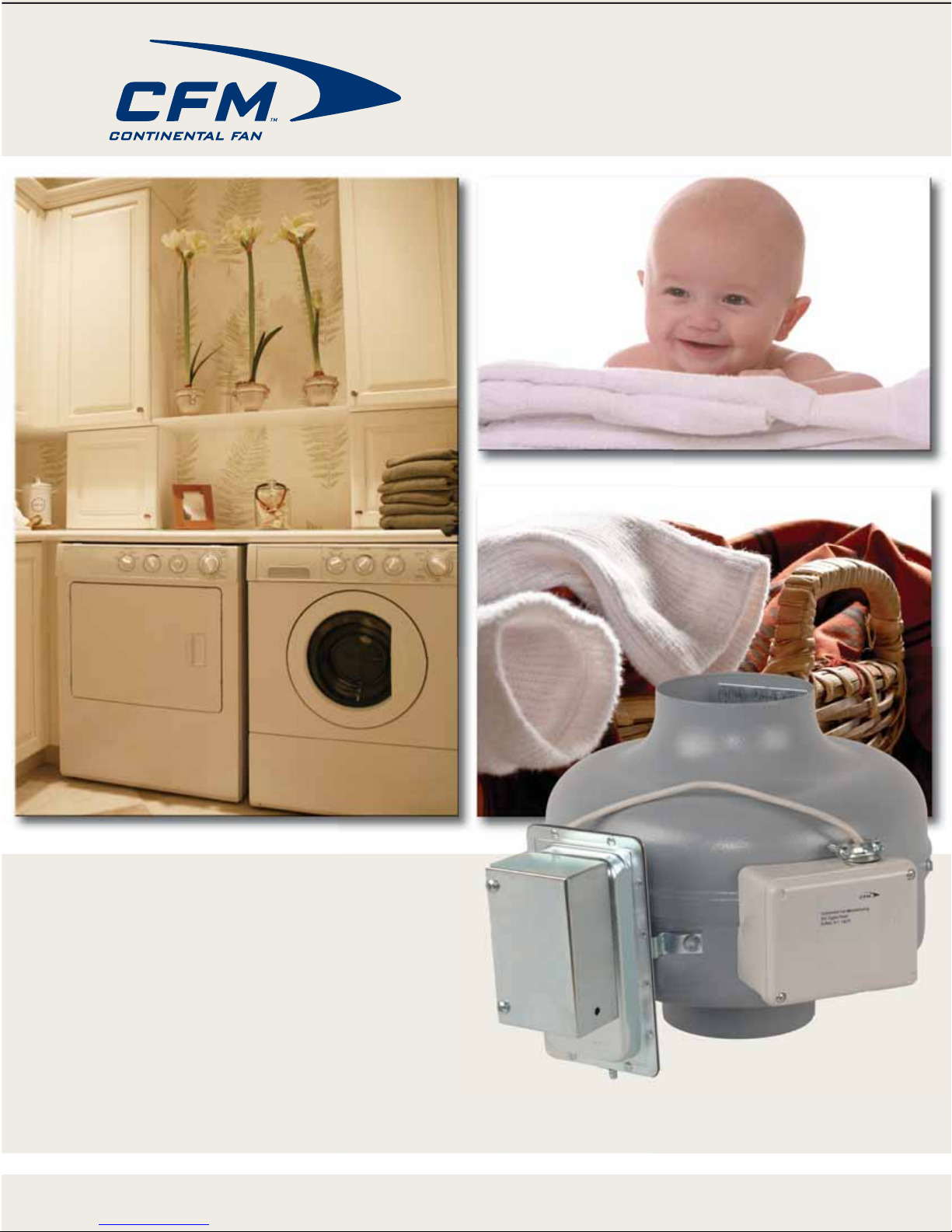

CFM DVK-0910 Bedienungsanleitung

DVKDVK

Dryer Booster FansDryer Booster Fans

HHoowwWWeellllDDooeessYYoouurrDDrryyeerrPPeerrffoorrmm??

Most residential dryers are designed to vent approximately 15

feet of duct. With the introduction of main floor and second story

laundry rooms, duct runs have become complex, often exceeding

dryer manufacturers’ recommendations. The results are longer

drying times, greater wear and tear on the dryer and higher

energy costs.

DDVVKKDDrryyeerrBBoooosstteerrFFaannss

AABBeetttteerrIIddeeaa

Continental Fan’s DVK Dryer Booster Fans are designed to enhance

the drying efficiency of residential, commercial and industrial dryers.

DVK Fans feature quiet and efficient backward curved impellers that

are capable of overcoming long duct runs, and an in-line configuration

that simplifies installation. Unique design features result in a quiet and

powerful solution that is unmatched in the industry.

DDeessiiggnnFFeeaattuurreess

• External rotor motor for quiet & efficient operation

• Backward curved impeller to overcome long duct runs

• In-line construction to reduce lint build-up

• High temperature construction: 60 C/140 F

• Thermal overload protection

• Automatic reset

DDrryyeerrBBoooosstteerrKKiittss

DVK Dryer Booster Fans are available in a selection of easy-to-install kits.

• DVK100B-C Kit with Current Sensor

• DVK100B-T Kit with Timer

• DVK100B-P Kit with Pressure Switch

• DVK100B-PM Kit with Pressure Switch - Mounted

CCuurrrreennttSSeennssoorr(DVK100B-C Kit)

This is the preferred method for activating a dryer booster fan. When a clothes dryer

is operating and drawing at least one amp of current, the current sensor automatical-

ly activates the DVK100B dryer booster fan.

TTiimmeerr(DVK100B-T Kit)

Timers are simple to install and are maintenance free. Simply setting the fan timer to

the same period as the dryer timer activates the DVK100B dryer booster fan.

PPrreessssuurreeSSwwiittcchh(DVK100B-P Kit)

The pressure switch is designed to be mounted in the duct between the fan and the

dryer. When it senses dryer airflow, the switch activates the DVK100B dryer booster

fan.

PPrreessssuurreeSSwwiittcchh--MMoouunntteedd(DVK100B-PM Kit)

The pre-mounted pressure switch simplifies installation. Utilizing the components

found in the DVK100B-P kit, the pressure switch is pre-wired and factory mounted to

the DVK100B dryer booster fan.

NNoottee::Each of the above booster fan activation methods may be purchased as a

separate accessory item.

BBoooosstteerrFFaannAAccttiivvaattiioonnMMeetthhooddss

Lint Trap Roof CapsWall CapsMounting Clamps

AAvvaaiillaabblleeAAcccceessssoorriieess

A full range of accessories is available to suit each application.

DDVVKKDDrryyeerrBBoooosstteerrFFaannss

DVK-0910

Distributed By:

Continental Fan Manufacturing Inc.

203 Eggert Road

Buffalo, NY 14215

Tel: 716-842-0670 Toll: 800-779-4021

Fax: 716-842-0611

www.continentalfan.com

Aeroflo Inc.

12–205 Matheson Blvd. East

Mississauga, Ontario, Canada L4Z 3E3

Tel: 905-890-6192 Toll: 800 -779-4021

Fax: 905-890-6193

www.aeroflo.com

EXT

External Mount Duct Fans

AeroFan

Superior Bathroom Fans AXC

In-Line Duct Fans

Air Purification Systems

AAddddiittiioonnaallCCFFMMPPrroodduuccttss

MODEL

CUBIC FEET PER MINUTE

0”SP 1/8”SP 1/4”SP 3/8”SP 1/2”SP 3/4”SP 1”SP 11/4”SP 11/2”SP

DVK100B 152 146 139 131 124 106 82 66 33

MODEL WATTS AMPS RPM dBA

(in.)

(lbs)

DVK100B 85 0.69 2400 54 9.5 3.9 1.0 8.3 6.5

DDiimmeennssiioonnaallDDaattaa

PPeerrffoorrmmaanncceeDDaattaa

LT100 Lint Trap

DVK Kit

RC100 Roof Cap

Complete

Air Purification Systems

AeroFan

Superior Bathroom Fans

EXT

External Mount Duct Fans

AXC

In-Line Duct Fans

IInnssttaallllaattiioonnTTiippss

• DVK100B fans should be mounted at least 15 linear feet from dryer.

• Each 90-degree elbow is equivalent to 5 linear feet of duct.

• DVK100B fans are designed to vent up to 110 feet of 4-inch rigid duct.

HHeellppffuullHHiinntts

An LT100 Lint Trap may be installed between the dryer and the boost-

er fan to reduce lint build-up and maintenance on the fan.
