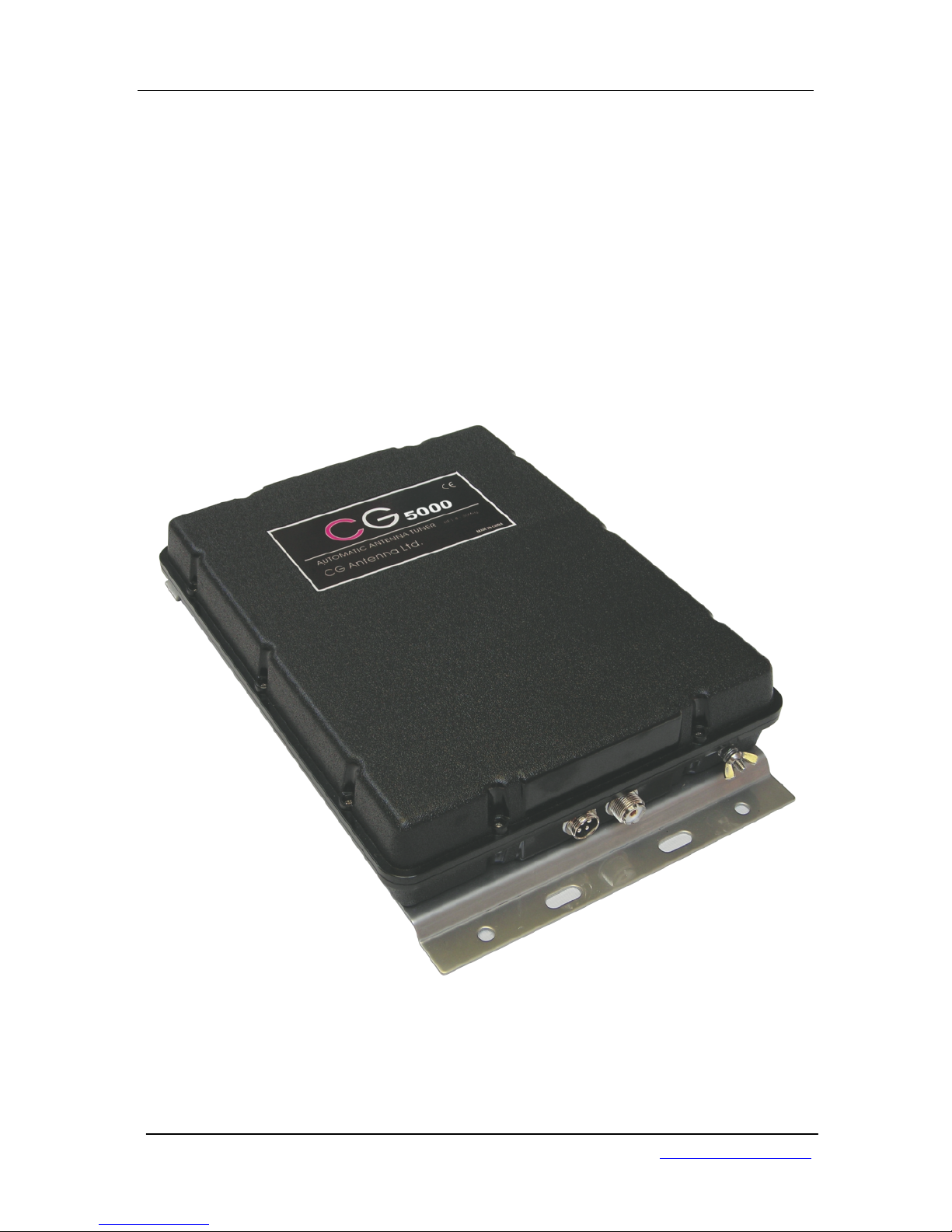

CG-5000 automatic antenna tuner (ATU) can cover whole HF bands from
1.8 to 30 MHz. The CG-5000 is the high power version of the state-of-art
CG-3000. It uses new microprocessor and more big non-volatile memory.

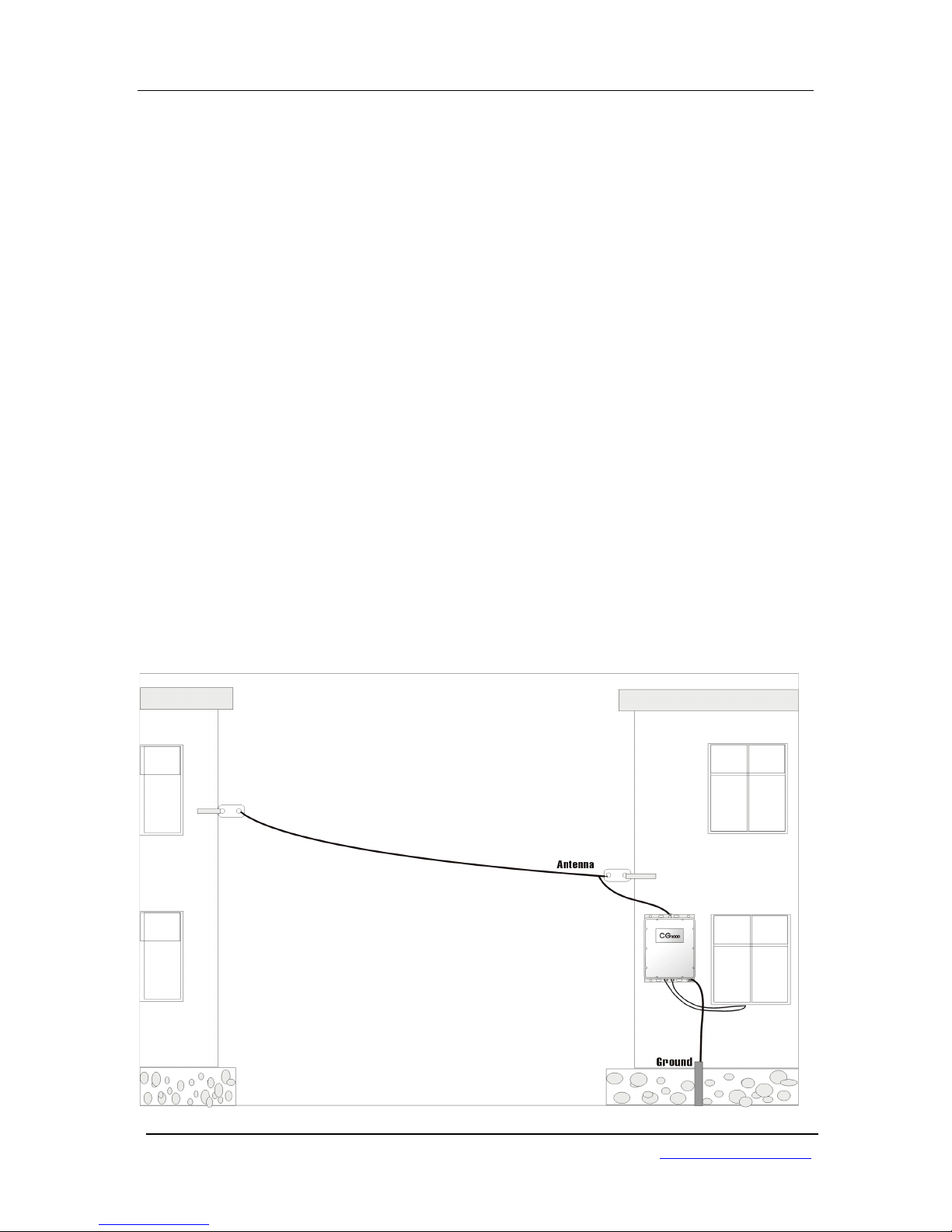

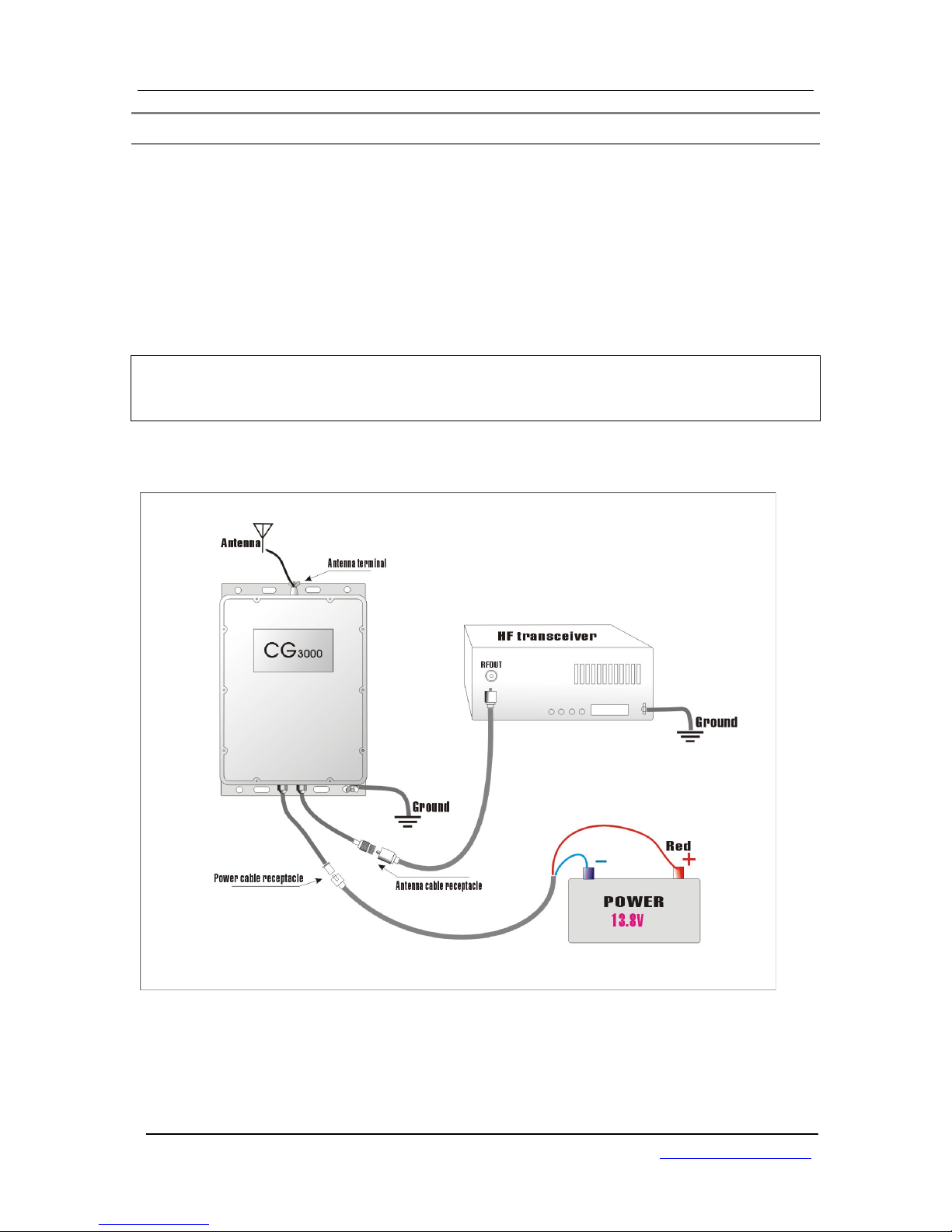

The CG-5000 is independent to any exciters. It detects RF frequency,
VSWR and other information from RF signal. So it can work with any
exciters without the special data connection. The multi signal processing
circuit switches the inductance and capacitance to make perfect matching
between your radio and antenna system. Fast tuning, less than 6 seconds for
first initialize matching. 800 memory channels store the minimum SWR
value to make further tuning. The solid waterproof case works on the most
extreme environments. The mounting kit is built by stainless metal to ensure
no rust.
The CG-5000 is designed with Pi matching network. It provides more wide
tuning range and covers whole HF band. Using 8 solid inductors, the total
inductance ranges from 0 to 32 uH. They can give 128 combinations with a
resolution of 0.25 uH. 5 capacitors are used at the input side, the total
capacitance ranges from 0 to 6400 pF with 64 combinations. Other 5
capacitors are used at the output side, the total capacitance ranges from 0 to
400 pF with 32 combinations. So totally they give more than 250,000 tuning
combinations.
Working frequency: 1.8 - 30 MHz
Input impendence: 45-55 ohm
Max. input power: 800W PEP 250W continuous
Min. input power: 10W
Power supply: 13.8V +/- 10%
Current drain: < 1.5A
Auto tuning time: Approx. 6 sec. (first time tuning)
< 0.2 sec (return to memorized frequency)
Memory channels: 800
Usable wire length: 6 – 30 MHz > 2.4 meters
1.8 – 30 MHz > 8 meters
