Challenger Lifts SA10 Bedienungsanleitung

Rev. 2023/11/16

Installation, Operation & Maintenance Manual

Two Post

Surface Mounted Lift

MODEL SA10

(This lift may be installed either symmetrically or asymmetrically)

10,000 LBS.CAPACITY (2500 lbs. per Arm)

2311 South Park Rd. Louisville, Kentucky 40219

Email:[email protected] Web site:www.challengerlifts.com

Office 800-648-5438 /502-625-0700 Fax 502-587-1933

IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE

INSTALLING or OPERATING LIFT

Model SA10

Installation, Operation and Maintenance

Page 2 SA10-IOM-A.doc Rev. 2023/11/16

GENERAL SPECIFICATIONS

See Fi

ure 1 SA10

(

mmetric Install

)

SA10

(

mmetric Install

)

A Overhead Hei

(

ustable

)

136 1/2" /142 1/2" (3467mm/3620mm)

- with 2Ft Column Extension Kit 160 1/2" / 166 1/2”

(

4077mm/4230mm

)

BOverall Hei

(

linder

)

142 1/2”

(

3620mm

)

Ceilin

Hei

ht Required 144"

(

3658mm

)

CFloor to Overhead Switch 131 1/8” /137 1/8” (3331mm/3483mm)

DMax Rise Hei

ht * 74 1

(

1892mm

)

EScrew Pad Hei

ht 4 3/4”

–

6 7

8”

(

119mm-174mm

)

FBase Width

(

ustable

)

** 129” /135” (3277mm/3429mm) 131 1/2” /137 1/2” (3340mm/3493mm)

GInside of Columns 106 3/4” /112 3/4” (2710mm/2862mm) 101 1/2” /107 1/2” (2579mm/2731mm)

HDrive-Thru Clearance 92 3/4” /98 3/4” (2356mm/2508mm) 88 1/2” /94 1/2” (2248mm/2400mm)

IShort Arm Reach 22 3/8” /41 1/2” (568mm-1055mm)

JLon

Arm Reach 38 1/4” /59” (970mm-1500mm)

KTo Front Obstruction 12’ 10’

QTo Rear Obstruction 12’ 14’

***Lifting Capacity ***

(Hydraulic Pressure at Cap.)

10,000 lbs. (2500 lbs. per arm)

(2850 psi)

****Rise Time **** 44 seconds

Motor 3HP, Sin

le Phase, 60Hz, 208/230

* Rise Height measured with footpads in the highest position.

** Overall width of Asymmetric Lift is 135”/141” including Power Unit. Use Dimension “F” for installation purposes.

*** Lift capacity ratings are based on loads equally distributed on all four arms.

**** Lifting and lowering speeds may vary depending on the weight of the vehicle.

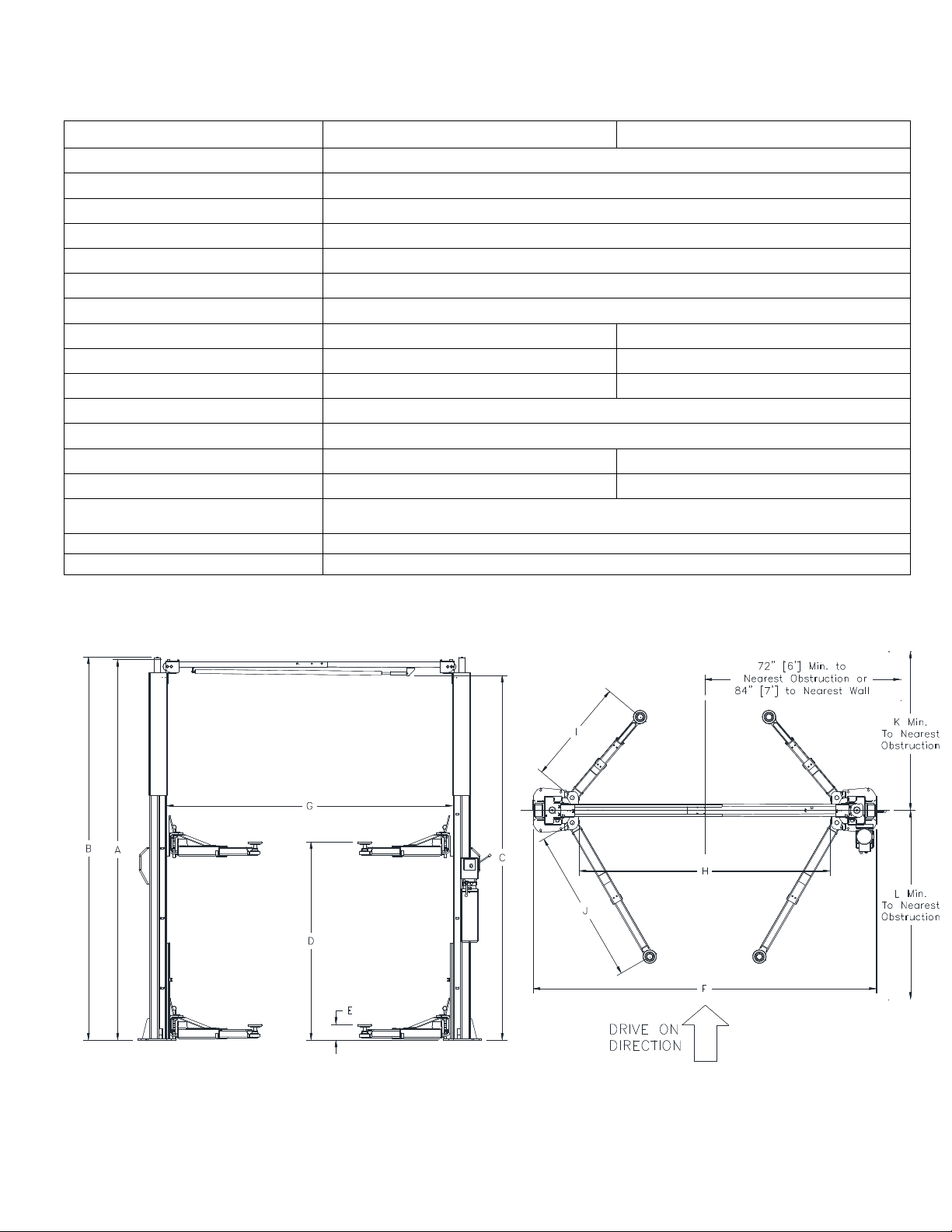

Fig 1 - General Specifications / Service Bay Layout

Model SA10

Installation, Operation and Maintenance

Page 3 SA10-IOM-A.doc Rev. 2023/11/16

WARNING

VERTICAL CLEARANCE

Check the height of the area where the lift is to be

installed. Clearance should be calculated based on

the full raised height of the lift.

Failure by purchaser to

provide adequate clearance

could result in unsatisfactory

lift performance, property damage, or personal

injury.

FLOORING

Be certain you have the proper concrete floor to

properly handle the loaded lift. Floor should be in

generally good condition with no large cracks,

spalling or deterioration.

Minimum requirements for concrete are 4 inches

minimum depth, with steel reinforcement, 3500

psi, cured for 28 days per local commercial

practice. Floor should be level within 3/8 inch over

the installation area. No anchors should be installed

within 8 inches of any crack, edge, or expansion

joint. If these conditions cannot be met, a pad may

be poured to accommodate the lift.

Check with local building inspectors and/or permits

office for any special instructions or approvals

required for your installation.

A qualified person should be consulted to address

seismic loads and other local or state requirements.

Failure by purchaser to

provide the recommended

mounting surface could result

in unsatisfactory lift performance, property

damage, or personal injury.

LOCATION

This lift has been evaluated for indoor use only with

an operating ambient temp. range of 5 – 40°C (41–

104°F). Outdoor Installation is Prohibited.

ELECTRICAL REQUIREMENTS

For lift installation and operation it is necessary to

have a dedicated circuit with circuit breaker or time

delay fuse. Refer to wiring diagram for circuit sizing.

SAFETY NOTICES AND DECALS

For your safety, and the safety of others, read and

understand all of the safety notices and decals

included here.

READ ENTIRE MANUAL BEFORE ASSEMBLING,

INSTALLING,OPERATING,OR SERVICING THIS

EQUIPMENT.

PROPER MAINTENANCE AND INSPECTION IS

NECESSARY FOR SAFE OPERATION.

DO NOT OPERATE A DAMAGED LIFT.

Safety decals similar to those shown here are found

on a properly installed lift. Be sure that all safety

decals have been correctly installed on the columns

as described in this installation manual. Verify that

all authorized operators know the location of these

decals and fully understand their meaning. Replace

worn, faded, or damaged decals promptly.

Do not attempt to raise a

vehicle on the lift until the lift

has been correctly installed

and adjusted as described in this manual.

WARNING

Model SA10

Installation, Operation and Maintenance

Page 4 SA10-IOM-A.doc Rev. 2023/11/16

RECEIVING

The shipment should be thoroughly inspected as

soon as it is received. The signed bill of lading is

acknowledgement by the carrier of receipt in good

condition of shipment covered by our invoice.

If any of the goods called for on this bill of lading are

shorted or damaged, do not accept them until the

carrier makes a notation on the freight bill of the

shorted or damaged goods. Do this for your own

protection.

NOTIFY Challenger Lifts AT ONCE if any hidden

loss or damage is discovered after receipt.

IT IS DIFFICULT TO COLLECT FOR LOSS OR

DAMAGE AFTER YOU HAVE GIVEN THE

CARRIER A CLEAR RECEIPT.

File your claim with Challenger Lifts promptly.

Support your claim with copies of the bill of lading,

freight bill, and photographs, if available.

Component Packing List

PART # QTY/

LIFT DESCRIPTION

3W-01P 1 Power Column Weld

3W-01I1 Idler Column Weld

3W-03PA 1 Power Overhead Ass’y

3W-03IA 1 Idler Overhead Ass’y

AB-9367 1 Power Unit

SA10-HW-A 1 Hardware Box

3W-01-05PA 1 Power Column Extension

3W-01-05IA 1 Idler Column Extension

3W-04-01A 2 Rear Arm Assembly

3W-04-19A 2 Front Arm Assembly

B2270 4 Foot Pad Assembly

3W-06-08A 2 Synchronizer Cable Ass’y

3W-06-06A 1 Power Hose

3W-06-07A 1 Idler Hose

3W-06-05A 1 Extension Hose

3W-01-11-01 1 Power Lock Cover

3W-01-11-02 1 Idler Lock Cover

3W-03-13A/15A 1 Shutoff Bar/Foam Cover

3W-03-07 2 Overhead Bracket

SA10-LHW 1 Internal Hardware Box

INSTALLATION

SAFETY REQUIREMENTS FOR INSTALLATION AND

SERVICE

Refer to ANSI/ALI ALIS (current edition)

IMPORTANT:Always wear safety glasses while installing lift.

TOOLS (MINIMUM REQUIRED)

a. Tape measure, 16ft

b. Chalk line

c. 4ft level

d. Carpenters Square

e. 10” adjustable wrench

f. Open end wrenches 14mm,16mm,17mm,19mm

g. Needle Nose pliers

h. Snap Ring pliers.

i. Screw Drivers (Flat and Phillips)

j. Hammer drill w/ 3/4” diameter carbide-tipped bits

k. 2lb hammer

l. Torque wrench: 150 ft.-lbs. min. & 1 1/8” socket

m. 12 ft. Step ladder

n. Anti-Seize lubricant (arm pins, foot pad screw

threads, and foot pad stop rings)

LAYOUT

1) Layout the service bay according to architect’s

plans or owners instructions (see Fig 1). Failure

to install in this orientation can result in

personal and property damage. Be certain

that the proper conditions exist, see page 3.

DISASSEMBLY

2) Place a 4x4 piece of lumber 2’ from each end of

the packaged lift. Remove Column Extensions,

Arms, and Hardware Box. Remove steel end

brackets bolted to Columns. Remove remaining

packaging and any loose items placed inside the

columns.

COLUMNS

3) With columns still horizontal, assemble Power

Column Extension to Power Column using (8

sets) M12 x 20 Hex bolts, flat washers, and lock

washers. The (2) Column Extensions are not

identical. IMPORTANT: The Lock Release

Guide Block at top of Column Extension

should be in-line with Lock Release Pulley in

Column. See Fig 10 for Clarification. For the

tall height setting, use bottom holes as shown in

Fig 2. For the short setting, use the upper holes.

Repeat for opposite Idler Column and Idler

Column Extension.

Model SA10

Installation, Operation and Maintenance

Page 5 SA10-IOM-A.doc Rev. 2023/11/16

Fig 2 - Column Extension

4) Assemble Overhead Mounting Bracket to the

Column Extension using (4 sets) M12 x 25 Hex

bolts, flat washers, lock washers, and nuts.

Repeat for opposite bracket and extension.

See Fig 3 below.

Fig 3 – Column Extension

5) Slide both Carriages into the first lock position

while Columns are horizontal. Ensure both locks

are engaged.

6) IMPORTANT:Ensure that the lock pawl is

engaged by attempting to manually disengage it.

When properly engaged, the weight of the

carriage will prevent it from moving.

7) Refer to Fig 1. Using the Base Width (D)

Dimension, chalk two parallel lines (A & B) on

the floor within 1/8” tolerance. Chalk a third line

and aft location. Erect both Column assemblies.

Align the base plate edges to the chalk lines as

seen in Fig 4 below. Slots in front and back of

base plate should be in-line with chalk line “C”.

Fig 4 – Layout

ANCHORING

Note:

The anchor bolts must be installed at least 8” from

any crack, edge, or expansion joint. Recheck the

area around both base plates.

Use a concrete hammer drill with a 3/4 inch

carbide bit. Tip diameter should conform to ANSI

Standard B212.15 (.775 to .787). Do not use

excessively worn bits or bits which have been

incorrectly sharpened. A core bit may be

necessary if an obstruction is encountered. Never

substitute with shorter anchor.

8) Recheck “Inside of Columns” dimension (Fig. 1).

9) Using the base plate as a template, drill one

anchor hole. Drill through the floor if possible or

to a depth of 5 inches minimum.

10) Clean the hole inside and out.

11) Assemble a washer and nut to the anchor with

nut just below impact section of bolt. Drive the

anchor into the hole until the nut is 3/4” above

the baseplate (leaving room for shims).

Complete steps 9 thru 11 for the five (5) anchors

(one at a time) around each column.

Fig 5 – Column Shimming

12) Tighten Power Column anchors and recheck

Column for plumb. Re-shim if necessary. Torque

to 150 foot-pounds to set anchors.

OVERHEAD

13) Assemble two Overhead pieces using (6 sets)

M10 x 20 bolt, nut, flat washer, and lock washer

as shown in Fig 6. Hand-tighten bolts to allow

adjustment if needed. Use Base Width (D)

Dimension to determine proper holes to use.

Model SA10

Installation, Operation and Maintenance

Page 6 SA10-IOM-A.doc Rev. 2023/11/16

Fig 6 – Overhead

14) Install Overhead Limit Switch to the Overhead

Beam on the Power Side of the lift. See Fig 7a.

Fig 7a – Overhead Limit Switch Power Side

15) Install the Idler Bracket to the Overhead Beam

on the Idler Side of the lift. See Fig 7b. Note the

orientation of the Idler Bracket. The narrow

slot needs to be facing towards the Power

Column. Slide the Shutoff bar over the limit

switch on the Power Side. Pin the Shutoff Bar to

the Idler Side Bracket with the 10mm dia. x

55mm Lg. clevis pin & hairpin cotter.

Fig. 7b – Overhead Limit Switch Idler Side

SYMMETRIC

16) For Asymmetric installation, skip to Step 18.

17) With the Overhead positioned UPSIDE DOWN,

assemble the cable sheaves, spacers, and pins

as shown in Fig 8 below.

Fig 8 – Symmetric Sheave Assembly

18) Place the Overhead on top of the mounting

brackets on Column Extensions and bolt

together using (3 sets) M12 x 25 Hex bolt, nut,

flat washer, and lock washer. Hand-tighten bolts

to allow for column adjustment if needed. Use

the holes highlighted below in Fig 9 below.

Model SA10

Installation, Operation and Maintenance

Page 7 SA10-IOM-A.doc Rev. 2023/11/16

Fig 9 – Symmetric Overhead Mounting

ASYMMETRIC

19) Place the Overhead on top of the mounting

brackets on Column Extensions and bolt

together using (3 sets) M12 x 25 Hex bolt, nut,

flat washer, and lock washer. Hand-tighten bolts

to allow for column adjustment if needed. Use

the holes highlighted in Fig 10 below.

IDLER SIDE POWER SIDE

Fig 10 – Asymmetric Overhead Mounting

20) Disassemble sheave assemblies from each end.

Assemble the cable sheaves, spacers, and pins

as shown in Fig 11 below as if viewing from

underneath the lift. A flat washer should be

placed between sheave and offset plate. Note:

The Sheave in the narrow section of the

Power Side Overhead Beam should be

installed after routing the sync cables.

Fig 11 – Asymmetric Sheave Assembly

ANCHORING CONT.

21) Check Idler Column shimming. Use additional

shims (see Fig 5) to remove any gaps that may

have been created while installing Overhead.

Repeat steps 8-12 for the Idler Column

anchoring.

22) Tighten all bolts in Overhead after both Columns

are secured to the floor.

SYNCHRONIZER CABLES

23) Carriages should be setting in first lock position

as mentioned in an earlier step.

24) Each cable is pre-routed around base sheave

and up through the bottom of the Carriage.

Attach that end of the Synchronizing Cable to the

proper carriage tab according to Fig 12a. For

Asymmetrical lift, use 85mm lg. spacer in Idler

Carriage above appropriate tab.

25) Secure the cables with the jam nuts provided as

shown in Fig 12b.

26) Route other end of cable up and over sheave in

Overhead. Follow across to sheave on opposite

Column. Route cable down through Column to

top mounting plate in Carriage. Attach cable to

Carriage top plate as seen in Fig 12c with (2)

hex jam nuts. Repeat for opposite side.

27) Adjust nuts on cable fitting inside carriage up or

down to allow only enough room to get a nut

started on the opposite end of the cable to allow

adequate thread length to tighten cables.

Model SA10

Installation, Operation and Maintenance

Page 8 SA10-IOM-A.doc Rev. 2023/11/16

Fig 12a – Cable Attachment Points

Fig 12b – Jam Nuts

Fig 12c - Carriage Connection

CABLE TRAPPING

28) Place Cable Trap Plate inside Overhead and

slide into end of Overhead. Bolt plate to

Overhead end using (2 Sets) M6 bolt, flat

washer, and lock washer as shown in Fig 13.

Repeat for both sides.

Fig 13 – Cable Trapping

HYDRAULIC HOSES

29) Attach Power Hose to Cylinder Fitting at the

bottom of the Power Column as shown in Fig 14

below. Repeat with longer Idler Hose and Idler

Column. If lift is installed in the “Tall Height”

setting, use Hose Extension and Hose Extension

Fitting between Idler Hose and Cylinder Fitting.

Fig 14 – Bottom Hose Connection

30) Route hoses through hose guides in Column.

Run Idler hose up through Column Extension,

over the top of the Overhead, and down through

the opposite Column Extension as shown in Fig

15 below.

Model SA10

Installation, Operation and Maintenance

Page 9 SA10-IOM-A.doc Rev. 2023/11/16

Fig 15 – Hose Routing

31) Remove the Plug from the left side and relocate

it to the right side. Assemble Power Unit, Tee

Fitting, and hoses together as shown in Fig 16.

Use (4 sets) M8 bolt, nut, flat washer, and lock

washer to attach Power Unit to column bracket.

Fig 16 – Power Unit Assembly

32) Clamp the Idler Hose to the Overhead and

Column Extensions using a (1 set) hose clamp,

M10 x 25 hex bolt, nut, flat washer, and lock

washer as shown in Fig 17 below. For both the

Symmetric and Asymmetric configuration, the

hose clamp in the Column Extension should be

on the same side as the hose guides welded on

the Columns. IMPORTANT: ENSURE HOSE DOES

NOT CONTACT CYLINDERS WHEN LIFT IS FULLY

RAISED.

POWER SIDE

IDLER SIDE

Fig 17 – Hydraulic Hose Routing

LOCK RELEASE

33) While the carriages are still sitting in the locks

from the previous steps, route the Lock Release

Cable assembly (Loop End) through the Idler

Column opening, around the pulley and attach to

the Lock Release Cam as seen in Fig 18a.

34) Continue routing the cable up the inside of the

Idler Column and through guide block at top of

Column Extension. Then route cable through

Flexible Guide Tube and guide block on top of

Overhead. Insert ends of Flexible Guide Tube

into guide blocks. See Fig 18b. Reverse this

step for the Power side. IMPORTANT: ENSURE

FLEXIBLE GUIDE TUBE DOES NOT CONTACT

CYLINDERS WHEN LIFT IS FULLY RAISED.

35) Continue routing the cable down the inside of the

Power Column and out through the column

opening and around the Upper Pulley as seen in

Fig 18c. Insert the Lock Release Cable through

the Cable Clamp Tube and loop the remaining

cable around the pin of the Lock Release Cam

and back thru the clamp. Remove all slack in

the cable until cam on Idler side is rotated as

shown in Fig. 18a and tighten the clamp bolt.

Model SA10

Installation, Operation and Maintenance

Page 10 SA10-IOM-A.doc Rev. 2023/11/16

Fig 18a – Lock Release (Idler Side)

Fig 18b – Lock Release (Idler Side)

Fig 18c – Lock Release (Power Side)

36) Attach Lock Release Stud and M10 Hex Jam Nut

to Lock Release Cam. See Fig 19.

Fig 19– Lock Release Cover

SYMMETRIC ARM INSTALLATION

37) For Asymmetric installation, skip to step 39.

Ensure the Inner Gear is positioned on the arms

as shown in Fig 20. Lubricate the Arm Pin or

carriage arm pin hole with “anti-seize” and install

the arms. Place snap ring in groove on bottom of

arm pin. Ensure that the arm restraint gears

engage and disengage properly. Arm restraint

gears should disengage completely when lift is

fully lowered. When gears are engaged, Outer

Gear should lower enough for top of teeth to be

level with top of Inner Gear teeth. If any binding

occurs, adjust Inner Gear as necessary.

Fig 20 – Symmetric Inner Gear

38) Make sure all the arm bolts are tight. Slide all the

arms out so they are fully extended making sure

that the male is retained in the female.

ASYMMETRIC ARM INSTALLATION

39) With arms spread open, Inner Gear should be

rotated to face center of lift for all (4) arms as

shown in Fig 21. Lubricate the Arm Pin or

carriage arm pin hole with “anti-seize” and install

the arms. Place snap ring in groove on bottom of

Arm Pin. Ensure that the arm restraint gears

engage and disengage properly. Arm restraint

gears should disengage completely when lift is

fully lowered. When gears are engaged, Outer

Gear should lower enough for top of teeth to be

level with top of Inner Gear teeth. If any binding

occurs, adjust Inner Gear as necessary.

Andere Handbücher für SA10

Inhaltsverzeichnis

Andere Challenger Lifts Hebesystem Handbücher

Challenger Lifts

Challenger Lifts CL10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts E10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts EnviroLift EV1020 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 40200 Bedienungsanleitung

Challenger Lifts

Challenger Lifts THK Bedienungsanleitung

Challenger Lifts

Challenger Lifts CL10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts LE10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts Versymmetric CL9 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts E15 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts Q4P09H Gebrauchsanweisung

Challenger Lifts

Challenger Lifts Magnum Versymmetric OE-9 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 44050 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts CL12 Series Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 4018XFX Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 44030 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 44030 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts EnviroLift EV1020QC Gebrauchsanweisung

Challenger Lifts

Challenger Lifts 44040 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts EW0820 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts Versymmetric CL10V3-DPC Gebrauchsanweisung

Challenger Lifts

Challenger Lifts SA10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts Versymmetric VLE10 Gebrauchsanweisung

Challenger Lifts

Challenger Lifts CL12A Gebrauchsanweisung

Challenger Lifts

Challenger Lifts CLHM-125EX Gebrauchsanweisung

Beliebte Hebesystem Handbücher anderer Marken

morse

morse 82H-124 Bedienungsanleitung

Braun

Braun NL955 Series Bedienungsanleitung

haacon

haacon 1889.10 Bedienungsanleitung

Protekt

Protekt AT 252 Bedienungsanleitung

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Bedienungsanleitung

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Bedienungsanleitung

Genie

Genie Z-60/34 Bedienungsanleitung

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Bedienungsanleitung

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Bedienungsanleitung

Custom Equipment

Custom Equipment Hy-Brid 3 Series Programmierhandbuch

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Programmierhandbuch

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Programmierhandbuch

BERG

BERG BeNomic EasyLeaf Bedienungsanleitung

Powermate

Powermate LiftGate LG-3 Bedienungsanleitung

Snorkel

Snorkel TM12 Series Bedienungsanleitung

Terberg

Terberg OMNIDEKA Bedienungsanleitung

Harmar Mobility

Harmar Mobility AL625 Betriebsanleitung

Rotary

Rotary SPO16 Bedienungsanleitung
