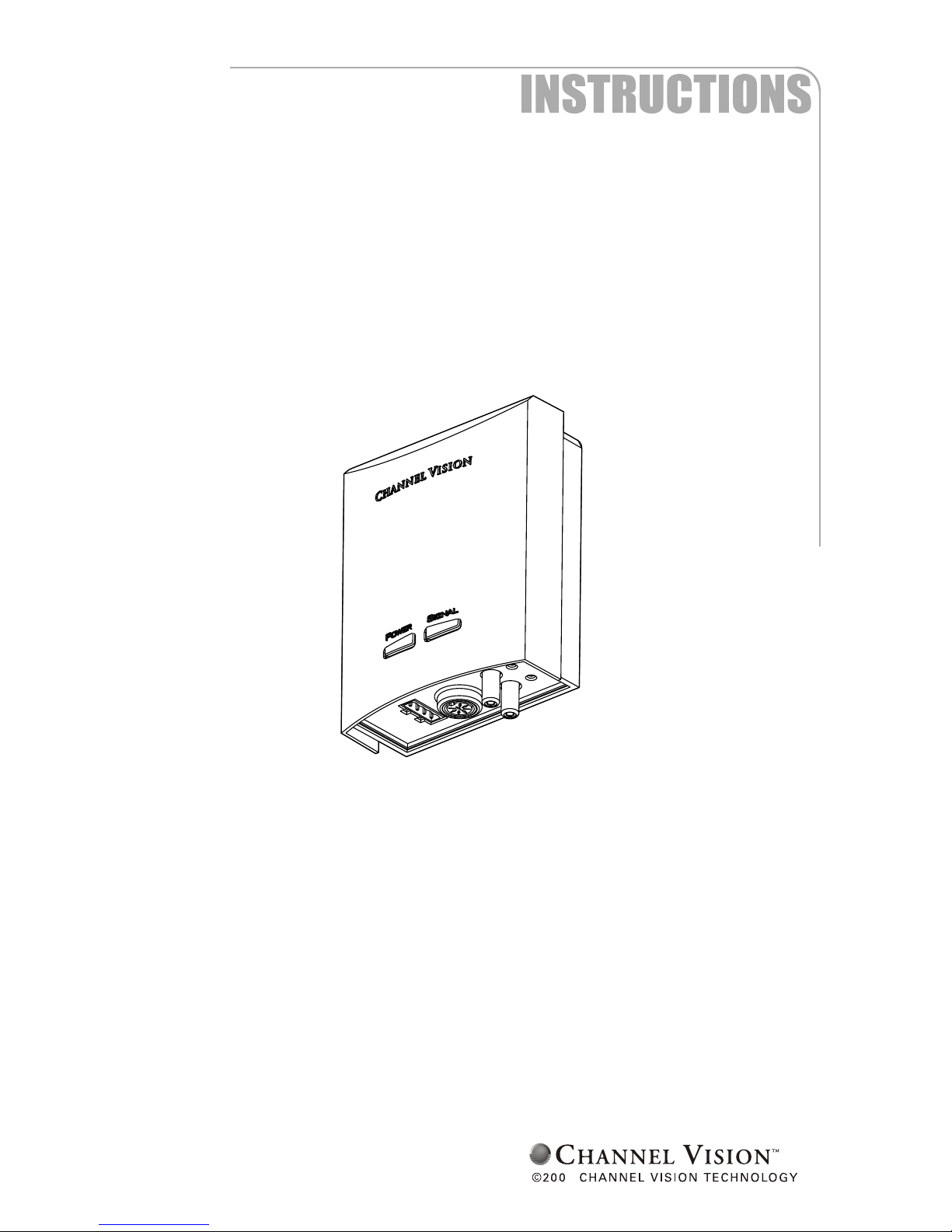

Channel Vision A0240 Bedienungsanleitung
A0240
40 Watt Stereo Amplifier
8
23
The A0240 is a 2-channel 40 Watt class D amplifier. It can be used to
power a small 1-room audio system or integrated with Channel Vision’s
A0302 to provide supplemental power to low power distributed audio
systems. It’s compact size makes it easy to hide and its versatile power
plug allows direct wall plug-in or tabletop operation using the detachable
power cable. With its easy installation and operation, the A0240 is perfect
for any audio system that just needs a little more power.
Features:
!40 Watts per channel
!Compact size
!Audio-sensing power shut off to conserve energy
!Easy installation
Accessories (sold separately)
Complementary Products (sold separately)
A0302... Speaker to Line-Level Converter
The A0302 can convert the speaker-leveloutput of an
audio amplifier to a line-level output that can be used to
drive A0240
In-wall and In-ceiling Speakers... Channel Vision offers
a full line of premium in-wall and in-ceiling speakers.
These speakers are perfect for whole-house music or
home theater applications.
VC-302... Impedance Matching Volume Control
The VC-302 is an impedance matching volume control
with an IR receiver knockout. The knockout allows
Channel Vision’s IR-2400 to be integrated with the
volume control for applications that require IR repeating.
The VC-302 comes with white, ivory, and almond knobs
and face plates to easily match other wall plates in the
room.
Amp-Link
Connect to Channel Vision’s A0302
Amp-Link Cable (included)
18”
L/R Line Level Inputs
Connect source output here
L/R Line Level Input Adjustments
Adjust to limit the maximum input level
Power LED
Lights when power is on
Signal LED
Lights when input signal is present
Speaker Outputs
Connect speaker wires here
Removable Power Plug
Allows direct plug in, or
can be removed and replaced
with the standard power cable.
Power Cable (included)
23
The A0240 is a 2-channel 40 Watt class D amplifier. It can be used to
power a small 1-room audio system or integrated with Channel Vision’s
A0302 to provide supplemental power to low power distributed audio
systems. It’s compact size makes it easy to hide and its versatile power
plug allows direct wall plug-in or tabletop operation using the detachable
power cable. With its easy installation and operation, the A0240 is perfect
for any audio system that just needs a little more power.
Features:
!40 Watts per channel
!Compact size
!Audio-sensing power shut off to conserve energy
!Easy installation
Accessories (sold separately)
Complementary Products (sold separately)
A0302... Speaker to Line-Level Converter
The A0302 can convert the speaker-leveloutput of an
audio amplifier to a line-level output that can be used to
drive A0240
In-wall and In-ceiling Speakers... Channel Vision offers
a full line of premium in-wall and in-ceiling speakers.
These speakers are perfect for whole-house music or
home theater applications.
VC-302... Impedance Matching Volume Control
The VC-302 is an impedance matching volume control
with an IR receiver knockout. The knockout allows
Channel Vision’s IR-2400 to be integrated with the
volume control for applications that require IR repeating.
The VC-302 comes with white, ivory, and almond knobs
and face plates to easily match other wall plates in the
room.
Amp-Link
Connect to Channel Vision’s A0302
Amp-Link Cable (included)
18”
L/R Line Level Inputs
Connect source output here
L/R Line Level Input Adjustments
Adjust to limit the maximum input level
Power LED
Lights when power is on
Signal LED
Lights when input signal is present
Speaker Outputs
Connect speaker wires here
Removable Power Plug
Allows direct plug in, or
can be removed and replaced
with the standard power cable.
Power Cable (included)
45
Using the A0240 as a local input amplifier
In addition to increasing power of a distributed audio system, the A0240 can
also be used to interrupt a the whole house audio source and amplify a local
source device.
Using the A0240 with the A0302
The A0302 is the perfect complement to Channel Vision’s A0240 amplifier. It
can utilize the Amp-Link connection, which provides a clean way to interrupt
the speaker-level audio from a low-power system and output 35 Watts per
channel to the speakers. This is the perfect way to add power to low-power
distributed audio systems.
B-Speakers powered by
A0240 40Watt Amplifier
Speakers powered by
A0240 40Watt Amplifier
A-Speakers powered by
AB-124 keypad
Set switch to
“SPKRS IN”
Set switch to
“SPKRS IN”
AB-124 keypad
(rear view)
Whole-House
Audio System
Place switch in L/R mode.
Speaker level audio is
converted to line level to drive
the amp. Amplified audio is
returned to the A0302 through
the Amp-Link cable.
Note: Local source audio devices should have a variable audio output. Use
the volume control on the device to change the volume level in the
speakers. Portable music players and TVs are often used as local source
devices.
Place switch in L/R mode.
Speaker level audio is
converted to line level to drive
the amp. Amplified audio is
returned to the A0302 through
the Amp-Link cable.
A0240
Class D
amplifier
A0240
peaker Level O tput
S u
Speaker Level
utput
O
e
LinLevel Audio Input
ne e
LiL vel Audio Input
Adjust trim pots set the
local source input sensitivity
Local Source Audio
45
Using the A0240 as a local input amplifier
In addition to increasing power of a distributed audio system, the A0240 can
also be used to interrupt a the whole house audio source and amplify a local
source device.
Using the A0240 with the A0302
The A0302 is the perfect complement to Channel Vision’s A0240 amplifier. It
can utilize the Amp-Link connection, which provides a clean way to interrupt
the speaker-level audio from a low-power system and output 35 Watts per
channel to the speakers. This is the perfect way to add power to low-power
distributed audio systems.
B-Speakers powered by
A0240 40Watt Amplifier
Speakers powered by
A0240 40Watt Amplifier
A-Speakers powered by
AB-124 keypad
Set switch to
“SPKRS IN”
Set switch to
“SPKRS IN”
AB-124 keypad
(rear view)
Whole-House
Audio System
Place switch in L/R mode.
Speaker level audio is
converted to line level to drive
the amp. Amplified audio is
returned to the A0302 through
the Amp-Link cable.
Note: Local source audio devices should have a variable audio output. Use
the volume control on the device to change the volume level in the
speakers. Portable music players and TVs are often used as local source
devices.
Place switch in L/R mode.
Speaker level audio is
converted to line level to drive
the amp. Amplified audio is
returned to the A0302 through
the Amp-Link cable.
A0240
Class D
amplifier
A0240
pe t
S akerLevel Ou put
Speaker Leve l
Output
ne eLi L vel Audio Input
ne e
LiL vel Audio Input
Adjust trim pots set the
local source input sensitivity
Local Source Audio
67
Using the A0240 with the HP-300 and HP-350
The A0240 is the perfect amplifier to use with Channel Vision’s new HomePlug
audio devices. The HP-300 transmitter distributes your audio source through
your home’s electrical wiring and the HP-350 receiver outputs the audio to an
amplifier, such as the A0240.
Speaker Wire
A0240 Bottom View
A0240
HP-350
HP-300
Pin 8 Power +24VDC
Pin 6 Speaker L-
Pin 1 Speaker L+
Pin 4 Power Ground
Pin 2 Audio L+
Pin 7 Speaker R-
Shield Audio Ground
Pin 3 Speaker R+
Pin 5 Audio R+
Amp-Link Pin Out
The A0240 provides a special Amp-Link connection that is intended to be used
with Channel Vision A0302 wall plate. The pin out is provided here for
reference.
Use the remote provided with the HP-350 to
adjust volume levels in the speakers.
O
VL +
L -VO
CH UM TE
hneC a n l
TM
s
Viion
TM
A0512
IR
Receiver
Audio Source
Specifications: (typical at 25 degrees C)
Power input: 110 - 240VAC, 50/60Hz
Output power: 40 Watts/channel RMS into 6 ohms @ <4% THD
Frequency Response: 20-20kHz (+/-3dB)
Signal to Noise Ratio: >85dB
Input Sensitivity: 500mVRMS
Auto On Threshold: 10mVRMS
Specifications subject to change without notice
A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd
67
Using the A0240 with the HP-300 and HP-350
The A0240 is the perfect amplifier to use with Channel Vision’s new HomePlug
audio devices. The HP-300 transmitter distributes your audio source through
your home’s electrical wiring and the HP-350 receiver outputs the audio to an
amplifier, such as the A0240.
Speaker Wire
A0240 Bottom View
A0240
HP-350
HP-300
Pin 8 Power +24VDC
Pin 6 Speaker L-
Pin 1 Speaker L+
Pin 4 Power Ground
Pin 2 Audio L+
Pin 7 Speaker R-
Shield Audio Ground
Pin 3 Speaker R+
Pin 5 Audio R+
Amp-Link Pin Out
The A0240 provides a special Amp-Link connection that is intended to be used
with Channel Vision A0302 wall plate. The pin out is provided here for
reference.
Use the remote provided with the HP-350 to
adjust volume levels in the speakers.
VOL +
VOL -
CHU
M TE
Channel
TM
Vis oni
TM
A0512
IR
Receiver
Audio Source
Specifications: (typical at 25 degrees C)
Power input: 110 - 240VAC, 50/60Hz
Output power: 40 Watts/channel RMS into 6 ohms @ <4% THD
Frequency Response: 20-20kHz (+/-3dB)
Signal to Noise Ratio: >85dB
Input Sensitivity: 500mVRMS
Auto On Threshold: 10mVRMS
Specifications subject to change without notice
A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd
Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
product with new or rebuilt parts, free of charge in the USA, for two
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
proof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Vision Technology, your dealer or any factory-authorized service
center.
500-201 rev A
ww w . c ha n n e l v i si o n . co m
234 Fischer Avenue, Costa Mesa, California 92626 USA
(714)424-6500 (800)840-0288 (714)424-6510 fax
email: [email protected]
Andere Channel Vision Verstärker Handbücher
Channel Vision
Channel Vision A0240 Bedienungsanleitung
Channel Vision
Channel Vision A-BUS AB-202 Bedienungsanleitung
Channel Vision
Channel Vision A0362 Bedienungsanleitung
Channel Vision
Channel Vision Aria A0351 Bedienungsanleitung
Channel Vision
Channel Vision VDA-12 Bedienungsanleitung
Channel Vision
Channel Vision A0240 Bedienungsanleitung
Channel Vision
Channel Vision C-0310 Bedienungsanleitung
Channel Vision
Channel Vision A-BUS AB-114 Bedienungsanleitung
Channel Vision
Channel Vision A500 Bedienungsanleitung
Channel Vision
Channel Vision A0360 Bedienungsanleitung
Channel Vision
Channel Vision Central C-0315 Bedienungsanleitung
Channel Vision
Channel Vision CVT-38BID Bedienungsanleitung
Channel Vision
Channel Vision Aria A0350 Bedienungsanleitung
Channel Vision
Channel Vision CVT-2/8WB Bedienungsanleitung
Channel Vision
Channel Vision CVT-40BID Bedienungsanleitung
Channel Vision
Channel Vision ARIA A0361 Bedienungsanleitung
Channel Vision
Channel Vision C-0314 Bedienungsanleitung
Channel Vision
Channel Vision Aria A0350 Bedienungsanleitung
Channel Vision
Channel Vision CVT-15WB Bedienungsanleitung
Channel Vision
Channel Vision A0240 Bedienungsanleitung
