Assembly

Guide

Model Number:

GAS (LP)

(English)

42804731 • 09/28/2011

12601558

12601558-A2

12601579

2 ASSEMBLY GUIDE

A, B, C, Assembly:

CAUTION: For your safety, before operating, Read Product Guide & Outdoor Cooking Guide

provided with this grill.

*SAFETY First…..Grill components may have sharp edges. Be careful when handling grill parts

during assembly. We suggest that you wear a sturdy pair of leather gloves while handling the grill parts.

BEFORE You Grill….

1. Read Product Guide & Outdoor Cooking Guide

2. Position Grill Safely away from walls & structures (Ref. Product Guide)

3. Pre– Heat Grill—15 minutes on 5 , High to season grill.

TOOLS REQUIRED FOR ASSEMBLY

NOTE….

Installer: Leave instructions with the grill.

Consumer: Retain instructions for reference.

Grill must be installed in accordance with local

codes…..

Designed for outdoor use only…

Read all instructions before operating…

Phillips Head

Screwdriver

(Not Supplied)

Small Adjustable

Wrench

BEFORE You begin assembly of your grill….

1. Carefully remove all components from the carton.

3. Please note that hardware used for assembly may not be shown actual size..

Familiarize yourself with the components and hardware used for assembly.

4. After removing components from the carton, split the carton open and use it as

a soft, scratch-free work pad to assemble your grill.

Visit www.charbroil.com/live

II Grease Tray Guide

Assembly Manual, Spanish

Visit www.charbroil.com/live

Grilling Guide, English

Grilling Guide, Spanish, web only

ASSEMBLY GUIDE

Assembly Manual, French

Grilling Guide, French

Product Guide, French

1/4-20 Nuts

(4 each)

4 ASSEMBLY GUIDE

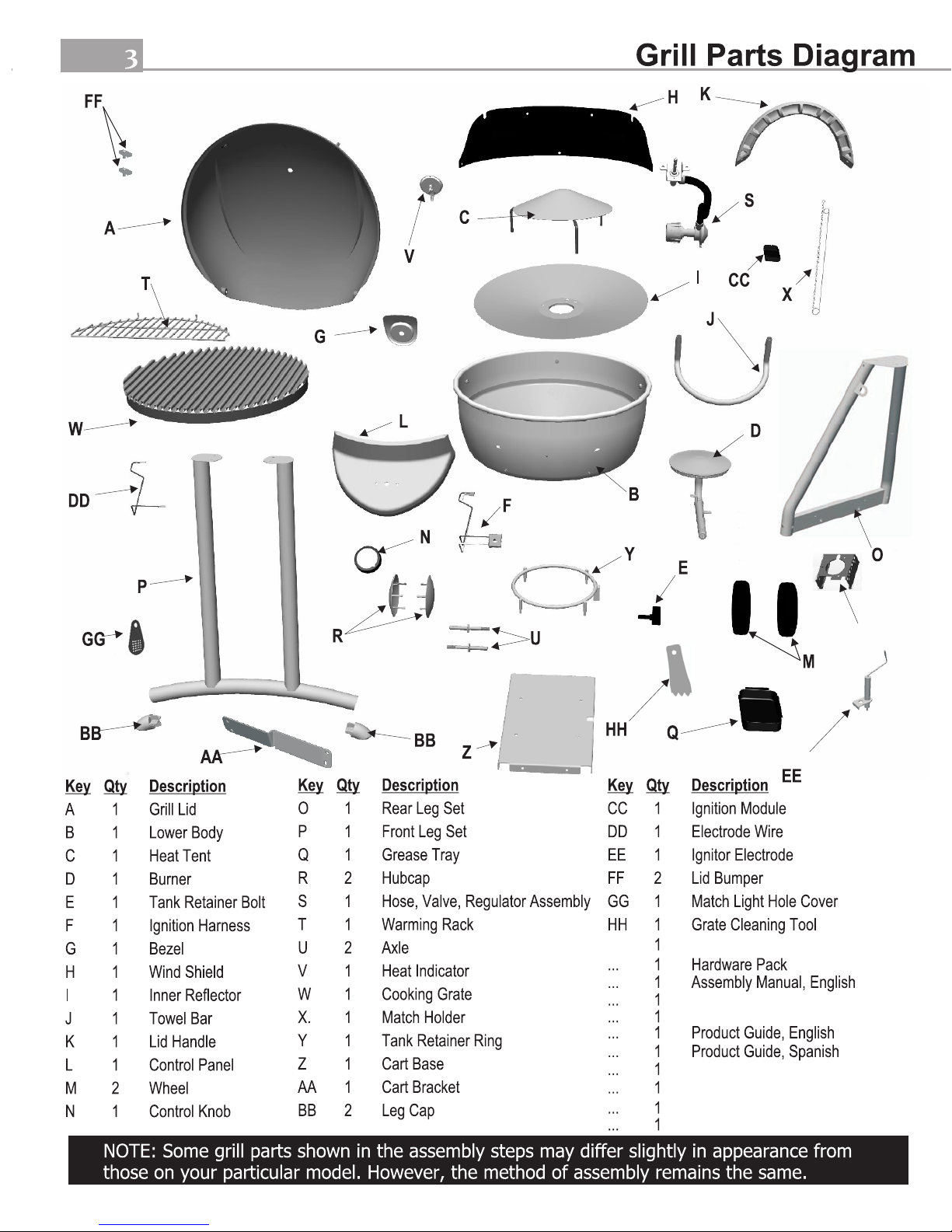

Part Qty

A1– Tank Retainer Ring

A2– Cart Base 1

A3– Tank Retainer Bolt

A4– Front Leg Set 1

1/4x20-1/2"

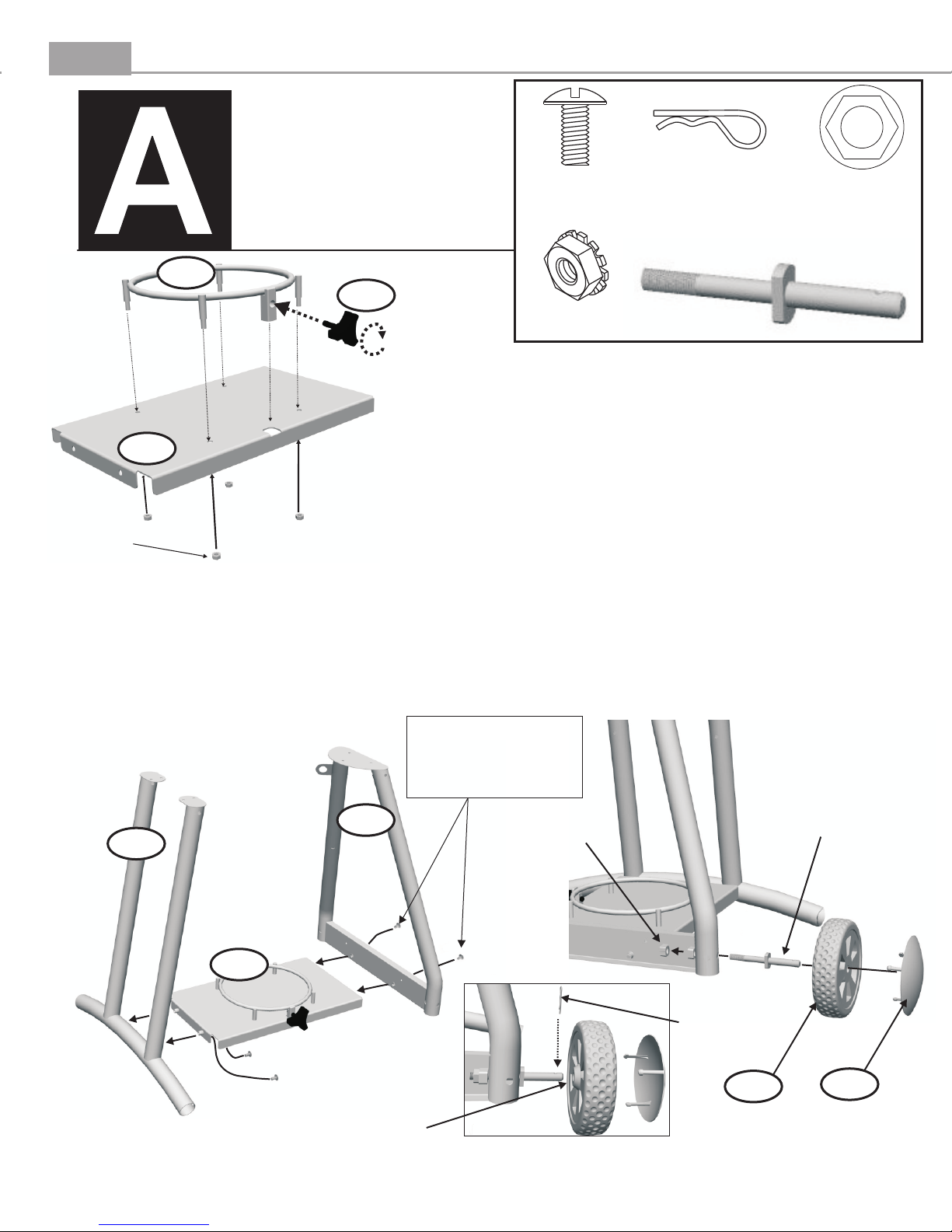

Step 1

Step 2

(qty 2)

GRILL CART Assembly

A6– Wheels 2

1/4-20 Nut

Assemble Tank Retainer Ring (A1) to the Cart Base (A2)

by aligning studs into corresponding holes. Secure with 4

each, 1/4-20 nuts using a small adjustable wrench, not

supplied.

Thread the Tank Retainer Bolt (A3) into the Tank

1/4-20 Screws

(4 each)

Wheel

Retaining

Clip install after

placing wheel on

the axle.

(qty 4)

screw

A5– Rear Leg Set 1

(qty 4)

Wheel Retaining

Clip

A6 A7

Axle Bolt

A7 Hubcap 2

–

3/8-16 Nut

(qty 2)

Axle Nut

3/8-16

Position wheel

as shown

Attach Front Leg Set (A4) to the Cart Base (A2) using 2 1/4-20 screws. Attach Rear Leg Set (A5) to

the Cart Base (A2) in the same manner, using 2 1/4-20 screws.

Attach 2 Axle Bolts to the Rear Leg Set (A5), thread a 3/8-16 nut as shown and tighten securely using

a small adjustable wrench.

Slide a Wheel (A6) over an Axle Bolt and secure using a Wheel Retaining Clip. Repeat for other side.

After cart assembly, if

your cart does not sit

level, use these screws to

adjust the cart.

Axle Bolt

(qty 2)

Visit www.charbroil.com/live

Ignition Module

Bracket

5 ASSEMBLY GUIDE

Part Qty

GRILL CART Assembly

A8–Cart Bracket 1

Step 3 - Carefully turn the Cart Assembly over

and allow it to rest on the tops of the leg

assemblies. Assemble the Cart Bracket (A8) to

the Cart Assembly by by inserting 4 each 1/4-

20x2" screws int0 into corresponding holes as

shown. Allow the Cart Bracket to rest on the

floor, this will help with alignment. Secure with 4

each, 1/4-20 nuts using a small adjustable

wrench, not supplied. FINGER TIGHTEN ONLY

AT THIS TIME. The bracket will be tightened in

step B2.

Be sure to install Cart Bracket (A8) on the side

opposite of the ignition module bracket. Once

complete -leave the cart in the upside down

position.

Lastly, insert the Leg End Caps (A9) into the front

legs and secure with 1 each #10x3/8" screw.

#10x3/8" screws

1/4-20x2"

screws

Place the Lower Body on the carton

pad upside down in preparation for

the next step.

A9–Leg End Cap 2

1/4x20-2"

1/4-20 Nut (qty 4)

screw

1/4-20 Nut

(qty 4)

#10x3/8"

(qty 2)

screw

Visit www.charbroil.com/live

ASSEMBLY

6 ASSEMBLY GUIDE

Part Qty.

B1– Lower Body 1

B2– Wind Shield 1

B3– Grill Lid 1

GRILL BODY Assembly

Step 1 - Attach the Lower Body (B1) to the Cart Assembly

by aligning the studs on the bottom of the grill with the

corresponding holes in the tops of the leg assemblies. Secure

with 7 each 10-24 nuts. A Nut Driver (not supplied) will work

nicely for this step.

10-24

Nuts

(3 each)

10-24x3/8"

Screws

(3 each)

Fiber

Washer

(3 each)

Step 3 - Attach the Wind Shield (B2) to the Lower Body

(B1) by aligning the holes in the panels with the corresponding

holes in the Lower Body. Secure with 3 10-24 nuts, 3 10-

24x3/8" Screws, and fiber washers. The Wind Shield will

rest inside the Lower Body.

Step 4 - Attach the Grill Lid (B3) by aligning the hinge

holes in the lid to the matching holes in the Wind Shield

(B2). Insert 2 Hinge Screws into the holes and secure with 2

1/4-20 nuts and two Fiber washers from the inside of the

grill.

Hinge

Screws

(2 each)

1/4-20

Nuts

(2 each)

Fiber

Washer

(2 each)

1/4-20x3/4"

Cart

Bracket

Studs

located on

Lower

Body.

(qty 5)

Fiber Washer

(qty 10)

10-24x3/8"

(qty 3)

screw

10-24 Nut

(qty 2)

Hinge (qty 2)

1/4-20 Nut

screw

1/4-20x3/4"

Step 2 - With the legs assembled to the Lower

Body, tighten the 4 screws holding the Cart

Bracket in place. Once complete, turn the grill over

to the upright position.

Visit www.charbroil.com/live

7 ASSEMBLY GUIDE GRILL FINAL Assembly

Part Qty.

C1 – Heat Tent 1

C2 – Cooking Grate 1

C3 – Warming Rack 1

C4 – Control Knob

C5 – Grease tray 1

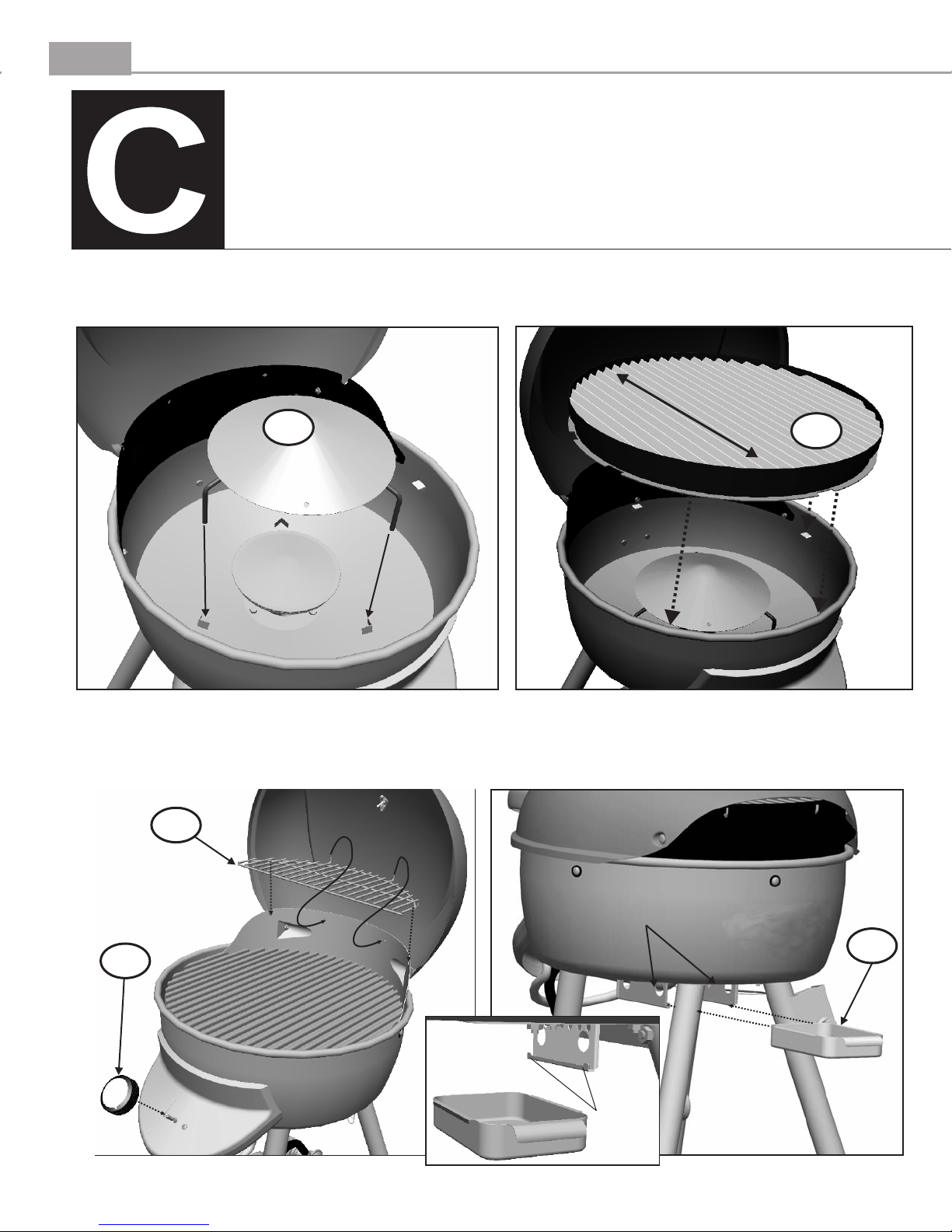

Step 1 - With the Grill Lid open, place the legs of the Heat Tent (C1) into the matching impressions in the Lower Body. Next,

Place the Cooking Grate (C2)into the Lower Body. The cooking grate ridges should run from front to back of the grill as shown

below. Be sure that the cooking grate rests squarely on the three brackets spaced around the Lower Body.

Step 2 - Place the Warming Rack (C3) into position by first hooking the center pins into the windshield, then rotate the

warming rack down into position. Next, Press the Control Knob (C4) onto the valve stem.

Install the Grease Tray (C5) by sliding the tray onto the Grease Tray Rails from the rear of the grill. Note: The grease tray

NOTE: The Cooking Grate may have sharp edges. Be

very careful when handling the Cooking Grate. You

should wear gloves when handling the Cooking Grate.

The cooking grate ridges should run from front to back of

the grill as shown below. Be sure that the cooking grate

rests squarely on the brackets spaced around the lower

body. This will make for easier grate cleaning as well.

Grease

Tray

Rails

Grease

Tray

Rail Stops

Fig. A

Ridges front to

back

Note: The control

knob may be

factory assembled

Visit www.charbroil.com/live

8 ASSEMBLY GUIDE GRILL FINAL Assembly

Part Qty.

C6 –

Battery

Step 3 - Install the Electronic Ignition Module, Unscrew the Battery Cap and module nut from the module. Insert the

module into the module bracket. Secure with the module nut. Install the Battery (C6) in the Electronic Ignition Module

(C7) with the negative end first. Screw the Battery Cap back into place. Install the ignition wires as shown below.

Loosen Tank Retaining Bolt,install cylinder, then tighten.

20lb.Propane

Cylinder

Cylinder valve

facing RH side

of grill.

Step 4 - Install the Lid Handle (C8) with 2 10-24x3/8" screws and 2 fiber washers as shown. Install the propane cylinder.

Be sure to loosen the tank retaining bolt far enough to allow the cylinder to rest securely on the cart base. Tighten the tank

retaining bolt and attach the propane regulator (not shown) when you are ready to use the grill.

NOTE: The Ignition wiring shown below will only fit into the module one way. Be sure the

wires are routed away from the heat source. Do not allow the wires to rest against hot areas of

the grill.

Battery

Cap

Battery

Module

Nut

C8 – Lid Handle 1

C7 – Electronic Ignition Module

Fiber

Washer

(2 each)

10-24x3/8"

Screws

(2 each)

Congratulations! You have successfully completed the assembly of your grill. Prior to using your grill, be sure to follow the

leak check instructions found in the Care and Use Guide.

(qty 2)

Fiber Washer

10-24x3/8"

(qty 2)

screw

Ignitor Wire to

Ignitor Electrode

Ignition Wires from

Control Panel

Rear of Ignition

Module shown

Ignitor

Electrode

Visit www.charbroil.com/live
