Char-Broil 4989930 Bedienungsanleitung

Garnish Kit 4989930 • 80003006 • 09-29-04

MODEL 4989930

PRODUCT GUIDE

2 • 4989930

Call Service Center For Help And Parts

• If you need help or warranty parts call 1-800-241-7548 U.S. or

1-800-387-6057 CANADA.

Business hours: Open 24 hours – Seven days a week.

• To order non-warranty replacement parts or accessories call

1-800-993-2677 or send a FAX to 1-706-565-2121.

Model Number

Date Purchased

IMPORTANT: Fill out the product record information below.

TABLE OF CONTENTS

Service Center ......................................2

Product Record Information ............................2

Limited Warranty.....................................3

Parts List and Diagram ................................4

Assembly ..........................................5

Use and Care .......................................6

Registration Card ....................................7

To insure your satisfaction

and for follow-up service,

online at:

www.grillregistration.com

LIMITED WARRANTY

Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials

after correct assembly and under normal and reasonable home use for a period of one (1) year beginning with the date of purchase.

This limited warranty is for replacement of defective parts only. Manufacturer will not be responsible for failure or damage resulting from

use, accident, alteration, misuse, transportation, commercial use, abuse, hostile environments, improper installation or installation not in

accordance with local codes.

This limited warranty does not cover scratches, dents, corrosion or discoloring by heat, abrasive and chemical cleaners or any tools used

in the assembly or installation of the appliance.

This limited warranty does not include the cost of any inconvenience, personal injury or property damage due to failure of the product.

THIS EXPRESS WARRANTY IS THE SOLE WARRANTY GIVEN BY THE MANUFACTURER AND IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE OR USE.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise

remedies in addition to or inconsistent with those stated above. Manufacturer’s maximum liability, in any event, shall not exceed the purchase

price of the product paid by the original consumer-purchaser.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so the above limitations or

exclusions may not apply to you. This limited warranty gives you specific legal rights as set for herein. You may also have other rights which

vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer

selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the

original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the

retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Manufacturer will, at its option, refinish or replace any product or part found to be defective during its respective warranty period.

Manufacturer will require return of the part(s) claimed to be defective, for its inspection, freight or postage prepaid. Manufacturer may require

reasonable proof of purchase and suggests that receipts be retained.

This limited warranty does not cover surface rust, or the discoloration of stainless steel

surfaces.

Consumer Warranty / P.O. Box 1240

Columbus, GA 31902-1240

4989930 • 3

PARTS LIST AND DIAGRAM – Model No. 4989930

Key Qty Description Part #

A 1 Prep Box Assembly ...............80002432

B 3 Plastic Utensil Bin.................80002435

C 4 Plastic Prep Bin ..................80002434

D 1 Plastic Plug......................80002442

Certified Grill Parts And Accessories®, Char-Broil and Design®, Char-Broil (Gas Grill Briquettes)®, Char-Diamonds®, Cooking Zone and Design®, Diamond Flame®, Executive Chef®, Faststart®, Flare

Fighter®, FlavorMaster®, Gas Grill Silouette and Design®, H2O Smoker®, Lava Flame®, MasterFlame®, MasterFlame Precision Cooking System®, PowerSpark®, Quantum®, VIP®, PrecisionFlame and

Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates.

Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™,

Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan

Collection™, and The Urban Grill™ are Trademarks of the W.C. Bradley Company. Universal Grill Parts and Design™ is a trademark of the Thermos Company and its affiliates.

Protected under one or more of the following U.S. Patents: 4,598,692; 4,624,240; 4,747,391; 4,747,391; 4,817,583; 4,924,846; 4,989,579; 5,003,960; 5,076,256; 5,076,257; 5,090,398; 5,109,834; 5,224,676;

5,277,106; 5,421,319; 5,441,226; 5,452,707; 5,458,309; 5,566,606; 5,566,606; 5,579,755; 5,582,094; 5,613,486; 5,649,475; 5,706,797; 5,711,663; 5,765,543; 5,931,149; 5,996,573; 6,095,132; 6,135,104;

6,173,644B1; 6,279,566; 6,397,731; 6,418,923; 6,439,222; 6,523,461; D282,619; D339,714; D341,292; D343,337; D358,059; D361,466; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910;

D405,643; D405,643; D406,005; D406,009; D413,043; D413,229; D413,229; D414,982; D415,388; D416,164; D416,441; D416,441; D417,587; D422,516; D423,274; D423,876; D428,303; D435,396; D436,004;

D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D451,759; D456,202S; D460,313

and D461,359. Canada: 87743; 87744; 92607; 92608 and 1,316,424. Other Patents Pending.

4 • 4989930

No tools required for assembly • Estimated assembly time - 5 minutes

4989930 • 5

ASSEMBLY – Model No. 4989930

Align the six holes on the front of the

prep box with the six rivets on the

back of your grill cart. Place prep box

over rivets and press box downward

to secure to cart.

Prep box assembly

80002432

Insert the three plastic utensil bins into

the left side of the prep box and the

four plastic prep bins into the right side

of the prep box. Insert the plastic plug

into the hole in front of the utensil bins.

Plastic utensil bin (3)

80002435

Plastic prep bin (4)

80002434

Plastic plug

80002442

6 • 4989930

USE AND CARE

Stainless Steel Use and Care

Stainless steel can provide many years of reliable service and

an attractive appearance in normal outdoor exposure. Consider

the following tips to extend the appearance of your stainless steel

accessory:

•

• Periodic cleaning of the surface with readily available stainless

steel cleaners is recommended. (In coastal areas, small rust

pits may develop on the surface of your cart that cannot be

fully removed by a cleaner.)

To maintain the high quality appearance, wash with mild

detergent and warm soapy water and wipe dry with a soft

cloth. Stubborn stains may require the use of an abrasive

plastic cleaning pad. Use only in direction of brushed finish to

avoid damage. Do not use abrasive pad on areas with

graphics.

Food Safety

Food safety is a very important part of enjoying the outdoor

cooking experience. To keep food safe from harmful bacteria,

follow these four basic steps:

Wash hands, utensils, and surfaces with hot soapy water

before and after handling raw meat and poultry.

Separate raw meats and poultry from ready-to-eat

foods to avoid cross contamination. Use a clean platter and

utensils when removing cooked foods.

Cook meat and poultry thoroughly to kill bacteria. Use a

thermometer to ensure proper internal food temperatures.

Refrigerate prepared foods and leftovers promptly.

Clean:

Separate:

Cook:

Chill:

4989930 • 7

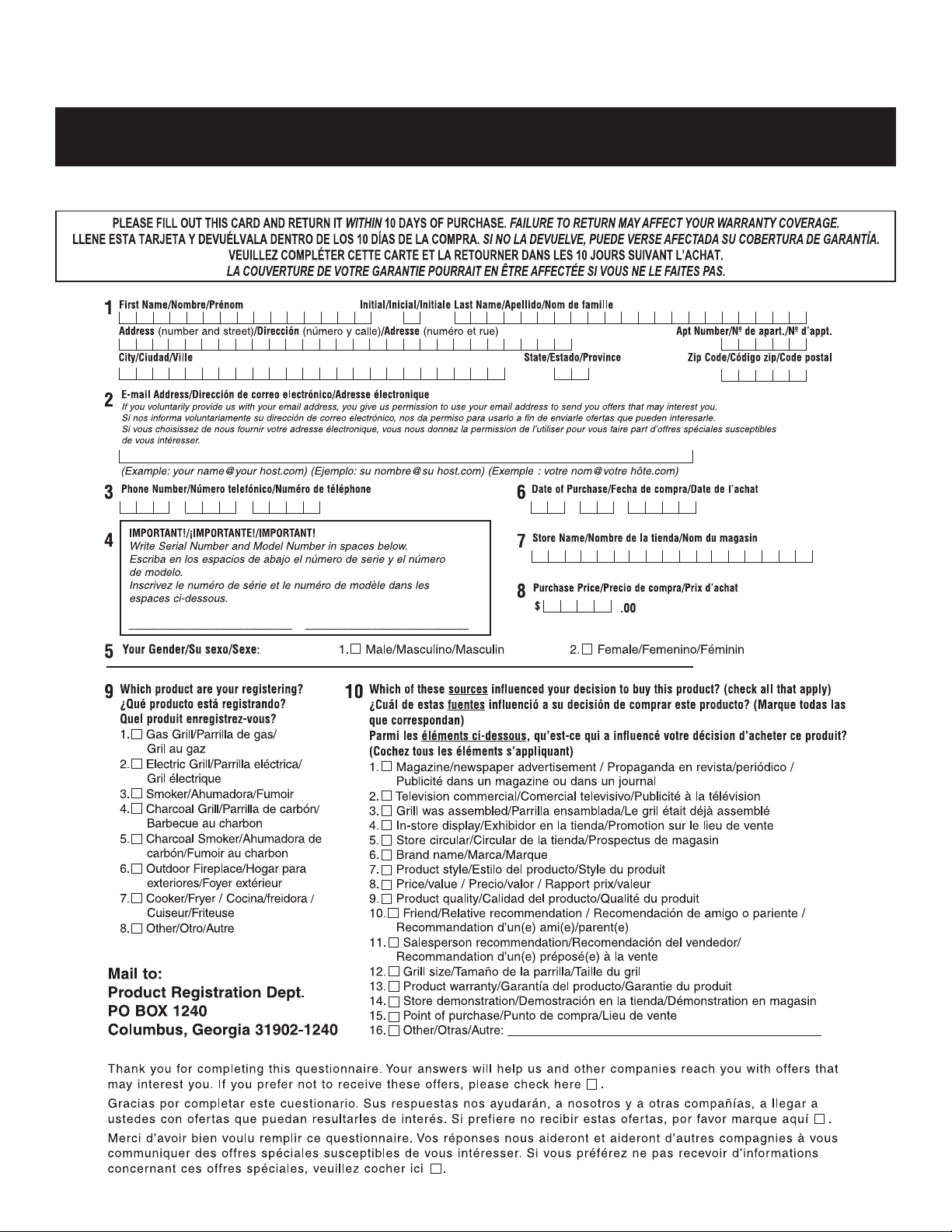

Please register your accessories online at:

(If you register online, you do not need to send in this registration card.)

WWW.GRILLREGISTRATION.COM

A Division of W.C. Bradley Co. • Columbus, GA 31902 • Printed in China
