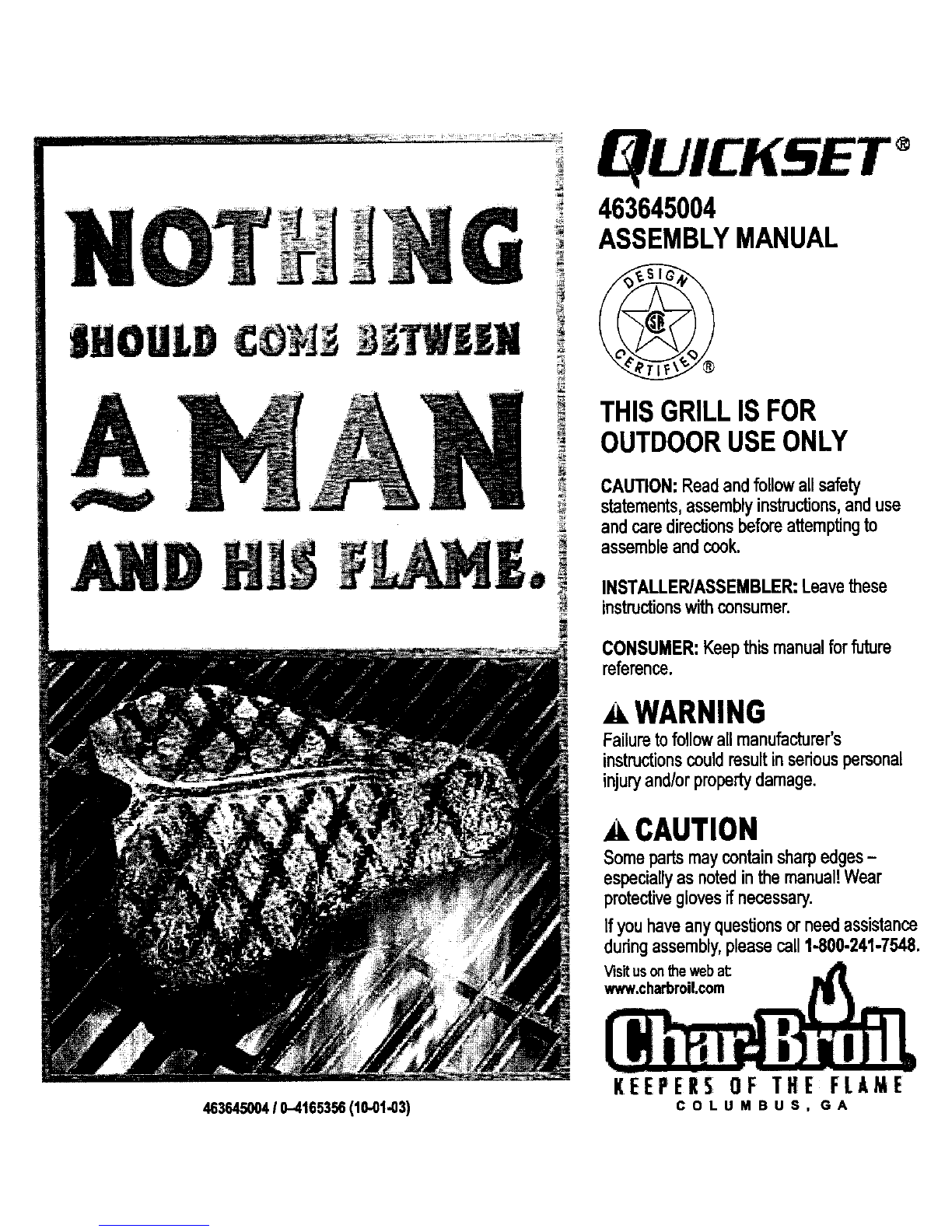

_: • .................... _;_':_iLL_,_,_i_ _j_i_! ¸ _ i• _!i_ i_ •_ _!_ _ _ ( UIEKSET ®

463645004

ASSEMBLYMANUAL

THISGRILLISFOR

OUTDOORUSEONLY

CAUTION:Readandfollowallsafety

statements,assemblyinstructions,anduse

andcaredirectionsbeforeattemptingto

assembleandcook.

INSTALLER/ASSEMBLER:Leavethese

instructionswithconsumer.

CONSUMER:Keepthismanualforfuture

reference.

A WARNING

Failuretofollowallmanufacturer's

instructionscouldresultinseriouspersonal

injuryand/orpropertydamage.

46364500410-4165356(10-01-03)

A CAUTION

Somepartsmaycontainsharpedges-

especiallyasnotedinthemanual!Wear

protectiveglovesifnecessary.

Ifyouhaveanyquestionsorneedassistance

duringassembly,pleasecall1-800-241.7548.

Visitusonthe.webat: ..41_

KEEPERS OF THE FLAME

COLUMBUS, GA

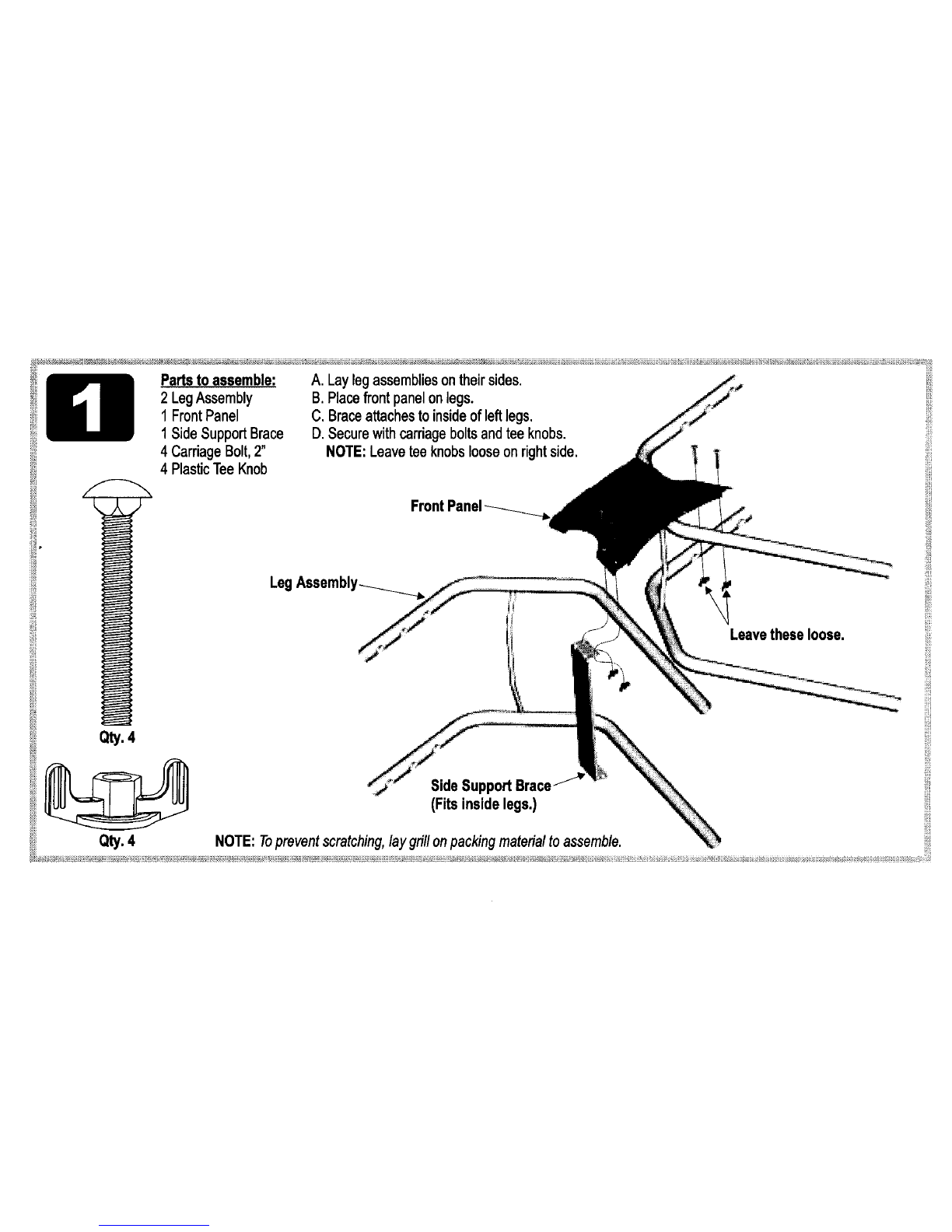

1SideSupportBrace

4CarriageBolt,2"

4PlasticTeeKnob

D.Securewithcarriageboltsandteeknobs.

NOTE:Leaveteeknobslooseonrightside.

Qty.4

iii!

Front

Leg

Leave these loose.

Side i_

(Fits inside legs.)

Qty.4 NOTE:Topreventscratching,laygrillonpackingmaterialtoassemble, iii

Qty.4

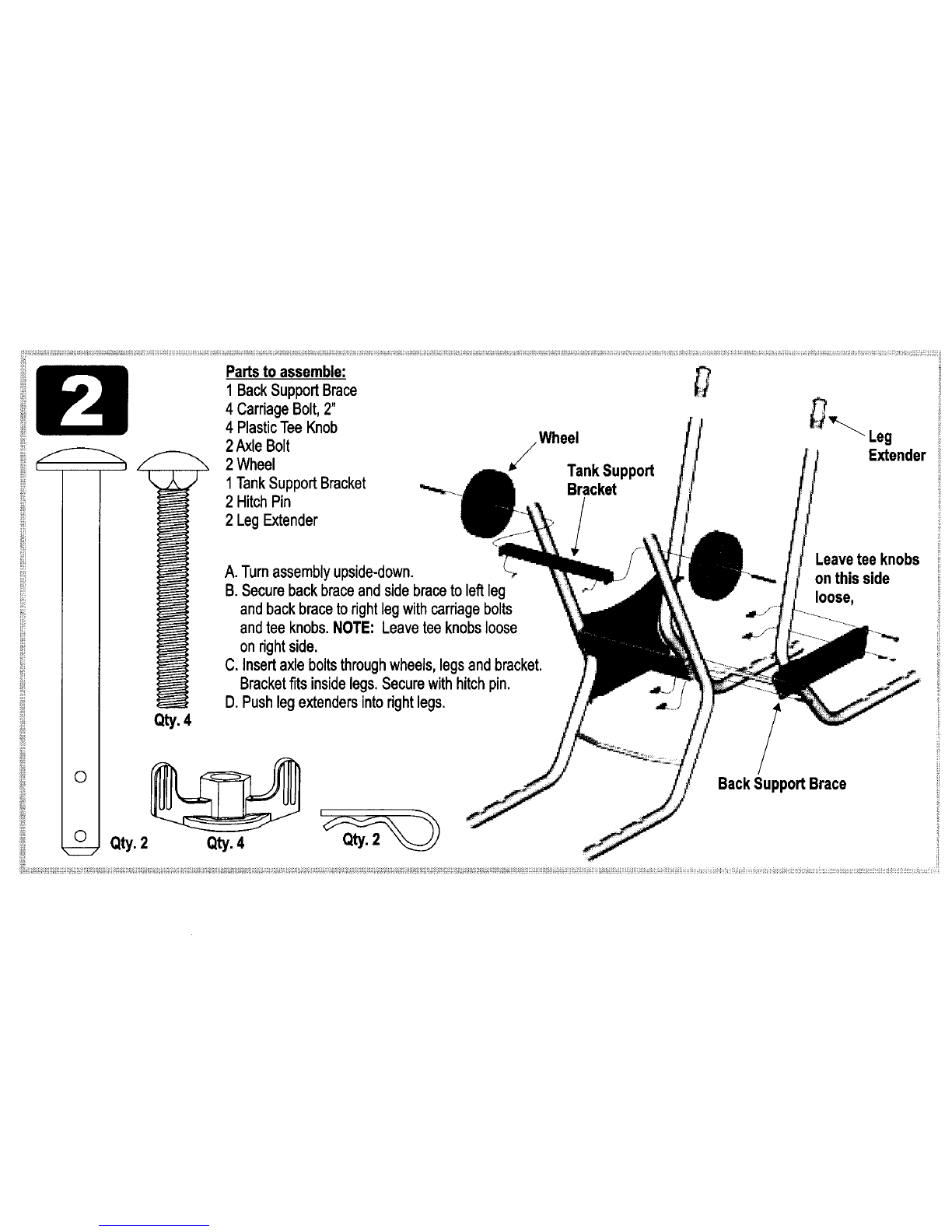

Partsto assemble:

1BackSupportBrace

4 CarriageBolt,2"

4 PlasticTeeKnob

2AxleBolt

2Wheel

1TankSupportBracket

2 HitchPin

2 LegExtender

ii!

i_!i Qty 2

Wheel

TankSupport

.... Bracket

A.Turnassemblyupside-down.

B. Securebackbraceandsidebraceto leftleg

andbackbraceto rightlegwith carriagebolts

andteeknobs.NOTE: Leaveteeknobsloose

on rightside.

C.Insertaxleboltsthroughwheels,legsandbracket.

Bracketfits insidelegs.Securewith hitchpin.

D.Pushlegextendersinto rightlegs.

Extender i

Leaveteeknobs

onthisside

loose,

BackSupportBrace

Qty.4 _Q_'2__

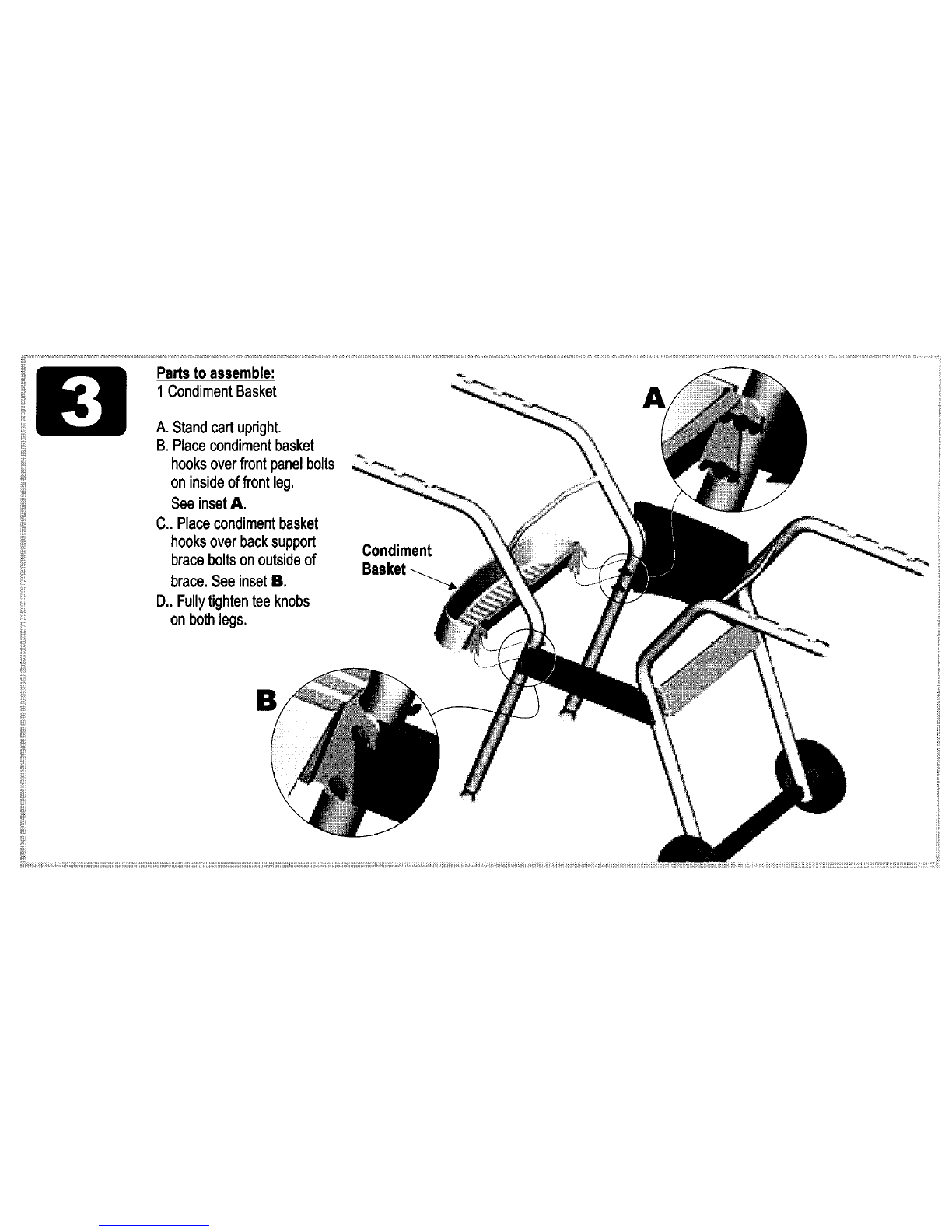

Partsto assemble: --

1CondimentBasket

!iil

A. Standcartupright.

B. Placecondimentbasket

hooksoverfrontpanelbolts

on insideoffrontleg.

SeeinsetA.

C.. Placecondimentbasket

hooksoverbacksupport

braceboltsonoutsideof

brace.SeeinsetlB.

D..Fullytightenteeknobs

onbothlegs.

Condiment

Basket

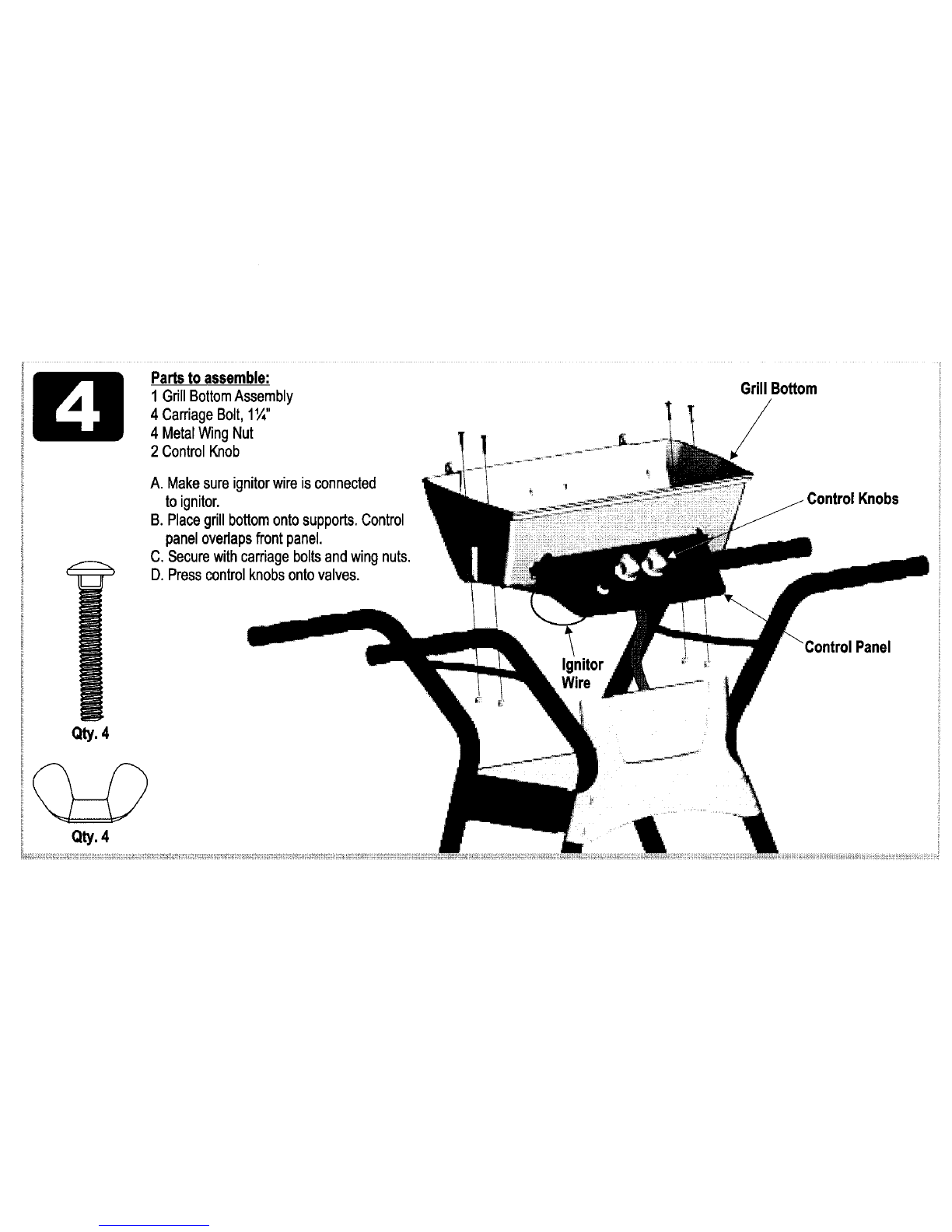

Partstoassemble:

1GrillBottomAssembly

4 CarriageBolt,1¼" |

4 MetalWingNut

2 ControlKnob

A. Makesureignitorwireisconnected

toignitor.

B.Placegrillbottomontosupports.Control

paneloverlapsfrontpanel.

C. Securewithcarriageboltsandwingnuts.

D.Presscontrolknobsontovalves.

GrillBottom

ControlKnobs

Panel

Qty.4

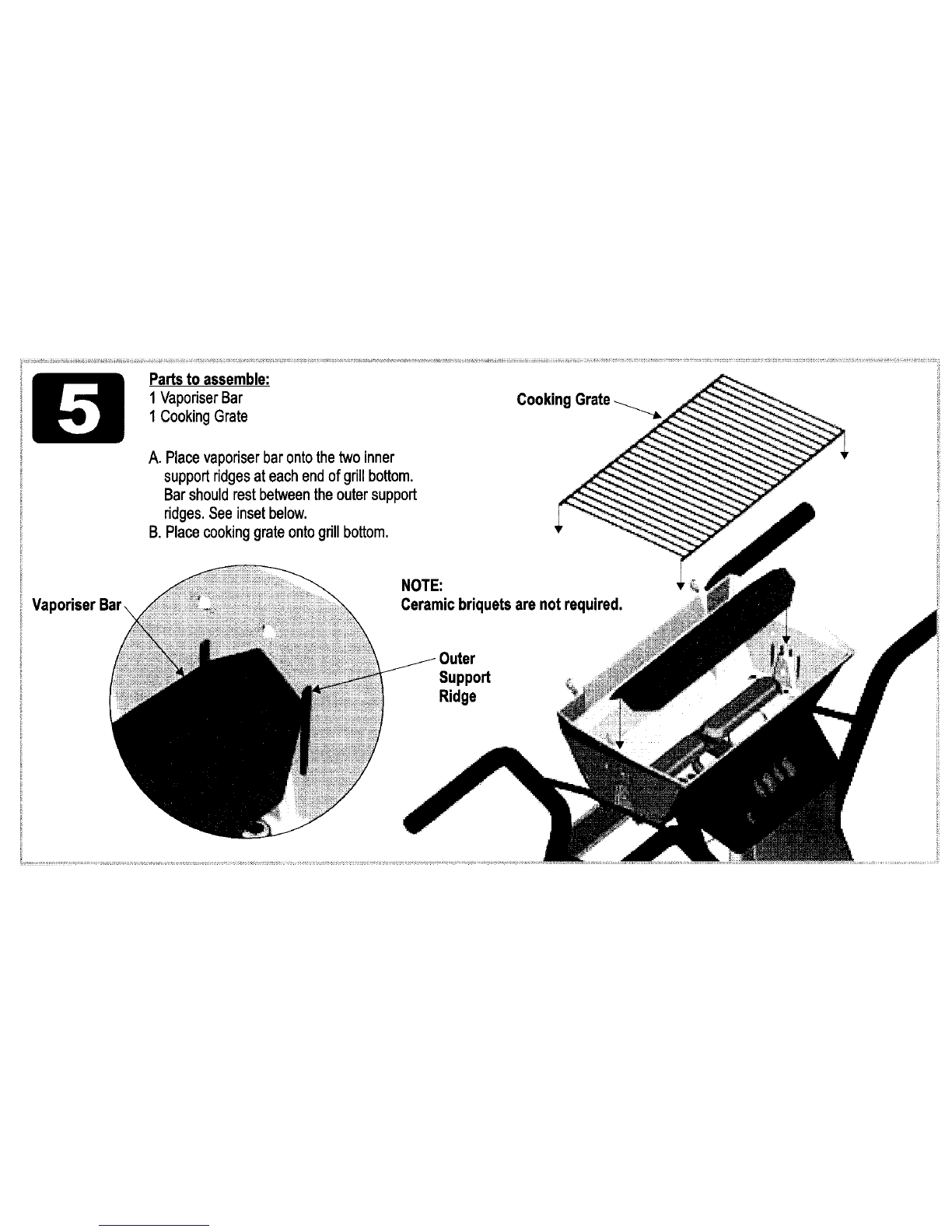

Partsto assemble:

1VaporiserBar CookingGrate

1CookingGrate

A. Placevaporiserbarontothetwo inner

supportridgesat eachendof grillbottom.

Barshouldrestbetweentheoutersupport

ridges.Seeinsetbelow.

B. Placecookinggrate ontogrill bottom.

NOTE:

Ceramicbriquetsarenot required,

Support

Ridge

Qty.8

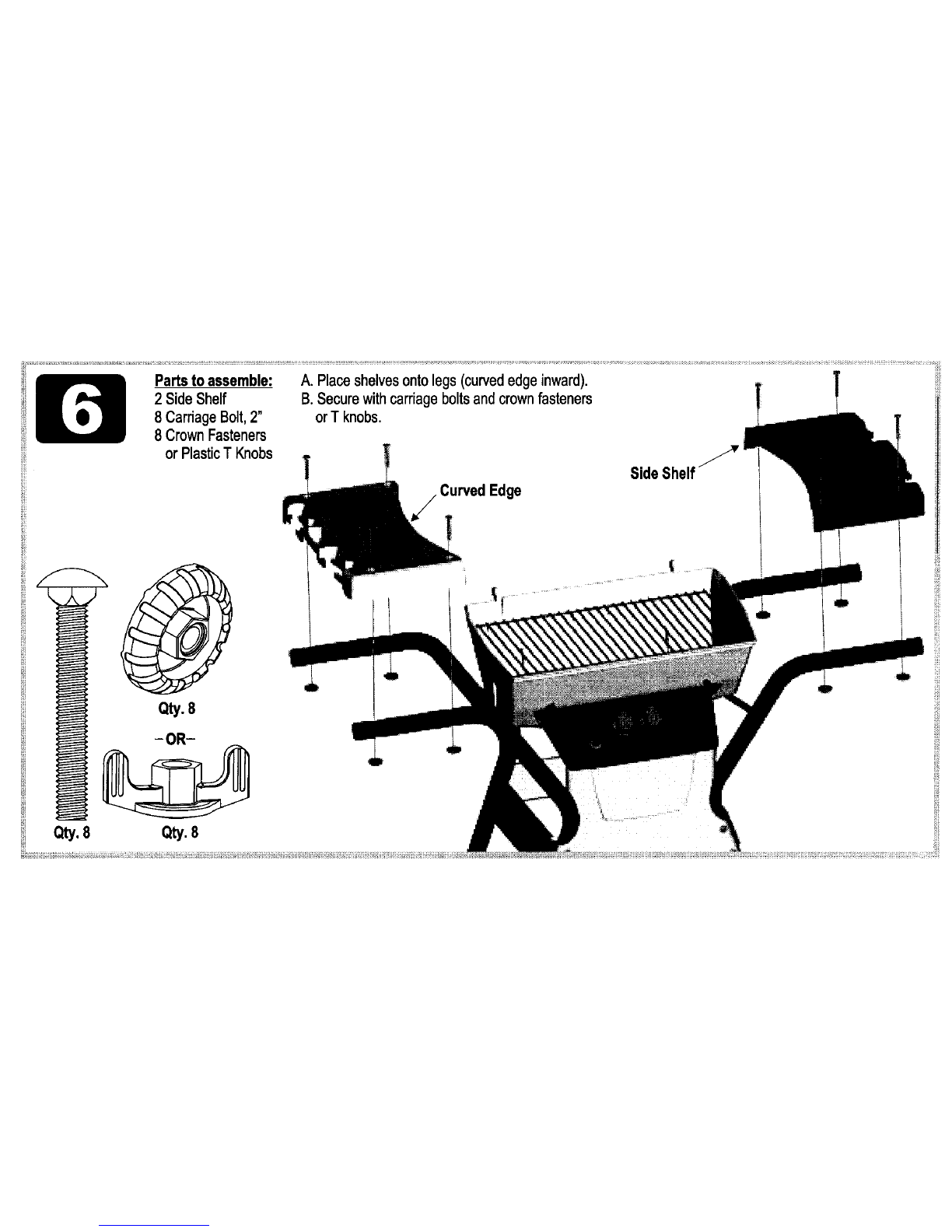

Partstoassemble:

2SideShelf

8CarriageBolt,2"

8CrownFasteners

or PlasticT Knobs

Qty.8

A. Placeshelvesontolegs(curvededgeinward).

B.Securewithcarriageboltsandcrownfasteners

orT knobs.

CurvedEdge SideShelf

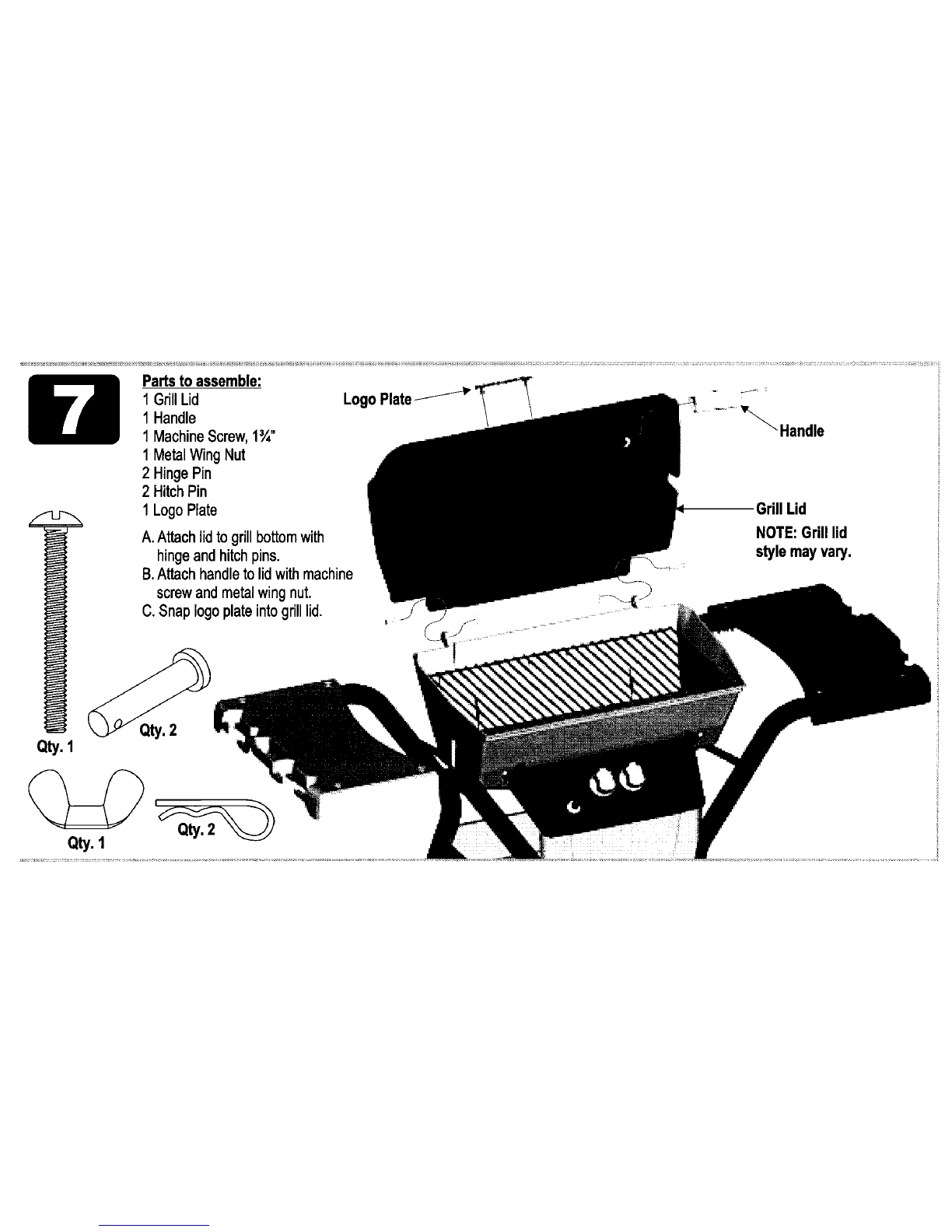

Partsto assemble:

1GrillLid

1Handle

1MachineScrew,1¾"

1MetalWingNut

2 HingePin

2 HitchPin

1LogoPlate

A.Attachlidtogdllbottomwith

hingeandhitchpins.

B.Attachhandletolidwithmachine

screwandmetalwingnut.

C.Snaplogoplateintogrilllid.

Logo Plate_

GrillLid

NOTE:Grilllid

stylemayvary.

Qty,2

Qty.1

Partsto assemble:

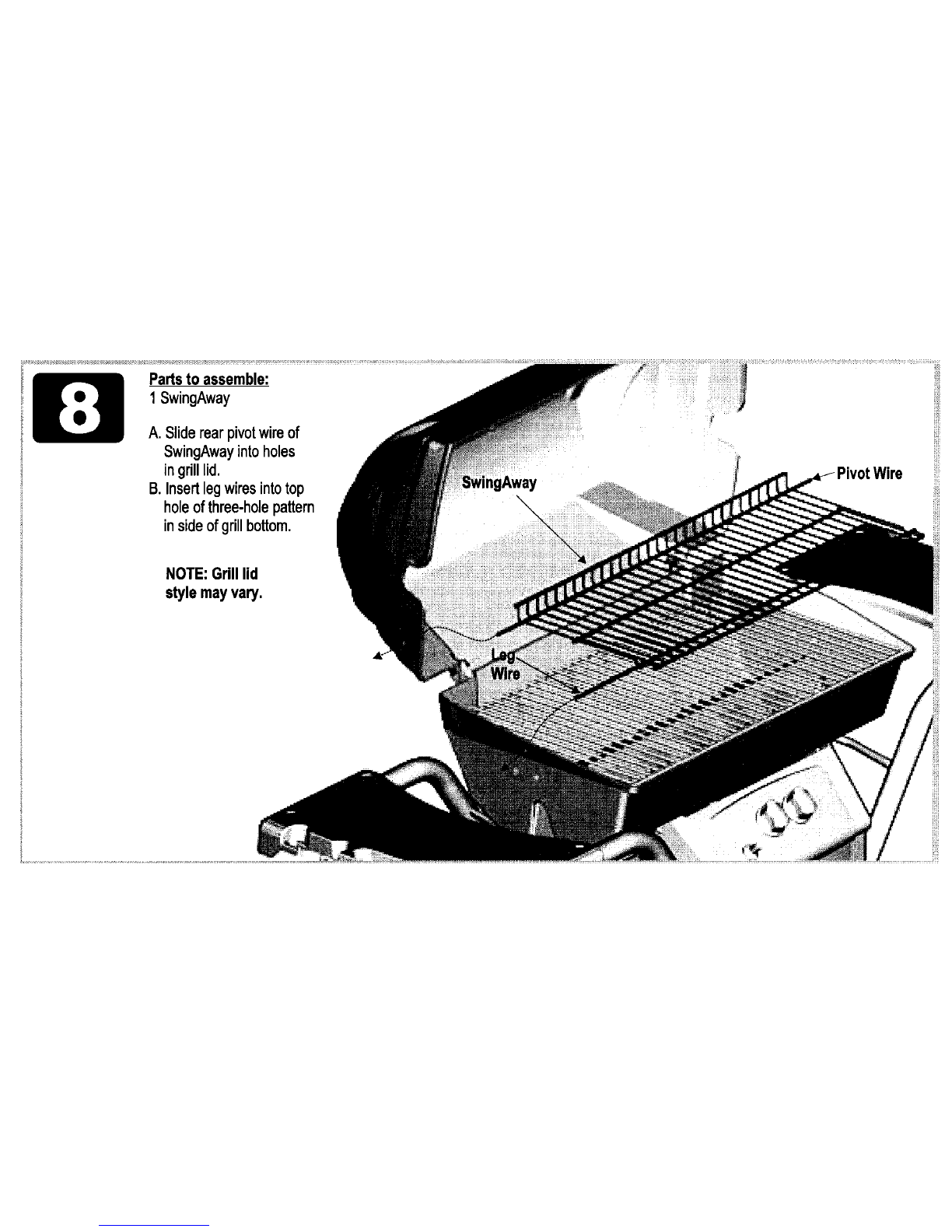

1SwingAway

A.Sliderear pivotwireof

SwingAwayintoholes

ingrilllid.

B. Insertlegwiresintotop

holeof three-holepattern

insideof grillbottom.

Wire 2

NOTE:Grilllid

style mayvary.

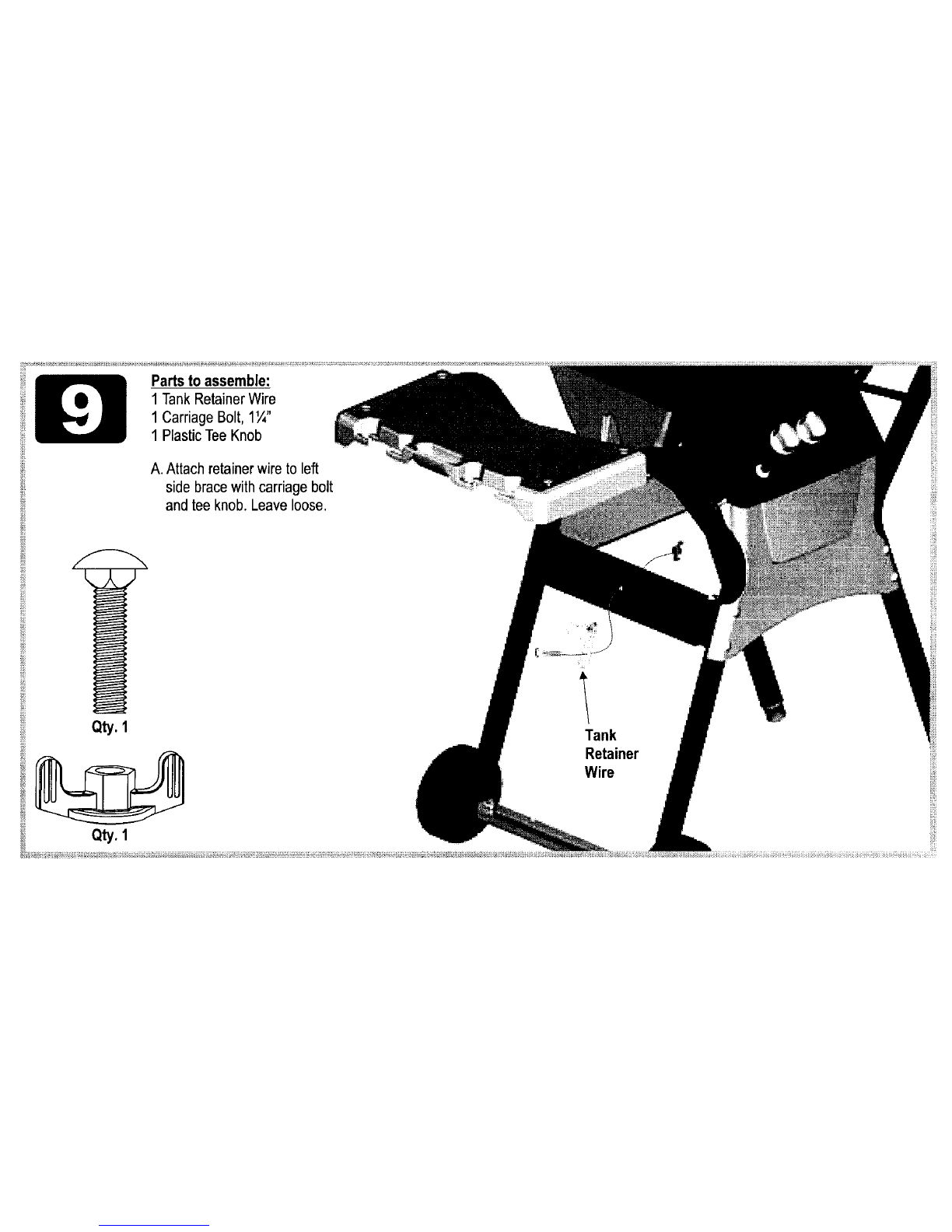

Partsto assemble:

1TankRetainerWire

1CarriageBolt,1¼"

1PlasticTeeKnob

A. Attach retainer wire to left

side brace with carriage bolt

and tee knob. Leave loose.

Qty.1 Tank

Retainer

Wire

ii!i
