Char-Broil T-47G Bedienungsanleitung

Assembly Instructions

Instructions d’assemblage

Montageanweisungen

Istruzioni per il montaggio

Montage-instructies

Montering

Kokoamisohjeet

Instrucciones de armado

Instruções para Montagen

Monteringsvejledning

IMontering

Instrukcje

Smalamálsskipana

Instrucțiuni de asamblare

Montážní návod

BE NL

CH DE

GRILL NAME

PERFORMANCE SERIES

T-47G

MODEL NUMBER

598 CN 363

468100513

468200513

468101513

468202513

G520-001-220801• 12/06/2012

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from

those on your particular grill model. However, the method of assembly remains the same.

PARTS LIST

Key Qty Description

1 1 BOTTOM SHELF

2 2 CASTER, LOCKING

3 2 CASTER, FIXED

4 1 CART LEFT SIDE PANEL

5 1 GROMMET, F/ REGULATOR HOLE

6 1 CART RIGHT SIDE PANEL

7 1 CART LOWER BACK PANEL

8 1 FRONT BRACE

9 1 HEAT SHIELD, F/ TANK

10 1 LEFT RAIL, F/ GREASE TRAY

11 1 RIGHT RAIL, F/ GREASE TRAY

12 1 FIREBOX

13 1 MATCH HOLDER

14 4 MAIN BURNER

15 2 ELECTRODE, F/ MAIN BURNER, LONG

WIRE

16 2 ELECTRODE, F/ MAIN BURNER, SHORT

WIRE

17 3 CARRYOVER TUBE W/ COTTER PIN

18 1 IGNITER SWITCH MODULE

19 1 VALVE ASSEMBY

20 1 MAIN CONTROL PANEL

21 1 ELECTRONIC IGNITION MODULE

22 1 CAP, F/ ELECTRONIC IGNITION MODULE

23 1 ELECTRODE WIRE, F/ SIDEBURNER

24 5 CONTROL KNOB

25 4 TEMPERATURE GAUGE, UFC MOUNTED

26 1 CART UPPER BACK PANEL

27 1 LEFT SIDE SHELF F/ S/B

28 1 FASCIA, F/LEFT SIDE SHELF

29 1 DRIP PAN, F/ SB

30 4 RUBBER BUMPER, F/ LID

31 1 LID, F/ SB

32 1 SIDEBURNER

33 1 ELECTRODE, F/ SB

34 1 RIGHT SIDE SHELF

35 1 FASCIA, F/ RIGHT SIDE SHELF

36 1 TOP LID

37 1 HANDLE F/ TOP LID

38 2 RECTANGULAR BUMPER, F/ TOP LID

39 1 LOGO PLATE

40 1 HARDWARE F/ TOP LID

41 1 LEFT DOOR, NO HANDLE

42 2 DOOR HANDLE

Key Qty Description

43 1 RIGHT DOOR, NO HANDLE

44 4 FLAME TAMER

45 4 COOKING GRATE

46 1 GRATE, F/ SB

47 1 WARMING RACK

48 1 GREASE TRAY

49 4 COOKING GRATE, INFRARED EMITTER

50 1 REGULATOR (COUNTRY SPECIFIC,

IF SUPPLIED)

1IR CLEANING TOOL

… 2 DOOR MAGNET

… 1 CASTER PIN

… 1 HARDWARE PACK

… 1 ASSEMBLY MANUAL, EUROPEAN

… 1 OPERATION MANUAL, EUROPEAN

NOT Pictured

…

PARTS DIAGRAM

#10 #11

#15

#13

#19

#12

#16

#17

#14

#18

#20

#21

#22

#23

#24

#25

#26

#27

#28

#29

#30

#31

#35

#33

#37

#39

#32

#36

#34

#38

#40

#41

#45

#43

#47

#49

#42

#46

#44

#48

#50

Front

ASSEMBLY

2ND

1/4-20x1/2” screw

Qty. 6

#2 #2

Caster pin

1ST

Caster pin

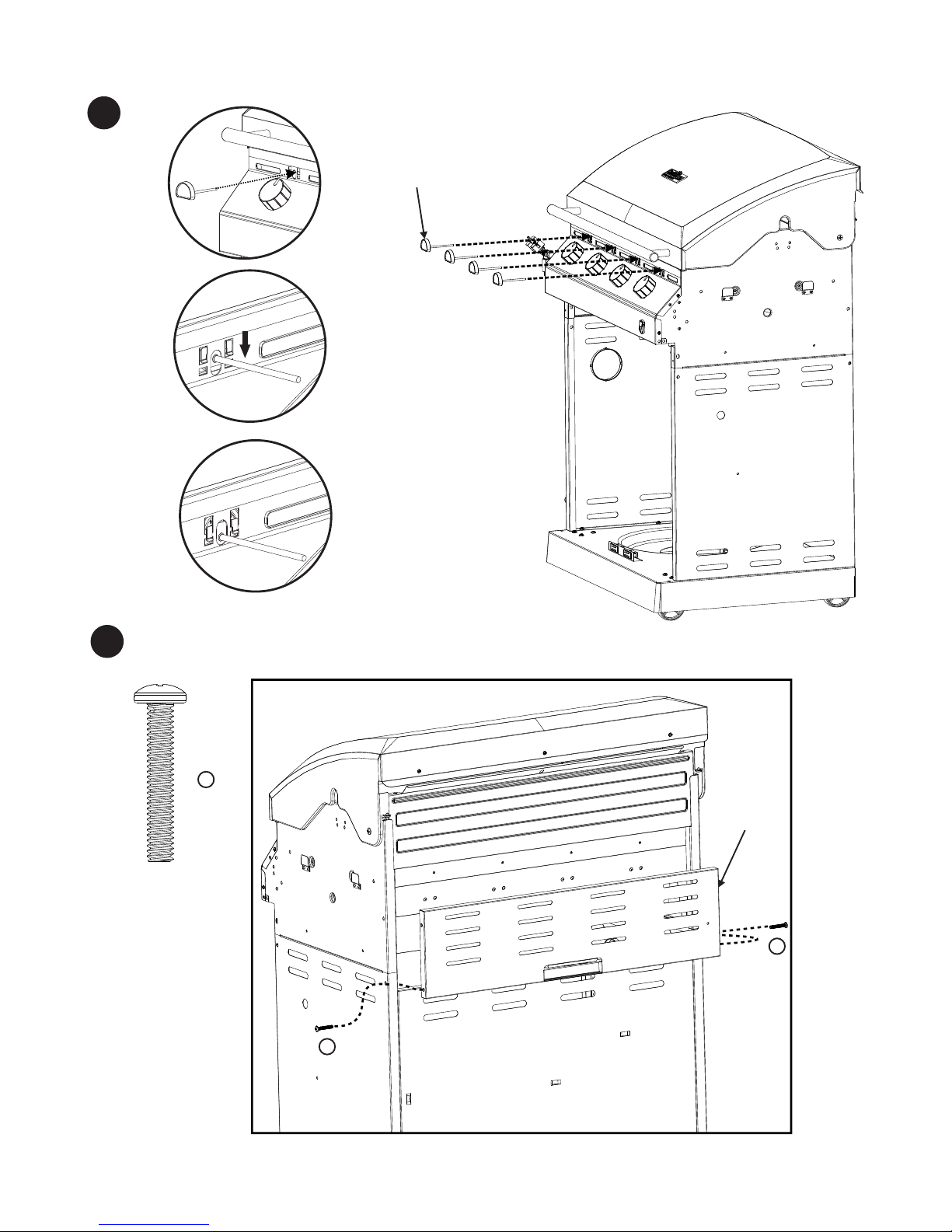

3RD

1/4-20x1/2” screw

Qty. 4

#12

#36

#19

1/4-20x1-1/2” screw

Qty. 2

#25

#26

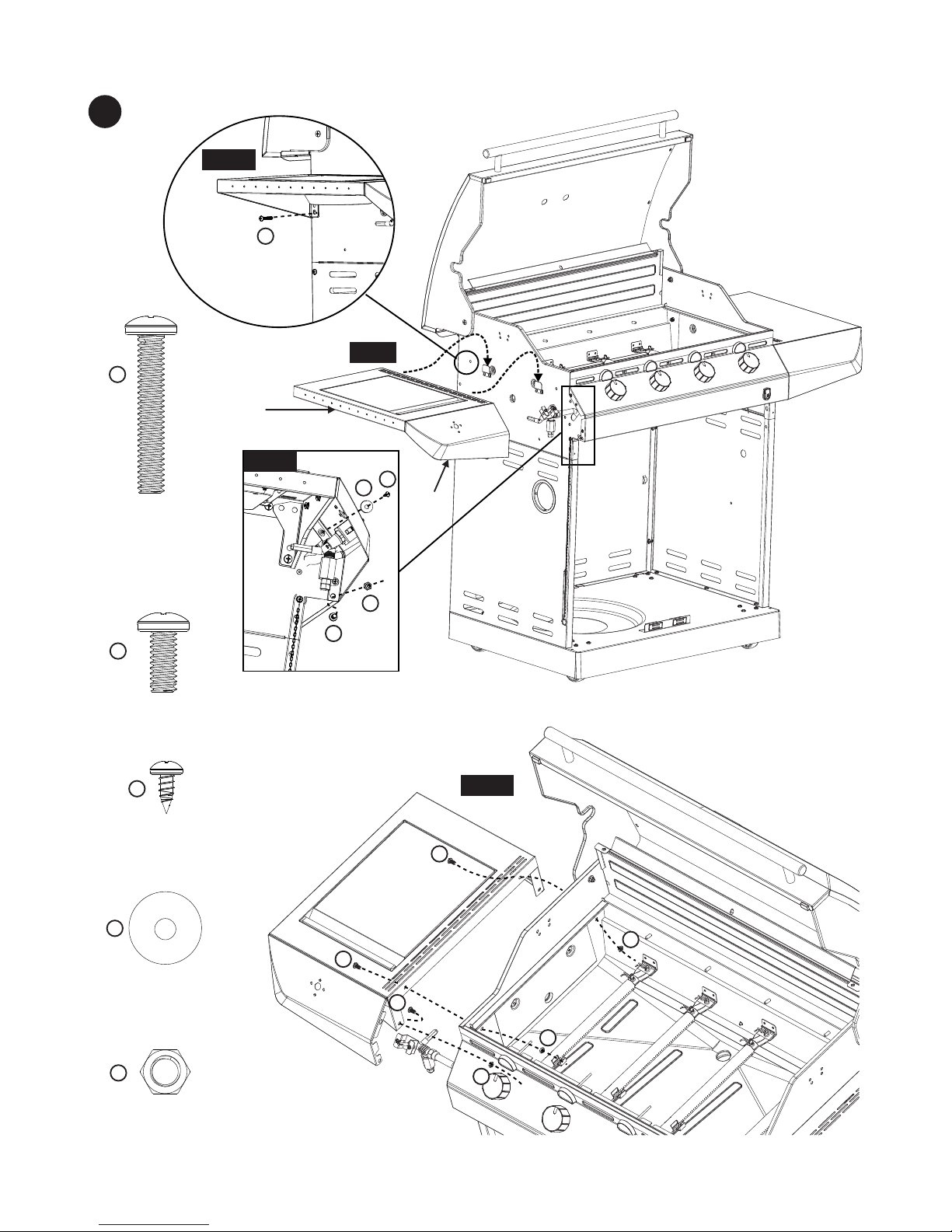

7Large ﬂat washerQty. 11/4-20x1-1/2” screwQty. 11/4" NutQty.41/4-20x1/2” screwQty. 4#8x3/8" self-tapping screwQty. 1BBCCDDEEAA1ST2ND3RD4TH7#34#35BBBEEE

Large ﬂat washer

Qty. 1

1/4-20x1-1/2” screw

Qty. 1

1/4" Nut

Qty.4

1/4-20x1/2” screw

Qty. 4

#8x3/8" self-tapping

screw

Qty. 1

1ST

#27

#28

2ND

3RD

4TH

#19

#28

#25

remove screws and washers

1ST

2ND

#321ST

Wing nut

Qty. 1

3RD

2ND

4TH
