Main Applications

Rack Mount Systems

Airlines

Education/Schools

Banking

Medical Equipment

Automotive Equipment

POS/POT

Office/Data Entry

White Box PCs

Field Services

Test Equipment

Kiosk Applications

POS/POT

Manufacturing

Transport

Key Features

•USB 2.0

•Secure PIN entry (class 2 reader)

•PC/SC smart card reader

•CT-Api support

•Protocols T=0, T=1, S=8, S=9 and S=10

•EMV 2000 Terminal level 1 approved

•CCID compliant

•Compliant with ISO 7816

•Individual and easy key assignment

due to our Keym@n Software with new,

comfort functions

•CAC certified and FIPS 201 certified

Main Part Numbers

G83-6644LUAxx-0

Light grey housing, 105 keys, and DE, FR,

GB, ES, IT, RU, CH, BE country versions

G83-6644LUAxx-2

Black housing, 105 keys, and DE, FR,

GB, ES, IT, RU, CH, BE country versions

G83-6644LUAEU-0

Light grey housing, 104 keys, and US

with € country versions

G83-6644LUAEU-2

Black housing, 104 keys, and US

with € country versions

The xx in the order description defines

the country version.

BE Belgium

CH Switzerland

DE Germany

DK Denmark

ES Spain

EU US English/ international €

FR France

GB English (UK)

IT Italy

NO Norway

PO Portugal

SF Sweden/Finland

US US-English

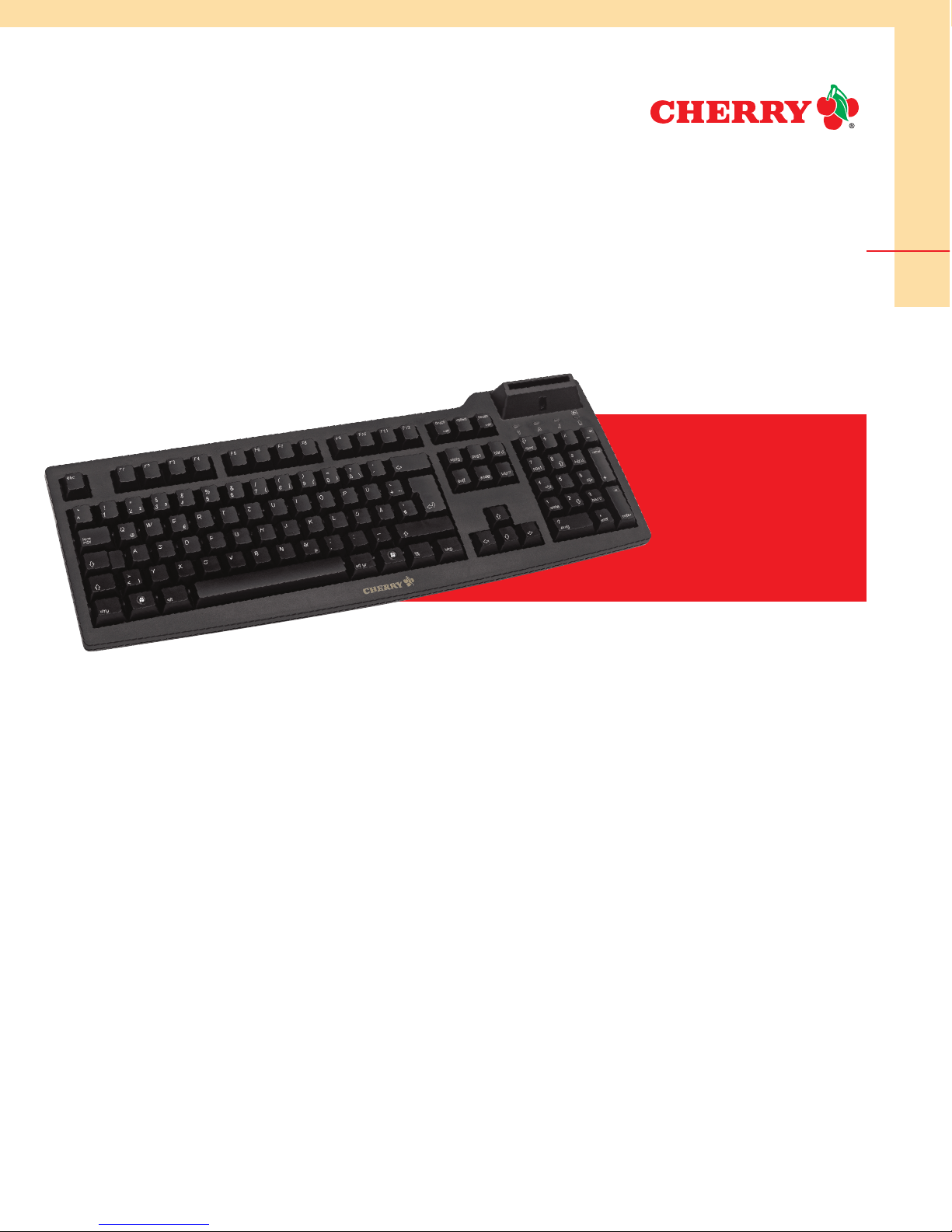

Full QWERTY Keyboard

with Integrated Smart

Card Reader

Integrated Security Devices

G83-6644

Full QWERTY Keyboard

with Smart Card Reader

Main Part Numbers Technical Data

Interface

USB full speed

Current Consumption

max. 100 mA

Cable Length

approx. 1.8 m

Number of Keys

104 = US Layout with

Windows Vista™ keys

105 = EU Layout with

Windows Vista™ keys

Weight

approx. 680 g (without packaging)

approx. 840 g (with packaging)

Operating System

Windows 98, ME, 200, XP, XP 64Bit, CE,

Linux, Mac OS X, Vista

Smart Card Speed:

412,903 bps

Smart Card Clock:

4.8 MHz

Storage Temperature

-20°C to 60°C

Operating Temperature

0°C to 50°C

Agency Approvals

FCC, GS, CE, c-tick, GHOST-R, VCCI

EMV 2000 level 1

Microsoft Windows™ 2000, XP, Vista

Dimensions

approx. 458 x 170 x 52 mm (keyboard)

approx. 495 x 200 x 55 mm (packaging)

Packaging Units

53 keyboards per master carton

106 keyboards per pallet

Keyswitch Lifetime

20 million operations

System Requirements

USB Connection

Insertion Cycles

approx. 100,000

Delivery Volume

1 SmartBoard keyboard, 1 Manual,

Brown Gift Box

Warranty

2 Years

For information on repairs or

warranty status contact:

Cherry Technical Support

Phone: 800.510.1689

E-Mail: [email protected]

Integrated Security Devices

G83-6644

Full QWERTY Keyboard

with Smart Card Reader

G83-6644

Contact

Call, fax or visit our

website for more information.

Last Update: 10/15/08

Cherry Electrical Products

11200 88th Avenue

Pleasant Prairie, WI 53158

Phone: 262.942.6500

Web: www.cherrycorp.com

E-Mail: [email protected]

Fax: 262.942.6566

The manufacturer accepts no

liability for errors or non-availability,

and reserves the right to change

specifications without prior notice.

Technical data relates to product

specifications only. Features may

differ from those described.

Only drawings combined with

product specifications shall be

deemed binding.
