Chicago Electric 45690 Bedienungsanleitung

Revised Manual 02b, 09l

SPOT WELDER

230 VOLT

Model

45690

ASSEMBLY AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of Harbor

Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-

ments, actual product may differ slightly from the product described herein. Tools required for assembly

and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

SPECIFICATIONS TABLE

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance, and cleaning procedures, parts list and assembly

diagram. Keep your invoice with this manual. Write the invoice number on the inside

of the front cover. Keep this manual and invoice in a safe and dry place for future

reference.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp or wet work areas invite

injuries.

2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle this

product.

3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be stored

in a dry location to inhibit rust. Always lock up tools and equipment and keep out of

reach of children.

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR

DRUGS. Read warning labels on prescriptions to determine if your judgment or

reﬂexes are impaired while taking drugs. If there is any doubt, do not attempt to use

this product.

5. USE EYE, HEARING, BREATHING, AND HAND PROTECTION. Wear an ANSI

approved welding helmet/goggles with shaded lens, hearing protectors, breathing

respirator, and welding gloves when using this product. ANSI approved welding

helmet/goggles with shaded lens, hearing protectors, breathing respirators,and

welding gloves are available from Harbor Freight Tools.

6. DRESS SAFELY. Sparks and hot metal can injure. Always wear body protection.

Non-skid footwear or safety shoes should be used when working with this product.

Do not wear loose clothing or jewelry as they can become caught in moving parts.

Wear a protective hair covering to prevent long hair from becoming caught in moving

parts. If wearing a long-sleeve shirt, roll sleeves up above elbows.

7. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.

SKU 45690 PAGE 2

Rev 02b, 03h, 09l

ITEM DESCRIPTION

Electrical Input Requirements 230 Volt

Rated Output 1.5 KVA @ 50% Duty Cycle

Output Amps 5,500 +/- 10%

Material Capacity 1/8” Thick, Mild Steet

Tong Length 6”

Overall Dimensions 13” x 6” x 4.5”

Net Weight 23.5 Lbs.

SKU 45690 PAGE 3 Rev 02b

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. GROUND THIS PRODUCT. The required electrical Power Cord Plug for this

product is a grounded, 230 Volt, 3-Prong Plug (not included). It is recommended

that only a qualiﬁed technician connect a Power Cord Plug to the Power Cord. Never

remove the grounding prong or modify the Plug in any way. Do not use adapter

plugs with this product. When in use, make sure this product is always plugged into

a grounded, 230 Volt, 3-hole electrical receptacle with an appropriate breaker switch

inline.

2. MAKE SURE THE CONTROL SWITCH (part #25) IS IN THE “OFF” POSITION

BEFORE PLUGGING IN THE POWER CORD. (See Figure D, and Assy.

Diagram.)

3. DO NOT ABUSE THE POWER CORD. Do not use the Cord to pull the 3-Prong Plug

from a power outlet. Keep Cord away from heat, oil, sharp edges, and moving parts.

Replace damaged Cord immediately. Route the Power Cord safely. Protect it from

being damaged by other equipment in the shop. Do not route the Cord where it can

be walked on or tripped over.

4. MAINTAIN A SAFE WORK ENVIRONMENT. Do not use this product in or near

damp or wet areas. Do not expose this product to rain. Keep work area well lit.

Make sure there is adequate surrounding work space. Use this product in a well

ventilated area. (Read Material Safety Data Sheets/MSDS for metals, coatings, and

cleaners.) Do not operate this product in the presence of ﬂammable liquids, gases,

or dust. To avoid accidental electric shock, do not let your body come in contact with

grounded surfaces such as pipes, radiators, ranges and refrigerators. Always keep

a ﬁre extinguisher nearby.

8. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etcetera.

9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do not

use this product when you are tired or distracted from the job at hand.

10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that it

will operate properly and perform its intended function. Check for damaged parts

and any other conditions that may affect the operation of this product. Replace or

repair damaged or worn parts immediately.

11. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical

replacement parts. Only use accessories intended for use with this product. Approved

accessories are available from Harbor Freight Tools.

12. MAINTAIN THIS PRODUCT WITH CARE. Keep this tool clean and dry.

13. MAINTENANCE: For your safety, service and maintenance should be performed

regularly by a qualiﬁed technician.

14. USETHE RIGHT PRODUCT FORTHE RIGHT JOB. There are certain applications for

which this product was designed. Do not use small equipment, tools or attachments

to do the work of larger industrial equipment, tools or attachments. Do not use this

product for a purpose for which it was not intended.

SKU 45690 PAGE 4

5. DO NOT FORCE THE EQUIPMENT. This Spot Welder will do the work better and

safer at the speed and capacity for which it was designed.

6. AVOID UNINTENTIONAL STARTING. Make sure you are prepared to begin work

before turning the Control Switch (part #25) “ON”.

7. Caution: Never touch the Upper and Lower Tongs (parts #46, #47) when welding a

workpiece. Allow the Tong Tips (part #48) and the workpiece to cool before handling.

(See Figures A, B, E, and Assy. Diagram.)

8. MAKE SURETHEWORKPIECE IS SECURED AT ALLTIMES DURING OPERATION.

Use a vise, clamps, etcetera (not provided).

9. OVERUSE CAN CAUSE OVERHEATING. After continuous use, allow the Spot

Welder adequate time to cool before the next use.

10. BEFORE TRYING NEW OR COMPLICATED TECHNIQUES, STUDY THE

PROCEDURE, AND PRACTICE WITH SCRAP METAL.

11. ALWAYS DISCONNECT THE SPOT WELDER FROM ITS ELECTRICAL

SUPPLY SOURCE BEFORE ASSEMLING, PERFORMING ANY SERVICES OR

MAINTENANCE always disconnect the electrical cord before leaving the work area,

moving the tool from one location to another, handing the tool to another person,

changing Tong Tips (part #48), cleaning the unit, etcetera.

12. WARNING: This product, when used for welding and similar applications, produces

chemicals known to the State of California to cause cancer and birth defects (or other

reproductive harm). (California Health & Safety Code 25249.5 et seq.)

13. WARNING: Operation of equipment in close proximity to a heart pacemaker could

cause interference or failure of the pacemaker.

REV 04e

UNPACKING

When unpacking, check to make sure all parts shown on the Parts List (page 12) are in-

cluded. If any parts are missing or broken, please call Harbor Freight Tools at the number

shown on the cover of this manual as soon as possible.

ASSEMBLY INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagram on page 13 of this manual.

To Attach The Upper And Lower Tongs:

1. Caution: Prior to attaching the Upper and Lower Tongs (parts #46, #47), make

sure the Spot Welder is disconnected from its electrical power source.

2. NOTE: Make sure the Upper and Lower Tongs (parts #46, #47) are clean and not

corroded before installing. If necessary, clean the Tongs with steel wool.

3. To attach the Lower Tong (part #47) to the Spot Welder, loosen the four Cap

Screws (part #3) located at the bottom/front of the tool. (See Figure A, and Assy.

Diagram.)

4. Slide the Lower Tong (part #47) between the Tong Insulator (part #33) and Lower

Tong Clamp (part #35), and position the Lower Tong so that the Tong Tip (part #48)

faces up.

5. NOTE: Check to make sure the Lower Tong (part #47) will align with the Upper

Tong (part #46) when fully assembled. (See Figure B, and Assy. Diagram.)

6. Re-tighten the four Cap Screws (part #3).

7. To attach the Upper Tong (part #46) to the Spot Welder, loosen the four Cap Screws

(parts #3, #11) located at the top/front of the tool. (See Figure A, and Assy.

Diagram.)

8. Slide the Upper Tong (part #46) between the Tong Tip Holder (part #12) and Upper

Tong Clamp (part #13), and position the Upper Tong so that the Tong Tip (part #48)

faces down.

9. NOTE: Check to make sure the Upper Tong (part #46) will align with the Lower

Tong (part #47) when fully assembled. (See Figure B, and Assy. Diagram)

SKU 45690 PAGE 5

10. Re-tighten the four Cap Screws (parts #3, #11).

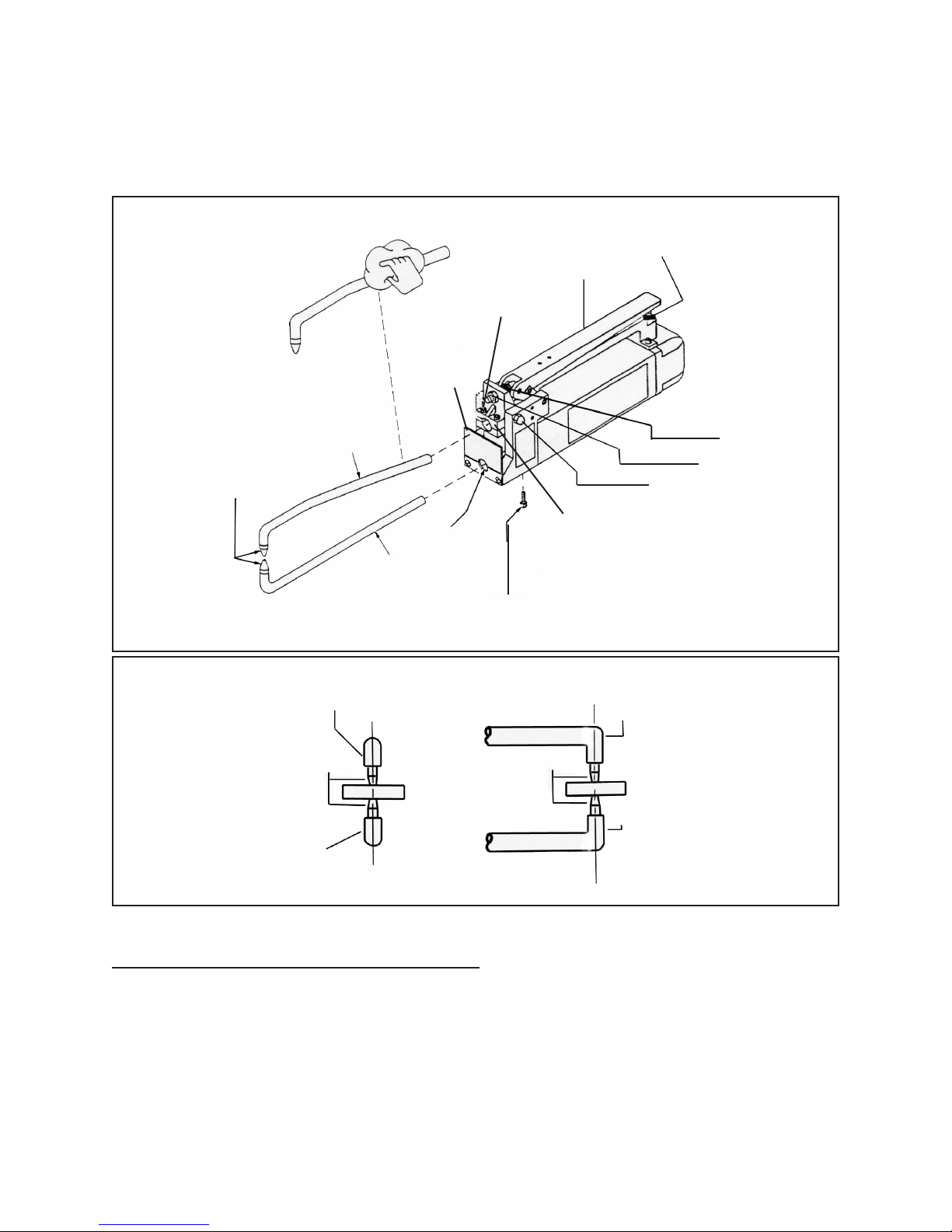

BOTTOM TONG

CLAMP (#35)

TOP TONG

CLAMP (#13)

TOP TONG

HOLDER (#12)

TONG

INSULATOR

(#33)

TONGTIP

(#48)

LOWER

TONG

(#47)

UPPER

TONG

(#46)

CAP

SCREW

(#34)

HEX JAM NUT (#10)

HEX NUT (#20)

OPERATING

LEVER

(#5)

CAP

SCREW

(#3)

FIGURE A

TONG ALIGNMENT

UPPER TONG (#46)

TONG TIPS (#48)

LOWER TONG (#47)

UPPER TONG (#46)

LOWER TONG (#47)

TONG TIPS (#48)

FIGURE B

To Attach The Handle To The Spot Welder:

1. To attach the Wooden Handle (part #17) to the Spot Welder, insert the Bolt (part

#19) through the following parts in this order: through a Handle Bracket (part #18),

through the Wooden Handle, and through the remaining Handle Bracket. Then,

secure the parts together, using the Lock Washer (part #49) and Hex Nut (part #20).

(See Figure C, and Assy. Diagram.)

SKU 45690 PAGE 6

2. Next, Attach the complete Handle Assembly (parts #17, #18, #19, #20) to the Front

Housing (part #28) of the Spot Welder, using the four Hex Head Screws (part #16).

(See Figure D, and Assy. Diagram.)

WASHER

HANDLE (#17) BOLT (#19)

HEX

NUT

(#20)

HANDLE BRACKET

(#18)

FIGURE C

POWER SWITCH (#25)

(#25)

HEX SCREW (#16) FIGURE D

To Attach Tong Tips To The Spot Welder:

1. Caution: Prior to attaching the Tong Tips (parts #48), make sure the Spot Welder

is disconnected from its electrical power source.

2. To attach the Tong Tips (part #48) to the Upper and Lower Tongs (parts #46, #47),

screw the Tips onto the Tongs as shown in Figure E.

UPPER TONG (#46)

LOWER TONG (#47)

TONG TIP (#48)

FIGURE E

SKU 45690 PAGE 7

OPERATING INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagram on page 13 of this manual.

To Adjust The Tong And Operating Lever Pressure:

1. Caution: Prior to adjusting the Tongs (parts #46, #47) and Operating Lever (part

#5) pressure, make sure the Spot Welder is disconnected from its electrical supply

source.

2. NOTE: Excessive Tong (parts #46, #47) can damage the Tong Tips (part #48).

Do not use the Tongs as a clamp or vice to hold the workpieces together. If the

workpieces to be welded do not make good contact at the point of the intended

weld, clamp the workpieces together to provide good contact between the surfaces.

(See Figures A, and Assy. Diagram.)

3. The Tongs (parts #46, #47) pressure is adjustable, and should be checked and/or

set before operation. Correct Tong pressure is necessary to create a proper weld

and to prevent damage to the Tong Tips (part #48). (See Figures A, F, and Assy.

Diagram.)

4. If the Tongs (parts #46, #47) pressure is too weak, and the workpieces are loose

when the Tongs close severe arcing will occur between the workpieces and no weld

can be made. To increase the Tong pressure, loosen the front Hex Jam Nut (part

#10). The more the front Hex Jam Nut is loosened, the greater the pressure on the

Tong Tips (part #48) when the Operating Lever (part #5) is closed. Next, turn the

rear Hex Jam Nut toward the Top Tong Clamp (part #13) to lock the desired pressure

in position. (See Figures A, F, and Assy. Diagram.)

5. If the Tongs (parts #46, #47) pressure is too strong, the weld nugget will dimple,

and material will splash out around the nugget area. To decrease the Tong

pressure, loosen the rear Hex Jam Nut (part #10) and turn the front Hex Jam Nut

(part #10) toward the Top Tong Clamp (part #13) to lock the desired pressure in

position. (See Figures A, F, and Assy. Diagram.)

6. The farther down the Cap Screw (part #3) is turned, the farther down the Operating

Lever (part #5) will close. Adjusting the Cap Screw will determine if the Tongs (parts

#46, #47) lock on the material, or just pull up tight. Adjust the Cap Screw to allow

the Operating Lever to be raised easily after the weld has been completed. (See

Figures A, F, and Assy. Diagram.)

7. To adjust the pressure required to push down the Operating Lever (part #5), turn the

Hex Nut (part #20) located on each side of the Front Housing (part #28) clockwise

or counterclockwise. (See Figures A, F, and Assy. Diagram.)

SKU 45690 PAGE 8

REAR HEX JAM

NUT (#10)

FRONT HEXT JAM

NUT (#10)

OPERATING

LEVER (#5)

CAP SCREW

(#3)

HEX NUT (#20)

LOWER TONG (#47)

UPPER TONG

(#46)

TONG

TIP

(#48) FIGURE F

To Use The Power Switch:

1. The Power Switch (part #25) allows electrical current to the Spot Welder to be turned

“ON” and “OFF”. (See Figure D, and Assy. Diagram.)

2. Turn the Power Switch (part #25) sideways in either direction to start the electrical

current. Release the Power Switch to stop the electrical current.

To Use The Operating Lever:

1. Caution: Never touch the Upper and Lower Tongs (parts #46, #47) when

welding a workpiece. Allow the Tong Tips (part #48) and the workpiece to cool

before handling. (See Figures A, B, E, and Assy. Diagram.)

2. The Operating Lever (part #5) allows you to open and close the Upper and Lower

Tongs (parts #46, #47). (See Figures A, F, and Assy. Diagram.)

3. Close the Operating Lever (part #5) during the welding process to compress the

workpieces between the Tong Tips (part #48). Open the Operating Lever after the

spark appears and each weld is made to release the workpieces. (See Figures B,

A, F, and Assy. Diagram.)

SKU 45690 PAGE 9

RECOMMENDED PRACTICES

FOR SPOT WELDING LOW-CARBON STEEL

TROUBLE SHOOTING GUIDE

INSPECTION, MAINTENANCE, AND CLEANING

1. Caution:Always disconnect the Spot Welder from its electrical power supply source

before performing any inspection, maintenance, or cleaning.

2. Before each use, inspect the general condition of the Spot Welder. Inspect switch,

power plug and cord assembly, and extension cord (if used) for damage. Check for

loose screws, misalignment, binding of moving parts, broken parts and any other

condition that may affect its safe operation. If abnormal noise or vibration occurs,

disconnect the Spot Welder from its electrical supply source immediately and have

the problem corrected before further use. Do not use damaged equipment.

SKU 45690 PAGE 10

Inhaltsverzeichnis

Andere Chicago Electric Schweißsystem Handbücher

Chicago Electric

Chicago Electric 68888 Bedienungsanleitung

Chicago Electric

Chicago Electric 62486 Montageanleitung

Chicago Electric

Chicago Electric 97717 Installationshandbuch

Chicago Electric

Chicago Electric 66787 Installationshandbuch

Chicago Electric

Chicago Electric MIG-100 94056 Installationshandbuch

Chicago Electric

Chicago Electric 62719 Montageanleitung

Chicago Electric

Chicago Electric 61792 Montageanleitung

Chicago Electric

Chicago Electric 6271 Bedienungsanleitung

Chicago Electric

Chicago Electric 45949 Bedienungsanleitung

Chicago Electric

Chicago Electric MIG-100 91124 Bedienungsanleitung

Chicago Electric

Chicago Electric 61205 Montageanleitung

Chicago Electric

Chicago Electric 97503 Installationshandbuch

Chicago Electric

Chicago Electric 91814 Bedienungsanleitung

Chicago Electric

Chicago Electric 95136 Installationshandbuch

Chicago Electric

Chicago Electric MIG 170 Montageanleitung

Chicago Electric

Chicago Electric 60662 Bedienungsanleitung

Chicago Electric

Chicago Electric 68887 Bedienungsanleitung

Chicago Electric

Chicago Electric 93457 Bedienungsanleitung

Chicago Electric

Chicago Electric 68886 Bedienungsanleitung

Chicago Electric

Chicago Electric 95136 Montageanleitung

Chicago Electric

Chicago Electric 68888 Bedienungsanleitung

Chicago Electric

Chicago Electric 44568 Bedienungsanleitung

Chicago Electric

Chicago Electric 2665 Bedienungsanleitung

Chicago Electric

Chicago Electric MIG 180 Bedienungsanleitung

Beliebte Schweißsystem Handbücher anderer Marken

Berner

Berner PLASMACUT 54 Bedienungsanleitung

Pro Spot

Pro Spot PR-155 Bedienungsanleitung

Forney

Forney 210 Bedienungsanleitung

Thermal Arc

Thermal Arc 400S Bedienungsanleitung

Lincoln Electric

Lincoln Electric HANDYMIG 170I Bedienungsanleitung

GYS

GYS PROTIG 201 AC/DC Bedienungsanleitung

TAFA

TAFA 30*8B35 Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Bedienungsanleitung

ESAB

ESAB Buddy Arc 145 Bedienungsanleitung

CIGWELD

CIGWELD 636804 Kurzanleitung

Red-D-Arc

Red-D-Arc DC-400 Bedienungsanleitung

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Bedienungsanleitung

Elettro

Elettro HI-MIG 3000 SYNERGIC Bedienungsanleitung

WIA

WIA Weldmatic 270 CP132-2 Bedienungsanleitung

Sonics

Sonics H520T Bedienungsanleitung

Miller

Miller Big Blue 400D Bedienungsanleitung

NewArc

NewArc RT2000 Kurzanleitung

Hypertherm

Hypertherm powermax1000 Bedienungsanleitung
