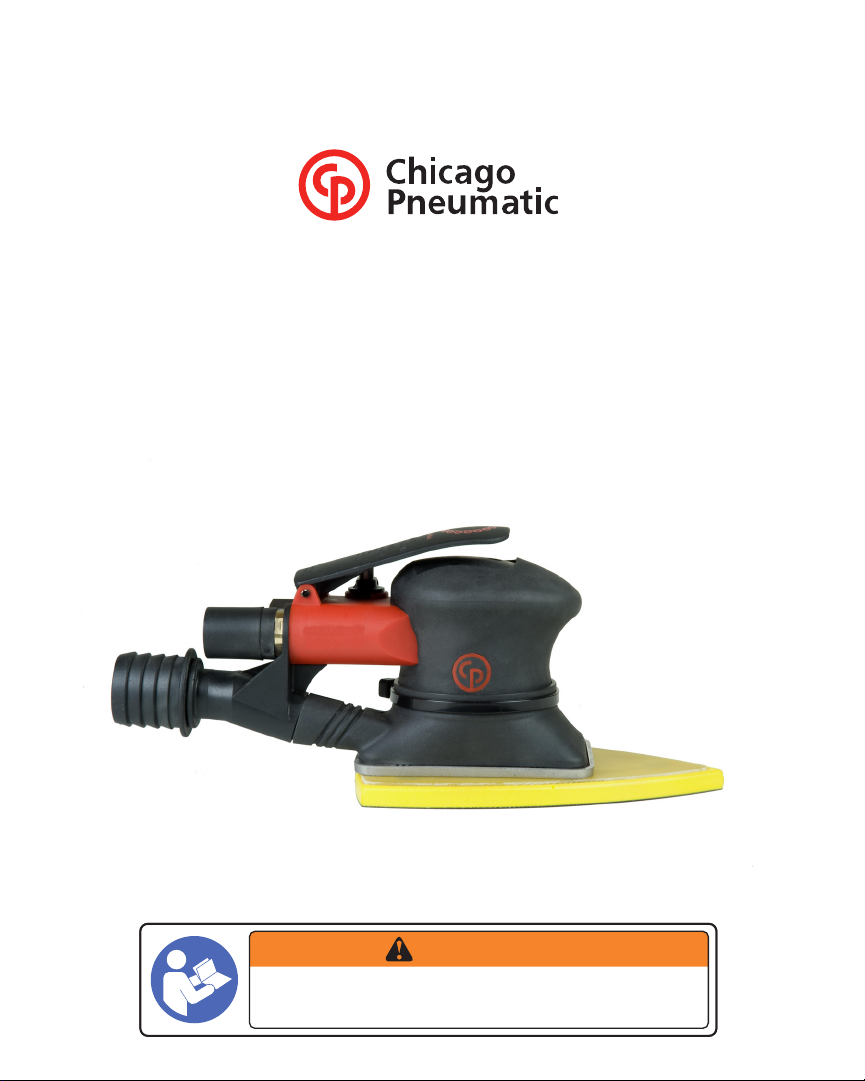

Chicago Pneumatic CP7263 Series Bedienungsanleitung

Manual

CP7263, CP7264,

CP7266, CP7267 Series

Random orbital sanders

To reduce risk of injury, everyone using, installing, repairing,

maintaining, changing accessories on, or working near this tool

must read and understand these instructions before performing

any such task.

WARNING

CP7263, CP7264, CP7266, CP7267 Series

Discover other air sanders and polishers on our website.

Technical Data

Pad size:

CP7263 Series: 3”x4-1/4” (75x110mm)

CP7264 Series: 2-3/4”x7-3/4” (70x198mm)

CP7266 Series: 3-1/4”x5” (80x130mm)

CP7267 Series: 3-7/8”-5-5/8” (100x144mm) delta shape

Free speed; 10 000 RPM

Air pressure 90 psi (6.3 bar)

Air comsumption; 18 cfm - 8,5 l/s



 

 







 

 

 

 

 

 













re. ISO 28927-3.

Declaration of noise and vibration emission

All values are current as of the date of this publication.

These declared values were obtained by laboratory type testing in

accordance with the stated standards and are suitable for comparison

with the declared values of other tools tested in accordance with the

same standards. These declared values are not adequate for use in risk

assessments and values measured in individual work places may be

higher. The actual exposure values and risk of harm experienced by an

individual user are unique and depend upon the way the user works,

the workpiece and the workstation design, as well upon the exposure

time and the physical condition of the user.

We, Chicago Pneumatic, cannot be held liable for the consequences of

using the declared values, instead of values reﬂecting the actual

exposure, in an individual risk assessment in a work place situation over

which we have no control.

This tool may cause hand-arm vibration syndrome if its use is not

adequately managed.

We recommend a programme of health surveillance to detect early

symptoms which may relate to noise or vibration exposure, so that

management procedures can be modiﬁed to help prevent future

impairment.

INSTRUCTION MANUAL

󶌊󶨆󶋁

Lubrication







Maintenance

 



 

 

Tune-Up Kit: 

Random orbital sander

Noise & Vibration Declaration*

ccordance with EN ISO 15744. For sound power, add 11

dB(A).

Vibration value,

Machine Type:

Pneumatic tool equipped with a ﬂexible disc

ﬁtted with abrasive paper for sanding - No other

use is permitted.

Air Supply Requirements

1.Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher

pressure drastically reduces tool life.

2.Connect tool to air line using pipe, hose and ﬁtting sizes

shown in the diagram below.

3.Do not install a quick coupler directly into the sander

throttle handle.
