INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8803-000031RevG

1-800-582-6480 952-894-6280 FAX 952-894-6918 2003 Chief Manufacturing

12800 HIGHWAY 13 SOUTH, SUITE 500 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 08/06

100 DEGREE ANGLED CEILING PLATE WITH THREADED

COUPLER

CMA-395

The 100° Angled Ceiling Plate is designed for ease of installation with any height of ceiling. By using any

length of standard NPT 1½” pipe threaded both ends, you can extend the height capabilities to meet your

needs.

WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY!

When mounting Chief Manufacturing accessories, the structural system and mounting method

MUST be capable of supporting 5 times the combined weight of the total installation.

The maximum weight to be installed on the ceiling plate is 500 pounds (226.8 Kg).

Unpack and check contents:

(1) Cathedral Ceiling Plate CMA-395 (1) Coupler Assembly

(1) 5/16”-18 X 3/8” Set Screw (1) ½”-13 X 4” Hex Head Bolt

(1) ½”-13 Nylock Nut (2) 3/8”-16 X 5/8” Hex Machine Screw

(2) 3/8” Washer (1) 5/32” Hex Key

INSTALLATION INSTRUCTIONS

1. Set coupler in place in the center of ceiling plate and slide ½”-13 X 4” hex head bolt through both parts

(see Figure 1). Secure using ½”-13 Nylock nut.

2. Install two 3/8”-16 X 5/8” hex machine screws, with 3/8” washers, through adjusting slots on either side

of bracket into holes in the coupler assembly (see Figure 1). Do not tighten.

3. Adjust coupler to desired angle and tighten two 3/8”-16 X 5/8” hex machine screws.

4. Install extension pipe in coupler and secure using the 5/16”-18 X 3/8” set screw (see Figure 2).

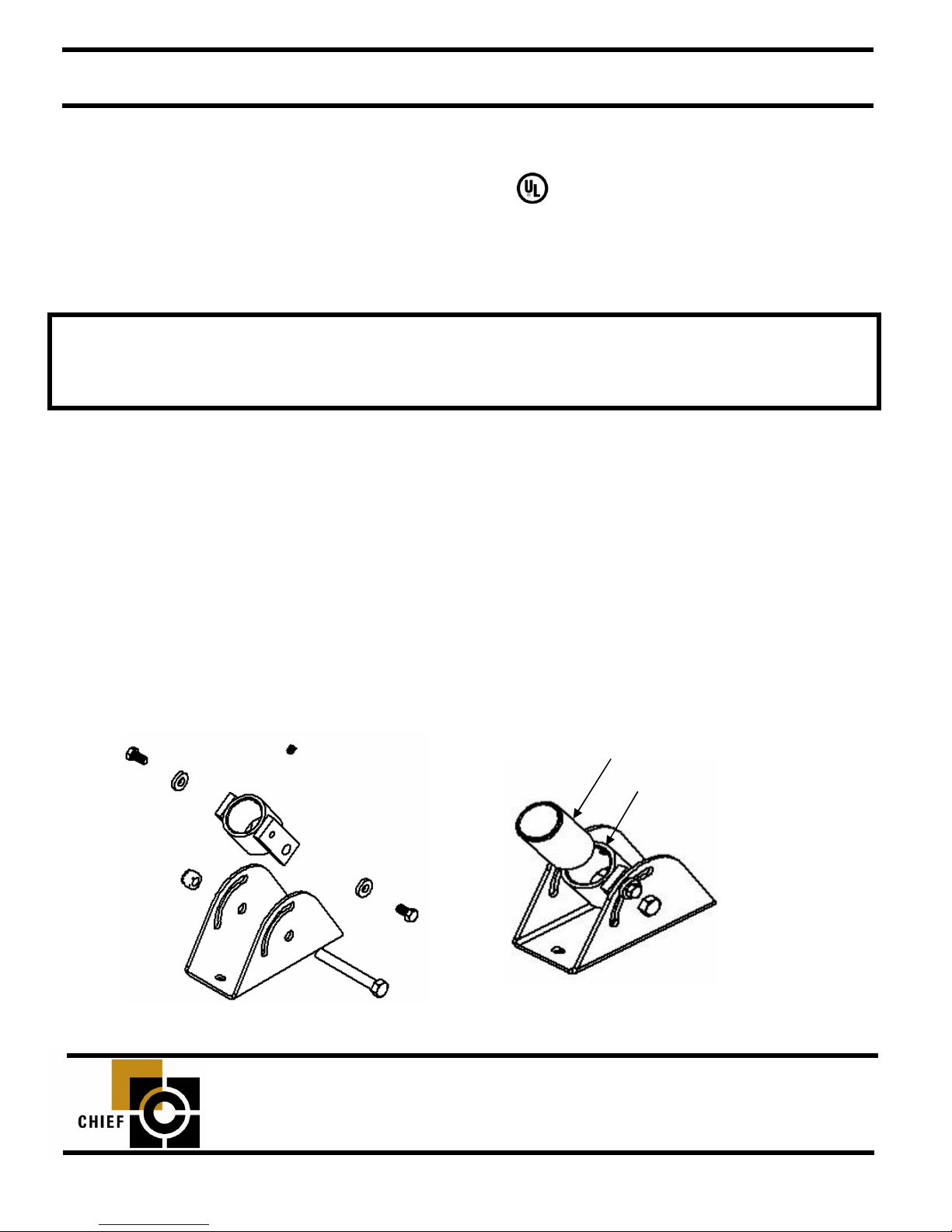

Figure 1. Assembly Figure 2. Assembly

5/16”

-

18 X 3/8”

extension pipe
