CHIEF MSP-WRTIDSKY1 Bedienungsanleitung

MSP-WRTIDSKY1 Light Weight

Suspended Ceiling Kit for use with

Island Display Skybox

The MSP-WRTIDSKY1 Light Weight Suspended Ceiling Kit

provides a sturdy support for LCD displays when installing

these products in a suspended ceiling.

The Kit includes two spanning plates that will be suspended by

four tie wires from the true ceiling above the suspended ceiling

tiles. Turnbuckles allow the installation to be fine-tuned.

The reinforcing plate can be installed anywhere above a

2’ x 2’ (600 X 600mm) or 2’ x 4’ (600 X 1200mm) ceiling tile.

BEFORE YOU BEGIN

•CAUTION: To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that

will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-

lar attention to the “Important Precautions” on Page 1.

• The maximum weight to be installed on the MSP-WRTIDSKY1 is 40 pounds (18.14 Kg).

• The spanning brackets are designed to fit above a conventional suspended ceiling system.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

12800 HIGHWAY 13 SOUTH, SUITE 500

SAVAGE, MINNESOTA 55378 USA

PART NO. 8810-000010 (Rev. A)

2004 Chief Manufacturing

www.chiefmfg.com

Printed in USA 02-04

INSTALLATION INSTRUCTIONS

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the struc-

ture before installing the suspended ceiling kit.

•WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING: The installer is responsible for verifying that the structure to which the MSP-WRTIDSKY1’s reinforcing

plate is anchored will safely support the combined load of all attached components or other equipment.

•WARNING: The weight of the LCD displays must not exceed 40 lbs (18.14 kg), the maximum load capacity of the rein-

forcing plate.

•CAUTION: To avoid personal injury or damage to the suspended ceiling kit, be sure that it is installed square and parallel in

all dimensions.

•CAUTION: Check the unit for shipping damage before you begin the installation.

CONTENTS

DIMENSIONAL DRAWING.............................................. 2

ASSEMBLY PROCEDURES.............................................. 3

ANCHORING PROCEDURES........................................... 4

FLAT PANEL DISPLAY AND

H BOX INSTALLATION PROCEDURES ........................ 5

PARTS ................................................................................. 6

TOOLS REQUIRED FOR INSTALLATION

• Phillips screwdrivers, No. 1 and No. 2 tip

• Drill and bit set

• Pliers (heavy-duty)

• Wire cutter

• Hammer (claw type), if suspending from a solid concrete ceiling.

• Other tools may be required depending on the method of installing the unit in the ceiling.

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

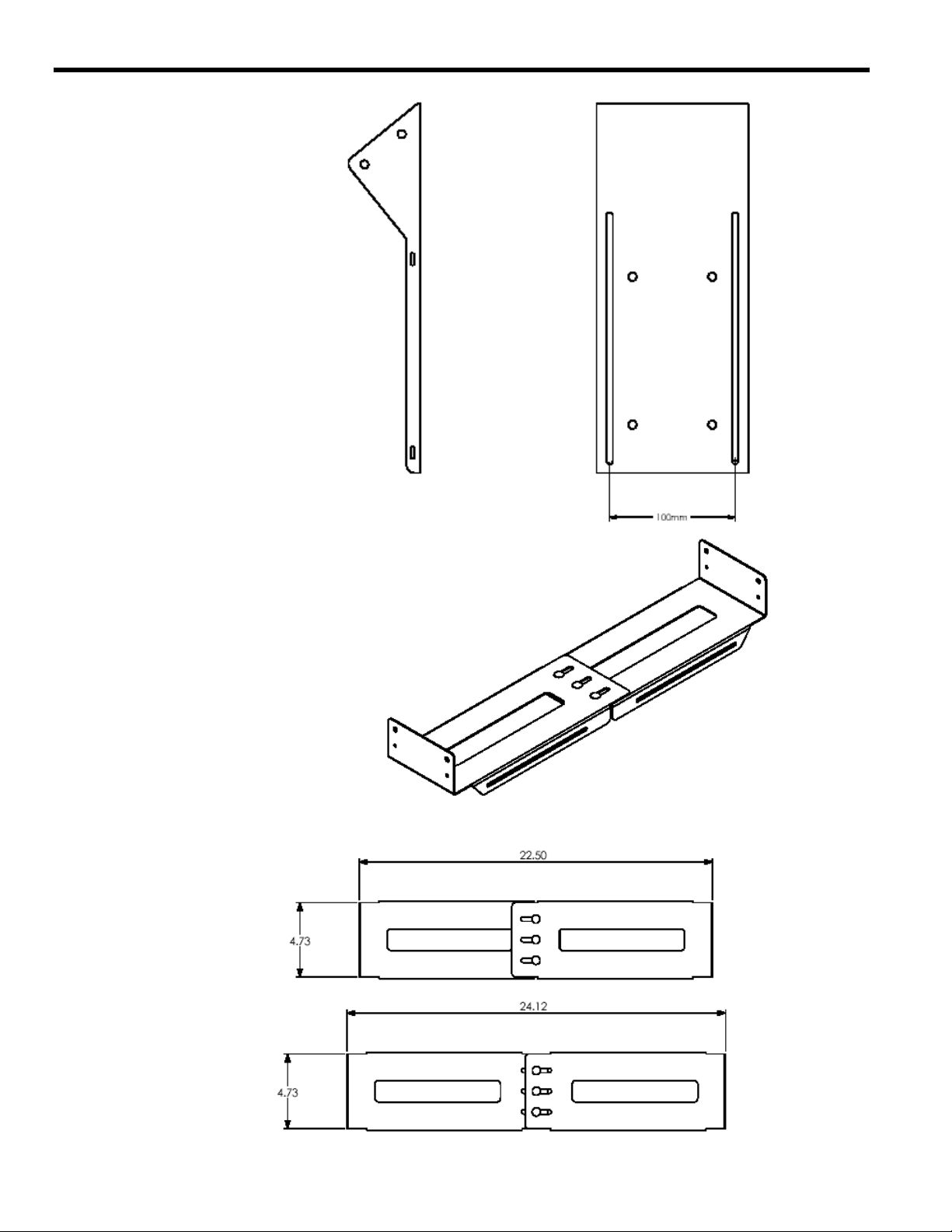

DIMENSIONAL DRAWING

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

ASSEMBLY PROCEDURES

WARNING: Improper installation can cause serious per-

sonal injury! Make sure that the structural members can

support a redundant weight factor five times the total

weight of the equipment you intend to support overhead.

The structure must be reinforced before you install the Kit

if the structure cannot support a redundant weight factor

five times the total weight of the equipment.

NOTE: Items in parentheses () refer to parts shown in

“PARTS” on page 6.

1. Assemble the span brackets (10) using three 1/4-20 X 5/8” car-

riage bolts (30) , three 1/4” flat washers (40), three 1/4” split

lock washers (60) and three 1/4-20 hex nuts (50). Do not

tighten at this time (see Figure 1).

2. Remove the tiles from the area where mounting the kit.

3. Install the span bracket assembly between the suspended ceil-

ing tile rails (grid) and expand the span bracket assembly until

the brackets are flush with the rails (see Figure 2).

4. Tighten three 1/4-20 hex nuts (50) to secure span bracket

assembly between the suspended ceiling tile rails (grid).

5. Hook turnbuckles (120) into the span bracket assembly (see

Figure 3).

6. Install anchoring wire (90) as necessary (see“ANCHORING

PROCEDURES” on page 4).

7. Install two LCD mount brackets (20) using eight 10-32 X 3/8”

button-head cap screws (70) (see Figure 4).

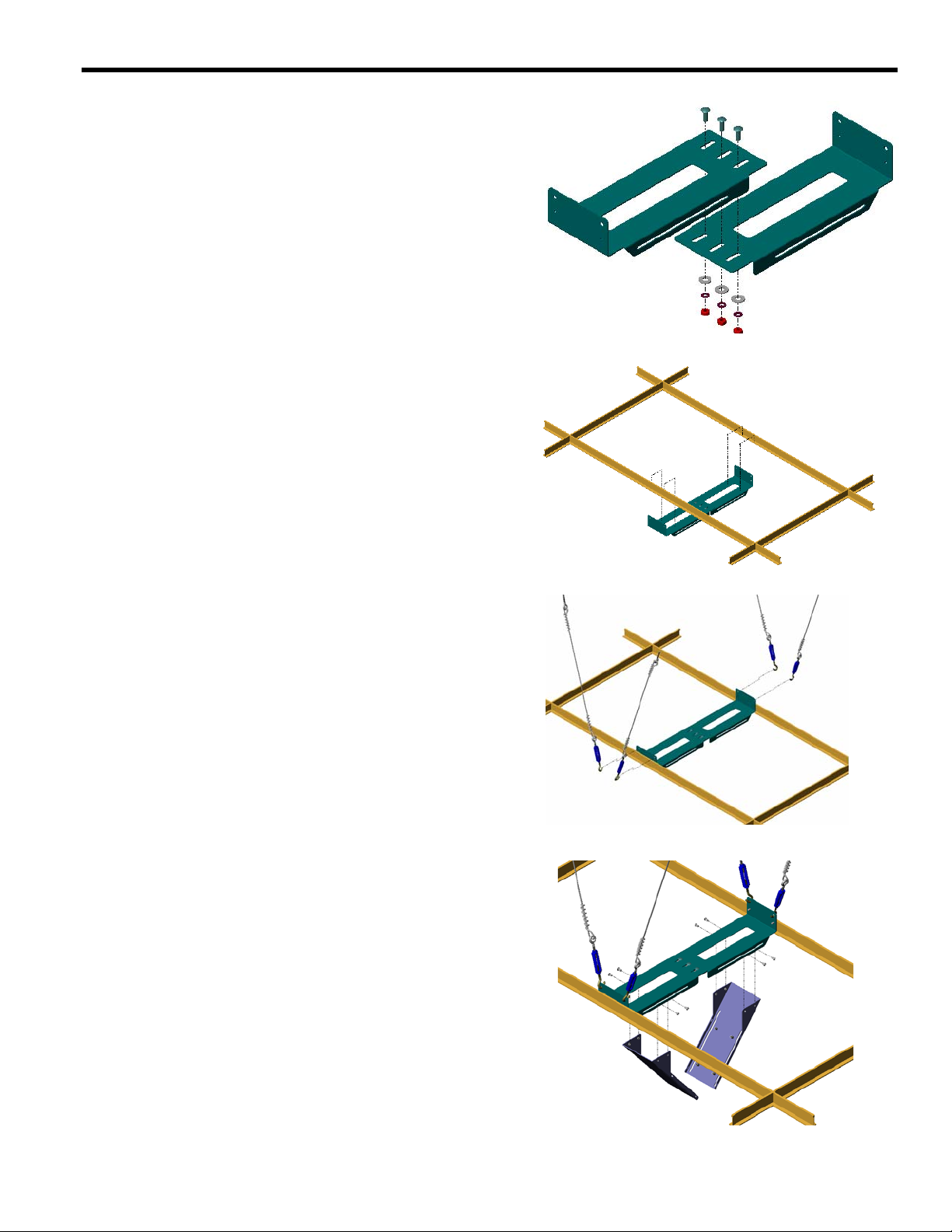

Figure 2. Span Bracket to Grid

Figure 1. Assemble Span Brackets

Figure 3. Hook Turnbuckles to Span bracket

Figure 4. Install LCD Mount Brackets

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

ANCHORING PROCEDURES

NOTE: If the true ceiling is more than 36 in. (914 mm) above

the suspended ceiling, you must obtain additional anchoring

wire. Use 14-gauge soft galvanized wire. A longer safety cable

may also be required. Contact Chief Manufacturing for assis-

tance in determining your specific requirements.

Anchoring Methods

Select the appropriate anchoring method for your ceiling:

NOTE: Four eye lag screws and four concrete anchors are

shipped with the Kit.

•Wood Joists or Beams. Drill four 5/32-in. dia. holes, at least 2

in. deep (4-mm dia. holes, 51 mm deep). Fully insert eye lag

screws (see Figure 5).

•Solid Concrete.

1. Drill four 1/4-in. dia. holes 1-3/8 in. deep (6-mm dia. holes,

36 mm deep). Use ANSI B94.12-1977 carbide bit (see

Figure 6).

2. Tap anchors into hole to an embedded depth of at

least 1” (25.4 mm deep).

3. Using a hammer with a claw, pull anchor out 1/4” (6.36 mm) to

activate anchor.

•Truss Ceiling. Attach the tie wire to the turnbuckle and loop

its upper end around the ceiling truss. Pull the tie wire tight and

twist it around itself at least four times. No additional anchor is

required (see Figure 7).

Anchoring Procedure

1. Cut the 20-ft (6.1 m) tie wire into four pieces of equal length.

WARNING: Make sure the tie wire will not become loose.

Thread the end of the wire back through the first loop, clos-

est to the eyebolt, and bend the end of the wire up to pre-

vent the wire from untwisting (see Figure 8).

2. Insert the wires through the ends of the turnbuckles. Twist each

wire around itself at least four times, then thread the wire back

through the loop closest to the eyebolt (see Figure 8).

3. If required (see “Anchoring Methods” above), drill holes for

the four ceiling anchors. Position the holes so that the tie wires,

when attached and taut, will angle outward at 15

as shown.

4. Pull the tie wires tight and attach them to the ends of the ceiling

anchors (or to the truss) and secure as in Step 2. The weight of

the ceiling tray should now be supported by the tie wires.

Wood Joists

or Beams

Solid Concrete

Truss Ceilings

Figure 8. Anchoring

Figure 5. Anchoring in Wood

Figure 6. Anchoring in Concrete

Figure 7. Truss Anchoring

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

FLAT PANEL DISPLAY AND H BOX

INSTALLATION PROCUEDURES

Flat Panel Display

WARNING: Improper installation can cause serious per-

sonal injury! Make sure that the structural members can

support a redundant weight factor five times the total

weight of the equipment you intend to support overhead.

The structure must be reinforced before you install the Kit

if the structure cannot support a redundant weight factor

five times the total weight of the equipment.

NOTE: Items in parentheses () refer to parts shown in

“PARTS” on page 6.

1. Install flat panel display on LCD mount brackets (20) and

secure using four M4 X 10mm Phillips pan head screws (80)

(see Figure 9).

2. With four screws securing LCD mount bracket and four screws

securing display to LCD mount bracket loose, position display

to desired location and height.

3. Tighten four screws securing LCD mount bracket and four

screws securing display to LCD mount bracket.

H Box (Not Included)

1. Install H box bracket (not included) on LCD mount

brackets (20) and secure using four 10-32 X 3/8” button-head

cap screws (70) (see Figure 10).

2. Install H box (not included) on H box bracket (not included)

secure using four screws (not included) (see Figure 11).

button-head

cap screws

button-head

Figure 9. Flat Panel Display Installation

Figure 10. H Box Bracket Installation

Figure 11. H Box Installation

Installation Instructions MSP-WRTIDSKY1 Skybox Kit

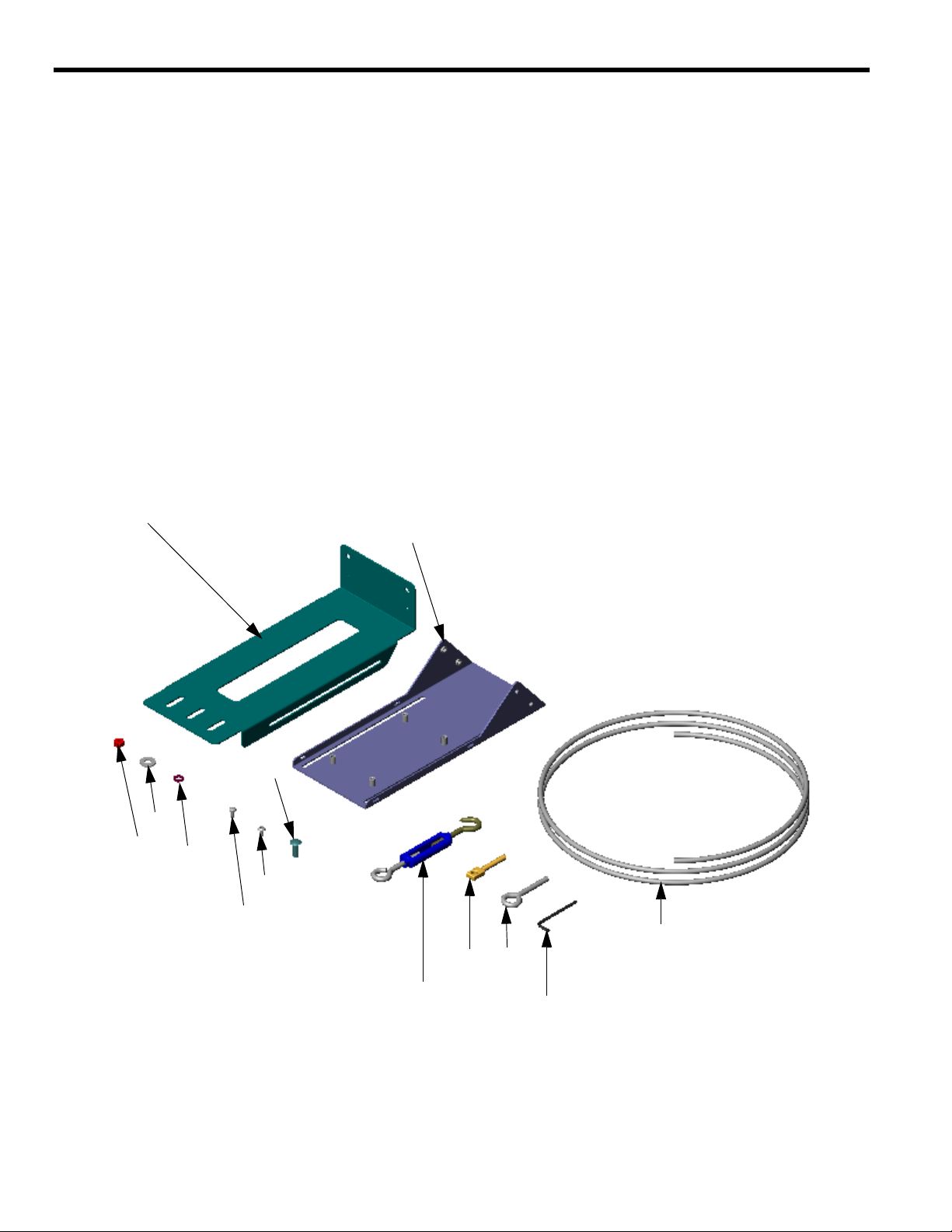

PARTS

Ref Description . . . . . . . . . . . . . . . . . . . . . . . . Qty

10 BRACKET, Span, Skybox . . . . . . . . . . . . . 2

20 BRACKET, LCD Mount . . . . . . . . . . . . . . 2

30 BOLT, Carriage, 1/4-20 X 5/8” . . . . . . . . . 3

40 WASHER, Flat, 1/4” . . . . . . . . . . . . . . . . . 3

50 NUT, hex, 1/4-20 . . . . . . . . . . . . . . . . . . . . 3

60 WASHER, lock, split, 1/4” . . . . . . . . . . . . . 3

70 SCREW, button head, 10-32 X 3/8”. . . . . . 16

80 SCREW, Panhead, M4-7 X 10mm . . . . . . . 8

90 WIRE, 14 gage, 20 ft (6.1 m) . . . . . . . . . . . 1

100 ANCHOR, concrete . . . . . . . . . . . . . . . . . . 4

110 SCREW, lag, eye . . . . . . . . . . . . . . . . . . . . 4

120 TURNBUCKLE, 1/4-20

with hook and loop . . . . . . . . . . . . . . . . . . . 4

130 KEY, hex, 1/8” . . . . . . . . . . . . . . . . . . . . . . 1

50 60

100 110

120

130
