CHIEF PSM-2540 Bedienungsanleitung

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8805-000097 REV. B

1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing

8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 10/04

PLASMA DISPLAY STATIC MOUNT

PSM-2540

(1) Bracket, Plasma Mounting, Static (1) Latching Flag

(4) Screws, M8 x 30mm Button Head Cap (1) 10-24 x .5 FH Undercut Screw

(4) Mounting Buttons, Nylon stepped, pan style (1) Nylon Washer

(1) Allen Key, 5mm (1) 10-24 Nylock Nut

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read

installation instructions completely. If you are missing any of the listed components, please

contact Customer Service at 1-800/582-6480.

Plasma Displays are Extremely Fragile.

1. Attach four mounting buttons to display using four M8 x 30mm button head cap screws

provided (see Figure 2).

2. Secure latching flag to Plasma Static Mount using one 10-24 x .5 FH undercut screw, one

Nylon washer, and one 10-24 Nylock nut (see Figure 3).

CAUTION!

Figure 1

ALL COMPONENTS MUST BE SECURELY FASTENED TO A

STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES

THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE

EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT

THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.

THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT

IS 175 POUNDS (79.38 KG).

WARNING!

3. Securely anchor the plasma static mount to the wall using wall studs or supporting framework (see

Figure 4).

4. Make sure the flag is lowered to the side before attempting to place the display on the mount.

5. With the aid of another person, lift the display up to the mount, align the mounting buttons on the

display with the teardrop slots in the mount, and set the display into place.

6. Position (raise) the flag to secure the display.

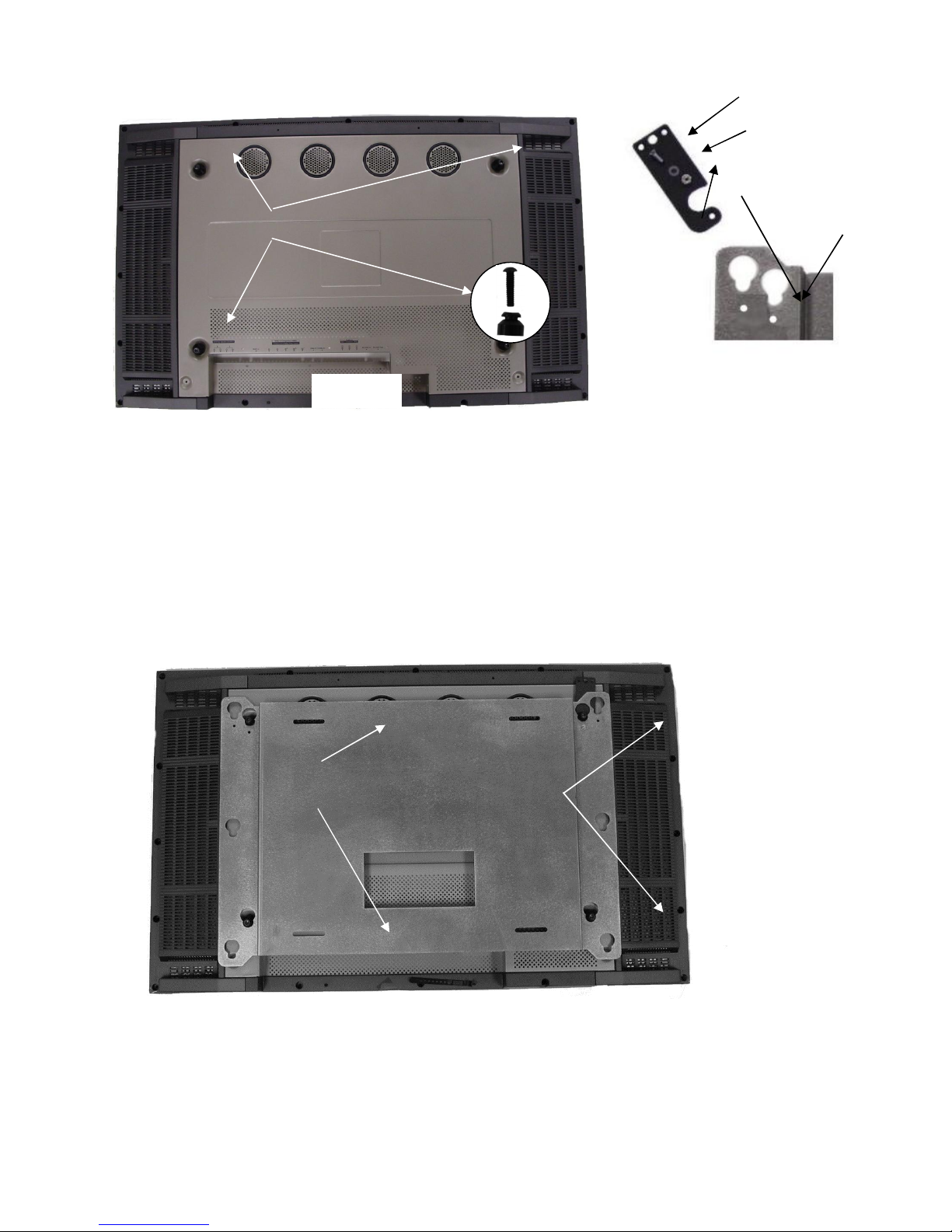

Mounting Button

Locations

Figure 2 Figure 3

10

-

24 Nylock Nut

installed from

Latching Flag

(Note inner

Nylon Washer

between flag & mount

10

-

24 x .5 FH

Undercut Screw

Align Mounting

Buttons with

Teardrop Slots

Anchor to wall

using four slots

Figure 4
