CHIEF Wall Mount PDWP MB 46 L Bedienungsanleitung

INSTALLATION INSTRUCTIONS

ИНСТРУКЦИИ ПО УСТАНОВКЕ

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

LSA LTA

FUSION LARGE FLAT PANEL MOUNTS

LSA/LTA Series

LSA/LTA Series Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component. The wall to which the mount is being attached

may have a maximum drywall thickness of 5/8" (1.6cm).

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components located between the LSA/LTA up to (and

including) the display does not exceed 200 lbs (90.7 kg).

Installation Instructions LSA/LTA Series

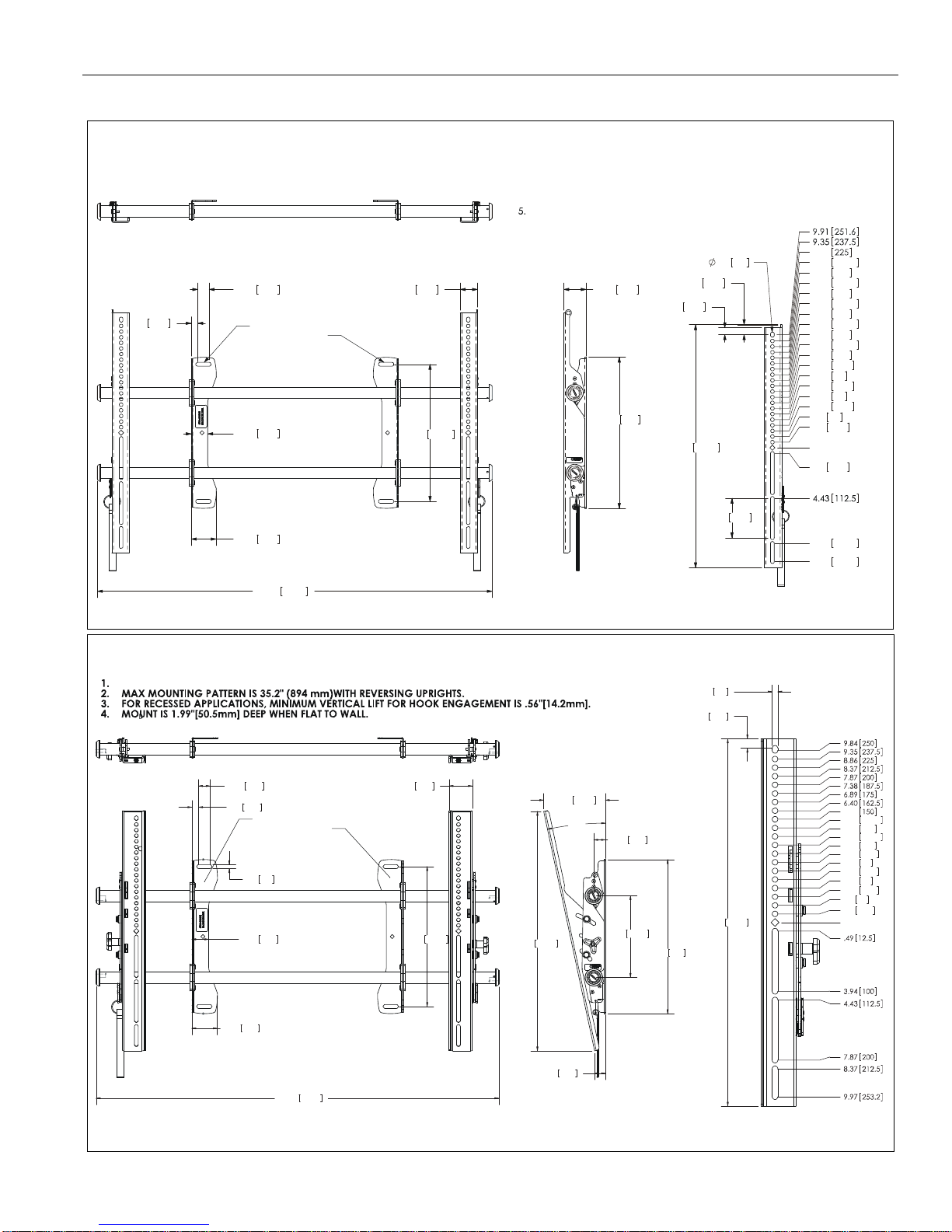

DIMENSIONS

LTA

DIMENSION: [MILLIMETERS]

INCHES

1.00 25.4

.34 8.6

1.44 36.6

2.18 55.3

.57 14.4

34.53 877.1

2.00 50.8

12.00 304.8

MINIMUM UPRIGHT

SPACING IS 12"

RAILS CAN BE SLID LEFT

OR RIGHT FOR OFFSET

13.23 336

20.54 521.7

12°

.93 23.6

5.29 134.5

7.00 177.8

1.00 25.4

21.00 533.4

.53 13.5

.32 8.1

.49 12.5

.98 25

1.48 37.5

1.97 50

2.46 62.5

2.95 75

3.44 87.5

3.94 100

4.43 112.5

4.92 125

5.41 137.5

5.91

NOTES:

MAX MOUNTING PATTERN IS 30.6" (777.2 mm) WITHOUT REVERSING UPRIGHTS.

12.00 304.8

1.44 36.6

2.19 55.7

34.57 878.1

1.00 25.4

.57 14.4

1.52 38.5

MINIMUM UPRIGHT

SPACING IS 12"

1.96 49.8

13.23 336

21.28 540.4

3.44 87.5

.32

8.1

.59

15.1

.87 22.1

.49 12.5

.98 25

1.48

37.5

1.97 50

2.46

62.5

2.95 75

3.44

87.5

.49 12.5

3.94 100

4.43

112.5

4.92 125

5.41

137.5

5.91 150

6.40

162.5

6.89 175

7.38

187.5

7.87 200

8.37

212.5

8.86

8.37

212.5

9.97

253.2

NOTES:

MAX MOUNTING PATTERN IS 31.8"[807.7mm] WITHOUT REVERSING UPRIGHTS.

1. MAX MOUNTING PATTERN IS 34.3"[871.2mm] WITH REVERSING UPRIGHTS.2. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK3. ENGAGEMENT IS .56"[14.2mm].

MOUNT RAILS CAN BE SLID LEFT OR RIGHT FOR OFFSET APPLICATIONS.4. MOUNT IS 1.96"[49.8mm] DEEP WHEN FLAT TO WALL.

LSA

DIMENSION: [MILLIMETERS]

INCHES

Installation Instructions LSA/LTA Series

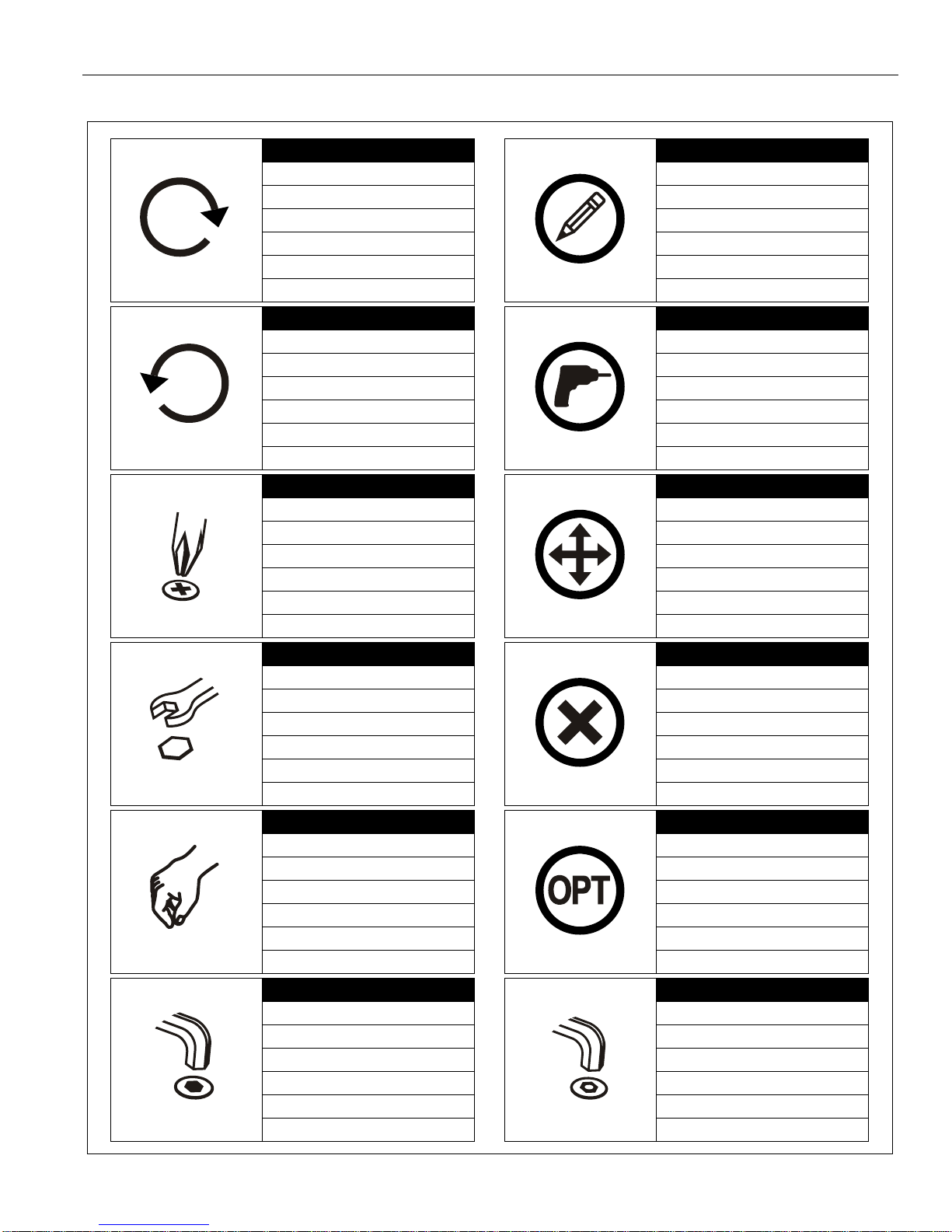

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

LSA/LTA Series Installation Instructions

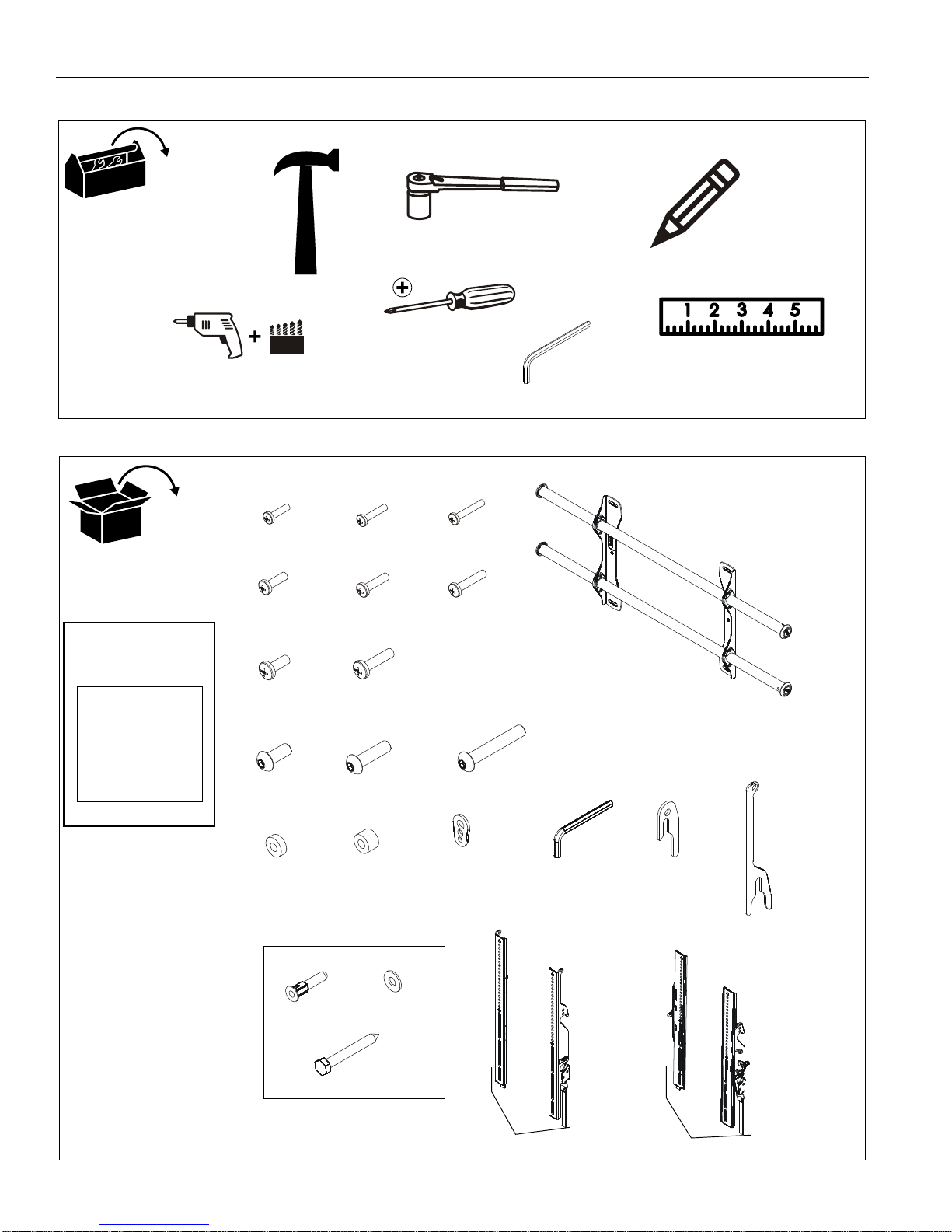

TOOLS REQUIRED FOR INSTALLATION

PARTS

7/32" (5.5mm) Wood Stud

5/16" (7.9mm) Concrete (included)

C (6)

E (6)

(LSA Only) (LTA Only)

T (1)

S (1)

(LSA Only)

(LTA Only)

[A-N used on LSAU/LTAU Models Only]

A (8)

M4x16mm B (6)

M4x20mm M4x25mm

D (6)

M5x16mm M5x20mm

F (6)

M5x25mm

G (6)

M6x16mm

H (6)

M6x25mm

P (1)

I (6)

M8x20mm

J (6)

M8x30mm

K (4)

M8x50mm

L (8)

.750x.323x.250 M (8)

.750x.344x.500

N (8)

QA (4)

5/16"

QB (4)

5/16"

QC (4)

5/16" x 2-1/2"

Custom

LSA2XXX/

LTA2XXX

Hardware

[Included with

LSA2XXX/LTA2XXX

Models Only]

R (1)

U (1)

V (1)

W (1)

X (1)

LSA/LTA Series Installation Instructions

INSTALLATION

The LTA and LSA have been designed to be mounted directly

onto either a wood stud or concrete wall. The LTA has brackets

which allow the TV to be tilted. The LSA has static brackets

which keep the TV in an upright position.

Locate Mounting Site

WARNING: IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY

OR DAMAGE TO EQUIPMENT! It is the installers

responsibility to make certain the structure to which the

mount is being attached is capable of supporting five times

the weight of the LTA or LSA and all attached equipment not

to exceed 200 lbs (90.7 kg).

NOTE: Proceed to either the Installing to a Wood Stud Wall

section or the Installing to a Concrete Wall section.

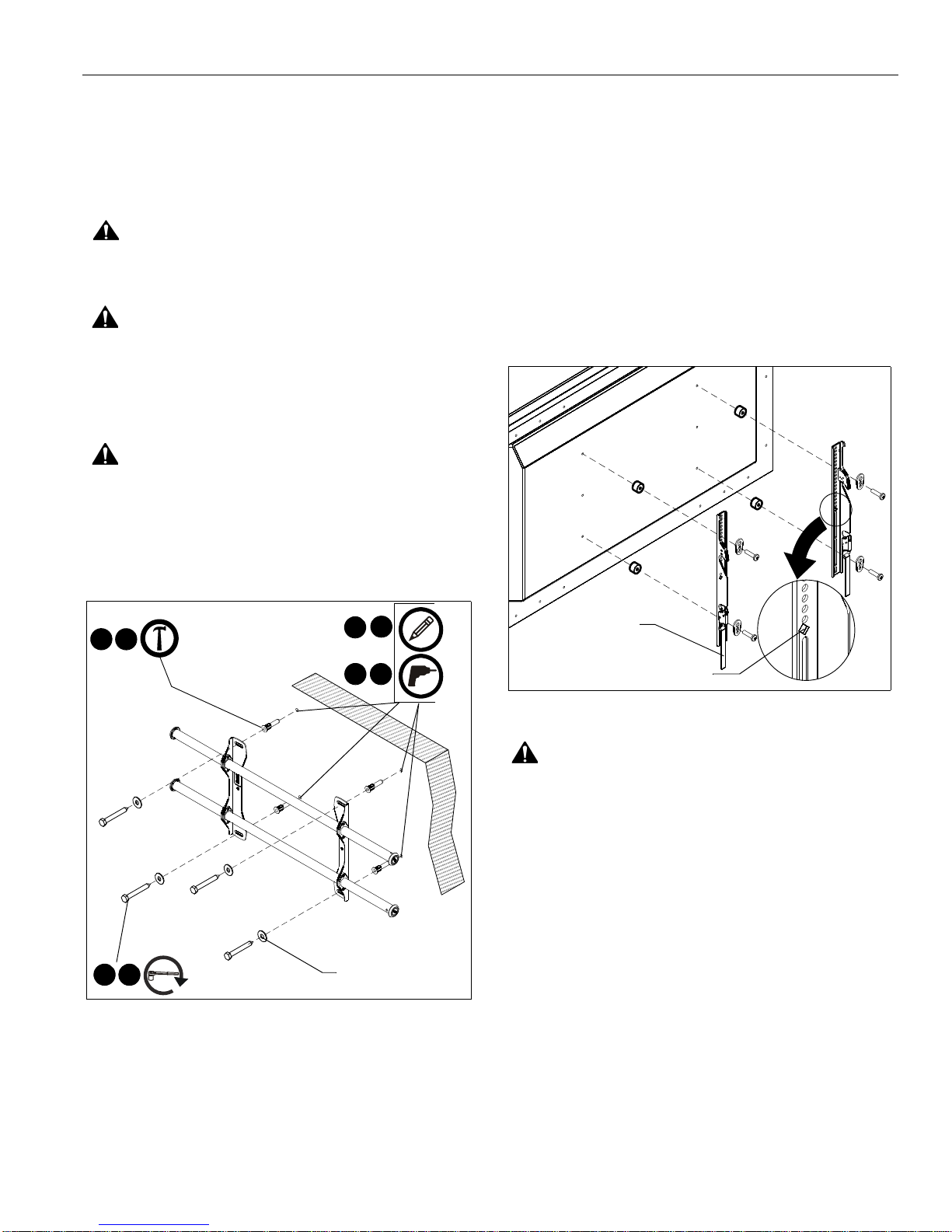

Installing to a Wood Stud Wall

1. Determine the center of the TV screen, and where it should

be located on the wall.

2. Locate the closest stud to the left and right of the selected

location.

NOTE: If the screen area lies over a stud, use that stud and the

stud to either the left or right of it.

3. Line up the diamond on mount with center of screen

marking to determine vertical center. (See Figure 1)

4. Measure up 6" from the center point to mark location of the

upper mounting slots.

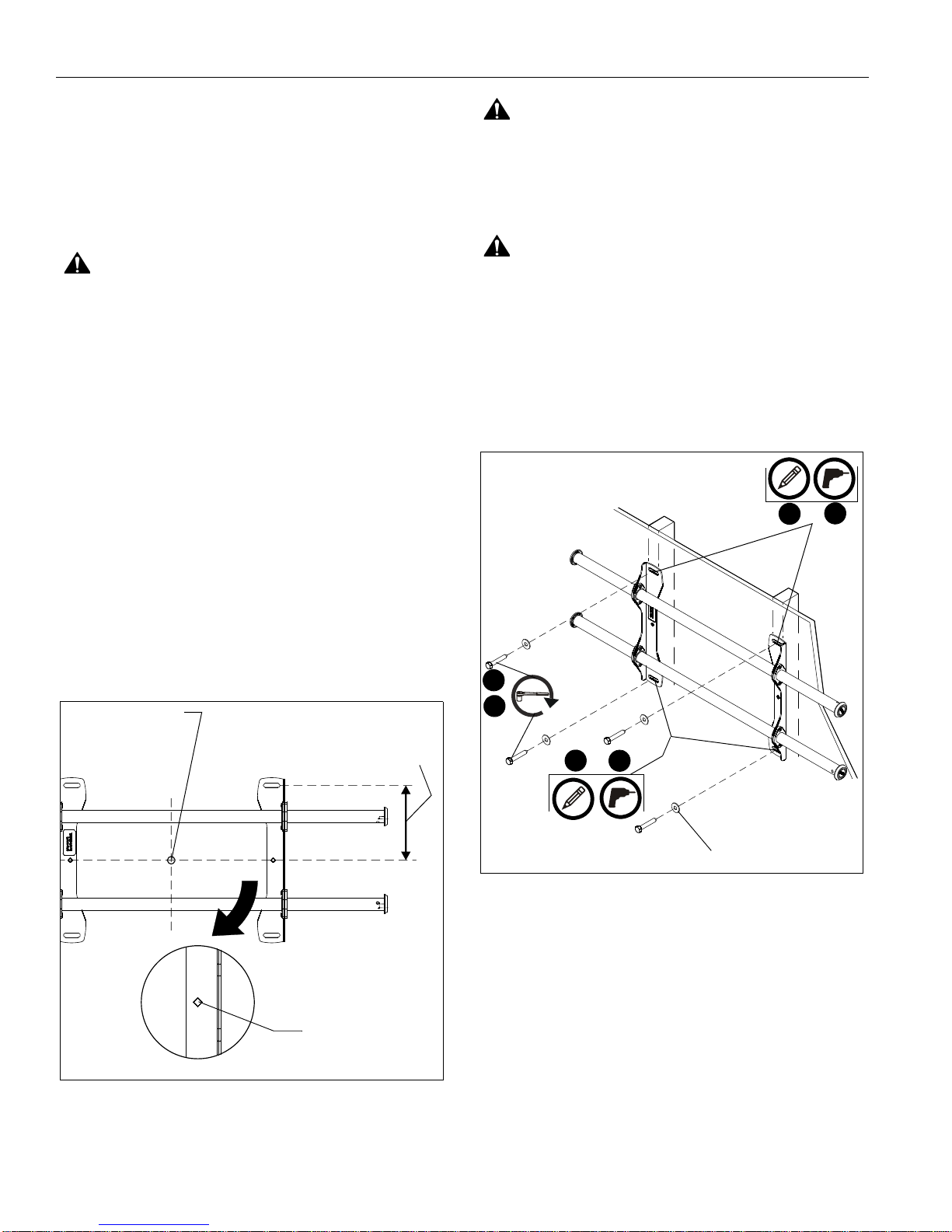

Figure 1

5. Using a level, mark the wall on each stud to attach the

mount through the upper mounting slots. (See Figure 2)

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING

OR DRILLING INTO ELECTRICAL CORDS OR CABLES

CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!

ALWAYS make certain area behind mounting surface is free

of electrical wires and cables before drilling or installing

fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING

OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH

OR SERIOUS PERSONAL INJURY! ALWAYS make certain

area behind mounting surface is free of gas, water, waste, or

any other plumbing before cutting, drilling, or installing

fasteners.

6. Drill one 7/32" (5.5mm) pilot hole in each stud.

7. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach top of mount to wall. (See Figure 2)

Figure 2

8. Mark the attachment points for the lower mounting slots,

making sure the attachment points are located on the studs.

(See Figure 2)

9. Drill 7/32" (5.5mm) pilot holes at markings for lower

mounting holes. (See Figure 2)

10. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach the mount to the wall through the

lower mounting holes. (See Figure 2)

11. Slide rails to approximate center of screen location.

Installing to a Concrete Wall

1. Determine the center of the TV screen, and where it should

be located on the wall.

Center of screen

Vertical center

of mount

(152.4mm)

(QB) x 4

(QC) x 4

Installation Instructions LSA/LTA Series

2. Line up the diamonds on mount with center of screen

marking to determine vertical center. (See Figure 1)

3. Measure up 6" (152.4mm) from the center point to mark

location of the upper mounting slots. (See Figure 1)

4. Using a level, mark the wall through both upper mounting

slots. (See Figure 3)

CAUTION: MINIMUM HORIZONTAL DISTANCE

BETWEEN WALL BRACKETS IS 12" (304.8mm). Do not

place mounting brackets closer together than 12" (304.8mm).

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING

OR DRILLING INTO ELECTRICAL CORDS OR CABLES

CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!

ALWAYS make certain area behind mounting surface is free

of electrical wires and cables before drilling or installing

fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING

OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH

OR SERIOUS PERSONAL INJURY! ALWAYS make certain

area behind mounting surface is free of gas, water, waste, or

any other plumbing before cutting, drilling, or installing

fasteners.

Figure 3

5. Drill one 5/16" (7.9mm) pilot hole at each marking.

6. Install an anchor (QA) into each pilot hole using a hammer.

7. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach top of mount to anchors in wall.

8. Mark the attachment points for the lower mounting slots.

(See Figure 3)

9. Drill one 5/16" (7.9mm) pilot hole at each marking for lower

mounting holes. (See Figure 3)

10. Install an anchor (QA) into each pilot hole using a hammer.

11. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach the mount to the wall through the

lower mounting holes. (See Figure 3)

12. Slide rails to approximate center of screen location.

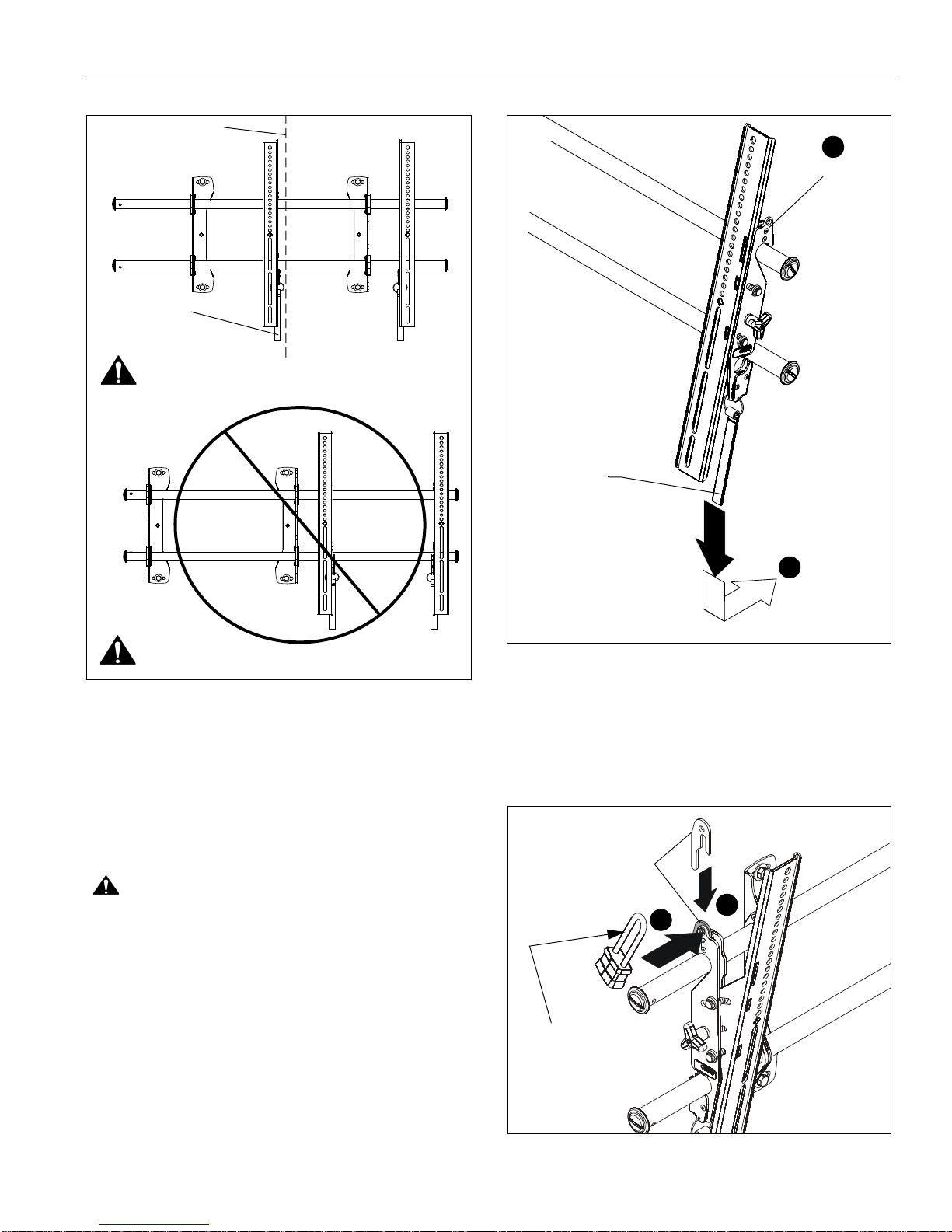

Attaching Interface Brackets to TV

1. Align the center of the bracket with center of screen.

(See Figure 4)

NOTE: The diamond-shape hole in the bracket corresponds to

the center of the mount.

Figure 4

WARNING: IMPROPER INSTALLATION CAN LEAD TO

DISPLAY FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! Using screws of

improper size may damage your display. Properly sized

screws will easily and completely thread into display

mounting holes. If spacers are required, be sure to use longer

screws of the same diameter.

2. Select correct screws, spacers (if necessary) and universal

washers from the hardware bag (A-N) and attach brackets

to back of screen. (See Figure 4)

(QA) x 4

711

(QC) x 4 (QB) x 4

Center of bracket

Pull strap

LSA/LTA Series Installation Instructions

Switching Interface Brackets (Optional)

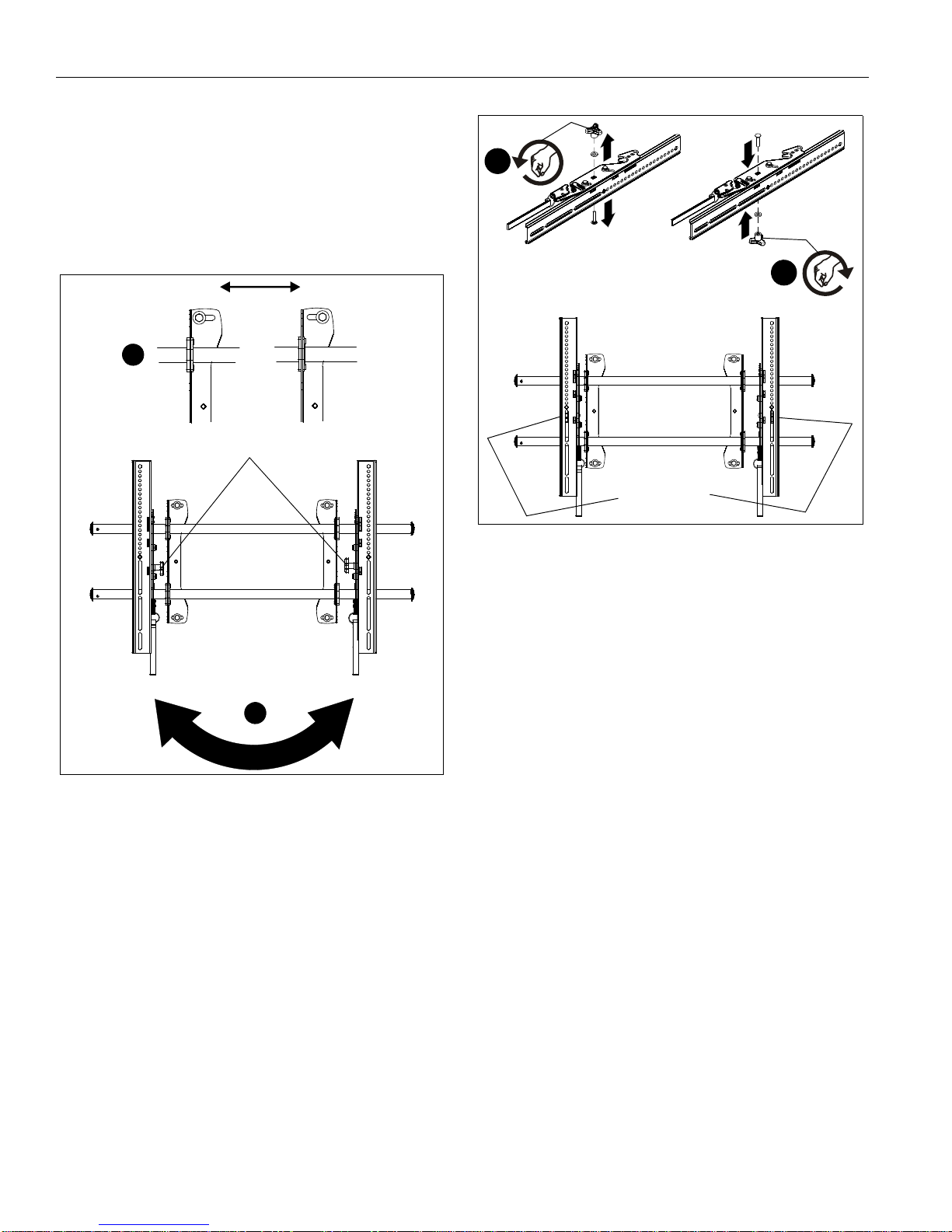

If an installation situation makes adjusting the location of

interface brackets necessary, there are several options.

1. The wall brackets may be adjusted side to side at the point

of attachment. (See Figure 5)

2. The location of the left and right interface brackets may be

switched, with the knobs on the LTA interface brackets

facing the inside of the mount. (See Figure 5)

Figure 5

3. If necessary, the tilt interface bracket knobs may be

switched to allow the interface brackets to be reversed.

(See Figure 6)

a. Remove display from mount.

b. Remove interface brackets from display.

c. Hold the right interface bracket horizontally, tightly

gripping it so that spacers do not move.

d. Remove the knob, washer and screw.

e. Replace the knob, washer and screw in the opposite

order, with the knob on the inside of the bracket.

f. Switch the right interface bracket to the left side of the

wall mount.

g. Repeat Steps 3c through 3f with the left interface

bracket.

Figure 6

Attaching Screen to Wall Mount

1. Adjust Velcro® pull strap (if necessary) so it does not extend

beyond bottom of screen. (See Figure 7)

NOTE: Do NOT allow both interface brackets to be located on

same side of wall bracket. (See Figure 7)

NOTE: NEVER place both interface brackets to one side of the

wall mount center line! (See Figure 7)

Knobs

Knobs to outside

of brackets

Installation Instructions LSA/LTA Series

Figure 7

2. Hang top hook of interface brackets onto the top bar of the

mount. (See Figure 8)

NOTE: The screen initially installs into the "kickstand mode" to

allow easy cable access.

3. Slide screen and bars to desired viewing position.

4. Route cables between wall and bars.

CAUTION: PINCH POINTS! Keep fingers, hands and

cables out of pinch point areas.

5. Pull downward on the pullstraps and swing inward toward

wall, latching interface brackets to lower bar and locking

bottom of screen to the mount. (See Figure 8)

Figure 8

Locking Mount (Optional)

1. Add optional security bracket (S or T) to the mount. (See

Figure 9)

2. Add padlock (not included) to complete security.

Figure 9

Both interface brackets must NEVER be located

to one side of the wall brackets!

Pullstrap

NEVER place both interface brackets to one

side of the wall mount center line (CL)!

Center Line (CL)

(Screen not shown for clarity)

Top

Hook

Pullstrap

(S)

(LTA Shown)

Padlock shackle diameter:

- Min: 1/4" (6.3mm)

- Max: 5/16" (7.9mm)

LSA/LTA Series Installation Instructions

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF Truss/Pole Static Mount TPS-2000 Series Bedienungsanleitung

CHIEF

CHIEF Thinstall TASMS Bedienungsanleitung

CHIEF

CHIEF RPA287 Bedienungsanleitung

CHIEF

CHIEF MSP-DARAC1B Bedienungsanleitung

CHIEF

CHIEF FWD-111 Bedienungsanleitung

CHIEF

CHIEF F-Series Steel Stud FSA1018 Bedienungsanleitung

CHIEF

CHIEF SSB-104 Bedienungsanleitung

CHIEF

CHIEF MSP-SPCM Bedienungsanleitung

CHIEF

CHIEF WM-100 Bedienungsanleitung

CHIEF

CHIEF FCC100 Bedienungsanleitung

CHIEF

CHIEF PXR Bedienungsanleitung

CHIEF

CHIEF Kontour K4W210 Bedienungsanleitung

CHIEF

CHIEF MWC Series Bedienungsanleitung

CHIEF

CHIEF Small Flat Panel In-Wall Swing Arm Mount FWDIW-I... Bedienungsanleitung

CHIEF

CHIEF MCB1U Bedienungsanleitung

CHIEF

CHIEF Video Wall Mount PDVW MFS 46 55 P Bedienungsanleitung

CHIEF

CHIEF XVAU Bedienungsanleitung

CHIEF

CHIEF MSP-WTIKTA220 Service-Handbuch

CHIEF

CHIEF PACCC2 Bedienungsanleitung

CHIEF

CHIEF PACCC1 Bedienungsanleitung

CHIEF

CHIEF WM210S Bedienungsanleitung

CHIEF

CHIEF PST 2000 Series Bedienungsanleitung

CHIEF

CHIEF SSB-265 Bedienungsanleitung

CHIEF

CHIEF FSM SERIES Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
