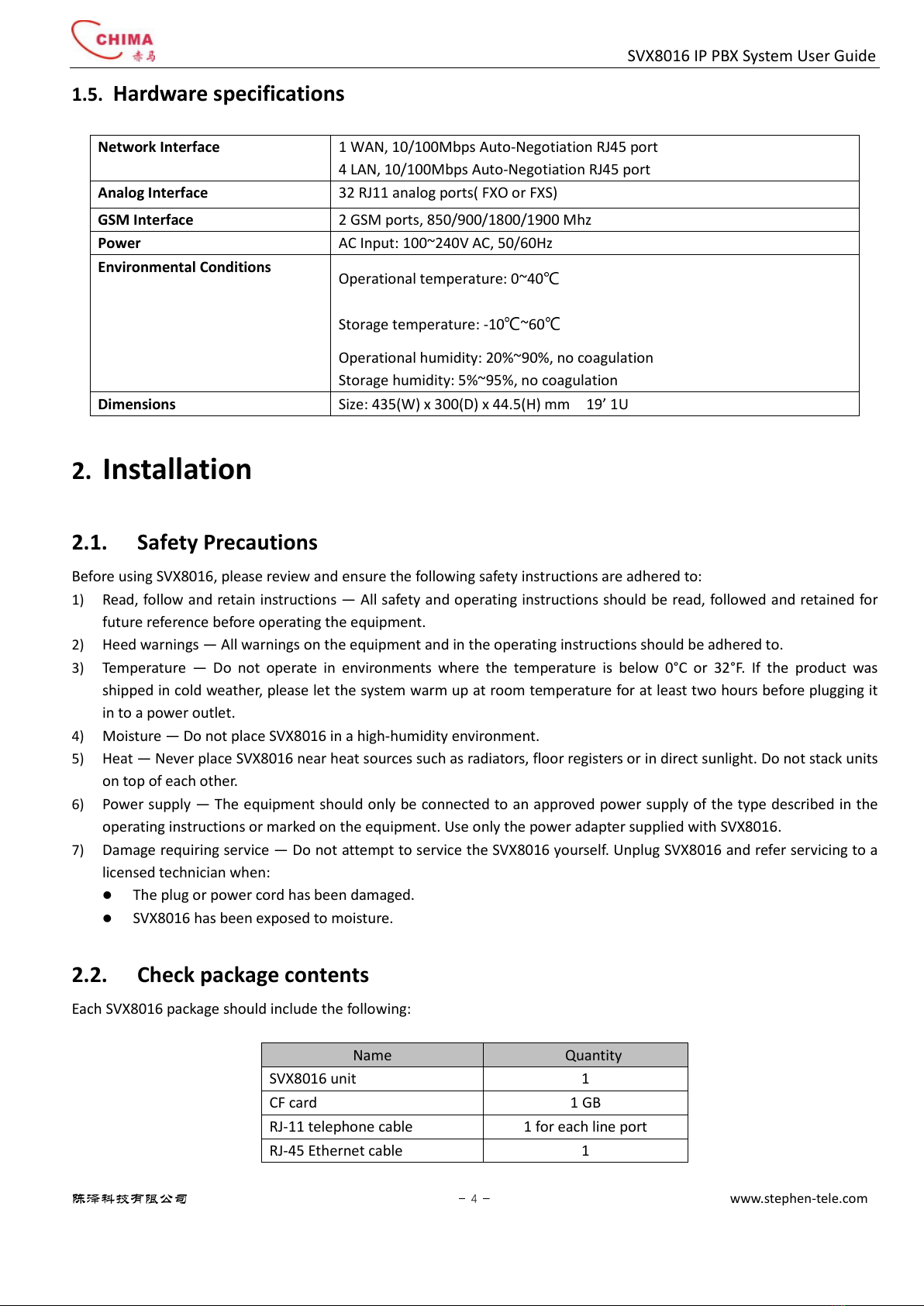

1.5.
Hardware specifications
Network Interface 1 WAN, 10/100 bps Auto-Negotiation RJ45 port
4 LAN, 10/100 bps Auto-Negotiation RJ45 port
nalog Interface 32 RJ11 analog ports( FXO or FXS)
GSM Interface 2 GS ports, 850/900/1800/1900 hz
Power AC Input: 100~240V AC, 50/60Hz
Environmental Conditions Operational temperature: 0~40
℃
Storage temperature: -10
℃
~60
℃
Operational humidity: 20%~90%, no coagulation
Storage humidity: 5%~95%, no coagulation
Dimensions Size: 435(W) x 300(D) x 44.5(H) mm 19’ 1U
2. Installation
2.1. Safety Precautions
Before using SVX8016, please review and ensure the following safety instructions are adhered to:
1)
Read, follow and retain instructions — All safety and operating instructions should be read, followed and retained for
future reference before operating the equipment.
2)
Heed warnings — All warnings on the equipment and in the operating instructions should be adhered to.
3)
Temperature — Do not operate in environments where the temperature is below 0°C or 32°F. If the product was
shipped in cold weather, please let the system warm up at room temperature for at least two hours before plugging it
in to a power outlet.
4)
oisture — Do not place SVX8016 in a high-humidity environment.
5)
Heat — Never place SVX8016 near heat sources such as radiators, floor registers or in direct sunlight. Do not stack units
on top of each other.
6)
Power supply — The equipment should only be connected to an approved power supply of the type described in the
operating instructions or marked on the equipment. Use only the power adapter supplied with SVX8016.
7)
Damage requiring service — Do not attempt to service the SVX8016 yourself. Unplug SVX8016 and refer servicing to a
licensed technician when:
The plug or power cord has been damaged.
SVX8016 has been exposed to moisture.
2.2. Check package contents
Each SVX8016 package should include the following:
Name Quantity
SVX8016 unit 1
CF card 1 GB
RJ-11 telephone cable 1 for each line port
RJ-45 Ethernet cable 1
