ChinaPST PST-VT104 Bedienungsanleitung

GSM/GPRS/GPS PORTABLE

PST-VT104 VEHICLE TRACKER

USER MANUAL

Preface

Thank you for purchasing the tracker. This manual shows how to operate the

device smoothly and correctly. Make sure to read this manual carefully before

using this product. Please note that specification and information are subject to

changes without prior notice in this manual.

Any change will be integrated in the latest release. The manufacturer assumes

no responsibility for any errors or omissions in this document.

Contents

1. Introduction.............................................................................................................................................3

2. Applications............................................................................................................................................3

3. Hardware Description.............................................................................................................................3

4. Accessories.............................................................................................................................................5

5. Specs.......................................................................................................................................................5

6. Installation and operation........................................................................................................................6

6.1. Production installation....................................................................................................................6

6.2. INT & EXT switch..........................................................................................................................7

6.3. SIM card installation.......................................................................................................................7

6.4. Battery Charging.............................................................................................................................8

6.5. LED indicator status .......................................................................................................................8

6.6. Initialization....................................................................................................................................9

6.7. Change Password............................................................................................................................9

6.8. Add and DeleteAuthorization.........................................................................................................9

6.9. Single Locating...............................................................................................................................9

6.10. Auto track continuously................................................................................................................10

6.10.1. Track with limited times upon time interval.........................................................................10

6.10.2. Track with unlimited times upon time interval.....................................................................10

6.10.3. Smart track upon time and distance interval:........................................................................10

6.11. Automatic update positions of vehicle turns.................................................................................11

6.12. GPS drift suppression ...................................................................................................................11

6.13. Exact street address.......................................................................................................................11

6.14. Location based service (LBS) / Cell-ID Locating.........................................................................11

6.15. Monitor (Voice Surveillance)........................................................................................................12

6.16. Data logging..................................................................................................................................12

6.17. Data Load......................................................................................................................................12

6.18. Forward the third parties’ message ...............................................................................................13

6.19. SIM card Balance Inquiry.............................................................................................................13

6.20. Cut off the Oil and Power System.................................................................................................13

6.21. Decide how many times of alarm message...................................................................................14

6.22. Alarms...........................................................................................................................................14

6.22.1. Low battery alarm.................................................................................................................14

6.22.2. Power off alarm.....................................................................................................................14

6.22.3. GPS blind Spot alert..............................................................................................................14

6.22.4. SOS.......................................................................................................................................14

6.22.5. Geo-fence..............................................................................................................................15

6.22.6. Multi-area management ........................................................................................................15

6.22.7. Movement alarm...................................................................................................................15

6.22.8. Over speed alarm ..................................................................................................................16

6.22.9. Built in Shock SensorAlarm.................................................................................................16

6.23. Sleep Mode...................................................................................................................................16

6.23.1. Sleep by time.........................................................................................................................18

6.23.2. Sleep by shock ......................................................................................................................18

6.23.3. Deep Sleep by Shock............................................................................................................18

6.23.4. Awake according to schedule................................................................................................19

6.23.5. No sleep mode.......................................................................................................................19

6.24. Check the Vehicle State.................................................................................................................19

6.25. Check IMEI...................................................................................................................................19

6.26. Terminal (local) Time Setting.......................................................................................................20

6.27. Reset Hardware.............................................................................................................................20

6.28. Configure parameters by USB......................................................................................................20

6.29. GPRS configuration......................................................................................................................20

6.30. Less GPRS traffic .........................................................................................................................21

6.31. Set up monitor center number.......................................................................................................21

6.32. Instructions for web platform and mobile APP...........................................................................223

7. Cautions..............................................................................................................................................278

8. Faults & the Solutions.........................................................................................................................278

1. Introduction

1.1. This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning

system, which set multiple functions of security, positioning, monitoring surveillance, emergency

alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

1.2. Main Features

1.2.1. Waterproof shell

1.2.2. Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12

months in deep sleep mode.

1.2.3. Powerful magnets to absorb to vehicle firmly.

1.2.4. Real-time tracking, retrieve of lost vehicles, cargo.

1.2.5. Movement alarm, Geo-fence alarm, Shock alarm, remote monitoring.

1.2.6. Support map viewing on mobile phone screen, get exact address by SMS, GPRS real

time tracking on web based server.

1.2.7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without

installation, convenient and quick.

1.2.8. Support for external GSM antenna & GPS antenna, and external power supply for the

tracker to be installed on the device which can provide power for long-term using.

2. Applications

Application: Locating and tracking service for cars, trucks, container trucks,

special vehicles, cargo and criminal investigation officer.

3. Hardware Description

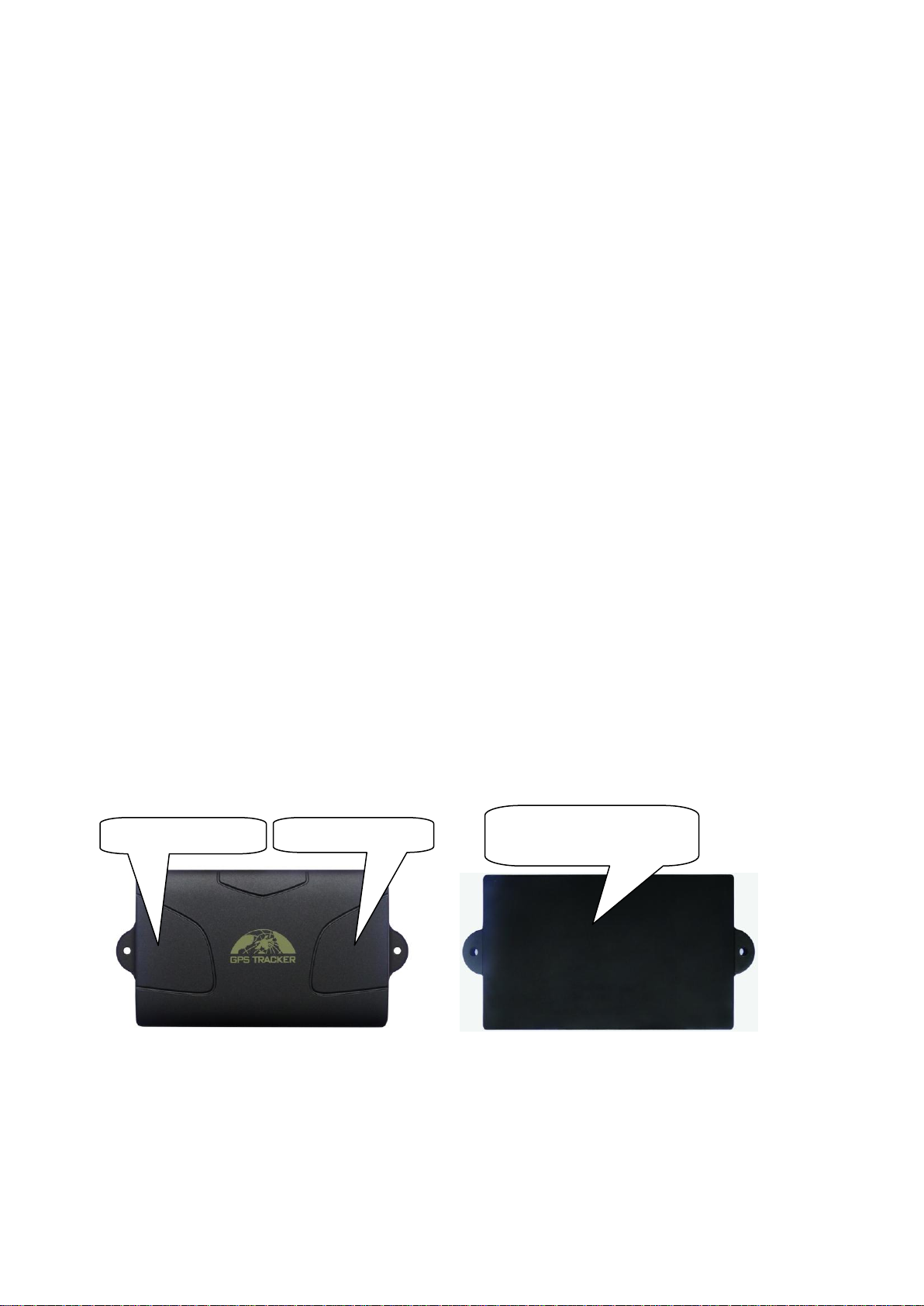

3.1 Front face 3.2 Rear face

Built-in GSMANT

Built-in GPS ANT

Built-in powerful magnet

& large Battery

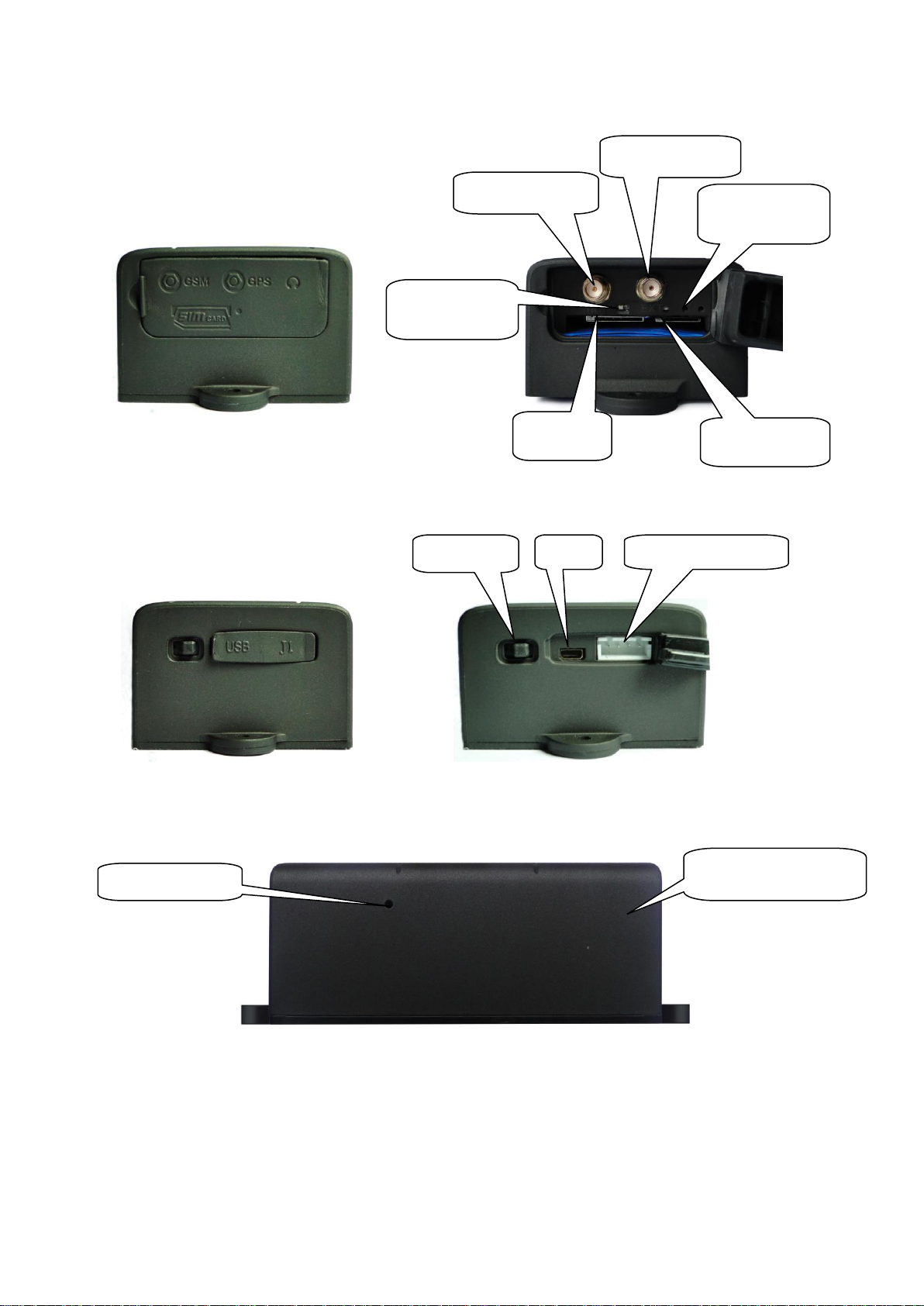

3.3 Side face

3.4 Side face

3.5 Side face

LED indicator

EXT. GPS ANT

EXT. GSM ANT

SIM Slot

EXT. Power, Relay

USB

ON/OFF

Built in shock sensor

Built-in Mic

MicroSD Slot

INT & EXT

antenna switch

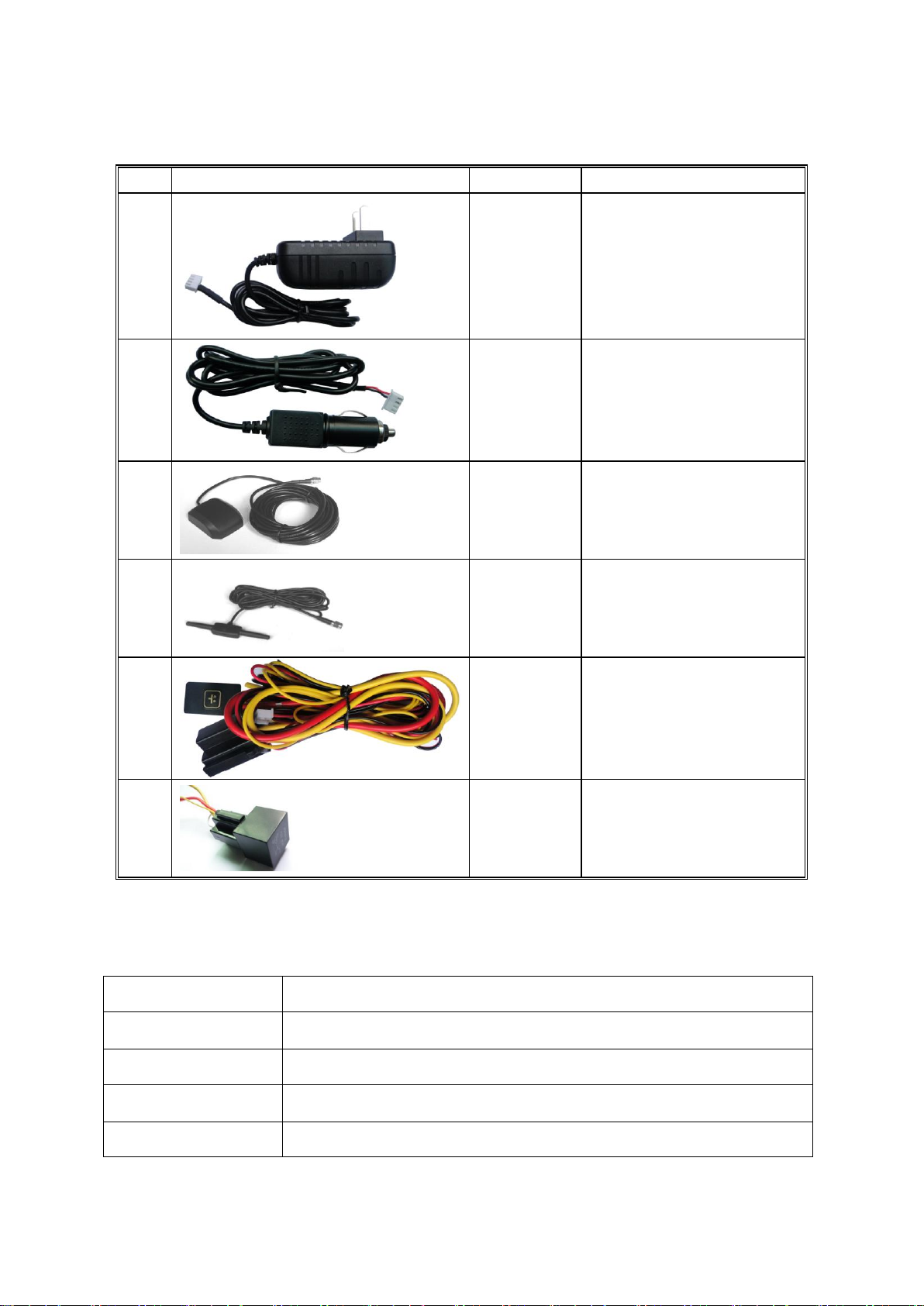

4. Accessories

No.

Pictures

Name

Specs

AC Adapter

Input: AC 110-220V，

Output DC: 1.5A，12V

Lighter car

adapter

Car 12V OR 24V power

GPS

Antenna

2 meters

GSM

Antenna

2 meters

Harness

4PIN

Relay

12V/40A OR 24V/40A

depends on the vehicle type

5. Specs

Content

specifications

DIM.

94mm*60mm*38mm

Weight

300g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS sensitivity

-159dBm

GPS Accuracy

GPS Start time

Cold status

45s

Hot status

EXT. power

DC 12 V -24V

Operating Current

Sleep Current

1.8mA

Deep sleep

0.6mA

GSM operating Current

68mA±3mA

GPRS Current(data transfer)

82mA±10mA

Battery

3.7V 6000mA/h Polymer battery

Charge current

1A±0.2A

Charge time

Standby time

Sleep

4 months

Deep sleep

12 months

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing

6. Installation and operation

6.1. Production installation

6.1.1. The product is easy to install. The built-in powerful magnet can make it to be directly

adsorbed on the iron objects.

6.1.2. Built-in GPS and GSM antenna, external antenna can be optional.

6.1.3. The tracker is waterproof, but please still avoids the long-term placement in the places of

water infiltration.

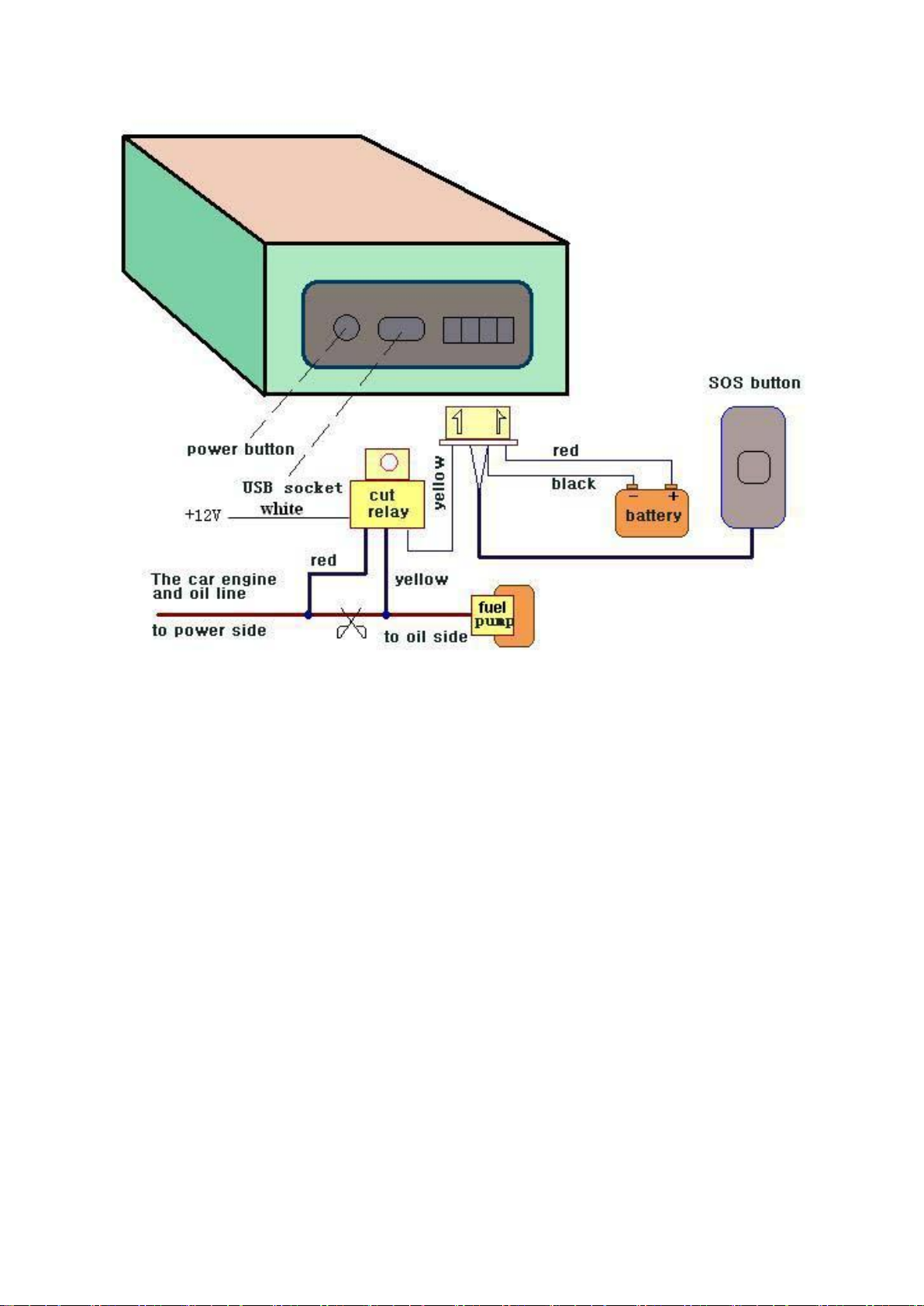

6.1.4. If you need an external power supply, cut oil & power system and SOS feature, please

find 4PIN main wire, wiring diagram as follows:

Note: Please install SOS button on the hidden place driver can touch.

6.2. INT & EXT switch

Switch to INT to change to use internal antenna; switch to EXT to change to use

external antenna

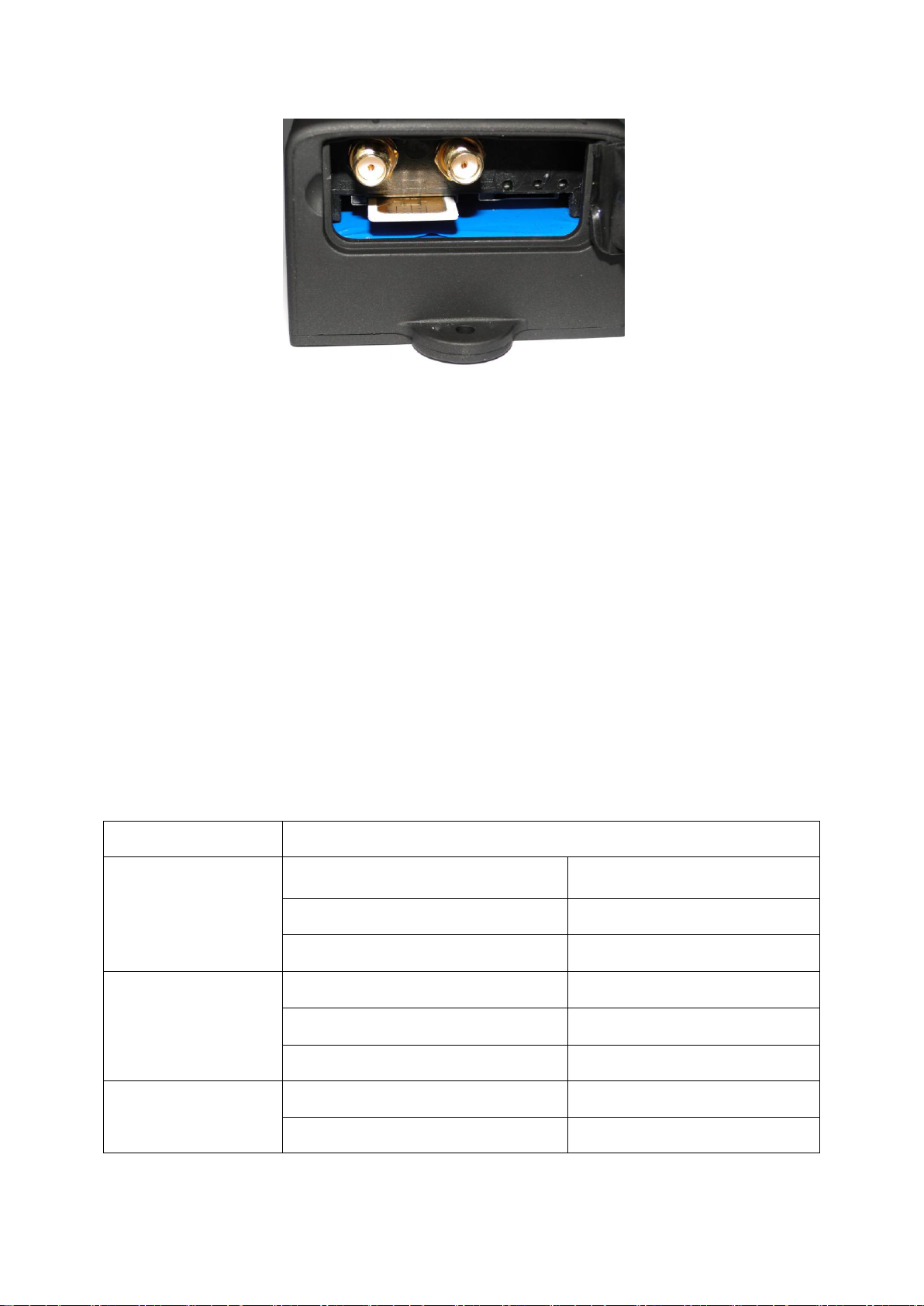

6.3. SIM card installation

Open the waterproof sealant and insert SIM card as following picture shows, push it to

the end to install SIM card correctly. The SIM card will pop up if press it after installed.

Please make sure that the SIM card is GSM network and able to execute the function of

incoming calls display, no calls can be diverted and the PIN code is locked. The SMS

format must be TXT format, and can’t recognize the PDU format.

6.4. Battery Charging

Please fully charge the product for the first use and charge as following:

Home charge: Find the AC adapter from the accessories and connect 4-PIN plug into 4-PIN

socket, and then connect the other end to mains supply.

Car charge: Find the car lighter charger from the accessories and connect to car cigarette

lighter.

Note: Red LED ON means being charged, and LED OFF means fully charged, and then

charging can be stopped. If the battery can’t be fully charged once, then unplug the charger

for about 10 minutes and then charge it one more time.

6.5. LED indicator status

Indicator

Status

Power LED (Red)

Flash quickly

Low battery

Charging

OFF

Charged

GSM LED (Green)

No GSM Network

Flash quickly, 1 second/ flash

GSM mode

Flash slowly, 3 seconds/flash

GPRS mode

GPS LED (Blue)

OFF

Lost fix to satellites

Flash quickly, 1 second/ flash

Fix to satellites

6.6. Initialization

Send SMS "begin+password" to tracker, it will reply "begin ok" and return to the

default factory settings. (Default password is: 123456). For example: Send SMS

"begin123456" to tracker, it will reply "begin ok".

6.7. Change Password

6.7.1. Send SMS "password+old password+space+new password" to the tracker to

change the password. For example: Send SMS "password123456 888888" to

tracker, it will reply “password OK”, it means the password has changed

successfully. And please keep the new password in mind.

6.7.2. Note: The new password must be 6 digits Arabic numbers, or the tracker can't

recognize.

6.7.3. When reading this user manual, you will notice that we have used "+" and "space"

between some words;"+" between two words means they should be written together as

one word and "space" between two words means you should leave one character space

between two words.

6.8. Add and Delete Authorization

6.8.1. You must setup the authorized phone number before using SOS, geo-fence alarm, etc. Up

to 5 numbers can be authorized.

6.8.2. Call the tracker for 10 times continuously and get its position, then it will save the cell

phone number as the authorized number automatically. and reply “add master ok”.

6.8.3. Authorization: Send SMS “admin+password+space+cell phone number” to set up an

authorized number, the other authorized numbers should be set by the first authorized

number, if the number is successfully authorized, the unit will reply “ admin OK” by

SMS.

6.8.4. Delete authorization: Send SMS “noadmin+password+space+authorized number” to

delete the authorized number.

6.8.5. If you want to track the target when it enters into another country, you must add the

country code before the cell phone number. You should authorize your number in

international format as follows: “admin123456 008613322221111” to tracker to set

13322221111 as an authorized number.

6.9. Single Locating

6.9.1. If there aren’t any authorized number set-up, it will reply all calls with a location

report; if there are authorized numbers set-up, then it will not respond when an

Inhaltsverzeichnis

Andere ChinaPST GPS Handbücher

ChinaPST

ChinaPST G01 Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
