CIARRA CAS52913E Bedienungsanleitung
Model Number:
CAS52913E
CAB52913E
www.ciarraappliances.com
Dear customer:
Thank you so much for your purchase, please
read this instruction manual carefully before
installation & use.
If you have any question, please contact us at:
E-mail: [email protected]
1
2
CONTENTS
Safety------------------------------------------- 3-4
Specifications--------------------------------------5
Before Using the Range Hood----------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-12
Install the Hood-------------------------------------------8-11
Carbon Filter Installation------------------------------------12
Operation----------------------------------------- 13
Cleaning and Maintenance --------------------14-16
Grease Filter------------------------------------------------14
Carbon Filter -----------------------------------------------14
Stainless Steel Cleaning ------------------------------------14
Painted Finish Cleaning-------------------------------------14
LED Replacement----------------------------------------15-16
Troubleshooting-----------------------------------17
Environmental Protection -------------------------18
Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
range hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean range hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3
Safety
!
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
! CAUTION
For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. off range hood.
Your hood motor has a thermal overload which will automatically
shut off the motor if it becomes overheated. The motor will restart
when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct
air outside — Do not exhaust air into spaces within walls or ceiling or
into attics, crawl space or garage.
When installing, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
Please read specification label on product for further information
and requirements.
4
Specifications
Voltage 110V-120V/60Hz
Power of Motor 1 x 200W
Power of lamps 2x 3W
Appliance Dimension 20.47*11.18*9.49(inch)
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
5
Before Using the Range Hood
CAUTION: Before proceeding to the installation, check If items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the range hood. It is the installer’s
responsibility to comply with installation clearances specified on
the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.

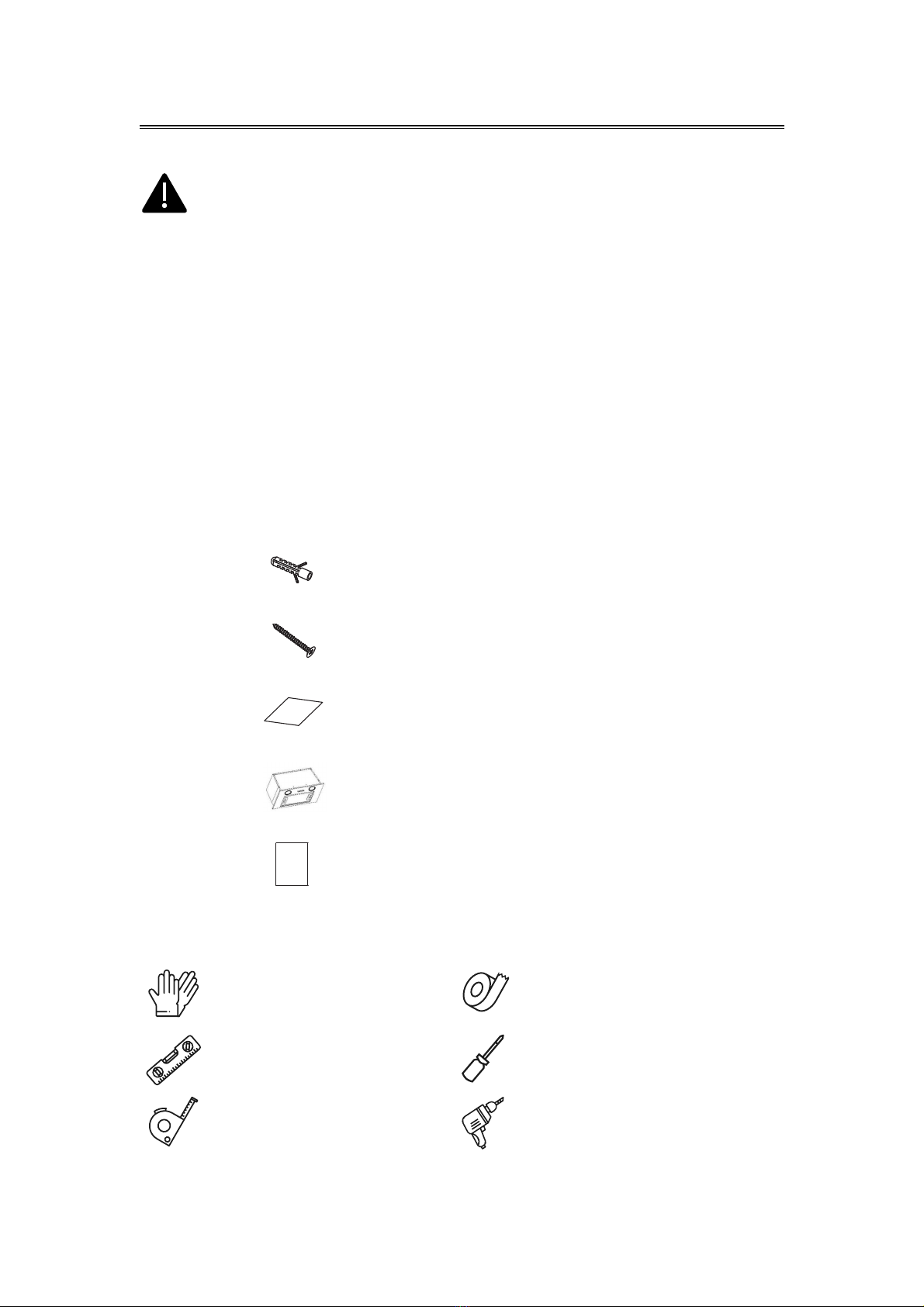

COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
Part 1: Wall Plug X 8
Part 2: 0.16"*0,79"Screws X 8
Part 3: Installtion Manual X 1
Part 5 1:1 Installation Diagram X 1
Part 4: Cooker Hood Body X 1
6
Prepare for Installation

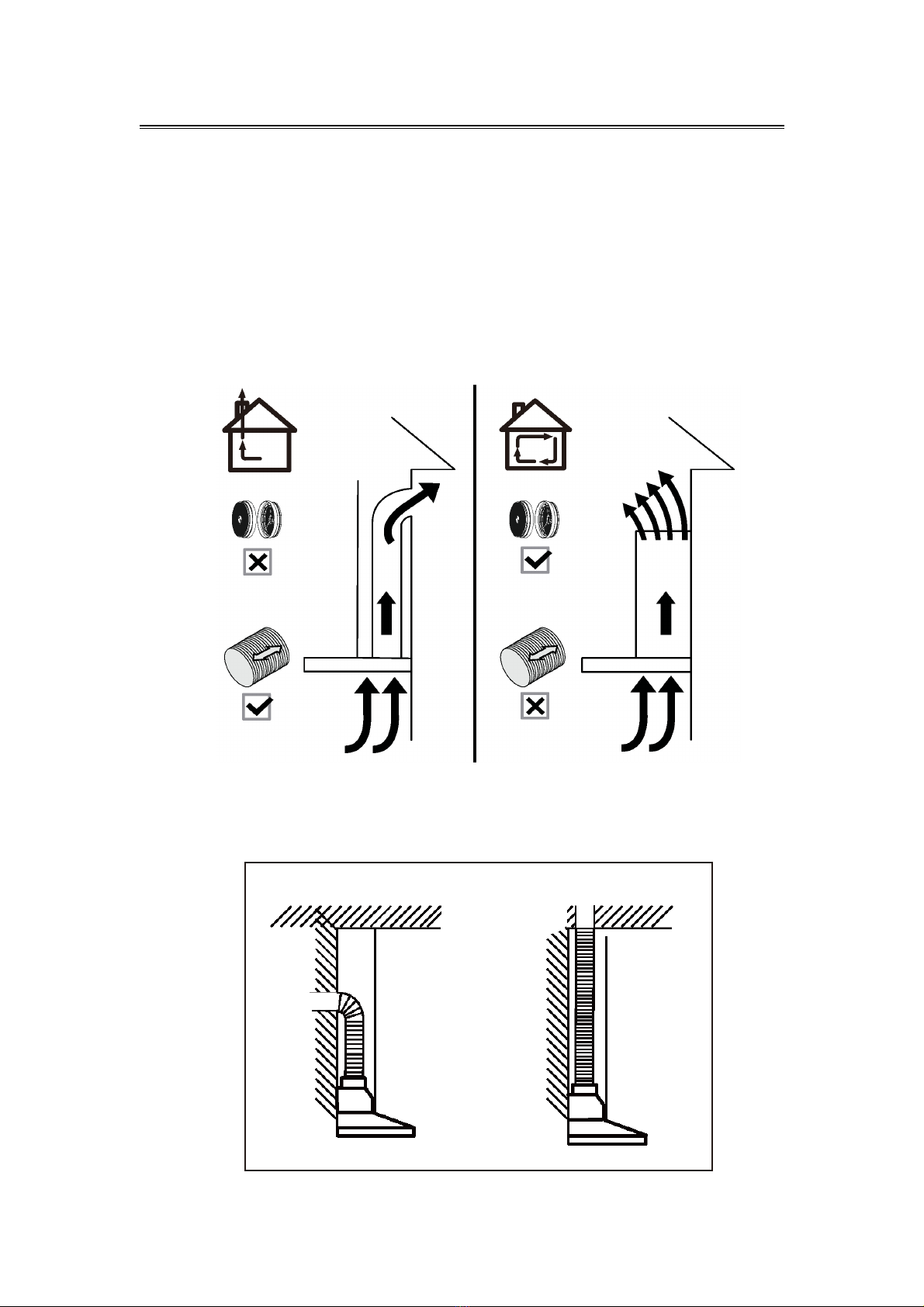

Prepare for Installation:
a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top vented
hole and the exhaust pipe is not required.
Extraction Mode: You can install the 59" long and 6" diameter
aluminum exhaust pipe for extracting, which is included in the
installation kit.
b) When possible, use at least 2 foot straight runs before any turns.
Larger duct work may be required for best performance with longer
duct runs.
c) Before installation, don't connect the power.
7
Installation
Install the Hood（Extraction）:
1) Remove all protective poly film from the hood and/or parts.
2) Recommend installation height: 25.6"~29.5" above the cooktop
for best extraction.
Required height over gas hob: 29.5";
Required height over electric hob: 25.6".
25.6"
29.5"
8
