CIARRA CBCB6736C Bedienungsanleitung
Model Number:
CBCB6736C CBCB6736D
www.ciarraappliances.com
EN
Dear customer:
Thank you so much for your purchase, please read this instruction
manual carefully before installation & use.
If you have any question, please contact us at:
E-mail: info@ciarraappliances.com
ENGLISH INSTALLATION AND USER'S MANUAL Page
3-23
DEUTSCH BENUTZERHANDBUCH&INSTALLATION
SANLEITUNG
Seite
24-46
FRANÇAIS
MANUEL DE L’UTILISATEUR ET
D’INSTALLATION
Page
47-69
1
EN
CONTENTS
Safety------------------------------------------- 3-4
Specifications--------------------------------------5
Before Using the Cooker Hood ---------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-17
Install the Hood-------------------------------------------8-16
Carbon Filter Installation------------------------------------17
Operation----------------------------------------- 18
Cleaning and Maintenance---------------------19-21
Grease Filter------------------------------------------------19
Carbon Filter -----------------------------------------------19
Stainless Steel Cleaning ------------------------------------19
Painted Finish Cleaning-------------------------------------19
LED Replacement---------------------------------------20-21
Troubleshooting-----------------------------------22
Environmental Protection -------------------------23
2
EN
Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. Ifyou have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug ordisconnect the
cooker hood from the power supply.
This appliance isnot intended for useby persons (including
children) with reduced physical, sensory ormental
capabilities, or lack of experience andknowledge, unless
they havebeen given supervision orinstruction concerning
use of the appliance bya person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3
EN
Safety
!
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
!CAUTION
For indoor useonly.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials andvapors.
To avoid motor bearing damage andnoisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. offcooker hood.
Yourhood motor has a thermal overload which will automatically
shut offthe motor ifitbecomes overheated. The motor will restart
when itcools down. Ifthe motor continues to shut offandrestart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire andto properly exhaust air, besure toduct
air outside — Do not exhaust airinto spaces within walls or ceiling or
into attics, crawl space orgarage.
When installing, servicing or cleaning the unit, itisrecommended to
wear safety glasses andgloves.
Please read specification label on product for further information
and requirements.
4
EN
Specifications
5
Voltage 220V-240V~ 50Hz
Power of Motor 1 x 70W
Power of lamps 2 x 1W
Appliance Dimension
595*320*675~1055mm(CBCB6736C)
595*330*675~1055mm(CBCB6736D)
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior notice.
CBCB6736C
CBCB6736D
EN
Before Using the Cooker Hood
CAUTION: Before proceeding to the installation, check If items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the cooker hood. It is the installer’s
responsibility to comply with installation clearances specified on
the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.
6
COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
Part 1 : Wall Plug X 9
Part 2 : 4*30mm Screws X 9
Part 3 : 4*8mm Screws X 6
Part 4 : Aluminum Exhaust Pipe X 1
Part 5 : Cable Ties X 2
Part 6 : Installation Manual X 1
Part 7 : 1:1 Installation Diagram X 1
Part 11 : Cooker Hood Body X 1
Part 12 : Lower Chimney X 1
Part 13 : Upper Chimney X 1
Part 14 : Carbon Filter X 2
Part 9 : Upper Chimney Bracket X 1
Part 10 : Wall Bracket X 1
Part 8 : Lower Chimney Bracket X 1
(CBCF002X2)
EN
Prepare for Installation
7
Prepare for Installation:
a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top
vented hole and the exhaust pipe is not required.
Extraction Mode: You can install the 1.5m long and 150mm
diameter aluminum exhaust pipe for extracting, which is included in
the installation kit.
b) When possible, use at least 60cm straight runs before any turns. Larger
duct work may be required for best performance with longer duct runs.
c) Before installation, don't connect the power.
EN
Installation

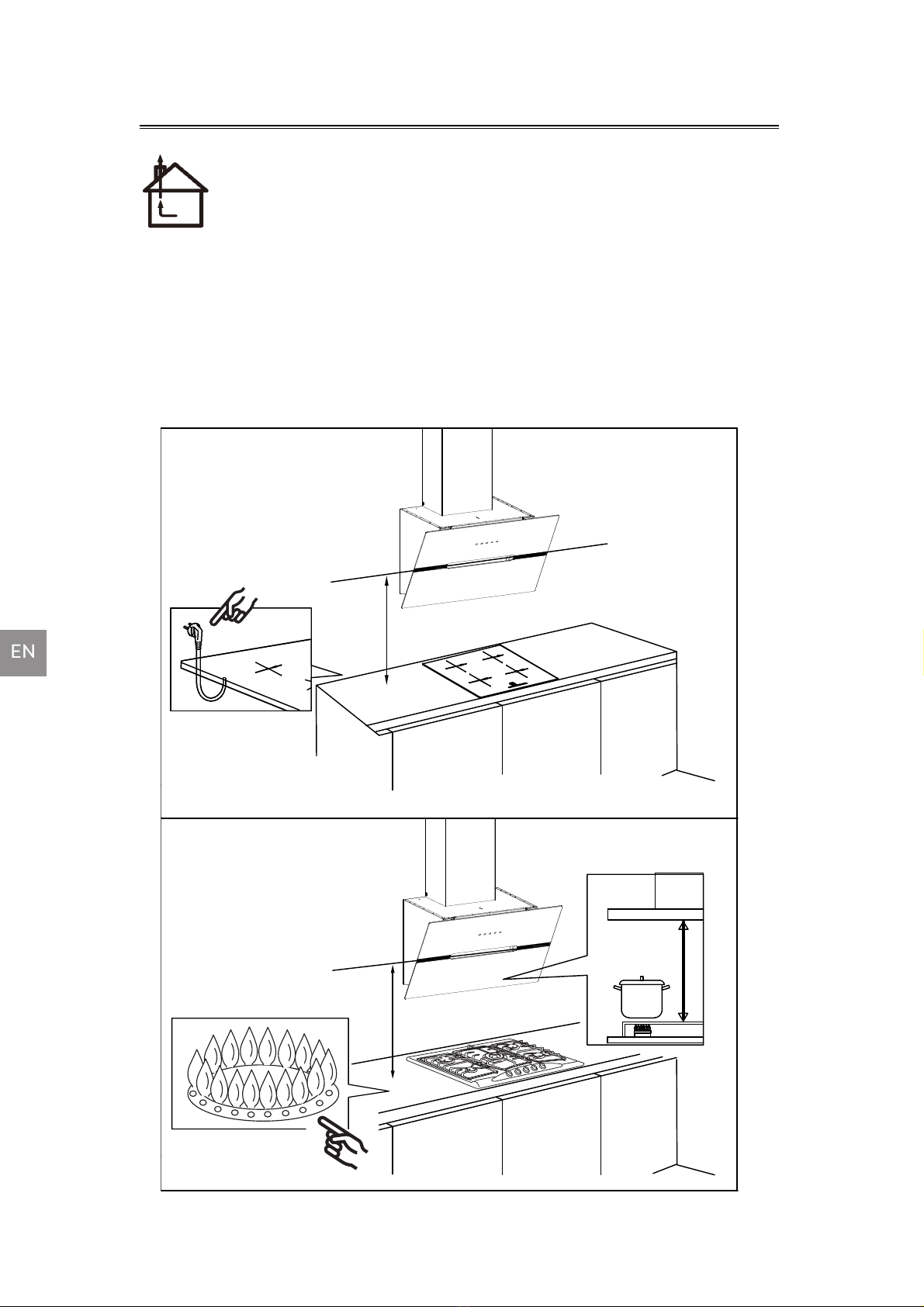

Install the Hood（Extraction）:
1) Remove all protective poly film from the hood and/or parts.
2) Recommend installation height: 65~75cm above the cooktop for
best extraction.
Required height over gas hob: 750mm;
Required height over electric hob: 650mm.
8
650mm
750mm
