CIK Telecom M2 Bedienungsanleitung

MESH Router Instruction for Senior Tech

==============================================

TECHNICAL SPECIFICATIONS

Wi-Fi 2.4G - 300 Mbps 5G - 867 Mbps

2.4G 2T x 2R (IEEE 802.11a/b/g/n)

5G 2T x 2R (IEEE 802.11a/n/ac)

ANTENNA High-performance WHEMS antenna

CPU 1GHz

WAN 1000Base-T Ethernet × 1

RAM 128 MB DDR2

LAN 1000Base-T Ethernet × 1

FLASH 1 Gb

AP Yes

MESH Yes

USB 2.0 Yes

POWER 12V / 1.5A

SIZE 100×100×125.5 mm

==============================================

1. Logon the MESH M2 Router remotely.

If need Local Logon, connection shall be: MESH/LAN port-LAN port/PC.

2. if need pair the Bee/Second MESH Router, click: My Wi-Fi-manage the Router.

3. add a node (Bee).

1). Click “ Add a node” .

2). Select add a “Bee“ or M2 Router.

3). Follow up the instruction by system till the Bee/wifi node has been added to M2 Router.

Need wait till the Light on Bee is Red Blinking( in beginning, after pressed “reset” button on Bee, the Light is”Red-Blinking -> Green Blinking-> Red-Blinking ->

Green Blinking…, if the light pattern like this, the Router won’t find the Bee/second MESH Router, tech can let cx reboot the Bee/ second MESH Router once,

but if the Light still be : Red-Green-Red Blinking, then hold the “Reset”for 40-60 seconds, then reboot the Bee/second MESH Router again, till the Light on Bell

is slow Red-Blinking , then click “Next”, system will find the Bee and added to Router.

After the Bee has been added to Router successfully, click” Back to home”, then we can find the Bee connecting to the Router.

As long as the Bee/second MESH Router is connected to Master MESH Router with good Internet connection, the Light on the Bee/second MESH Router is Solid

Green, Otherwise means the Bee/second MESH Router lost Internet connection when the Light Turned to Red.

4. Click: My Wi-Fi- Devices. review the DHCP Table for real time devices connection list. we can see all of the devices which connected to MESH by which band,

realtime speed and usage/total traffic, IP/MAC, Parental Control/Limit: set connection time, speed limit and website blacklist; block device/Add to Blacklist

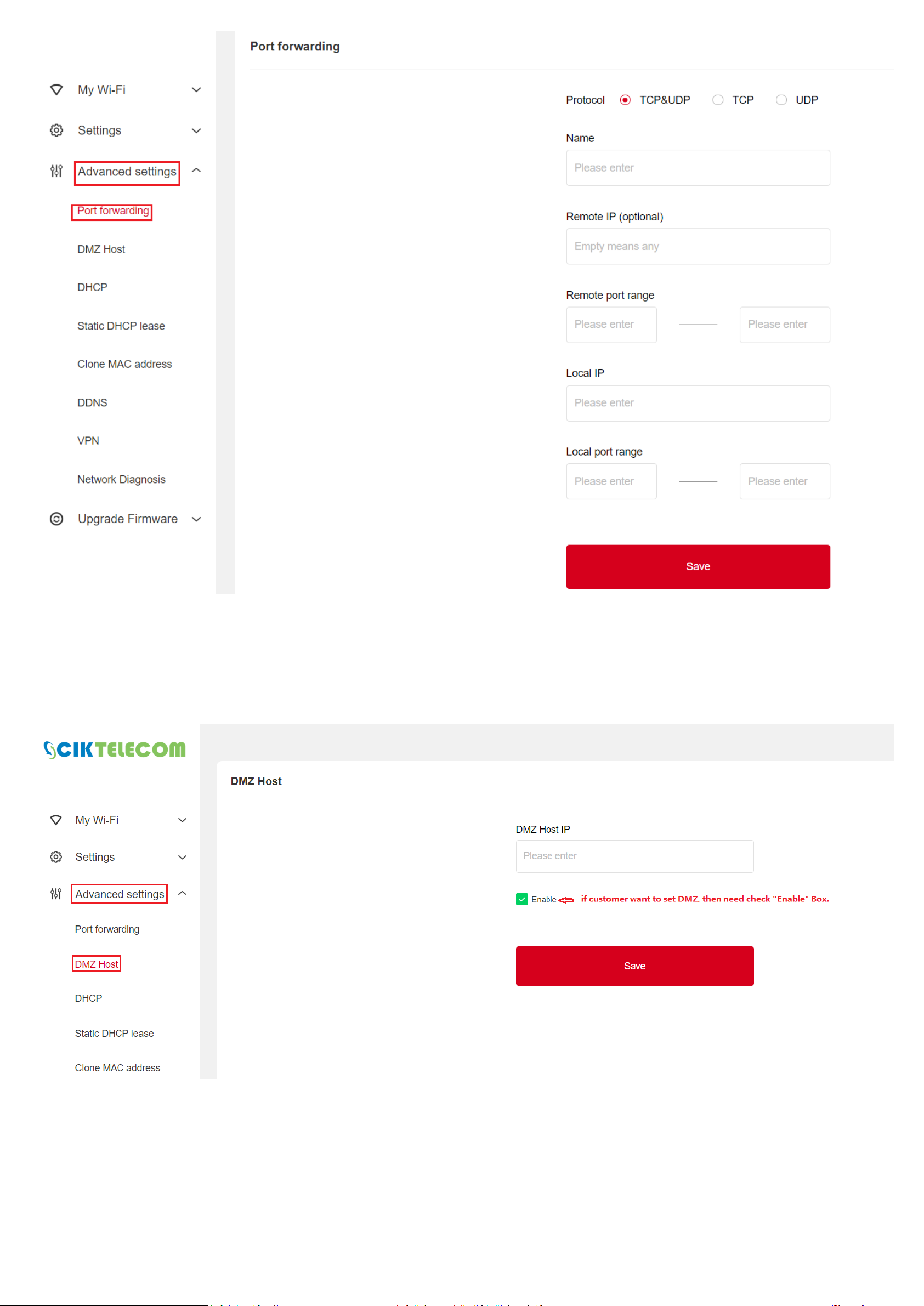

which you doesn’t want it connect to MESH.
