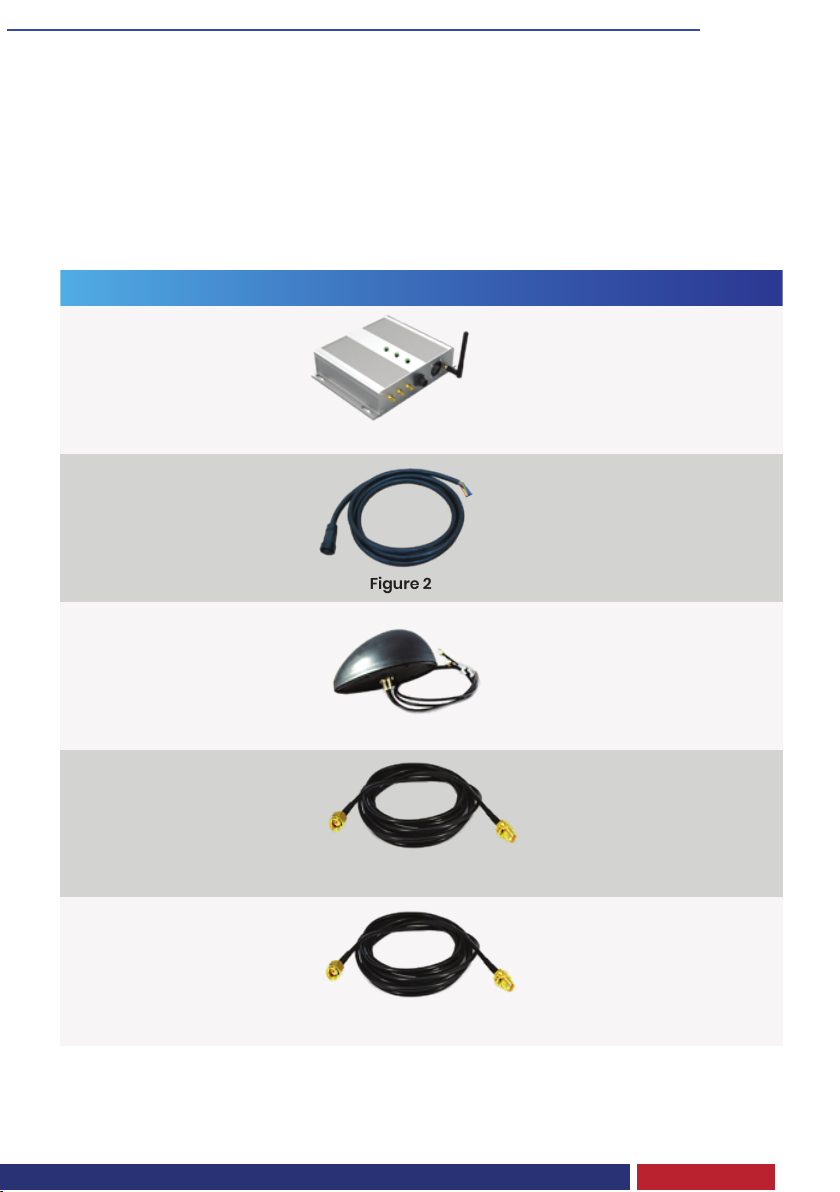

Device Installation
4. [OPTIONAL] Integrasi Automatic Identification System (AIS)
3.3. Position service activation by Superadmin
4.1. Connection AIS Data Cable to Armada Data Cable
4.2. AIS service activation by superadmin
Make sure LED connectivity (middle) lit static green, if not wait it to change
green and not blink.
If vessel already using AIS device, look about it’s specification and check the
output. Find the output cable of AIS device, then connect it to Armada data
cable
Make sure connectivity LED (midle) light static green, if not wait till it’s change to
static green.
* If you buy bundle with AIS Transceiver, we don’t need to connect to AIS devices
that installed on vessel. Just connect AIS device that bundle to Armada data
cable.
*If already green and stable, you can call Superadmin to activate the position
service
*After it’s change to green, you can contact Superadmin to activate position
services.
This process is in another document..
5
3.2. Power cable installation with power supply
Connect red (+) and black (-) cable to 12-24V DC power supplied by vessel, then
connect it to devices
*Power cable installation will make power LED lit to green colour
DC 12-24 V
From Source
DC 12-24 V
From Source
A
B
NMEA OUT +
NMEA OUT -
5. [OPSIONAL] Integrasi Armada Data Acquisition Unit (DAQ)
