Quick Start Guide

Cisco Small Business

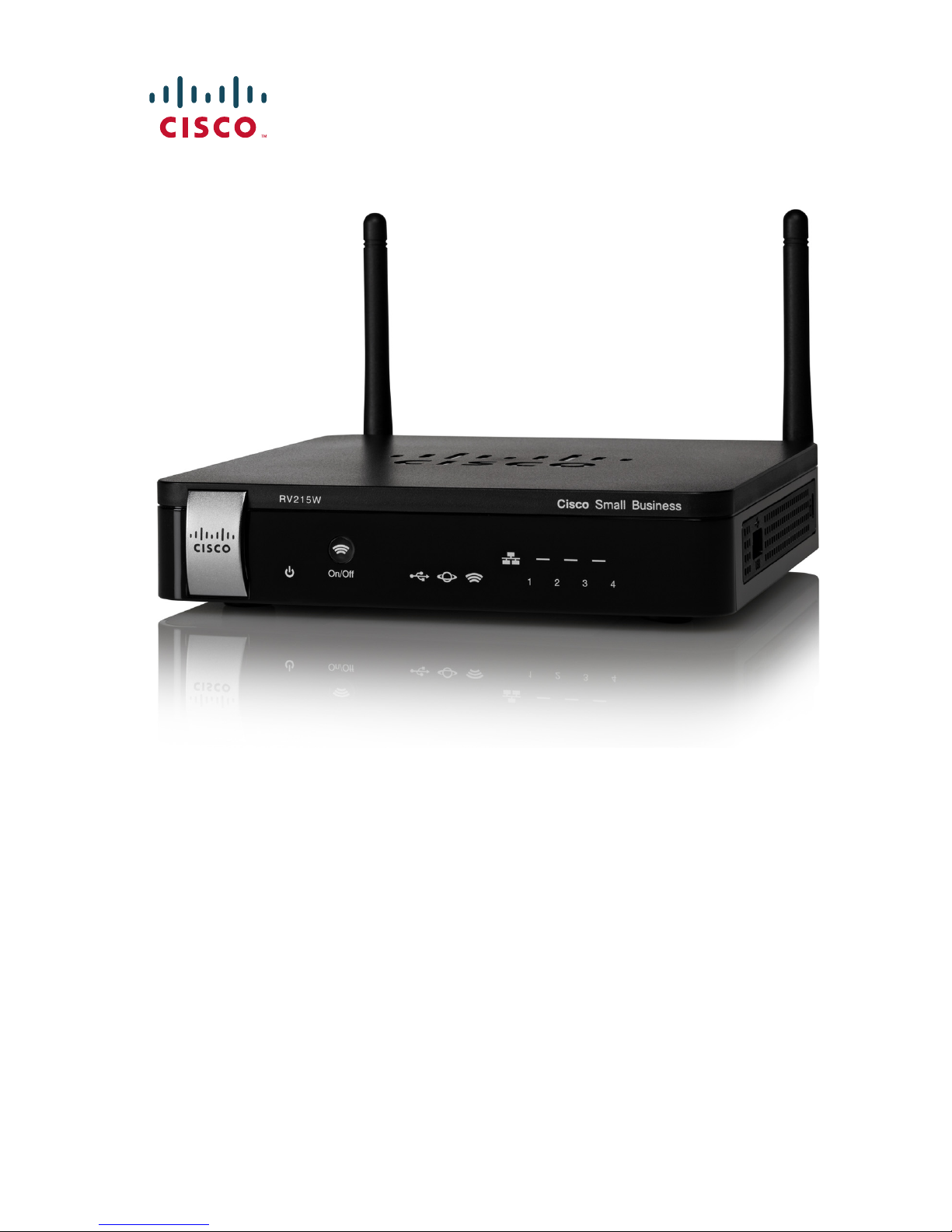

RV215W Wireless-N VPN Firewall

Package Contents

•Wireless-N VPN Firewall

•Ethernet Cable

•Power Adapter

•Quick Start Guide

•Documentation and software on CD-ROM

Version en français sur CD

2 Cisco RV215W Wireless-N VPN Firewall

Welcome

Thank you for choosing the Cisco Small Business RV215W Wireless-N

VPN Firewall.

This guide describes how to physically install your Cisco RV215W and

launch the web-based Device Manager.

Installing the Cisco RV215W

Placement Tips

To prevent the firewall from overheating or being damaged:

• Ambient Temperature—Do not operate it in an area that exceeds an

ambient temperature of 104°F (40°C).

•AirFlow—Be sure that there is adequate air flow around the firewall.

• Mechanical Loading—Be sure that the firewall is level and stable to

avoid any hazardous conditions.

Place the device on a flat surface so that it sits on its four rubber feet.

Cisco RV215W Features

Front Panel

Power Solid green to indicate the unit is powered on and

booted. Flashes green when the device is

booting or loading the firmware.

USB Lit green when the corresponding port is

connected to a device. Flashes green when the

port is sending or receiving data.

WAN Solid green when the firewall is connected to the

Internet by using a wired connection. The light is

off when it is not connected to the Internet or it is

connected by using a USB dongle. The light

flashes when it is sending or receiving data over

the wired connection.

Cisco RV215W Wireless-N VPN Firewall 3

Back Panel

RESET—The RESET button has two functions:

•To reboot the unit and retain the current configuration, press and hold

RESET for at least 3, but no more than 10 seconds, by using a paper clip

or a pen tip.

•To reboot the unit and restore the factory default configuration, press

and hold in the RESET button for more than 10 seconds. Changes you

have made to the Cisco RV215W configuration are lost.

LAN (1-4)—RJ-45 device connections to link local area network devices,

such as PCs, print servers, or switches, to the firewall.

WAN (Internet)—Internet device connection for connecting the firewall to a

wide area network device, such as a cable or DSL modem.

POWER—Switch that toggles power to the device on or off.

12VDC—Power port that connects the firewall to the provided 12VDC

power adapter.

Side Panel

USB—Type A USB port on the right side of the housing that supports

3G/4G/LTE USB dongles.

Wireless The light is off when the wireless radio is

disabled (switched off). It flashes green when the

wireless radio is transmitting or receiving data.

The button, when held for 5 seconds or more,

switches the wireless radio on or off. The button

and the LED is lit green when the wireless radio is

enabled (switched on).

LAN (1-4) The numbered lights correspond to the LAN

ports on the back panel.

Lit green when the corresponding port is

connected to a device. Flashes green when the

port is sending or receiving data.

4 Cisco RV215W Wireless-N VPN Firewall

Connecting the Equipment

You must connect a PC to the firewall by using an Ethernet cable to

perform the initial configuration. After the initial configuration,

administrative tasks can be performed through the network or by using a

wireless connection.

To connect a PC to the Cisco RV215W for initial configuration:

STEP 1Power off all equipment, including the cable or DSL modem, the PC,

and the Cisco RV215W.

STEP 2Use an Ethernet cable to connect your cable or DSL modem to the

WAN port on the firewall.

STEP 3Connect another Ethernet cable from one of the LAN (Ethernet)

ports to the Ethernet port on the PC.

STEP 4Power on the cable or DSL modem and wait until the connection is

active.

STEP 5Connect the power adapter to the firewall 12VDC port.

CAUTION Use only the power adapter that is supplied with the firewall.

Using a different power adapter could damage the device.

The POWER button is on by default. The power light on the front

panel is solid green when the power adapter is connected

properly and the firewall is finished booting.

STEP 6Plug the other end of the adapter into an electrical outlet. Use the

plug (supplied) specific to your country.

STEP 7Continue with the instructions in the Using the Setup Wizard to

configure the firewall.

Cisco RV215W Wireless-N VPN Firewall 5

Using the Setup Wizard

The Setup Wizard and Device Manager are supported on Microsoft

Internet Explorer 6.0 or later, Mozilla Firefox 3.0 or later, and Apple Safari 3.0

or later. To configure the firewall by using the Setup Wizard:

STEP 1Power on the PC that you connected to the LAN1 port in Step 3 of

the Connecting the Equipment section. Your PC becomes a DHCP

client of the firewall and receives an IP address in the 192.168.1.xxx

range.

STEP 2Launch a web browser window on your PC.

STEP 3In the address bar, enter the default IP address of the firewall,

192.168.1.1. A site security certificate message displays. The

Cisco RV215W uses a self-signed security certificate. This

message appears because the firewall is not known to your PC.

STEP 4Click Continue to this website (or the option shown on your

particular web browser) to continue. The login displays.

STEP 5Enter the username and password. The default username is cisco.

The default password is cisco. Passwords are case sensitive.

STEP 6Click Log In. The Router Setup Wizard starts.

STEP 7Follow the on-screen instructions to set up your firewall. The

Router Setup Wizard tries to automatically detect and configure

your connection. If it is unable to do so, it might ask you for some

information about your Internet connection. Contact your ISP to

obtain this information.

STEP 8Change the password as instructed by the Router Setup Wizard or

follow the instructions the Changing the Administrator Username

and Password section to do so. You are required to log into the

device with the new username and password.

The Getting Started page of the Device Manager appears. It

displays the most common configuration tasks.

STEP 9Click one of the listed tasks or a task listed in the navigation bar to

complete the configuration.

STEP10 Save any additional configuration changes and log out of the

Device Manager.

6 Cisco RV215W Wireless-N VPN Firewall

Changing the Administrator Username and Password

To change the Administrator username and password on the firewall:

STEP 1From the Getting Started page, select Change Default

Administrator Password or select Administration > Users.

STEP 2Check Edit Admin Settings.

STEP 3Enter a New Username in Administrator Account Settings. We

recommend that you do not use cisco.

STEP 4Enter the old password.

STEP 5Enter the new password. Passwords should not contain dictionary

words from any language or be the default password. They should

contain a mix of uppercase and lowercase letters, numbers, and

symbols. Passwords must be at least 8 but no more than 30

characters in length.

STEP 6Enter the new password again to confirm.

STEP 7Click Save.

Cisco RV215W Wireless-N VPN Firewall 7

Where to Go From Here

Support

Cisco Small Business

Support Community

www.cisco.com/go/smallbizsupport

Cisco Small Business

Support and Resources

www.cisco.com/go/smallbizhelp

Phone Support Contacts www.cisco.com/en/US/support/

tsd_cisco_small_business

_support_center_contacts.html

Cisco Small Business

Firmware Downloads

www.cisco.com/cisco/software/

navigator.html?i=!ch

Select a link to download firmware for Cisco

Small Business Products. No login is

required.

Product Documentation

Cisco Small Business

Routers and Firewalls

www.cisco.com/go/smallbizrouters

Cisco Small Business

Cisco Partner Central

for Small Business

(Partner Login Required)

www.cisco.com/web/partners/sell/smb

Cisco Small Business

Home

www.cisco.com/smb

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

www.cisco.com

Small Business Support, Global: www.cisco.com/go/sbsc

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates

in the U.S. and other countries. To view a list of Ciscotrademarks, go to this URL:

www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (1110R)

78-20778-01
