Quick Start Guide

CISCO 2610 ROUTER

CABLING AND SETUP

Take Out What You Need

Connect Cables

Run Cisco Fast Step

Finish the Cabling

Network Information - Optional

Fax machine

PBX Telephone

Windows NT

4.0 server

Windows 95

Novell network

Home office PC

Laptop with internal

modem for mobile commuter

Public Service Telephone

Network (PSTN)

Cisco 2610

1Take Out What You Need

Quick Start Guide and

Fast Step CD-ROM

Router

Thisguideexplainshowtocableandsetupyour

Cisco 2610 router with the following

conﬁguration:

• 8- or 16-port internal analog modem in the

network module slot.

• 2 empty WAN interface card slots with a

blank panel in each slot.

Begin by taking out the following items from the

box.

Note: If your router has a different hardware

conﬁguration, refer to the Cisco 2600 Series

Hardware Installation Guide for information on

how to install and set up your router.

1Quick Start Guide (this guide) with

1 Cisco Fast Step CD-ROM (attached)

1 Cisco 2610

CD-ROM

POWER

RPS ACTIVITY

Cisco 2600

SERIES

1Take Out What You Need (continued)

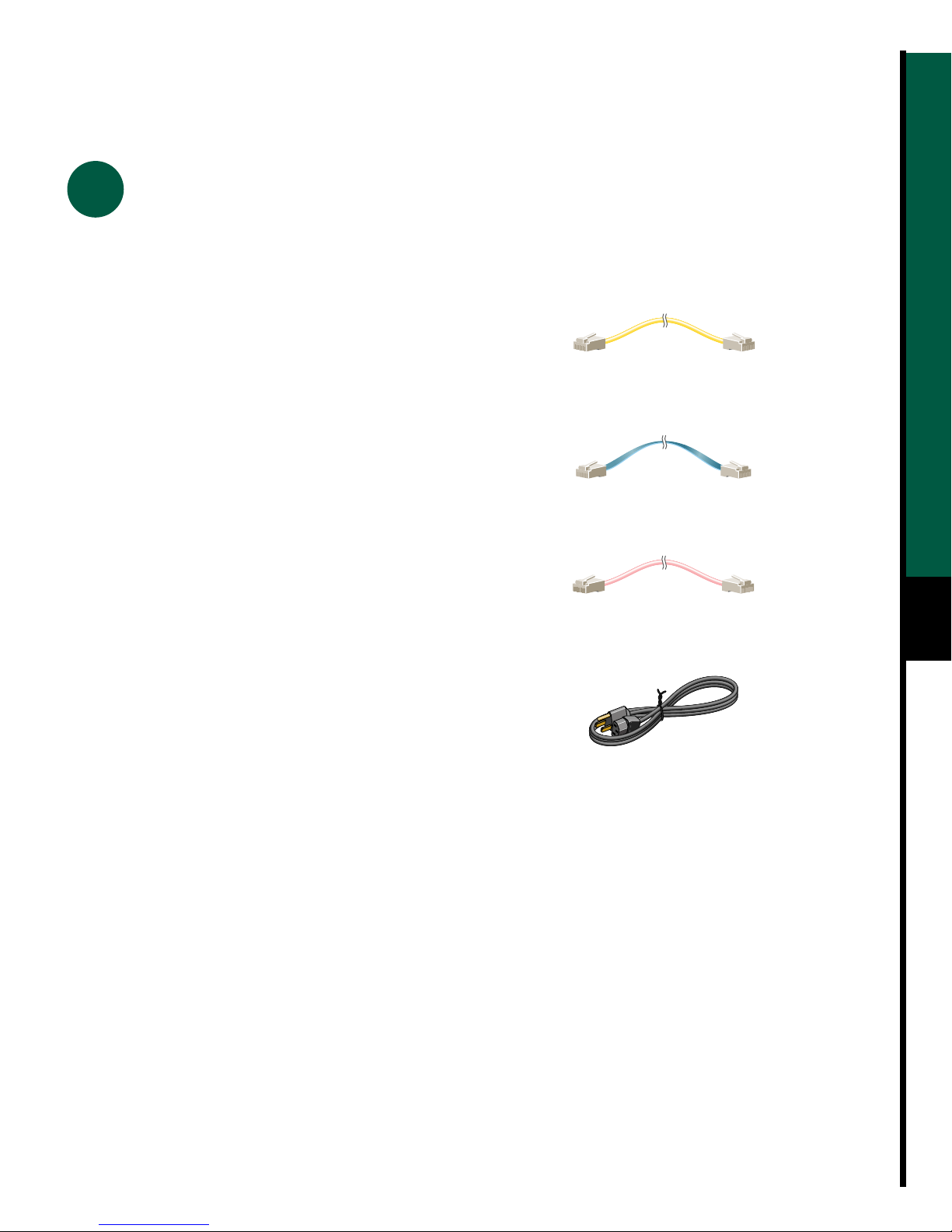

Cables and Power Cord

1 yellow Ethernet 10BaseT cable

(to connect to a 10BaseT hub)

1 ﬂat, light-blue console cable with

1 RJ-45 adapter, labeled TERMINAL

(RJ-45-to-DB-9 or RJ-45-to-DB-25)

8 or 16 pink modem cables (RJ-11)

1 black power cord

5Connect the appropriate network module

cable(s) to your network.

For information on connecting network modules,

refer to the Cisco Network Modules Hardware

Installation Guide included in your router package.

2Connect Cables

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

2A/S

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

AUX

CONSOLE

ETHERNET 0 ACT

LINK

100-240V– 1A

50/60 Hz 47 W

MODEMS

IN USE

16AM

15 14 13 12 11 10 98

76543210

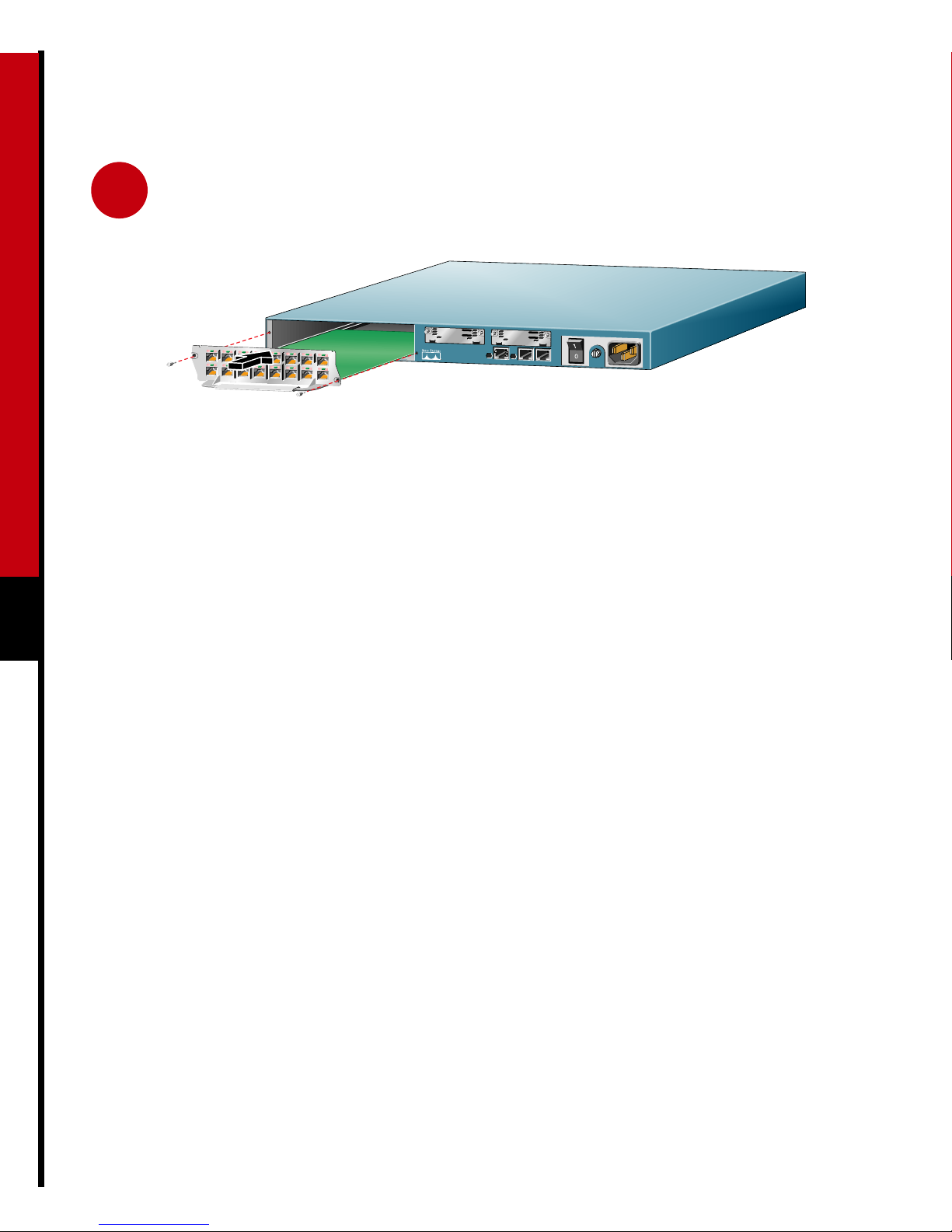

Installing a Network Module

Use this procedure, if required, to install an 8- or

16-port analog modem network module in a

Cisco 2610 router.

Look for a network module in the slot labeled 1 on

the left-rear of the router. If there is an analog

modem network module already installed, continue

to cable the router as described in this guide.

If you need to install an analog modem network

module, follow this procedure:

1Use a Phillips screwdriver to remove the screws

that hold the metal plate over the network

module slot cover and remove the metal

covering plate.

2Holdthenetworkmodule by the handle and line

the module up with the guides on either side of

the slot.

3Push the module into place until the edge

connector is securely seated in the connector on

the motherboard. Ensure that each of the

module’scaptivescrewsline upwiththeirholein

the chassis.

4Secure the captive mounting screws into the

holes of the chassis using a Phillips screwdriver.

Connect the Ethernet Cable

Position the router so you can reach the rear panel.

The cables and the router’s ports are color-coded to

help you make the right connections.

1Connect one end of the yellow Ethernet cable

into the yellow Ethernet 10BaseT (RJ-45) port

labeled ETHERNET 0/0 on the rear panel of

your router.

2Connect the other end of the yellow Ethernet

cable into any available port on your 10BaseT

hub or switch (not included).

3Make sure a PC (running Windows NT 4.0 or

Windows 95) is connected to the Ethernet LAN.

You will use this computer in the procedure on

page 9 to run Cisco Fast Step software to

conﬁgure the router.

2Connect Cables (continued)

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

2A/S

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

AUX

CONSOLE

ETHERNET 0 ACT

LINK

100-240V– 1A

50/60 Hz 47 W

10BaseT cable

Ethernet 10BaseT

port (RJ-45)

Ethernet hub

(sold separately)

MODEMS

IN USE

16AM

15 14 13 12 11 10 98

76543210

2Connect Cables (continued)

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

2A/S

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

AUX

CONSOLE

ETHERNET 0LINK

100-240V– 1A

50/60 Hz 47 W

Console port

(RJ-45)

RJ-45-to-DB-9 or

RJ-45-to-DB-25 adapter

MODEMS

IN USE

16AM

15 14 13 12 11 10 98

76543210

Connect the Console Cable

1Connect the light-blue console cable to the

light-blue port labeled CONSOLE on the rear

panel of the router.

2Connect the other end of the light-blue console

cable to an RJ-45 adapter.

Use either the RJ-45-to-DB-9 adapter or the

RJ-45-to-DB-25 adapter, depending on your

local PC.

3Attach the adapter to a serial port on the PC

running Windows NT 4.0 or Windows 95.

2Connect Cables (continued)

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

2A/S

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

AUX

CONSOLE

ETHERNET 0LINK

100-240V– 1A

50/60 Hz 47 W

MODEMS

IN USE

16AM

15 14 13 12 11 10 98

76543210

RJ-11 jack

RJ-11 modem cable

Analog modem

port (RJ-11)

Connect the Modem Cables

The Cisco 2610 router comes with an 8- or 16-port

internal analog modem module. Use these ports to

connect up to 16 modems.

1Connectone endofthe pinkmodemcable toone

of the numbered modem ports (also pink) on the

router’s rear panel.

2Connect the other end of the pink modem cable

to an RJ-11 telephone wall jack or an RJ-11

outlet in your wiring closet.

Timesaver Start by connecting only one

modem. After you have conﬁgured the

router settings for this modem and

completed the procedure on page 9

successfully, connect and set up the

remaining modems.

If you followed the suggestion, in the Timesaver

section on this page, and only connected one cable,

you will have to connect the remaining modem

cables after you conﬁgure and test the router. See

page 10, for information on how to ﬁnish the

cabling.

2Connect Cables (continued)

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

2A/S

SEE MANUAL BEFORE INSTALLATION

SERIAL 1

SERIAL 0

CONN CONN WIC

AUX

CONSOLE

ETHERNET 0 ACT

LINK

100-240V– 1A

50/60 Hz 47 W

Power outlet

Power switch

MODEMS

IN USE

16AM

15 14 13 12 11 10 98

76543210

Connect Power and

Turn On the Router

1Connect one end of the black power cord to the

power connector on the router’s rear panel.

2Connect the other end of the power cord to an

electrical outlet.

3Turn ON the power switch on the rear panel.

ThegreenPower LEDontherouter’s frontpanel

blinks, as the router initializes, then stays on

when fully initialized. (It might take a moment

before this light goes on.)

4Perform a quick visual inspection to ensure the

following:

—Therouterispluggedin,thepoweristurned

on, and the Power LED on the front panel

displays a solid green light. (If not, you

cannot install the Cisco Fast Step software.)

—The link LED (labeled LNK) next to the

Ethernetport,displays asolidgreenlight.(If

this is not a solid light, check your cabling.)

—Each modem port you are currently setting

up has a pink modem cable connected to it.

—Each pink modem cable connected to a

modem port is also connected to an RJ-11

telephone wall jack or outlet.

You are now ﬁnished cabling the router and one or

more modems. The next section explains how to run

Cisco Fast Step software so you can use the router in

your network.

3Run Cisco Fast Step

InstallandRunCiscoFastStep

1InserttheCiscoFastStepCD-ROM(attachedto

inside back cover of this guide) into the

CD-ROM drive of the local PC to which you

connected the LAN on page 5.

2The Fast Step install program starts Setup.exe

automatically. If it does not, follow these steps:

(a) Double-click the My Computer icon.

(b) Double-click the CD icon.

The install program prompts you for the

information it needs to install Cisco Fast Step,

then copies the software onto your hard drive.

Timesaver Cisco Fast Step software

prompts you for network information

according to the routing protocols you

select. Before you run the software, make

sureyouhavethisinformationavailableor

know where to get it (usually from the

network administrator).

For your convenience, a form prompting

you for setup information is on page 11.

Set Up the Router

Using Fast Step

Once installed, the Cisco Fast Step Setup program

starts automatically. Follow the onscreen

instructions to guide you through conﬁguring and

testing the router.

Verify Connectivity

Performthis testtoverifythemodemconnectionand

the router conﬁguration are good. This section

assumestheremote PCyouareusingfor thetestruns

Windows NT 4.0 or Windows 95.

1Double-click the My Computer icon on the

desktop of the remote PC.

2Double-click the Dial-Up Networking folder. (If

youdo not ﬁnd this folder, refer to the Microsoft

documentation to install the software.)

3Double-click the Make New Connection icon.

4Follow the onscreen instructions to create and

name a new connection icon to test the modem

connection and the router conﬁguration. When

prompted for the area code and telephone

number, enter the appropriate number of the

modem you are testing.

5Double-click the new connection icon you

created in Step 4 and enter the username and

password (as deﬁned when setting up Fast Step).

Verify that the telephone number is the correct

number for the modem you are testing.

6Go to page 10 to connect the remaining modem

cables, if necessary.

Thissection applies only if your areconnecting more

than one modem.

If you connected one modem in the procedure on

page 7, you are now ready to cable the rest of your

modems. How you do this depends on the way you

organize your workspace and your own personal

preferences.

The following suggested procedure helps you

simplify the job by keeping the connections neat and

orderly and by providing a reliable process.

1Make sure you can reach the router’s rear panel.

2Pick up a pink modem cable and connect one

end into one modem port (also pink) of the

access server.

3Repeat Step 2 with the remaining pink modem

cables.

4Connect the other end of each of the pink

modem cables from Step 3 into an RJ-11 wall

jack or into an RJ-11 outlet in your wiring

closet.

5Tie-wrap your cable bundles.

6To help with maintenance and troubleshooting,

write down the access server port number and

telephone wall jack for each modem. Keep this

record in a safe place.

4Finish the Cabling

Andere Handbücher für 2610 - Router - EN

Inhaltsverzeichnis

Andere Cisco Netzwerk-Router Handbücher

Cisco

Cisco 7604 Bedienungsanleitung

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Bedienungsanleitung

Cisco

Cisco WRT150N Bedienungsanleitung

Cisco

Cisco Linksys WET610N Bedienungsanleitung

Cisco

Cisco 1721 - VPN Security Router Bundle Leitfaden

Cisco

Cisco Universal Broadband Router Cisco uBR10012 Bedienungsanleitung

Cisco

Cisco Small Business RV215W Bedienungsanleitung

Cisco

Cisco 12006 series Bedienungs- und Sicherheitshinweise

Cisco

Cisco 220 Series Smart Plus Bedienungsanleitung

Cisco

Cisco 2612 Bedienungsanleitung

Cisco

Cisco 860 Series Handbuch

Cisco

Cisco 806 Bedienungsanleitung

Cisco

Cisco 1600 series Handbuch

Cisco

Cisco 1700 series Bedienungsanleitung

Cisco

Cisco 7000 and 7507 LED Board MAS-7KLED Leitfaden

Cisco

Cisco DC Power Entry 10005 ESR Bedienungsanleitung

Cisco

Cisco 12406 series Bedienungsanleitung

Cisco

Cisco Unified Communications Manager 8.5(1) Bedienungsanleitung

Cisco

Cisco CISCO1750 Bedienungsanleitung

Cisco

Cisco OL-4387-02 Bedienungsanleitung

Cisco

Cisco ASR 901S Series Bedienungsanleitung

Cisco

Cisco ASR1006 - ASR 1006 Modular Expansion Base Handbuch

Cisco

Cisco XR 12000 Bedienungsanleitung

Cisco

Cisco 2612 Handbuch

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

LevelOne

LevelOne FBR-1416 Bedienungsanleitung

Dynacord

Dynacord Promatrix 6000 Bedienungsanleitung

Lorex

Lorex F5D8230-4 Bedienungsanleitung
