Unpack the Router

Connect Cables to the Router

Set Up the Router

Quick Start Guide

CISCO 760 SERIES CABLING AND SETUP

Cisco 700 series router

Internet

Internet service provider/

corporate headquarters

ISDN provider/

telephone company

ISDN telephone jack

Phone #1

Power supply

Phone #2

Your computer

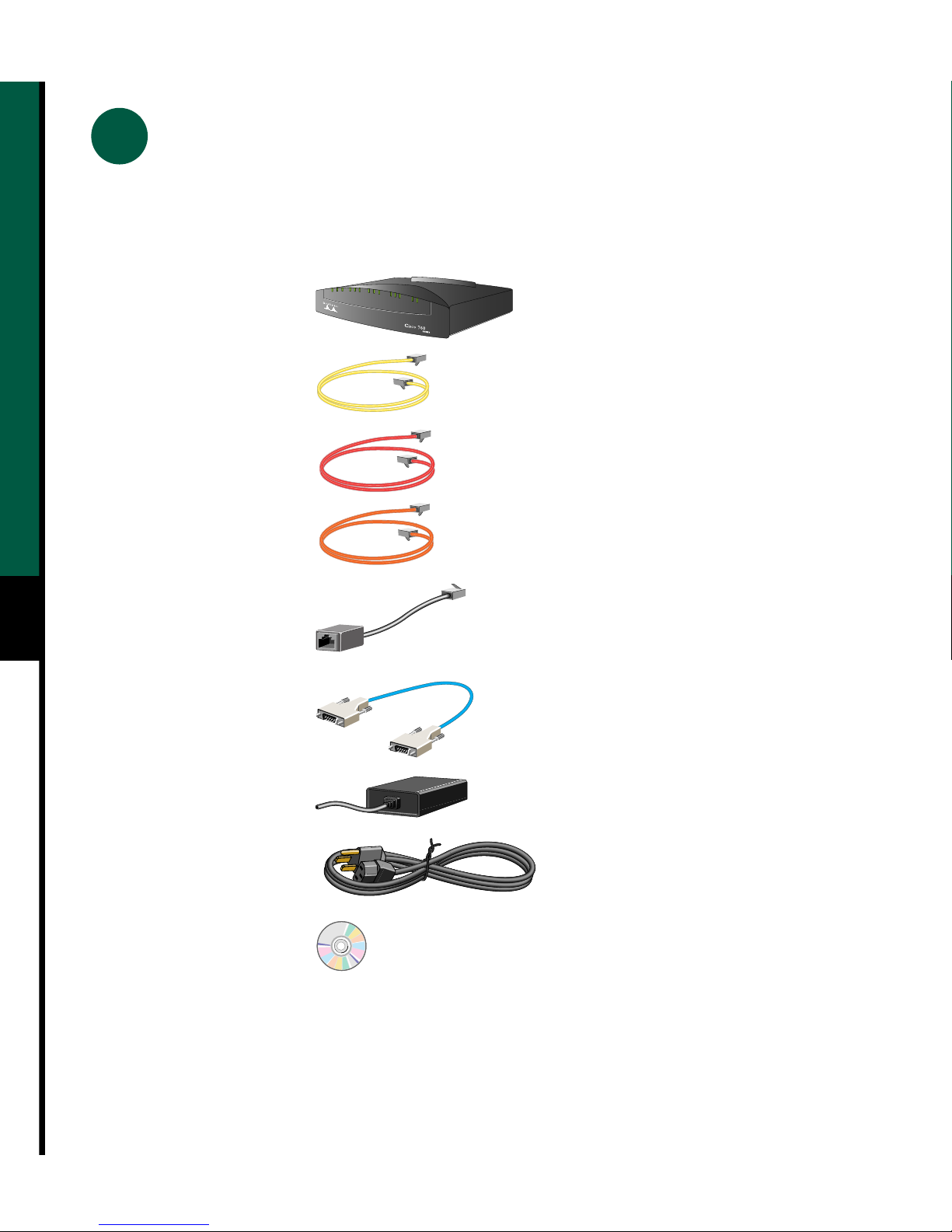

1Unpack the Router

Remove the router from the package and locate the clear plastic bag labeled “Open Me First.” The bag contains

all the required cables for your router. Also remove the black power supply located in the accessory kit.

1 Cisco 760 series router

1 yellow Ethernet cable

1 red ISDN U cable Cisco 762, Cisco 766 routers only.

1 orange ISDN S/T cable Cisco 761, Cisco 765 routers only.

1 RJ-45-to-RJ-11 adapter

1 blue config cable

(optional)

1 black power supply

1 black power supply cord

1 Cisco Fast Step CD-ROM

and 2 Cisco Documentation

CD-ROMs

NT1

LINE

LAN

RXD

TXD

CH1 RXD TXD

CH2

RXD

TXD

PH1

PH2

2Connect Cables to the Router

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

NT-1

ISDN S/T

CISCO 776

10BASET

ISDN U

NODE HUB

(Cisco 766 shown)

CONFIG

ETHERNET

NODE HUB ISDN S/T

ISDN U PHONE 1 PHONE 2 Power switch

Power connector

The ports on the router and the cables are color

coded to assist you in making the proper

connections. Position the router so that the rear

panel is facing you.

The following pages contain detailed

instructions on connecting cables to your

router.

2Connect the Ethernet Cable to a Computer or Hub

Option 1: To connect the Ethernet cable to a computer, go to option 1 below.

Option 2: To connect the Ethernet cable to a hub, go to option 2 below.

Option 1 Connect the Ethernet Cable to a Computer

Option 2 Connect the Ethernet Cable to a Hub

1Connect the yellow Ethernet cable to the

yellow port labeled ETHERNET on the

rear panel of your router.

2Connect the other end of the cable to the

Ethernet connector on the back of your

computer.

3Set the node-hub switch to the “HUB”

position.

1Connect the yellow Ethernet cable to the

yellow port labeled ETHERNET on the

rear panel of your router.

2Connect the other end of the cable to an

available port on your Ethernet hub.

3Set the node-hub switch to the “NODE”

position.

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

ISDN S/T

CISCO 776

10BASET

NODE HUB

Ethernet hub

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

NT-1

ISDNS/T

CISCO 776

10BASET

ISDN U

NODE HUB

Ethernet

cable

2Connect the ISDN Line

Check the rear panel of your router to find out which model you have.

Option 1: If you have a Cisco 762 or 766, go to option 1 below.

Option 2: If you have a Cisco 761 or 765, go to option 2 below.

Option 1 Connect the ISDN Line to a Cisco 762 or Cisco 766 Router

Option 2 Connect the ISDN Line to a Cisco 761 or Cisco 765 Router

1Connect the red ISDN U cable to the red port

labeled ISDN U on the rear panel of your router.

2Connect the other end of the ISDN U cable

directly to an RJ-45 ISDN wall jack. If necessary,

use the enclosed RJ-45-to-RJ-11 adapter to

connect to an RJ-11 ISDN wall jack.

Outside North America

1Connect the orange ISDN S/T cable to the orange

port labeled ISDN S/T on the rear panel of your

router.

2Connect the other end of the ISDN S/T cable to

the ISDN wall socket.

North America Only

1Connect the orange ISDN S/T cable to the orange

port labeled ISDN S/T on the rear panel of your

router.

2Connect the other end of the orange ISDN S/T

cable to the NT1 terminal connector.

3Connect the NT1 terminal connector to the

ISDN wall jack using the ISDN S/T cable that

came with your NT1 terminal connector.

RJ-11

wall jack

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

NT-1

ISDNS/T

CISCO 776

10BASET

ISDN U

NODE HUB

ISDN U

cable

RJ-45

wall jack

CONFIG

+5V---1.5A +/-5%

-30V--- 0.2A+/-25%

ISDN S/T

CISCO 776

10BASET

NODE HUB

ISDN

wall socket

ISDN S/T

cable

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

NT-1

ISDN S/T

CISCO 776

10BASET

ISDN U

NODE HUB

ISDN S/T

cable

NT1 terminal conne

(not included)

ISDN S/T cable

(not included)

RJ-45

wall jack

If you are using a Cisco 765 or Cisco 766, you can

connect telephones and facsimile machines directly

to the router.

Connect the telephone cable (provided with your

telephone or facsimile machine) to the gray port

labeled PHONE 1 or PHONE 2 on the rear panel of

your router.

If you are connecting only one device, connect it to

the port labeled PHONE 1.

2Connect Optional Telephones and Facsimile Machines

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

NT-1

ISDN S/T

CISCO 776

10BASET

ISDN U

NODEHUB

Telephone

RJ-11 telephone cable

2Connect Power and Turn On the Router

CONFIG

+5V ---1.5A +/-5%

-30V--- 0.2A +/-25%

ISDN S/T

CISCO 776

ETHERNET

1234

BRI

???

Power connector

Desktop power supply

Step 1 Connect the round end of the power

supply cable to the black circular power

connector on the rear panel of your router.

Step 2 Connect the black power supply cord to

the black power supply.

Step 3 Connect the power supply cord to an

electrical outlet.

Step 4 Turn on the router by using the on/off

switch on the rear panel.

The green RDY LED (and the NT1 LED on the

Cisco 762 and Cisco 766) on the front panel of your

router goes on. Your router is ready to be configured.

If the green RDY LED is not on, refer to the

“Troubleshooting Cisco 700 Series Routers” chapter

in the Cisco 700 Series Installation Guide, located

inside the plastic bag labeled “Open Me Only If

Needed.”

3Set Up the Router

If you are configuring your router using Microsoft

Windows 95 or Windows NT version 4 operating

systems, insert the CD-ROM located in the back of this

guide into the CD-ROM drive of your computer. The

Fast Step setup program should start automatically.

If the setup program does not start automatically, follow

these instructions:

Step 1 Double-click the My Computer icon.

Step 2 Double-click the CD icon.

Step 3 Double-click the Setup.exe icon.

Follow the on-screen instructions to guide you through

setting up and testing of the router.

For your convenience, information on ordering your

ISDN line is provided on page 9. A form prompting you

for setup information is on page 10.

Order the ISDN Line

Step 1 Contact your ISDN service provider

(usually the telephone company).

Step 2 Order a single 128-kbps ISDN BRI line

(which is equivalent to two telephone

lines).

If applicable, request the additional call

offering option that allows telephone

conversations while the router is in use.

Order other features you want—for

example, call conferencing, call waiting,

or call transferring.

Step 3 Obtain and record the following

information from your ISDN service

provider:

ISDN Information

1Switch type (check one):

NI-1 National ISDN-1

5ESS AT&T 5ESS

DMS Nortel DMS-100

INS Japan - NTT Information

Network System

VN3 France - ISDN BRI Standard

NET3 Europe - ISDN BRI Standard

1TR6 Germany - ISDN Standard

TPH Australia

2SPIDs (optional):

a. SPID1

b. SPID2

3ISDN telephone numbers (optional):

a. ISDN telephone number 1

b. ISDN telephone number 2

Gather Connection Information

Option 1: To connect directly to an Internet service provider, go to option 1 below.

Option 2: To connect directly to your remote corporate network, go to option 2 below.

Option 1 Internet Service Provider

Step 1 Contact your Internet service provider.

Step 2 Order Internet service for a single

128-kbps ISDN BRI line.

Step 3 Obtain and record the following

information from your Internet service

provider. Some of this information may

not be required.

4Internet service provider telephone number

5Internet service provider second telephone

number (optional)

6Your router user name

7Your Internet service provider password

8Primary DNS

9Secondary DNS

10 WAN IP address

11 WAN subnet mask

Option 2 Remote Corporate Network

Step 1 Contact your network administrator.

Step 2 Obtain and record the following

information from your network

administrator. Some of this information

may not be required.

4Remote corporate network telephone number

5Remote corporate network second telephone

number (optional)

6Your router user name

7Your remote corporate network password

To use Internet applications like Web browsers, or to

connect to Microsoft Windows NT servers using

TCP/IP, obtain the following information:

8Primary DNS

9Secondary DNS

10 WAN IP address

11 WAN subnet mask

12 Primary WINS

13 Secondary WINS

To connect to files and printers on NetWare,

Windows NT, or Windows 95 computers using the

Novell protocol, obtain the following information:

14 IPX LAN network number

15 IPX frame type (check one):

Ethernet_II 802.3 802.2 SNAP

16 IPX WAN network number
