CKDZ CK4L-5000 Bedienungsanleitung

CK4L-5000

Ultra-high definition and

multi-pictures full color

LED video processor

User Manual

V1.0

ShenzhenCreatekElectronicCo., Ltd.

http://www.ckdz.com

Note: Pleasereadthe User Manualcarefullybeforeusingtheproducts, and keepthe

manualproperlyfor futurereference.

CK4L-5000User Manual

-i-

TABLEOFCONTENTS

TABLEOF CONTENTS I

1. SAFETYNOTICE 1

2. PRODUCT OVERVIEW 2

2.1. BASICFUNCTION 2

2.2. SYSTEM DIAGRAM 3

2.3. FUNCTIONALITY 3

2.3.1Flexibledisplay modes: 3

2.3.2Multipleinputs 4

2.3.3Brightness, Contrastand Saturation adjustment 4

2.3.4Control Ports 4

2.3.5Accuratepixel-basedcapturetechnology 5

3. HARDWARESTRUCTURE 5

3.1 PRODUCTELEVATION 5

3.2 REARPANEL 5

3.2 FRONTPANEL 5

4. HARDWAREINSTRUCTIONAL MENU 6

4.1 FRONTPANELBUTTONOVERVIEW 6

4.2 FRONTPANELOPERATION 7

5. THEINSTRUCTIONFOR CONTROLSOFTWAREOPERATION 9

5.1. SOFTWARE INSTALLATION 9

5.2. SOFTWARE STARTUP 10

5.3. SOFTWARE OPERATION 11

5.3.1Connectand disconnect 11

5.3.2Black screen On/Off 12

5.3.3Memorypresetmode 12

5.3.4video window operation 13

5.3.5Toolbar for system settings 16

5.4 PIXELADJUSTMENT 18

5.5 SYSTEMMENU 19

6. COMMUNICATION PORT 20

6.1 RS232 CONNECTION 20

CK4L-5000User Manual

-ii -

7. TECHNICAL SPECIFICATIONS 21

8. FAQ(FREQUENTLYASKED QUESTIONS): 23

CK4L-5000User Manual

-1-

1. SAFETYNOTICE

Dangerous

Thereshigh voltage inprocessor. Toavoid danger,pleasedonotopenrear cap without

authorization.

Warning

1.Donotallowliquid, smallparticlesor otherobjectstogetintothedevice;

2.Donotplacethesystem nearfireandwater;

3.Donot block anyvents.Tokeep goodventilation, pleaseplacethesystemat least 20

4.cmawayfromawall surface;

5.If anynoise smoke smell,pleasecutoff the poweratonceand contactyourlocal

suppliers;

6.Donotdisconnect DVI signalcablewhen thepower ison.

Attention

1.Read the manualcarefullybeforeusing thesystem,andkeepitsafely;

2.Check the packing listtoconfirmif thereisanymissing .If thereis, pleasecontact the

local supplier.

3.Cut offthepower ifthunder or the machine isnotused for long term;

4.Youshouldbewelltrainedbeforeoperating the system;

5.Donotslip anything from venttoprevent broken orelectricshock;

6.Donotplacethedevicenearliquidormoisture;

7.Donotputthedevicenearheat sinkorhigh temperatureenvironment;

8.Keep thepower cable properly;

9.If thefollowing situationshappen,pleasecut off thepower and for maintenance

1)Liquid splashtodevice;

2)Devicefalldownor thecabinetisbroken;

3)Anyabnormalityormalfunctioninthesystem

10.Shenzhen CreatekCo., LTD. hasthe copyrightofthe manual and reservestheright

offinalexplanation.Anyenterprisesorindividualsshall notinfringe the rightwithout

the agreementofthe company.Oncefound,the companywill investigateforrelevant

legal responsibility.

CK4L-5000 使用说明书

2. Product Overview

CK4L-5000 ultra-highdefinitionfull-colorLED video processor isanew imageprocessor

and controllerdeveloped byShenzhenCreatekelectronicCo., LTD., theequipment

integratesthe leadingtechnologyof Createk Companyfor manyyearsonfull color LED

video image processing. Itadoptshardware-baseddesign proprietarytechnology, taking

the LED videodisplay applicationintoconsideration.Itinputsand processesvariousvideo

sourcesand displaysit ontheLED screen.Ingeneral, CK4L-5000ultra-high definition

full-color LED videoprocessor featuresthe key characteristicisas following:

aAdopts1U compact architecture,easytoplace, transport, install;

bUniqueinput signal selection “4from20”function;

cQuick configurationfor the four (4) piecessending cardsofLED screen;

dFour(4) spliced DVIoutputscan realizemaxresolution up to7680x1200, and can

open3-4videowindowsif the sending cards arenot cascaded ;

2.1. Basicfunction

CK4L-5000isdevelopedtosuittheapplicationforLEDscreen,itsbasicfunctionsinclude:

ØReal-time multiple channel parallelimageprocessing,hardware-based patent

technique, nomotionsmear or sawtoothimage;

ØStandalone cansupport four(4) spliced maxresolution up to7680x1200@60HZ

WithAPSPtechnology, cansupport tocaptureanypixelareaandshowiton theLED

screen, thecaptured area canbepositionedandsized toanywhereofLED screen.

ØMonitoring function,useone or twooutputstoconnectwithLCD display （Optional）

ØFrame-synctechnology,no dislocationand latencycausedtooutputs;

ØUnder configuration1x2 or2x1,anyvideowindowsofinput canbe overlapped,

roamed, scaledand quick switched;

ØWhat- you –see-is- what- you –get softwareinterfaceenablestoset up easily.

Ø16 memorypresetsthat can be savedfor futurerecall;

CK4L-5000User Manual

-3-

ØHigh performanceandstability, 24/7foruse.

ØPurehardware-based structure, noOS supported, start toworkoncepoweron

withnecessarystabilityandreliability

2.2. SystemDiagram

CK4L-5000 ultrahigh definition multi-displayfull color LED video wall controller canwork

withupto4separateLED screensthatcould beindifferent Pitches, suchasP4, P6,P10,

etc. Thevideowallisfullyscalable, supporting awidevarietyof displaylayoutssuch

common1x4,4x1,2x2,1x3,1x2,etc. Inthischapter,wewilltakethe videowall display

system1x2 asan example, asfollowing:

Fig. 2.1Videowall layout connection illustration

2.3. Functionality

2.3.1Flexibledisplaymodes:

2.3.1.1Full-Screen displaymode

Inputsignalcan befull-screen displayedonLED videodisplay,ifthepictureratioofLED

CK4L-5000User Manual

-4-

screen isnotconsistentwithinputsignal,the picturewill beautomaticallyenlargedorbe

scaled tofit the LED screen.

2.3.1.2PIPMode

CK4L5000 support PIPmode,using anyinputtobe background picture(definedasLevel

4), theprocessor allowsfor the displayup to4different inputssimultaneously.

2.3.1.3CPBPmode

CK4L5000 allowsforthe displayup to4different signalsin aline,and outputsone byone

totheseparateLED screen.

2.3.2Multipleinputs

The video wall controller allowsforinputsupto20 different sources, can showupto4

differentinputssimultaneouslyand canrouteanyinputtoanyoutputthanks tobuilt-in4x4

matrixswitcher.

2.3.3Brightness, Contrast and Saturation adjustment

The pictureadjustment ofBrightness, contrast, saturationcan beadjusted viacontrol

softwareor front panelbutton, theadjustment ensurestheimprovement of grayscale.

2.3.4Control Ports

The processor employsthe RS232controlport aswell asEthernet port.

A. Real-timecontrol through dedicatedcontrol software

CK4L-5000User Manual

-5-

B. Switchable memorypresetsthrough front control button

C. Recallthe memorypresetsthroughthenumberbuttonsonIR controller.

2.3.5Accuratepixel-basedcapturetechnology

CK4L-5000 employsthe accuratepixel-based capturetechnology, allowingforany

capturedcontenttodisplayfull-screen or partially.

3. Hardware structure

3.1Product elevation

Fig3.1CK4L5000 product elevation

3.2Rearpanel

Fig. 3.2RearpanelofCK4L5000

1. Powerconnector: AC 100-240V50HZ;

2. DVI or DVI-X input connector;

3. DVI/VGAoutput connector;

4. RS232and TCP/IPcontrol connector;

5. GND

3.2Front panel

Fig3.3Frontpanelof CK4L5000

1. Statusdisplaypanel

2. Statusindicator

CK4L-5000User Manual

-6-

3. Functionmenu area

4. Knob for selection

5. Powersupply

4. Hardware instructional menu

CK4L-5000hastotal16 frontpanelbuttons (asshownbelow),oneknoband onepower

supply,their functionsarelisted asbelow:

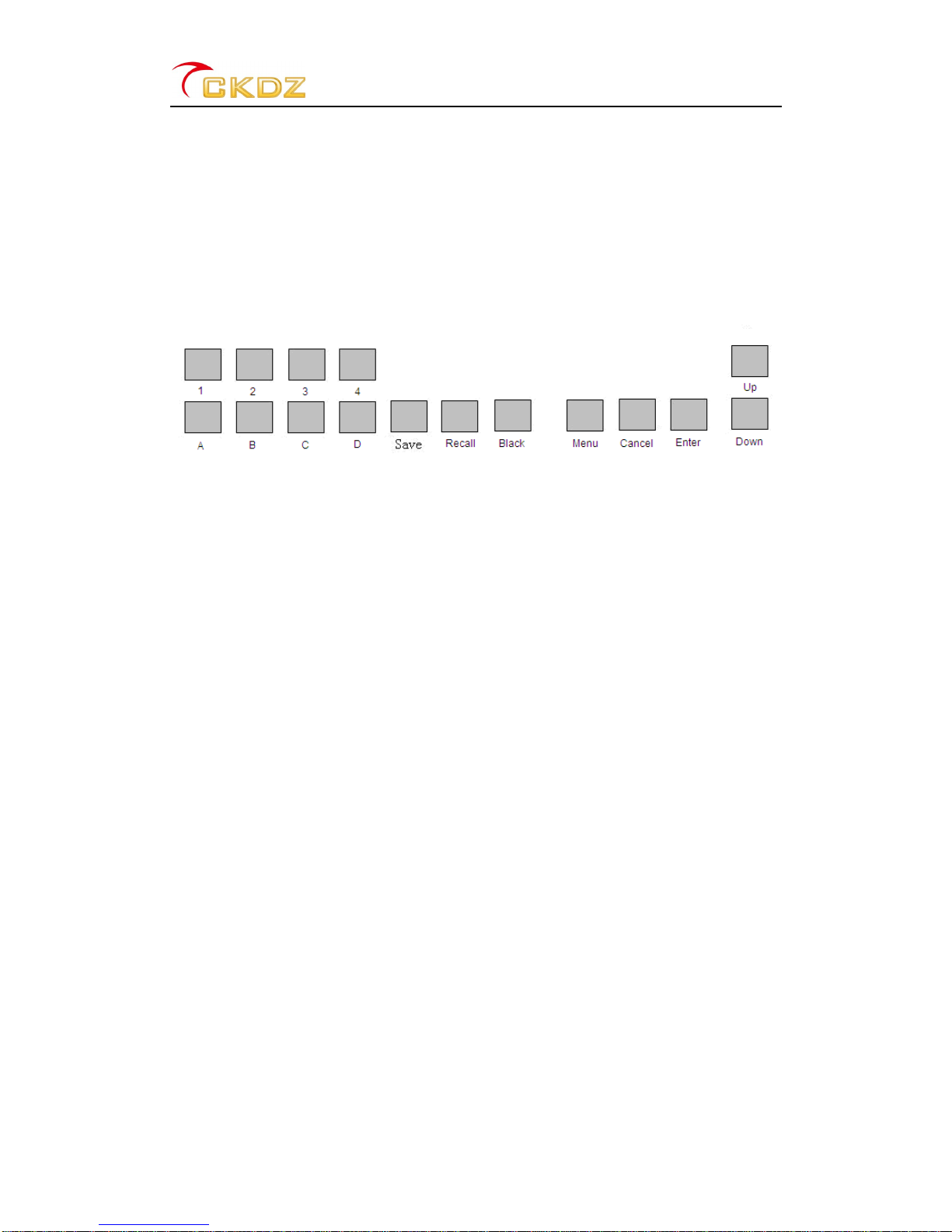

Fig. 4.1Frontpanelbutton

4.1Front panel button overview

1）【 INPUT1-4】： Switchingtheinputsamong inputs1-4;

2）【 EFFECTA/B/C/D】： Switchtheinputtotomainwindowor B/C/D sub-windowoutput;

3）【 SAVE】： Savecurrentdisplaylayouts; (When SAVEispushed,you can adjusttheKnob

Button toincreaseordecreasethecurrentpresetmode from1~16.)

4）【 RECALL】： Select the desiredpresetmode;(WhenRECALLis pushed, youcanadjust

the KnobButtontoincreaseordecreasethecurrent presetmode from1~16.)

5）【 BLACK】： ToenabletheBlack Screenfunction,press again todisabletheBlack

Screen function；

6）【 MENU】： Menu button,press Menubuttonandentermenusetting

7）【 CANCEL】： Exitthe currentmenutoreturntothe previousmenu;

8）【 ENTER】： PressEnterbuttontomakethe settingtake effectorconfirmthecurrent

selection;

9) 【UP】： Goback tothepreviousmenu;

10）【 DOWN】： Proceed tonext menu

CK4L-5000User Manual

-7-

4.2Front panel operation

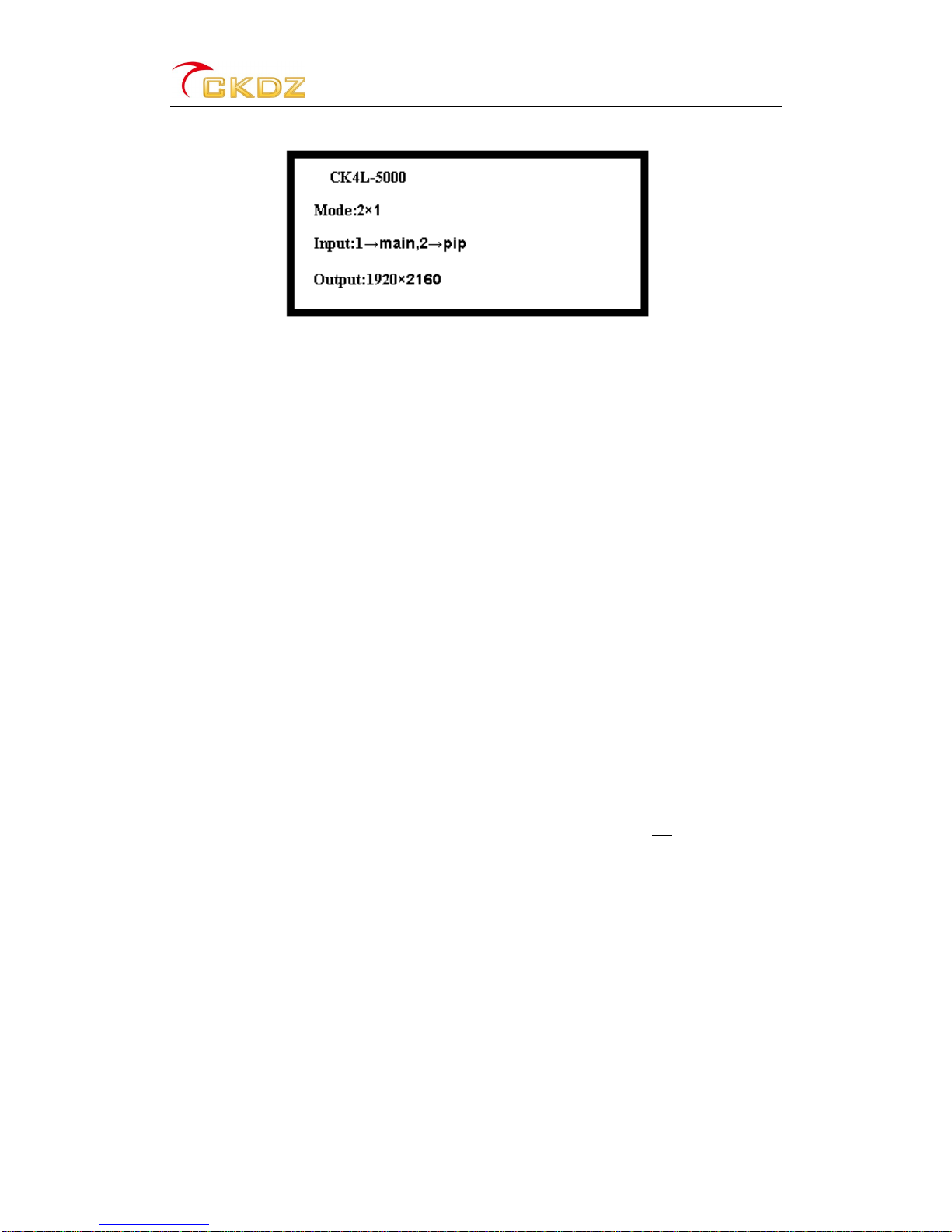

Fig. 4.2 Status displaywhen idle

Inidle status(The equipment isnot operated or controlledwithin12 seconds.) Thestatus

displaywillshowthe followinginformation:

The 1st line: Equipment model

The 2nd line:Thevideowalllayout 2x1;thereare1x1,1x2,2x1,1x3,3x1,1x4,4x1,2x2 total

eight selectable layouts;

The 3rd line:correspondencebetweeninputand output, MainWindowoutputcorresponds

totheinput 1,PIPsub-windowcorresponds totheinput2;

The 4th line: Output resolution inthe formatof X xY,thevaluedependson the pixelsof

LED screen.

A.Input signalselection

If you want theinput1toshowon windowAoutput, press the front panel button【1】, the

statusdisplaywillshowthe currentinput1, 【input1tooutputwindow__】,then press

【A】,therefore,statusdisplayshowsagain 【input1tooutputwindowA 】,themessage

meansinput1hasbeen alreadyoutputtedtowindowA. Theinput/outputSelection

Buttonsarealsoused togetherwithKnobButtonwhensizeandposition ofoutputsneed

tobeadjusted.

B. PresetmodeSAVEand RECALL

After on-siteconfigurationforwindowsize,position andlayouts, press 【SAVE】button,

thenadjust theKnob Button, press【ENTER】tosavethe current configuration datato

correspondentnumber from 1~16.

When need torecall the preset memorythat hasbeensaved, press 【RECALL】button,
