QY-8100/QY-8150 SERIES MODEL

Navigation system manual

English

Table of contents

Features �� 4

Names of Various Parts �� 5

Basic method of use �� 6

Basic Operations �� 7

Basic Settings �� 7

Source Media Mode �� 10

Bluetooth Operation �� 12

Navigation �� 13

Navigation System Settings �� 17

Outline of Destination �� 22

Entering Procedures �� 22

Entering the Destination �� 23

Route Guidance �� 26

About Information �� 29

English

Safety Precautions

Warning

●When driving, the driver shall not operate….

The driver must park the vehicle in a safe place before

operating the system.

●When driving, the driver must not read the navigation

map…

Please refer to the voice prompts and follow the actual

trafﬁc laws in driving.

●When driving, the driver must not watch the display

of this unit….

Or the conditions at front of the vehicle may be neglected

that may result in trafﬁc accidents.

●Please follow the actual trafﬁc laws to drive when

using the navigation system as route guide or voice

prompt…

If you drive only as per the route guided by the navigation

system, you may violate the actual trafﬁc laws that may

result in trafﬁc accidents.

●Do not use the equipment for a long time when the

engine is off…

Or it will cause loss of electricity to the vehicle battery.

●Do not dismantle or modify this unit…

Or it may trigger accident, ﬁre or electric shock.

●Do not use the unit under such failure conditions as

no display or no voice play…

Or it may trigger accident, ﬁre or electric shock. Contact

NISSAN dealers.

●Stop using it immediately when there is any foreign

object, water spill, smoke or bad smell and contact

designated NISSAN dealers…

Continuous use may trigger accident, ﬁre or electric

shock.

Caution

●The volume during driving shall be adjusted so that

the sound outside the vehicle can be heard.

Or it may cause accidents.

●Pay full attention to operating this unit while driving

so that safe driving is not affected…

Or it may affect driving and cause accidents.

●Do not use this unit for any purpose other than in

the vehicle…

Or it may result in injuries or accidents.

●Never continue to use the unit in accidents…

Cut off the unit power supply if smoke, abnormal noise

or smell is found.

●If the temperature inside the vehicle is high, use the

unit after the temperature is lowered …

Or it may result in failure.

●Do not exert force on the screen

Or it may result in failure.

●Please follow the actual road trafﬁc lights to drive

when using the navigation

Map contents may not be completely accurate due to

trafﬁc development. Please keep in touch with the NIS-

SAN Car dealers for timely update of map data.

English

Warning

●Changes or modiﬁcations to this unit not expressly ap-

proved by theparty responsible for compliance could

void the user’s authority to operate theequipment.

NOTE:

GThis equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Op-

eration is subject to the following two conditions :

●This device may not cause harmful interference, and

●This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Shielded cables must be used with this unit to ensure

compliance with the Class B FCC limits.

Radio

●The phenomenon of occasionally not receive radio

station broadcast, noises or crosstalk during driving

may be caused by road conditions, weather or environ-

mental reasons.

USB

Not all USB memory devices are compatible with this unit

due to different USB memory device models.

Bluetooth

●Not all mobile phones are compatible with this unit due

to different mobile phone models and functions.

Disc

●In cold or rainy days, water droplets may form inside

the equipment as mist may condense on the window

glass.

●This (condensation) will result in distortion or failure in

playing. Please wait for a moment and use the equip-

ment after ventilation or dehumidiﬁcation.

English

can’t be used.

●No paper slip should be adhered to the playing side or

identiﬁcation side of the disc or it will cause failure.

●Do not use any disc with crack or deformation, or it will

cause failure.

●Do not touch the playing side of the disc (which is the

smooth side with rainbow colours) when holding the

disc, or ﬁngerprints will be left on the disc surface that

may cause skipping.

●Playing a stained disc may result in disc scratch or

skipping. Use disc cleaning agent available on the mar-

ket to remove the stains on the disc by wiping softly

from the inside to the outside.

■Use of New Disc

●When a new disc is used, there might be some burrs

at the inner edge and outer of the disc that shall be

removed with a ball pen or other means.Or the bur will

adhere to the playing side of the disc that may cause

skipping.

■Special- Shaped Disc

●Do not use any leased disc with glass ﬁlm, lease label

or other adhesive. If such disc is played in the player, it

will be hard to get it out and may result in failure.

■Disc of Special Shape

●No disc in the shape of heart or octagon may be played

●In order to protect the internal structure of the player,

the player will stop playing automatically for protection

when something abnormal occurs during the playing.

If the machine can’t operate normally even if you oper-

ate as per the displayed instructions, the machine may

have malfunctions and you should contact NISSAN

dealers.

●Distortion may occur if the vehicle is driven on the road

of harsh conditions or is vibrated violently.

●MP3/WMA music ﬁles stored in CD-ROW/CD-R/CD-

RW may be played.

●Because of the characteristics, scratches, stains on the

CD/SACD/CD-ROM/CD-R/CD-RW disc or long-time

use inside the vehicle, the disc may not be played due

to the worsening disc performance. The disc mentioned

above can’t be played if it has been ﬁnally treated or

written in UDF format.

●Music CD should be ofﬁcially identiﬁed.

●This unit does not support 8-cm disc.

●Do not use any disc with transparent or translucent

data reading side as it can’t be inserted, taken out or

played normally.

●Please do not use any disc that is not from the legiti-

mate manufacturer.

■Disc Storage

●Do not expose the disc to direct sunlight and make

sure to put it inside the box, or the disc will deform and

English

or the machine will be damaged. Do not use such kind

of discs.

■Disc Decoration

●Do not use any decoration to improve tone quality or

protect disc (such as disc case or protective case) as

the change in the thickness or dimension of the disc

may result in failure.

●Do not use any decoration to improve tone quality or

shockproof performance (such as disc ring case or

functional protective case), or the decoration may fall

inside the machine that the disc can’t be played or

taken out and result in failure.

LCD

●There will be brightened or darkened visual phenom-

enon if you watch the LCD from the sides.

●The screen will become illegible under direct sunlight

or external light on the display.

●If the machine is turned on when the temperature is

below zero, LCD will appear to be darker than usual

until the temperature inside the machine rises.

Features

●The front panel is equipped with an SD card slot, It

stores navigation application data and supports map

navigation function.

●Built-in FM/AM radio.

●Support CD disc play functions.

●With standard USB port to support USB audio playing

and iPod playing functions.

●Support Bluetooth mobile and Bluetooth audio playing

functions.

●Support AUX input functions.

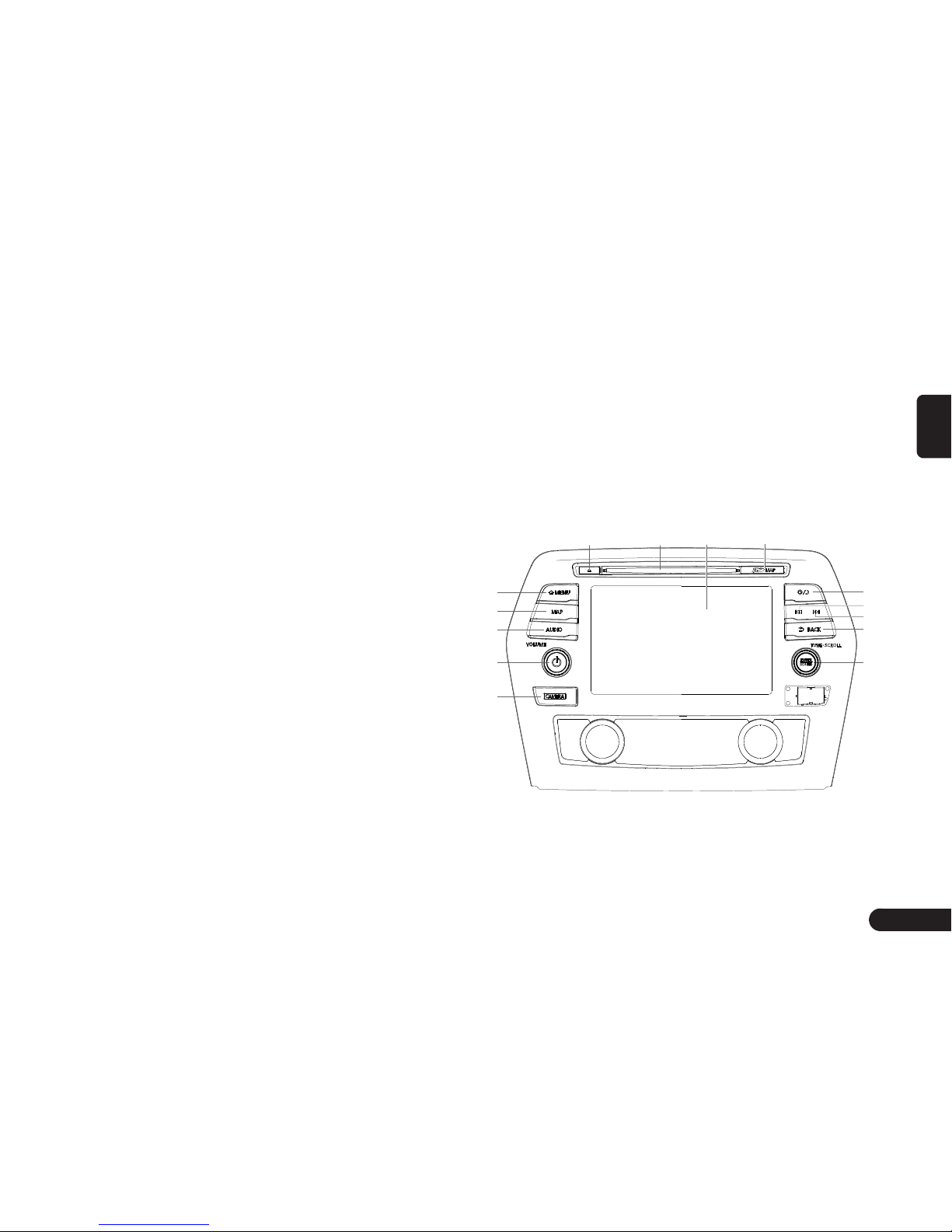

Names of Various Parts

Panel Buttons

[Q]Eject button: Short press it to eject the disc inside

the unit.

English

Disc slot: CD disc can be inserted for playing.

LCD(touch screen): To display the working statuses of

various modes.

SD card slot: Map SD card.

[ ]Day/night button: Press to switch between day or

night mode.

[A]Previous Track button: In CD/USB/iPod/ Bluetooth

Audio Device mode, short press it to select the previous

track to play, and long press it to Fast Reverse; in AM/

FM mode, short press to search radio station frequency

down manually.

[D]Next Track button: In CD/USB/iPod/Bluetooth Audio

Device mode, short press it to select the next track to

play, and long press it to Fast Forward; in AM/FM mode,

short press to search radio station frequency up manu-

ally.

[BACK] button: Back to the previous mode.

[TUNE SCROLL] knob/[ENTER/SOUND] button: Ro-

tate to jump to previous or next touch key in the general

mode; press and rotate the knob to adjust the sound

effect or tone quality. Rotate to zoom in or out the map

in the map mode.

0[CAMERA] button: To enter camera mode.

!button/Volume Knob: Rotate to adjust volume; short

press to turn off/on audio device.

@[AUDIO]button: To enter audio selection screen or Audio

Mode.

#[MAP] button: Press to enter the map screen.

$[MENU] button: Press to enter Menu Screen to select

audio function or navigation function.

Caution

●It is prohibited to pull out the map SD card or the

system will not work.

Basic method of use

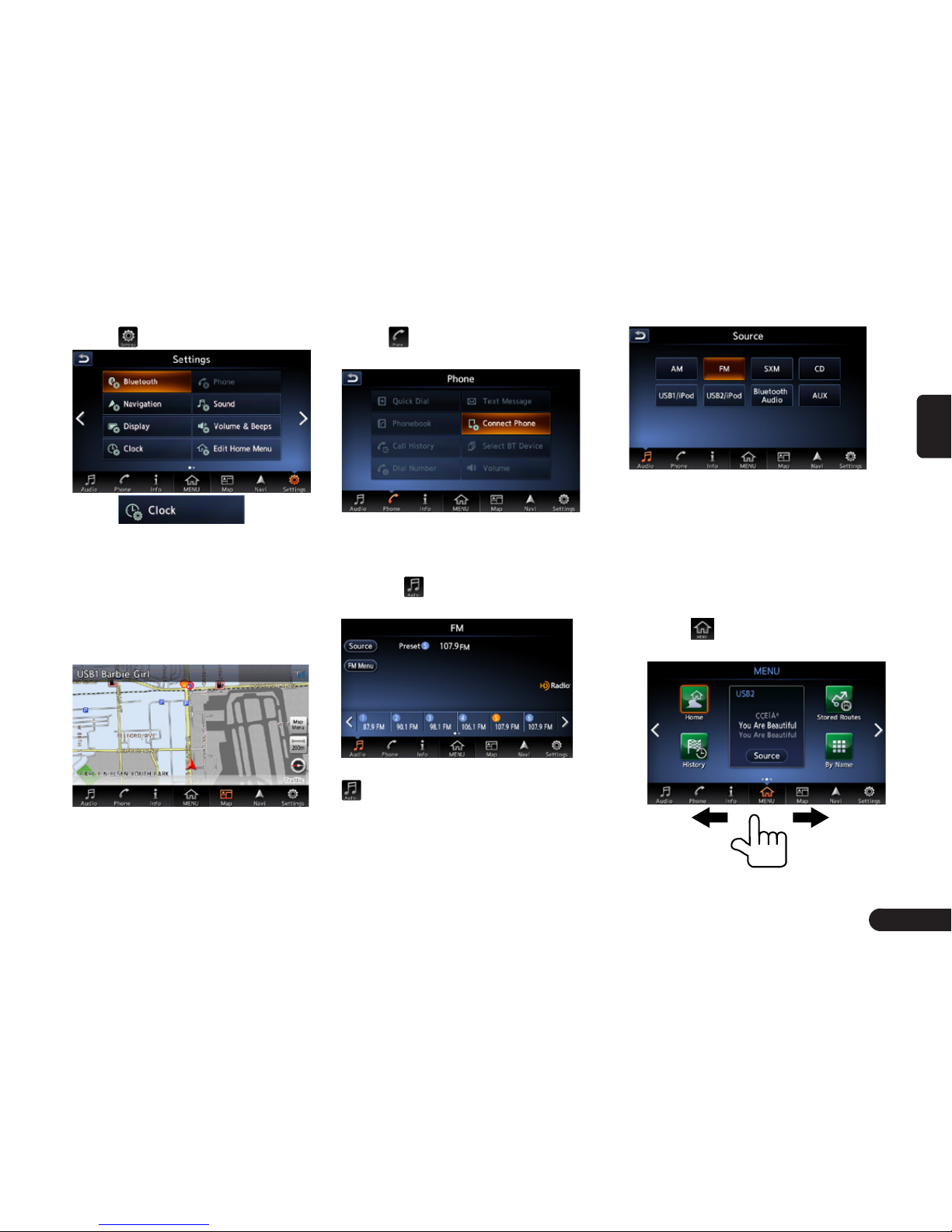

Switching the language

When the unit turns on, the default language is set to

English. Switch to your language to use the unit.

Press [MENU] button on the panel.

Touch to enter Settings Screen.

Touch or slide the screen.

Touch .

Select the language and unit you use.

Setting the time

Press [MENU] button on the panel.

English

Touch to enter Settings Screen.

Touch .

Set the clock you need.

Mode Switch

■Switch to navigation mode

Press [MAP] button on the panel to

switch to navigation mode for map

display.

■Switch to Bluetooth mobile

phone mode

Touch switch to Bluetooth

mobile phone mode.

■Switch to source mode

Press [AUDIO] button on the panel

or touch to switch to source mode

such as Radio mode.

Press [AUDIO] button or touch

in Source mode to switch

to source selection screen.

Basic Operations

Main menu operations

On main menu screen you can enter

corresponding work mode by touch

the icons on the screen.

Press [MENU] on the panel or

touch to enter main menu

screen.

English

zChange page by dragging left or

right or touch and .

Adjust Volume

Turn the [VOL] knob on the panel

to adjust the volume.

zSource mode: Adjust the volume of source.

zBluetooth Mobile Phone mode: Adjust the

incoming call ringtone volume when receiv-

ing a call, adjust the outgoing call ringtone

volume when making a call, or adjust the

call volume when speaking on the phone.

zMap navigation: Adjust Voice Guidance

volume when voice guidance interrupt.

zParking guidance: Adjust parking guid-

ance volume in parking guidance.

For example, turn the volume knob

in Source USB mode to adjust the

volume as shown below.

zTurn the knob clockwise: volume up.

zTurn the knob counterclock-

wise: volume down.

Audio On/Off

When the radio or media player is

ON, you can turn off the

Audio device.

Short press [ ] button to turn off

Audio.

Short press [ ] button again to

resume playing.

Day/Night Display Mode

Switch

This can switch the screen display

mode.

Press [ ] button on the panel to

to switch between day and night.

Basic Settings

Press [MENU] button on the panel.

Touch to enter Settings Screen.

Bluetooth Settings

Pair Bluetooth Mobile Phone or Blue-

tooth Audio Device / check the list of

paired equipment/Set Bluetooth

system of this unit.

NOTE:

*Pairing method of some mobile phones or

audio devices may differ or fail for Bluetooth

pairing due to different types of mobile

phones and audio devices.

Touch to enter

Bluetooth setting screen.

English

zWhen there is no Bluetooth pairing equip-

ment record, the items “Connect with Blue-

tooth” and “Select Device” will be invalid.

Touch to turn Bluetooth

On or Off.

Touch to Select the

mobile phone or audio device to

connect. You can operate as per

the information prompted.

Touch to view and

select BT Device.

Touch to edit

Bluetooth information.

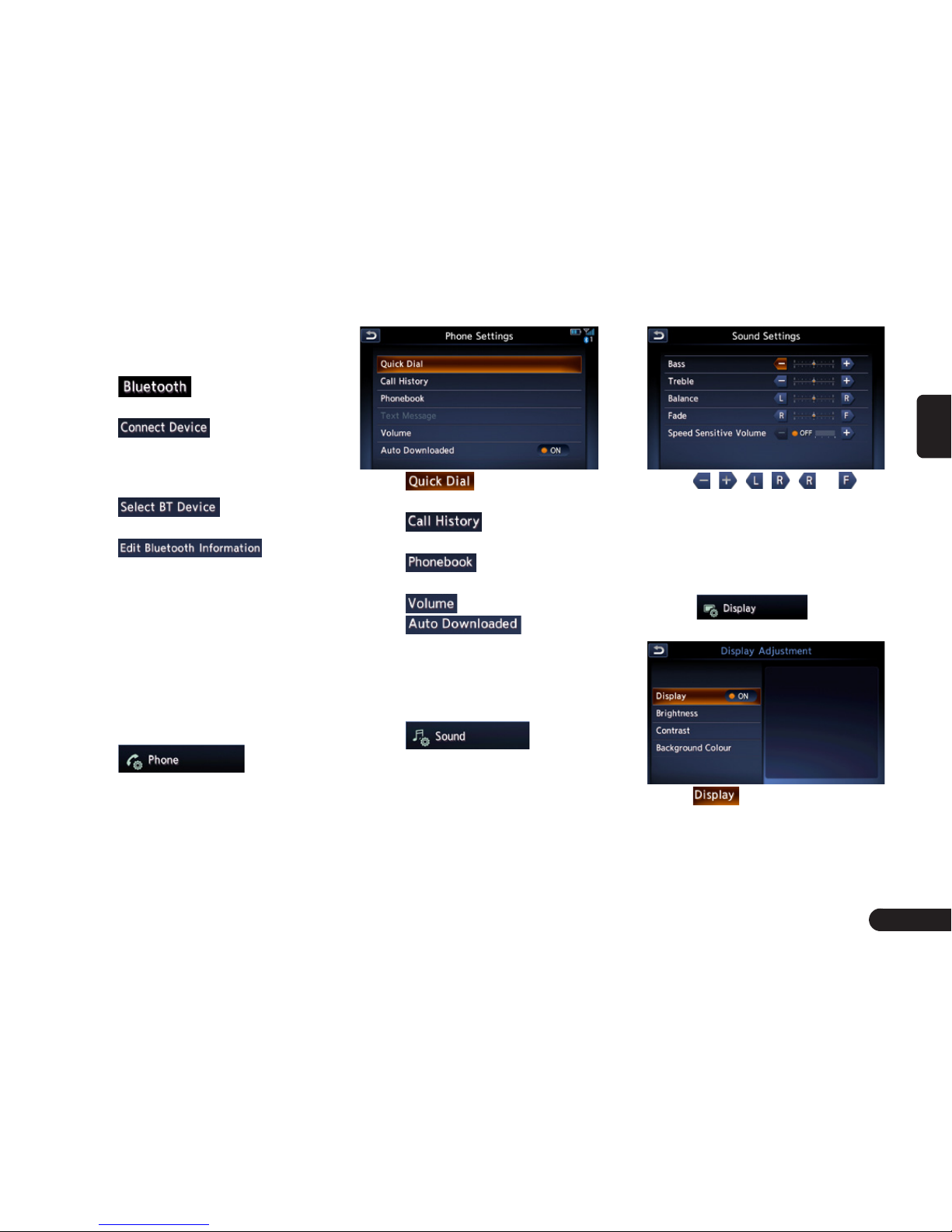

Phone settings

You can conﬁrm and view various

information concerning about the

Bluetooth phone.

Note:

Before setting phone you need to

pair the mobile phone with this unit.

Touch to enter

Phone setting screen.

Touch to edit and delete

Quick Dial number.

Touch to view Call His-

tory records.

Touch to download

Phonebook.

Touch to set Volume.

Touch to turn the

Auto Downloaded on or off.

Audio Settings

To set various sound effects.

Touch to enter

Audio setting screen.

Touch , , , , or to

adjust the tone quality.

Display Adjustment

Adjust the display effect of the

screen.

Touch to enter

Display Adjustment screen.

Touch , the screen display

can be switched off to enter power

save mode.

zAfter the screen display is OFF, the buttons

on the panel are still operational. Press

Inhaltsverzeichnis

Andere Clarion Auto-Navigationssystem Handbücher

Clarion

Clarion NX706 Bedienungsanleitung

Clarion

Clarion NX504E Bedienungsanleitung

Clarion

Clarion NP401 Reparaturanleitung

Clarion

Clarion MAX983HD Bedienungsanleitung

Clarion

Clarion MAX973HD Bedienungsanleitung

Clarion

Clarion NZ501E Bedienungsanleitung

Clarion

Clarion Navigation In-Car Entertainment Bedienungsanleitung

Clarion

Clarion NX501E Reparaturanleitung

Clarion

Clarion N.I.C.E. 430 Bedienungsanleitung

Clarion

Clarion NX700 Bedienungsanleitung

Clarion

Clarion NAX963HD Gebrauchsanweisung

Clarion

Clarion QY-8600 Bedienungsanleitung

Clarion

Clarion NX503E Bedienungsanleitung

Clarion

Clarion P200 Bedienungsanleitung

Clarion

Clarion NX700 Bedienungsanleitung

Clarion

Clarion QY-8200 Series Bedienungsanleitung

Clarion

Clarion NX706AU Stücklistenhandbuch

Clarion

Clarion NX404AU Bedienungsanleitung

Clarion

Clarion QY-8400 Series Bedienungsanleitung

Clarion

Clarion NP509 Bedienungsanleitung

Clarion

Clarion P200 Bedienungsanleitung

Clarion

Clarion NX604 Bedienungsanleitung

Clarion

Clarion MAX983HD Bedienungsanleitung

Clarion

Clarion ccb509 Bedienungsanleitung

Beliebte Auto-Navigationssystem Handbücher anderer Marken

Rosen

Rosen DP-1001 Bedienungsanleitung

Alpine

Alpine INE-W970HD Bedienungsanleitung

Skoda

Skoda AMUNDSEN+ Bedienungsanleitung

Blaupunkt

Blaupunkt TravelPilot DX-N Bedienungsanleitung

Pioneer

Pioneer MZ360500EX Bedienungsanleitung

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Bedienungsanleitung

Kenwood

Kenwood DNN991HD Bedienungsanleitung

AvMap

AvMap Geosat 2C Bedienungsanleitung

Eonon

Eonon GE01B Bedienungsanleitung

Pioneer

Pioneer AVIC-Z920DAB Bedienungsanleitung

Nextar

Nextar M3-MX - Automotive GPS Receiver Bedienungsanleitung

Furrion

Furrion NV2200 Bedienungsanleitung

Mio

Mio MOOV 200-Series Bedienungsanleitung

Prestigio

Prestigio GeoVision 5150 Bedienungsanleitung

Hummer

Hummer 2006 H3 Bedienungsanleitung

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Konfigurationshandbuch

Garmin

Garmin StreetPilot c510 Bedienungsanleitung

Garmin

Garmin nüvi 2200 Bedienungsanleitung
