Classic Flame 33EB304GRS Bedienungsanleitung

E-1

MODEL NUMBERS:

33EB304GRS

39EB364GRS

45EB424GRS

BUILT IN ELECTRIC FIREPLACE

INSTALLATION GUIDE

CONSUMER SAFETY INFORMATION

PLEASE READ THIS MANUAL BEFORE INSTALLING THIS APPLIANCE

WARNING

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED,

AN ELECTRIC SHOCK OR FIRE MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE

VAPORS AND LIQUIDS IN THE VICINITY OF THIS

OR ANY OTHER APPLIANCE.

Thank you and congratulations on your purchase of a Classic Flame ﬁreplace.

Please read the installation instructions before installing and operating

this appliance.

IMPORTANT: Read all instructions and warnings carefully before starting installation.

Failure to follow these instructions may result in a possible electric shock, ﬁre

hazard and/or injury and will void the warranty.

For Customer Service:

E-Mail: par[email protected]

In English Call: 866-661-1218

En Français Call: 866-374-9203

En Español Call: 866-661-1218

Twin-Star International, Inc.

Delray Beach, FL 33483

Made in China

Printed in China

LISTINGS AND CODE APPROVALS

THE BUILDERS BOX SERIES HAS BEEN TESTED AND APPROVED IN ACCORDANCE WITH THE

CSA, No.220391, STANDARDS FOR FIXED AND LOCATION

DEDICATED ELECTRIC ROOM HEATERS.

MODEL SPECIFICATIONS

MODEL

NUMBER DESCRIPTION VOLTAGE

RATED POWER

WATTS

REMOTE

CONTROL AMPS

33EB304GRS 33” STANDARD 120/208/240 1440/2100/2800 YES 12.00/10.10/11.67

39EB364GRS 39” STANDARD 120/208/240 1440/2100/2800 YES 12.00/10.10/11.67

45EB424GRS 45” STANDARD 120/208/240 1440/2100/2800 YES 12.00/10.10/11.67

!!! WARNING !!!

THE INSTALLATION OF THE FIREPLACE UNIT MUST COMPLY WITH THE APPLICABLE

LOCAL AND/ OR NATIONAL ELECTRICAL CODES AND UTILITY REQUIREMENTS.

THIS INSTALLATION SHOULD BE ENTRUSTED TO DULY QUALIFIED

PERSONNEL WHERE REQUIRED BY LAW.

!POWER SELECTION WARNING!

This unit is factory wired for 240 volt power supply.

If 120 volt operation is required, slide the voltage switch

and reconﬁgure the wiring accordingly (see ﬁgure 2).

Wires L1, L2, N & G are attached to the rear of

the junction box for easy access.

! !

1) Rough in framing following the

recommended dimensions. (see ﬁgure 1)

2)Allow at least 8” of service cable for

connecting power supply wire to junction

box on ﬁreplace insert when installing

before ﬁnishing wall. Allow up to 4 feet of

service cable for connecting power supply

wire to junction box on ﬁreplace insert

after ﬁnishing wall.

3) Remove the outer jacket and strip the

individual conductors ½” from end.

4) Loosen the screw securing the junction

box cover and remove the cover.

5) Place unit in position in the framed

opening, level with shims if necessary

and attach unit to frame using mounting

ﬂanges provided ( see Section 3).

6) Wire a dedicated, properly fused circuit with

a 15 amp rating for the appropriate voltage

(120, 208/240). (See table above)

7) Install wall thermostat as outlined on

page 10 section E

8) Place all connections inside the junction

box. Secure the junction box cover on the

unit.

When installing a cable clamp make sure it

grips only the jacket of the service cable

and thermostat wire.

STEP - BY - STEP INSTALLATION OVERVIEW

(please read all instructions before installation)

E-2

Framing Speciﬁcations: Figure 1

This ﬁreplace is a zero clearance design. No

combustibles can be placed on the top

surface of the ﬁreplace. Combustibles may

be installed to the edge of the unit.

For 120 volt installations use two conductor,

non-metallic sheath cable with ground wire

(3 wires total) for the incoming power supply

on ﬁreplace inserts. Use the appropriate wire

to meet local and national electrical codes for

rated power consumption.

For 208/240 volt installations use three

conductor, non-metallic sheath cable with

ground wire (4 wires total) for the incoming

power supply on ﬁreplace inserts. Use the

appropriate wire to meet local and national

electrical codes for rated power consumption.

MODEL A B C D E F G H I J K L M

33EB304GRS 15.0” 33.0” 29” 28.5” 23.0” 32.8” 29.6” 18.25” 23.6” 14.3” 49.0” 34.7” 34.7

38.9

”

39EB364GRS 16.0” 39.0” 33” 32.7” 27.2” 38.7” 36.0” 22.0” 27.6” 15.3” 55.0” 38

43.1

45EB424GRS 16.0” 45.0” 33” 32.7” 27.2” 44.7” 41.9” 28.1” 28.0” 15.3” 61.0” 43.1

.9”

”

Four mounting ﬂanges on the sides of the unit

are provided to facilitate installation.

Insulation and vapor barrier should be placed

a minimum of 2 inches from the unit.

Two conductor, non-metallic sheath cable with

ground wire (3 wires total) is recommended

for installation of a wall mounted thermostat

for use on ﬁreplace inserts.

Recommended Wire and

Fusing Requirements

Use appropriate wire to meet local and

national electrical codes for rated power con-

sumption. All wire gauges should be

12 gauge with a dedicated 15 amp breaker.

Section 2: Recommended Power Supply Wire Speciﬁcations

Section 1: Framing

E-3

Voltage Selector Switch: Figure 2

The voltage selector switch is located inside

the exhaust panel on the top left hand

corner. Carefully insert a ﬂat headed screw-

driver inside the exhaust panel through the

hole in the mesh to change the switch from

240 volts (230 position) to 120 volts (115

position). The unit ships with the switch in the

230V position.

115 230

Section 3: Voltage Selector Switch Location

When wiring the unit for 208/240 volts the

voltage selector switch should be in the 230

volt position. (see ﬁgure 2)

When wiring the unit for 120 volts the voltage

selector switch should be in the 115 volt

position. (see ﬁgure 2)

Caution:

When changing the voltage selector switch

from 240 volts to 120 volts ensure that the

power supply is turned off.

Important:

Ensure that the incoming power supply

voltage matches the setting of the

voltage selector switch!!!!!!

E-4

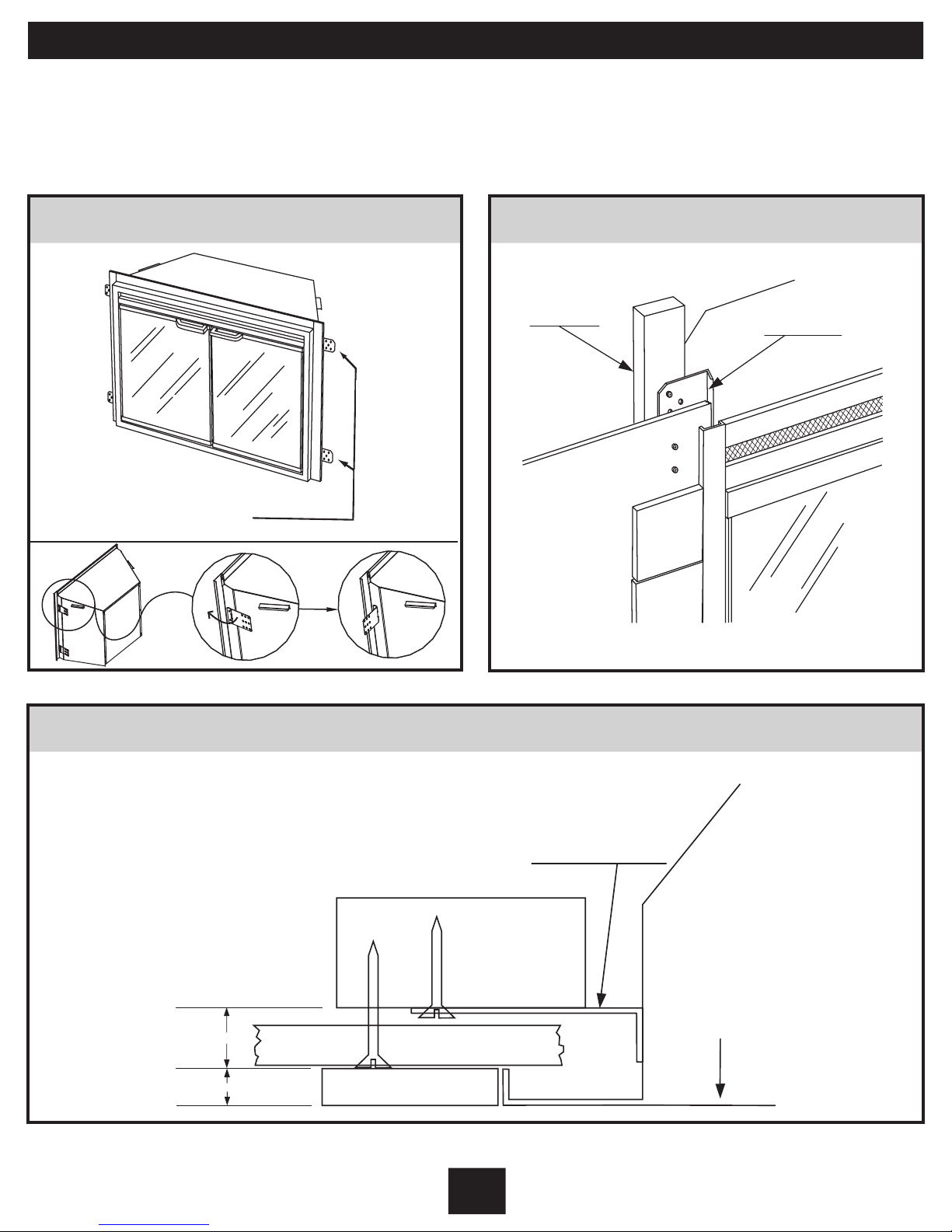

Mounting Flange Location: Figure 3

NITNUOM G

EGNALF S

Wall and Mounting Flange: Figure 4

Mounting Tolerances - Top View: Figure 5

STUD

WOOD OR METAL

MOUNTING FLANGE

RD WY LLA EEHS / CORT K

MAREC IC

ELIT

DRYWALL / SHEETROCK

CERAMIC TILE

STUD

9/16”

3/8”

MOUNTING FLANGE

INSERT

TOP

VIEW

FRONT

Section 4: Mounting Flanges

E-5

Please bend the mounting flanges into 90o using suitable hardware before installation.

(please see the figure 3)

There are two mounting ﬂanges located on each side of the ﬁreplace insert. In order to facilitate

90o

Bend 90o

to outside

Picture after

bending 90o

the transportation, we make the mounting flanges into flat status.

JUNCTION BOX

1. Locate the voltage selector switch inside

the exhaust panel on the top left hand

corner of the unit. (see ﬁgure 2 on page 3)

2. Conﬁrm the switch is set to 120 volt

conﬁguration ( 115 volt is printed on

switch).

3. Loosen the screw securing the junction

box cover and remove the cover.

4. Remove the knockouts (if necessary)

or use a cable clamp (not provided).

5. Pull out the four wires marked L1, L2,

N, and G.

6. Connect the black L1 wire from the unit to

the black L1 from the power supply.

7. Connect the red L2 wire and the N wire

from the unit to the N wire from the

power supply.

8. Connect the green ground wire from the

unit to the ground from the power supply.

9. Ensure that all connections are tight.

10. Insert all the wiring back into the unit and

secure with a cable clamp.

Section 5: 120 Volt Installation Instructions

Important

• The unit is factory conﬁgured for 240 volt

operation.

• Use 2 conductor wire with ground (3 wires

total) from the power supply (breaker

panel) to the junction box on the unit.

• All wiring must be completed prior to

installing the unit.

• Ensure that the voltage selector switch is

in the proper position for the required

supply voltage prior to connecting the unit

to the power supply.

Junction Box Locator: Figure 6

E-6

N - WHITE WIRE

L2 - RED WIRE

L1- BLACK WIRE

G- GREEN WIRE

N- WHITE WIRE

L1 - BLACK WIRE

G - GREEN WIRE

FIREPLACE -JUNCTION BOX

120 VOLT

POWER SUPPLY

BREAKER

PANEL

Wire Connection Diagram: Figure 7

E-7

JUNCTION BOX

1. Locate the voltage selector switch inside

the exhaust panel on the top left hand

corner of the unit. (see ﬁgure 2 on page 3)

2. Conﬁrm the switch is set to 240 volt

conﬁguration (230 volt is printed

on switch).

3. Loosen the screw securing the junction

box cover and remove the cover.

4. Remove the knockouts (if necessary) or

use a cable clamp (not provided).

5. Pull out the four wires marked L1, L2,

N, and G.

6. Connect the black L1 wire from the unit to

the black L1 from the power supply.

7. Connect the red L2 wire from the unit to

the red L2 from the power supply.

8. Connect the white N wire from the unit to

the white N wire from the power supply.

9. Connect the green ground wire from the

unit to the ground from the power supply.

10. Ensure that all connections are tight.

11. Insert all the wiring back into the unit and

secure with a cable clamp.

Section 6: 240 Volt Installation Instructions

Important

• The unit is factory conﬁgured for 240 volt

operation. You must set the voltage

selection switch to 240 volts (230 volt is

printed on the switch.

• Use 3 conductor wire with ground (4 wires

total) from the power supply (breaker

panel) to the junction box on the unit.

• All wiring must be completed prior to

installing the unit.

• Ensure that the voltage selector switch is

in the proper position for the required

supply voltage prior to connecting the unit

to the power supply.

Junction Box Locator: Figure 8

E-8

N - WHITE WIRE

L2 - RED WIRE

L1- BLACK WIRE

G- GREEN WIRE

N- WHITE WIRE

L1 - BLACK WIRE

G - GREEN WIRE

FIREPLACE -JUNCTION BOX

240 VOLT

POWER SUPPLY

BREAKER

PANEL

L2 - RED WIRE

Wire Connection Diagram: Figure 9

E-9

JUNCTION BOX

1. Loosen the screw securing the junction

box and remove the cover.

2. Remove the knockouts (if necessary) or

use the provided cable clamp.

3. Pull out the three wires marked T1, T2,

and TG. (red, red, and green)

4. Remove the wire connector and separate

the wires marked T1 & T2.

5. Connect the (red) T1 wire from the unit

to the white (neutral) wire from the wall

thermostat box by using a wire connector.

(not supplied)

6. Connect the other end of the white

(neutral) wire from the thermostat wall

box to the red wire from the wall

thermostat.

7. Connect the (red) T2 wire from the unit to

the black wire from the thermostat wall

box by using a wire connector.

(not supplied)

8. Connect the other end of the black wire

from the thermostat wall box to the black

wire from the wall thermostat.

9. Connect the green (ground) TG wire from

the unit to the green (ground) wire from

the thermostat wall box by using a wire

connector. (not supplied)

Section 7: Wall Mounted Thermostat Wiring For 120/240 Volt

ATTENTION

• Install main power connection with

appropriate voltage as per Section C

or Section D.

• Install a 2 conductor wire with ground

(3 wires total) from the thermostat wall

box to the junction box on the unit.

• Wiring of the thermostat must be

completed prior to the mounting of

the unit.

• The following installation instructions are

for a single pole thermostat.

Junction Box Locator: Figure 10

10. Connect the other end of the green

(ground) wire from the thermostat wall

box to the back plate of the wall mounted

thermostat with a ground screw.

11. Ensure that all connections are tight.

12. Insert all the wiring of the wall mounted

thermostat into the wall box.

13. Insert all the wiring back into the unit and

secure with a cable clamp.

E-10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Classic Flame Kamin im Innenbereich Handbücher

Classic Flame

Classic Flame 33EB304GRS Bedienungsanleitung

Classic Flame

Classic Flame 45EB424GRS Bedienungsanleitung

Classic Flame

Classic Flame 39EB500GRS Bedienungsanleitung

Classic Flame

Classic Flame CFI-950-4 Bedienungsanleitung

Classic Flame

Classic Flame 23DE8202 Bedienungsanleitung

Classic Flame

Classic Flame 18EF010GAA Bedienungsanleitung

Classic Flame

Classic Flame 36EB110-GRT Bedienungsanleitung

Classic Flame

Classic Flame 52EB497GRA Bedienungsanleitung

Classic Flame

Classic Flame 47IMM4931 Bedienungsanleitung

Classic Flame

Classic Flame 26MM6501 Bedienungsanleitung

Classic Flame

Classic Flame 26MM90273 Bedienungsanleitung

Classic Flame

Classic Flame 34HF600GRA Bedienungsanleitung

Classic Flame

Classic Flame 36EB110-GRT Bedienungsanleitung

Classic Flame

Classic Flame 23IIU42FGL Bedienungsanleitung

Classic Flame

Classic Flame 26MMS9626 Bedienungsanleitung

Classic Flame

Classic Flame 26MMS9872 Bedienungsanleitung

Classic Flame

Classic Flame 39EB500ARA Bedienungsanleitung

Classic Flame

Classic Flame 23II042FGL Bedienungsanleitung

Classic Flame

Classic Flame 28MM4684 Bedienungsanleitung

Classic Flame

Classic Flame 26MM9856 Bedienungsanleitung

Classic Flame

Classic Flame 36EB110-GRT Bedienungsanleitung

Classic Flame

Classic Flame 26MM9872 Bedienungsanleitung

Classic Flame

Classic Flame Helen Bedienungsanleitung

Classic Flame

Classic Flame 23DE1447 Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
