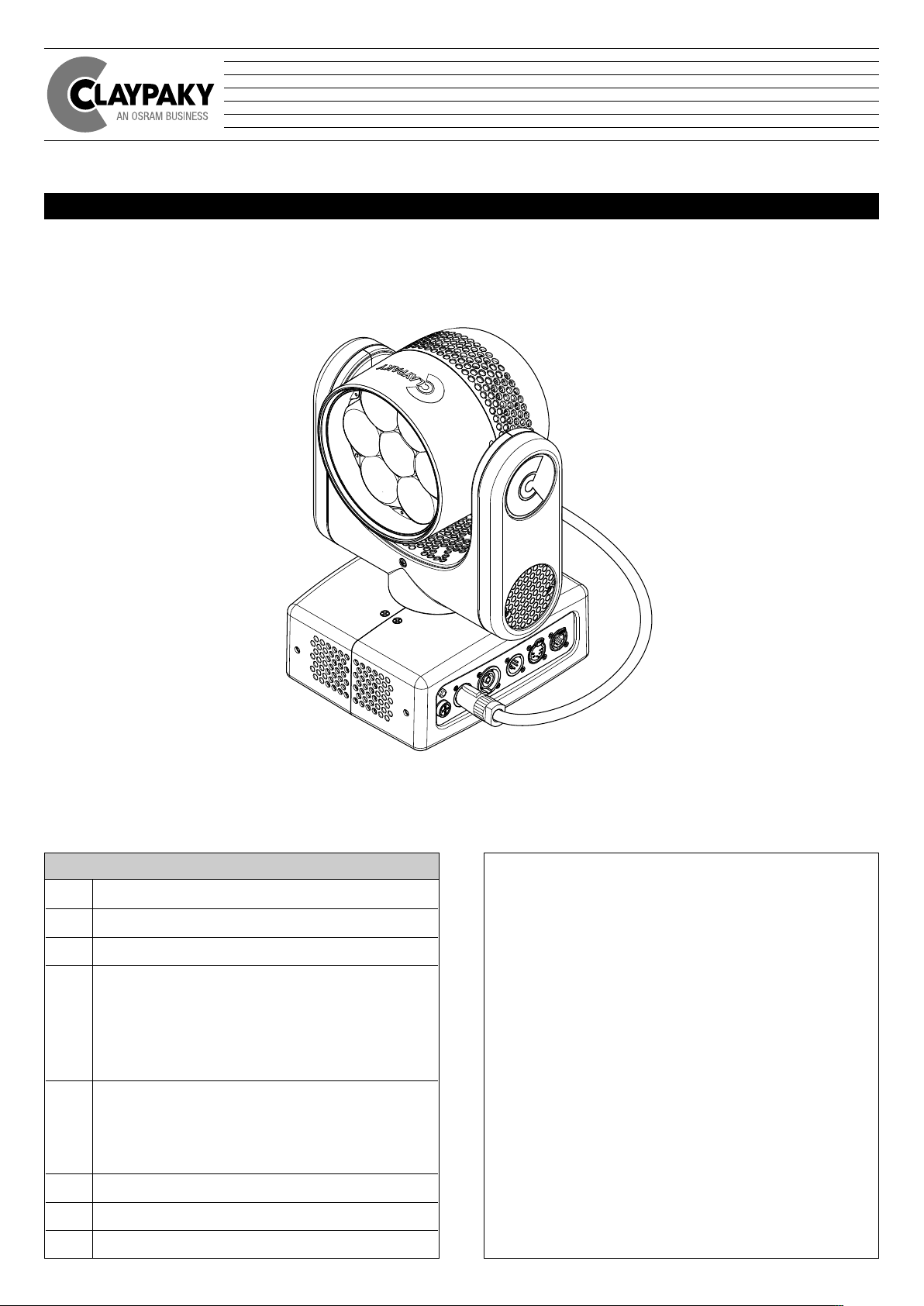

Claypaky Mini-B WW Bedienungsanleitung

INS RUC ION MANUAL

ENGLISH

INDEX

Page Contents

2 1. Safety information

3 2. Unpacking and preparation

3 3. Installation and start-up

3 3.1 Installing the fixture

4 3.2 Connecting to manis supply

5 3.3 Connecting the control signal line: DMX / Art-Net

5 3.4 Switching on the fixture and basic SetUp

7 4. Maintenance

7 4.1 Maintenance and Caution

8 4.2 Battery removal

9 4.3 Opening the covers

10 5. Accessories

11 6. Dimensions

11 7. Cause and solution of problems

Congratulations on choosing a Claypaky product!

We thank you for your custom.

Please note that this product, as all the others in the

rich Claypaky range, has been designed and made with

total quality to ensure excellent performance and best

meet your expectations and requirements.

Mini-B

Mini-B WW

CL3005

CL3020

Mini-B & WW

SAFE Y INFORMA ION

IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also

available in digital format at the following link:

www.claypaky.com

Ref: [FIS01M - Safety Information Mini-B]

INFORMAZIONI DI SICUREZZA

IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative

a questo prodotto, sempre reperibili in versione digitale al seguente link:

www.claypaky.com

Rif: [FIS01M - Safety Information Mini-B]

INFORMA IONEN ZUR SICHERHEI

WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und

aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:

www.claypaky.com

Ref: [FIS01M - Safety Information Mini-B]

INFORMACIONES DE SEGURIDAD

IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este

producto. Además, está disponible una versión digital de la misma en el siguiente enlace:

www.claypaky.com

Ref: [FIS01M - Safety Information Mini-B]

CONSIGNES DE SÉCURI É

IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à

ce produit, disponibles en version digitale au lien suivant:

www.claypaky.com

Réf. : [FIS01M - Safety Information Mini-B]

ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ

ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкци по технике безопасности

данного изделия, которая всегда доступна в электронном формате по следу щей ссылке:

www.claypaky.com

Наименование: [FIS01M - Safety Information Mini-B]

1. SAFE Y INFORMA ION

Mini-B & WW

Packing contents - Fig. 1

2. UNPACKING AND PREPARA ION

Installing the projector - Fig. 2

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/001 available on request).

This must be securely fixed to the support structure of the projector and then connected to the fixin point at the centre of the base.

3. INS ALLA ION AND S AR -UP

3.1 Installing the fixture

Mini-B & WW

Mains

Connecting to the mains supply - Fig. 5

Connecting and disconnecting power cable - Fig. 4

NB: connecting one

Mini-B to the mains,

it is possible to connect

up to a maximum

of 6 @200-240Vac -

2 @100-120Vac Mini-B in

parallel at the same time.

Fuse 5x20mm

6.3AT 250V

(030463)

Power in DMX in Ethernet

Power out DMX out

LCD Display Functional buttons

Control Panel - Fig. 3

3.2 Connecting to manis supply

Mini-B & WW

Switching on the projector - Fig. 7

Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Firmware Dmx Address xxx System errors

Mini-B Version X.X.X .........................

Date - Hour .........................

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel

(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:

rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.

It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the

key will be cancelled.

Dmx Address

War ning Message

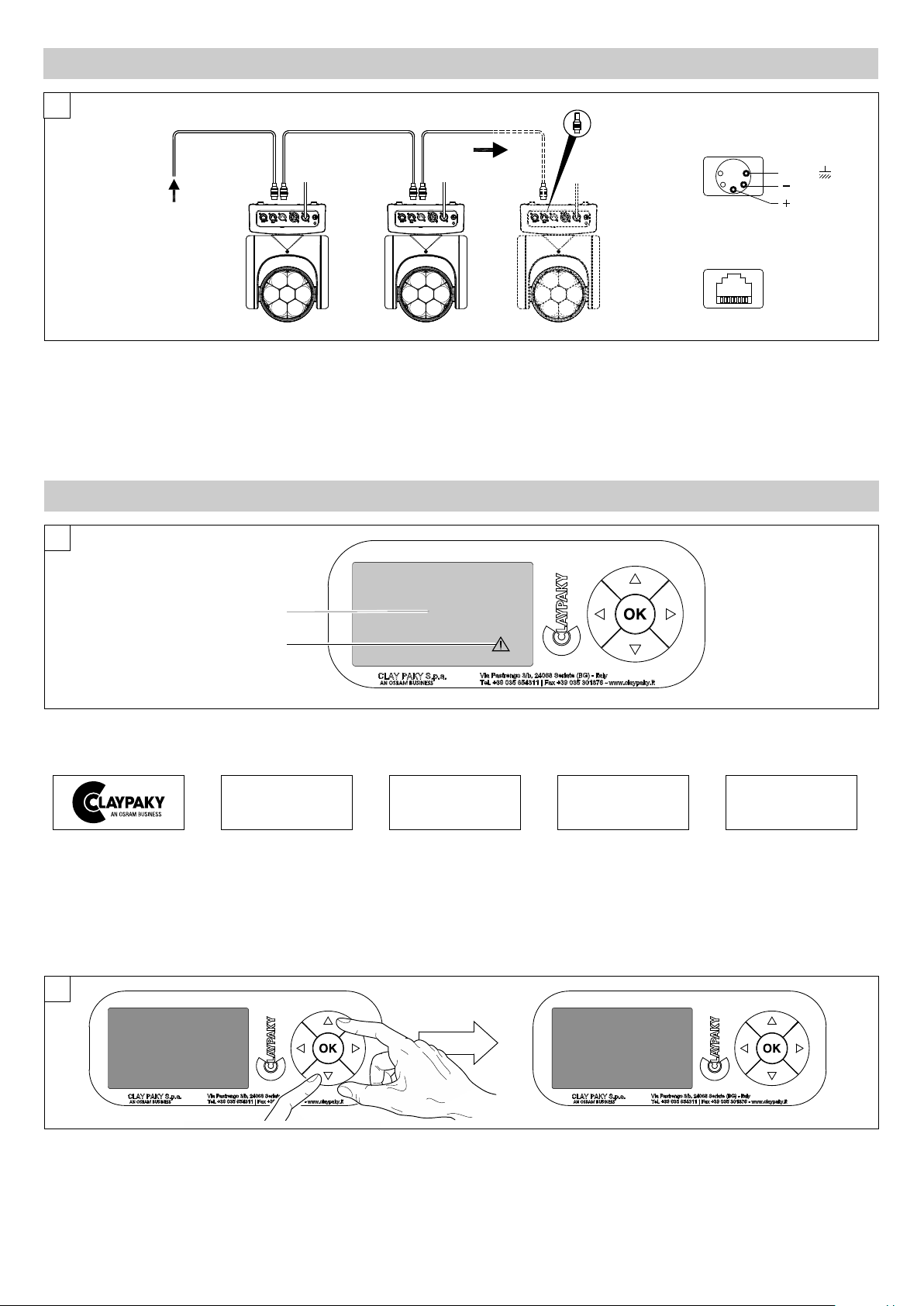

Connecting to the control signal line (DMX) - Fig. 6

Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use

microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female

connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.

IMPOR AN : The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the

shield braid and to pin 1 of the connectors.

SIGNAL

SCREEN

DMX 512

5 PIN

SIGNAL

Ethernet

Continue ➔

3.3 Connecting the control signal line: DMX / Art-Net

3.4 Switching on the fixture and basic SetUp

Reversal of the display - Fig. 8

To activate this function, press UP

and DOWN

keys simultaneously while the display is in the rest mode. This status will be memorised and

maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the projector switched off.

Mini-B & WW

Functions of the buttons - Using the menu

Setting addresses and options with the projector disconnected

The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.

All that is needed is to press

RIGHT

to momentarily activate the display and thus access the settings. Once the required operations have been

carried out, the display will switch off again after a wait time of 30 seconds.

USING HE MENU:

1) Press LEFT

once – “Main Menu” appears on the display.

2) Use the UP

and DOWN

keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.

• Option (Option Menu): To set the operating options

• Informations (Informations Menu): To read the counters, software version and other information.

• Manual Control (Manual control Menu): To trigger the test and manual control functions.

• Test (Test Menu): To check the proper functionning of effects

• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.

3) Press

to display the first item in the selected menu.

4) Use the UP

and DOWN

keys to select the MENU items.

Confirms the displayed value, or activates the displayed function, or enters the successive

menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level

Commute from units, tens, hundreds, in the "Address" and "Calibration" menù.

DOWN

LEFT

RIGHT

Mini-B & WW

CAU ION:

• o avoid damage to the internal parts of the fixture when the fixture is not working, is recommended to turn the head down before turning the fixture

off, so that the front lenses of the fixture are invested as little as possible from the sun.

• Set Zoom channel to 255-bit before turning off the projector to facilitate the packaging of the projector.

• It is recommended not to use compressed air with more than 4 atmospheres for cleaning the internal parts of the fixture, led board area.

his is to avoid damaging electronic components.

•To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The

frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of

the working environment (air humidity, presence of dust, salinity, etc.).

It is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following

operations:

- General cleaning of internal parts.

- Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.

- General visual check of the internal components, cabling, mechanical parts, etc.

- Electrical, photometric and functional checks; eventual repairs.

Cleaning the lenses

Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARNING: the use of alcohol or any other

detergent could damage the lenses).

Light collimation system

This product contains internal light

collimation system. Avoid intense

light from any angle.

Continue ➔

WARNING:

no alcohol

WARNING:

no alcohol

4. MAIN ENANCE

4.1 Maintenance and Caution

Mini-B & WW

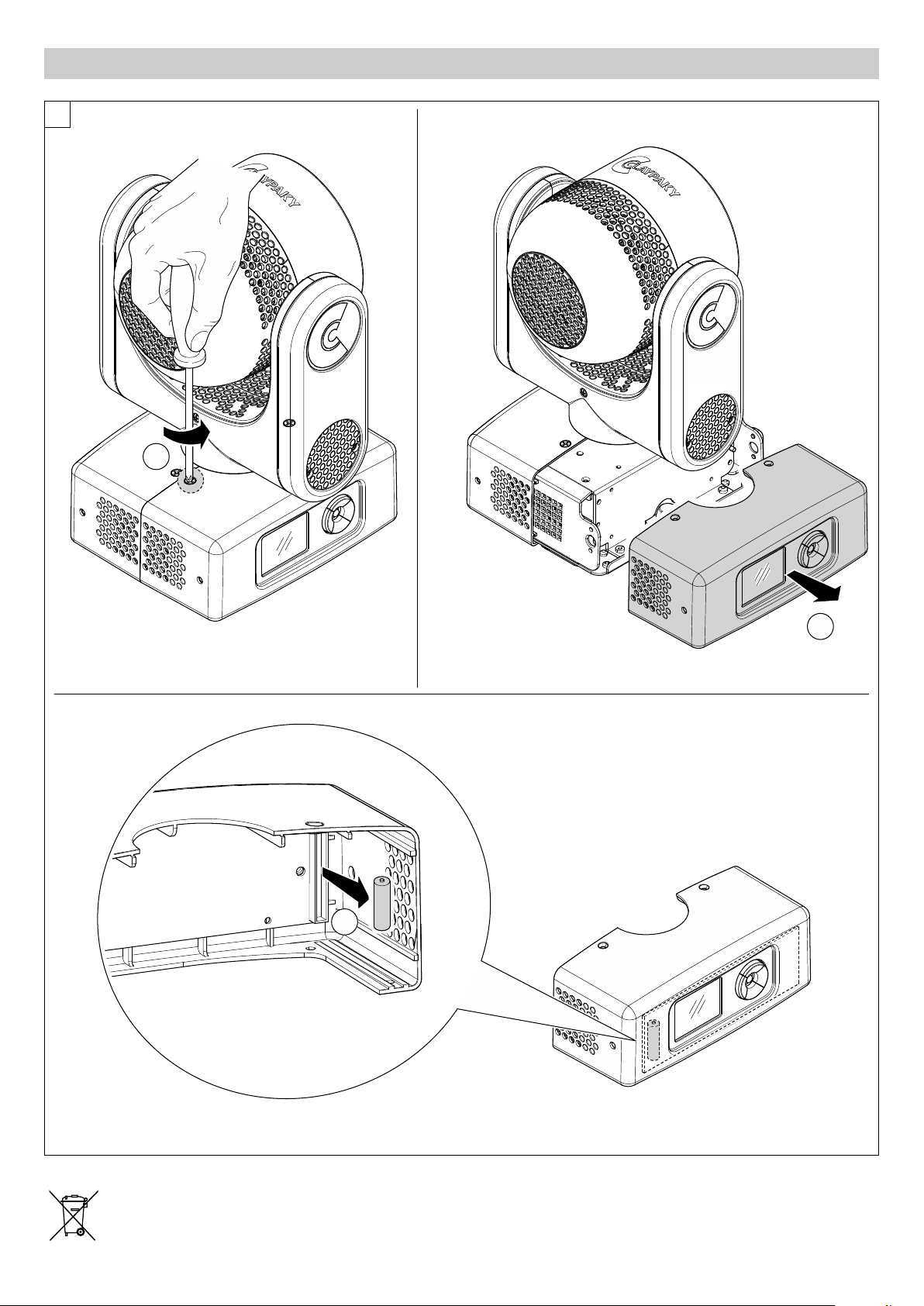

Battery removal - Fig. 10

This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the

regulation in force.

4.2 Battery removal

Mini-B & WW

Opening the covers - Fig. 11

4.3 Opening the covers

Mini-B & WW

5. ACCESSORIES

Optional Handles CA3001000100 - Fig. 12

Optional Egg Crate CA3002000100 - Fig. 13
