VIEW®Pro D310

High-definition, IP, Compressed Audio/Video Decoder

Quick-Start Guide

THE VIEW PRO ENCODER AND DECODER ................................ 1

QUICK-START OVERVIEW ............................................................ 1

ENCODER AND DECODERS IN A NETWORK ............................. 2

PARTS INCLUDED......................................................................... 3

MOUNTING THE D310 DECODER................................................ 4

CONNECTING THE DECODER..................................................... 6

CONFIGURING THE DECODER.................................................... 7

PART NUMBERS.......................................................................... 15

Table of Contents

VIEW PRO D310 QUICK-START GUIDE

THE VIEW PRO ENCODER AND DECODER

ClearOne’s VIEW Pro D310 decoder delivers the ultimate in high-quality,

low-latency, 4:2:0 YCbCr color space digital media at unrivaled cost

advantage. Distribution of all digital media is via existing IP networks and

infrastructure to single-image, full-screen video applications.

ClearOne StreamNet® technology embedded within VIEW Pro encoders

and decoders also facilitates automatic discovery, control, monitoring

and distribution within StreamNet networks.

The VIEW Pro D310 decoder takes the combined video and audio

stream, usually provided from a VIEW Pro encoder, decodes it, and then

sends the video and audio to a display such as a HDTV or projector and

sound system.

The latest version of the VIEW CONSOLE software can be found on the

ClearOne website at http://www.clearone.com/resources#network_

media_streaming.

QUICK-START OVERVIEW

You will be performing these steps in the following order to use the VIEW

Pro D310 Decoder in your StreamNet network:

1. Mounting the D310 Decoder (Optional)

2. Connecting the D310 Decoder

3. Configuring the D310 Decoder

VIEW PRO ENCODER & DECODER

ENCODER AND DECODERS IN A NETWORK

The VIEW Pro encoder receives input from an AV source device such as

BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/

IP network using a standard 100 Mbit or Gbit Ethernet connection. The

encoder provides the IP data for VIEW Pro decoders to deliver to the

displays, therefore decoders are installed at the locations of the target

video displays.

This picture shows an example for connecting VIEW Pro devices in a

network.

VIEW PRO D310 QUICK-START GUIDE

PARTS INCLUDED

The following items are included with the VIEW Pro D310 Decoder:

• D310 Decoder Unit

• Power Supply

• Mounting Plate

(VESA, holes spaced 100 mm X 100 mm, 3.9 inches X 3.9 inches)

• Mounting Screws for Mounting Plate and D310 Unit

• USB to DB9 Serial Adapter

Verify that all items have been received. If there is any issue, please

contact your ClearOne representative.

VIEW PRO ENCODER & DECODER

MOUNTING THE D310 DECODER

The D310 includes a Mounting Plate and screws. The Mounting Plate can

be used on a wall or for applications where a decoder must be located

on a VESA mount, such as on the back of a monitor.

Attach the Mounting Plate to a display with the 4 phillips-head screws.

(Figure 1)

Insert the 2 screws with the extended heads into the back of the D310

and tighten. (Figure 2)

NOTE: Although the Mounting Plate does attach the decoder to

the back of a display, it also allows the decoder to be attached to a

separate VESA mount.

Figure 1

VIEW PRO D310 QUICK-START GUIDE

Align the D310 with the Mounting Plate so that indicator arrows on the

plate and the decoder are pointed upward. Insert the heads of the

extended screws on the D310 into the keyhole slots of the Mounting

Plate and slide down to secure.

Figure 2

Figure 3

VIEW PRO ENCODER & DECODER

CONNECTING THE DECODER

Connect the D310 Decoder to:

• Ethernet LAN where the encoders and the computer running the VIEW

CONSOLE program are connected

• HDMI Audio/Video output to the HDMI input on the display or projector

• USB 3.0 ports can be used by the USB to DB9 Serial Adapter allowing

serial communication to/from the unit

• A provided DC power supply

NOTE: Carefully run the connected cables so they do not put strain on

the connectors.

HDMI

Audio/Video Out

Ethernet

Connection

to Network

DC In

USB 3.0 Ports

(future use)

S/PDIF (Optical) USB 3.0 Port

(future use)

Internal Use

Only

AV Output

(SD Resolution)

Power

On/O

Internal Use

Only

CONFIGURING THE DECODER

The VIEW Pro D310 Decoder is configured for use in the network with the

VIEW CONSOLE program. VIEW CONSOLE is a PC-based program that

allows you to configure devices so that they can communicate across a

StreamNet network. Phases of the software setup include:

• Create a new or open an existing project

• Add the D310 device to the project

• Match the correct device from the right-hand column.

• Configuring the device with system-specific information regarding

Display Outputs, Controls, IP.

• Saving the project

• Sending the configurations

These steps in these processes are detailed in the VIEW CONSOLE user

manual available for viewing or download at www.ClearOne.com.

NOTE: VIEW CONSOLE version 3.02.xx or later is required to

support the D310 decoder.

Information specific to the VIEW Pro Decoder is contained in the VIEW

Pro - D310 Digital AV Decoder Installation and Users Manual available

for viewing or download at www.clearone.com. (The steps for using the

VIEW CONSOLE program and options for the D310 are similar to those

of the D210 decoder).

VIEW PRO D310 QUICK-START GUIDE

VIEW PRO ENCODER & DECODER

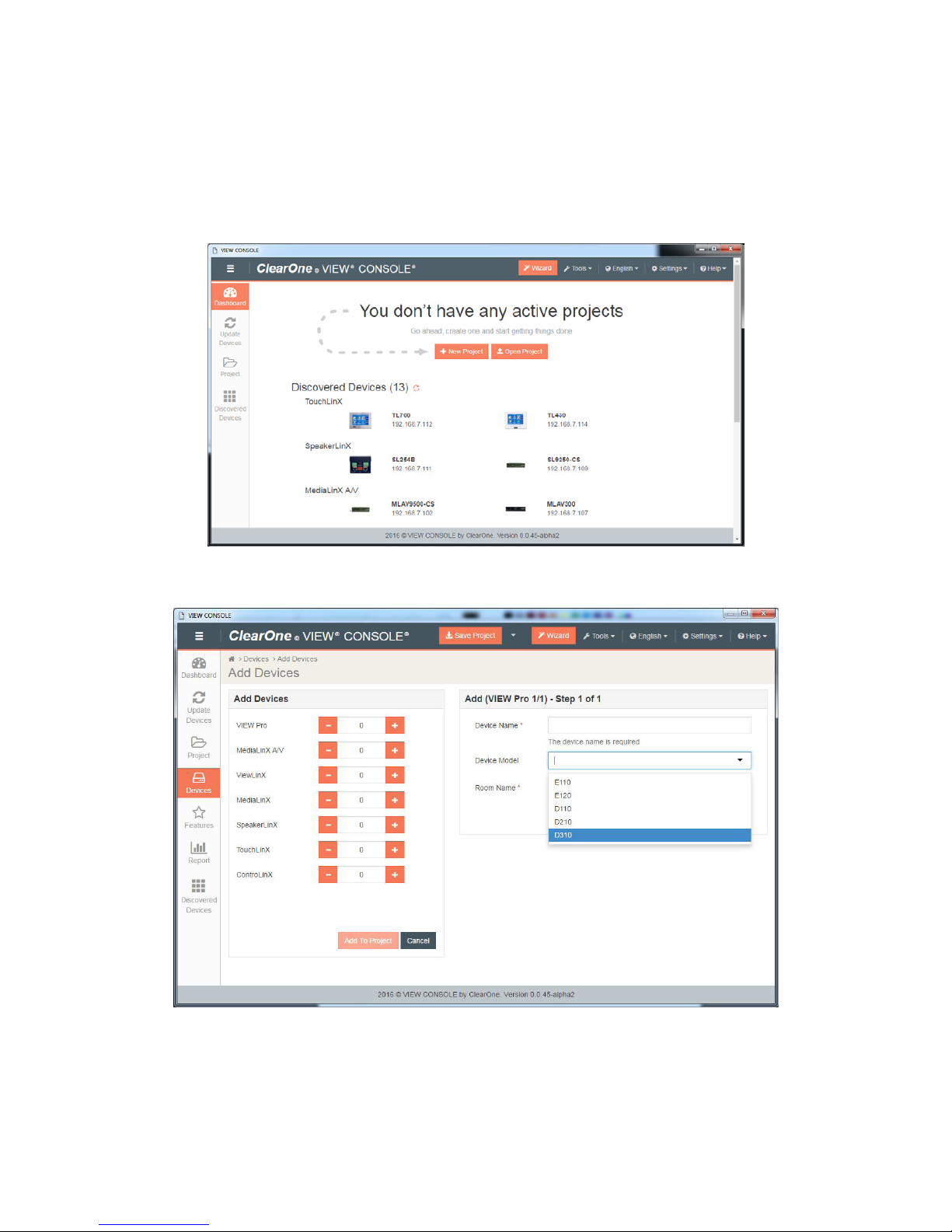

Create a New or Open an Existing Project

Add the VIEW Pro D310 to the Project
